Abstract
The utility model discloses a narrow-frame liquid crystal display module which comprises a display module, wherein the top and the bottom of the front surface of the display module are fixedly connected with a fixed plate, the front surface of the fixed plate is provided with a heat radiation fan, the top and the bottom of the front surface of the display module are fixedly connected with heat radiation fins on the back surface of the fixed plate, the inner sides of the heat radiation fins are provided with cooling ring tubes, the outer side of the fixed plate is fixedly connected with a connecting block, the outer side of the connecting block is fixedly connected with the display module, the front surface of the heat radiation fan is fixedly connected with a dust absorption paste, and two sides of the display module are fixedly connected with a protective frame plate. The narrow-frame liquid crystal display module can achieve the effect of rapid heat dissipation, and solves the problem that the conventional liquid crystal display module can generate a large amount of heat after long-time operation, and if the heat is not volatilized in time, the liquid crystal display module is easily damaged, so that the normal use of the liquid crystal display module is influenced.
Description
Technical Field
The utility model relates to the technical field of liquid crystal display, in particular to a narrow-frame liquid crystal display module.
Background
The liquid crystal display module is a display part of the liquid crystal television, but the existing liquid crystal display module can generate a large amount of heat after long-time operation, if the heat is not volatilized in time, the liquid crystal display module is easy to damage, and the normal use of the liquid crystal display module is influenced.
SUMMERY OF THE UTILITY MODEL
In order to solve the problems in the prior art, an object of the present invention is to provide a narrow-bezel liquid crystal display module, which has the advantage of fast heat dissipation, and solves the problem that the conventional liquid crystal display module generates a large amount of heat after long-time operation, and if the heat is not volatilized in time, the liquid crystal display module is easily damaged, thereby affecting the normal use of the liquid crystal display module.
In order to achieve the purpose, the utility model provides the following technical scheme: a narrow-frame liquid crystal display module comprises a display module, wherein a fixed plate is fixedly connected to the top and the bottom of the front of the display module, a heat radiation fan is arranged on the front of the fixed plate, heat radiation fins are fixedly connected to the top and the bottom of the front of the display module and positioned on the back of the fixed plate, cooling ring tubes are arranged on the inner sides of the heat radiation fins, a connecting block is fixedly connected to the outer side of the fixed plate, the outer side of the connecting block is fixedly connected with the display module, a dust absorption sticker is fixedly connected to the front of the heat radiation fan, protective frame plates are fixedly connected to the two sides of the display module, abutting rods are fixedly connected to the top and the bottom of the inner sides of the protective frame plates, a positioning plate is arranged on the front of the abutting rods, a protective plate is fixedly connected to the front of the protective frame plates, and convex blocks are fixedly connected to the outer sides of the protective frame plates, the top of the inner side of the protective frame plate is fixedly connected with an elliptical block, and the outer side of the elliptical block is fixedly connected with the abutting rod.
Preferably, the two sides of the front surface of the display module are fixedly connected with oval stickers, and the back surfaces of the oval stickers are fixedly connected with the display module.
Preferably, the top and the bottom of the back of the oval sticker are both fixedly connected with positioning blocks, and the back of each positioning block is fixedly connected with the display module.
Preferably, the heat dissipation holes are formed in two sides of the front face of the display module and are matched with the display module for use.
Preferably, the four corners of the front surface of the display module are provided with mounting holes, and the mounting holes are matched with the display module for use.
Preferably, the number of the bumps is ten, and the bumps are distributed equally.
Compared with the prior art, the utility model has the following beneficial effects:
1. the narrow-frame liquid crystal display module solves the problem that the conventional liquid crystal display module generates a large amount of heat after being operated for a long time, and the liquid crystal display module is easily damaged if the heat is not volatilized in time, so that the normal use of the liquid crystal display module is influenced.
2. According to the utility model, the display module is more stable through the arrangement of the oval sticker, and the safety of the display module is improved.
3. According to the utility model, the positioning block is arranged, so that the oval paster is more stable, and the phenomenon of offset of the oval paster is avoided.
4. According to the utility model, through the arrangement of the heat dissipation holes, the heat dissipation effect of the display module is better, and the heat dissipation efficiency is increased.
5. According to the utility model, the display module can be more conveniently installed through the arrangement of the installation holes, and the installation efficiency is increased.
Drawings

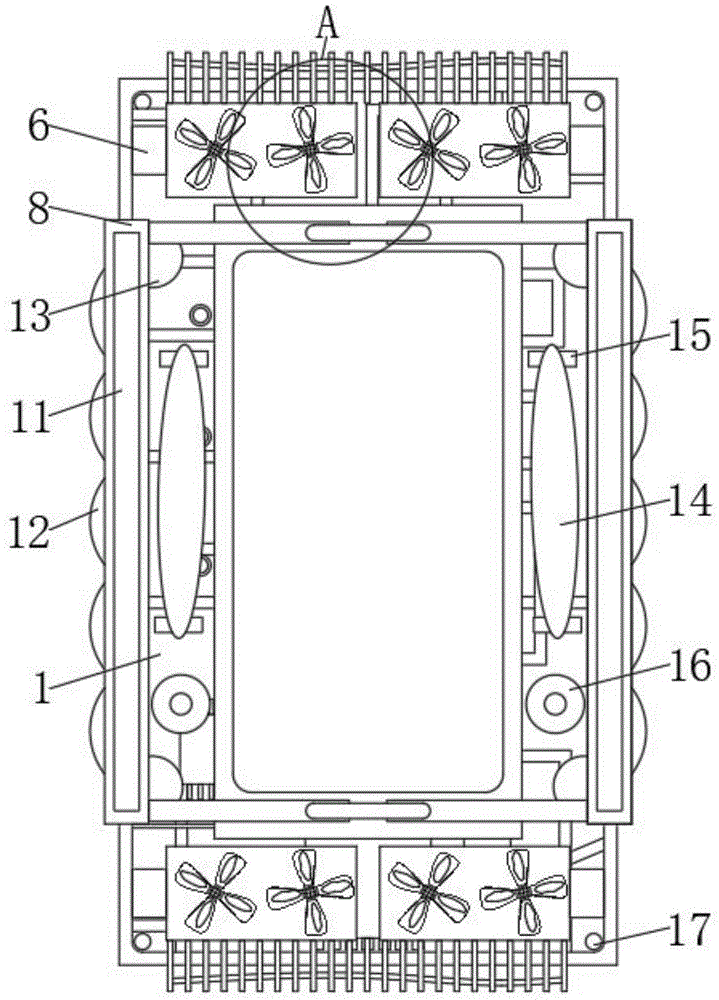

FIG. 1 is a schematic structural view of the present invention;
FIG. 2 is an enlarged structural view of the point A in FIG. 1;
fig. 3 is a perspective view of a partial structure of the present invention.
In the figure: 1. a display module; 2. a fixing plate; 3. a heat dissipation fan; 4. heat dissipation fins; 5. cooling the coil pipe; 6. connecting blocks; 7. a dust absorption patch; 8. a protective frame plate; 9. a support rod; 10. positioning a plate; 11. a protection plate; 12. a bump; 13. an elliptical block; 14. elliptic sticking; 15. positioning blocks; 16. heat dissipation holes; 17. and (7) installing holes.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
As shown in FIGS. 1 to 3, the utility model provides a narrow-frame liquid crystal display module, which comprises a display module 1, wherein a fixing plate 2 is fixedly connected to the top and the bottom of the front surface of the display module 1, a heat dissipation fan 3 is arranged on the front surface of the fixing plate 2, heat dissipation fins 4 are fixedly connected to the top and the bottom of the front surface of the display module 1 and the back surface of the fixing plate 2, cooling coil pipes 5 are arranged on the inner sides of the heat dissipation fins 4, a connecting block 6 is fixedly connected to the outer side of the fixing plate 2, the outer side of the connecting block 6 is fixedly connected to the display module 1, a dust absorption sticker 7 is fixedly connected to the front surface of the heat dissipation fan 3, protective frames 8 are fixedly connected to both sides of the display module 1, abutting rods 9 are fixedly connected to the top and the bottom of the inner side of the protective frames 8, a positioning plate 10 is arranged on the front surface of the abutting rods 9, a protection plate 11 is fixedly connected to the front surface of the protective frames 8, and a projection 12 is fixedly connected to the outer side of the protective plates 8, the top of the inner side of the protective frame plate 8 is fixedly connected with an elliptical block 13, and the outer side of the elliptical block 13 is fixedly connected with the abutting rod 9.
Referring to fig. 1, the two sides of the front surface of the display module 1 are fixedly connected with oval stickers 14, and the back surfaces of the oval stickers 14 are fixedly connected with the display module 1.
As a technical optimization scheme of the utility model, the display module 1 can be more stable through the arrangement of the oval sticker 14, and the safety of the display module 1 is improved.
Referring to fig. 1, the top and the bottom of the back of the oval sticker 14 are both fixedly connected with a positioning block 15, and the back of the positioning block 15 is fixedly connected with the display module 1.
As a technical optimization scheme of the utility model, the positioning block 15 is arranged, so that the oval sticker 14 is more stable, and the phenomenon that the oval sticker 14 deviates is avoided.
Referring to fig. 1, heat dissipation holes 16 are formed on both sides of the front surface of the display module 1, and the heat dissipation holes 16 are used in cooperation with the display module 1.
As a technical optimization scheme of the present invention, the heat dissipation holes 16 are arranged, so that the heat dissipation effect of the display module 1 is better, and the heat dissipation efficiency is increased.
Referring to fig. 1, mounting holes 17 are formed at four corners of the front surface of the display module 1, and the mounting holes 17 are used in cooperation with the display module 1.
As a technical optimization scheme of the utility model, the display module 1 can be more conveniently installed through the arrangement of the installation holes 17, and the installation efficiency is improved.
The working principle and the using process of the utility model are as follows: firstly, the user starts heat dissipation fan 3, and heat dissipation fan 3 volatilizes the heat on display module 1 surface, then cooperates heat radiation fins 4 and cooling ring pipe 5 with the heat cooling again, reaches quick radiating effect, then frames 8 frames in the outside of display module 1 with the protection plate, then will support the pole 9 through locating plate 10 and connect, then cooperates protection plate 11 and lug 12, reaches the effect of high-efficient protection.
In summary, the following steps: this narrow frame liquid crystal display module, through display module 1, fixed plate 2, heat dissipation fan 3, heat radiation fins 4, cooling ring pipe 5, connecting block 6, dust absorption subsides 7, protection deckle board 8, support pole 9, locating plate 10, protection shield 11, the cooperation of lug 12 and oval piece 13 is used, reach the effect that can dispel the heat fast, this narrow frame liquid crystal display module, it will produce a large amount of heats to have solved current liquid crystal display module after long-time operation, if volatilize these heats very easily and make the liquid crystal display module appear damaging the phenomenon untimely, the problem of its normal use has been influenced.
It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the utility model, the scope of which is defined in the appended claims and their equivalents.
Claims (6)
1. The utility model provides a narrow frame liquid crystal display module, includes display module (1), its characterized in that: the display module is characterized in that a fixed plate (2) is fixedly connected to the top and the bottom of the front of the display module (1), a heat dissipation fan (3) is arranged on the front of the fixed plate (2), heat dissipation fins (4) are fixedly connected to the top and the bottom of the front of the display module (1) and are located on the back of the fixed plate (2), cooling ring tubes (5) are arranged on the inner sides of the heat dissipation fins (4), a connecting block (6) is fixedly connected to the outer side of the fixed plate (2), the outer side of the connecting block (6) is fixedly connected with the display module (1), a dust absorption sticker (7) is fixedly connected to the front of the heat dissipation fan (3), protective frame plates (8) are fixedly connected to the two sides of the display module (1), supporting rods (9) are fixedly connected to the top and the bottom of the inner side of the protective frame plates (8), and positioning plates (10) are arranged on the front of the supporting rods (9), the protection frame plate is characterized in that a protection plate (11) is fixedly connected to the front side of the protection frame plate (8), a convex block (12) is fixedly connected to the outer side of the protection frame plate (8) in a fixed mode, an oval block (13) is fixedly connected to the top of the inner side of the protection frame plate (8), and the outer side of the oval block (13) is fixedly connected with the abutting rod (9).
2. The narrow-bezel liquid crystal display module of claim 1, wherein: the display module is characterized in that oval stickers (14) are fixedly connected to two sides of the front face of the display module (1), and the back faces of the oval stickers (14) are fixedly connected with the display module (1).
3. The narrow-bezel liquid crystal display module of claim 2, wherein: the top and the bottom of the back of the oval sticker (14) are fixedly connected with positioning blocks (15), and the back of each positioning block (15) is fixedly connected with the display module (1).
4. The narrow-bezel liquid crystal display module of claim 1, wherein: the display module is characterized in that heat dissipation holes (16) are formed in two sides of the front face of the display module (1), and the heat dissipation holes (16) are matched with the display module (1) for use.
5. The narrow-bezel liquid crystal display module of claim 1, wherein: mounting holes (17) have all been seted up in the positive four corners of display module assembly (1), mounting hole (17) cooperation display module assembly (1) use.
6. The narrow-bezel liquid crystal display module of claim 1, wherein: the number of the convex blocks (12) is ten, and the convex blocks are distributed equally.
