Abstract
本实用新型公开了一种气弹簧活塞杆加工送料装置，包括清洗箱，所述清洗箱一侧外壁设置有固定盖，所述清洗箱内设置有清洗液，所述清洗箱底部设置为坡状，所述清洗箱一侧外壁设置有上料机构，所述上料机构包括出料口、料斗和电动伸缩板，所述出料口设置于清洗箱一侧外壁，所述料斗设置于出料口一侧外壁。本实用新型通过设置有上料机构，工作人员将活塞杆放入到料斗内，由于料斗一侧内壁设置为坡状，使得料斗内所以活塞杆均可以滑落，由于电动伸缩板可以伸缩，使得电动伸缩板可以根据活塞杆外径尺寸，调节电动伸缩板一侧外壁和料斗一侧内壁之间的距离，使得整体装置可以适应不同尺寸的活塞杆上料，增加整体装置的使用范围。
The utility model discloses a gas spring piston rod processing and feeding device, which comprises a cleaning box, a fixed cover is arranged on an outer wall of one side of the cleaning box, a cleaning liquid is arranged in the cleaning box, and the bottom of the cleaning box is arranged in a slope shape , the outer wall of one side of the cleaning box is provided with a feeding mechanism, the feeding mechanism includes a discharge port, a hopper and an electric telescopic plate, the discharge port is arranged on the outer wall of one side of the cleaning box, and the hopper is arranged on the discharge port The outer wall of the mouth. The utility model is provided with a feeding mechanism, and the staff puts the piston rod into the hopper. Since the inner wall of one side of the hopper is set in a slope shape, the piston rod can slide down in the hopper. The telescopic plate can adjust the distance between the outer wall of the electric telescopic plate and the inner wall of the hopper according to the outer diameter of the piston rod, so that the whole device can adapt to the feeding of different sizes of piston rods and increase the use range of the whole device.
Description
Technical Field
The utility model relates to the technical field of piston rod feeding, in particular to a gas spring piston rod machining and feeding device.
Background
The gas spring is an industrial accessory which can play a role in supporting, buffering, braking, height adjustment, angle adjustment and the like, and mainly comprises a piston rod, a piston, a sealing guide sleeve, a filler, a pressure cylinder, a connector and the like, wherein the pressure cylinder is a closed cavity, inert gas or oil-gas mixture is filled in the pressure cylinder, and the pressure in the cavity is several times or dozens of times of the atmospheric pressure. When the gas spring acts, the piston rod moves by utilizing the pressure difference existing on the two sides of the piston. The air springs have different structures and types and are used for meeting different use requirements, compression type air springs are mainly used on engineering machinery, the air springs mainly play a supporting role, and only have the shortest working position and the longest working position and cannot be automatically stopped in a stroke.
The existing air spring piston rod processing and feeding device cannot perform independent feeding on the piston rod every time in the using process, so that the feeding quantity is large, the sequence is disordered, the use is inconvenient, the structure is complex, the operation is inconvenient, and the feeding effect on the piston rod is poor.
SUMMERY OF THE UTILITY MODEL
The utility model aims to solve the defects in the prior art, and provides a feeding device for machining a piston rod of a gas spring.
In order to achieve the purpose, the utility model adopts the following technical scheme:
the utility model provides an air spring piston rod processing material feeding unit, is including wasing the case, it is provided with fixed lid to wash case one side outer wall, it is provided with the washing liquid to wash the incasement, it sets up to the slope form to wash the bottom of the case portion, it is provided with feed mechanism to wash case one side outer wall, feed mechanism includes discharge gate, hopper and electric expansion plate, the discharge gate sets up in wasing case one side outer wall, the hopper sets up in discharge gate one side outer wall, electric expansion plate sets up in hopper one side outer wall, discharge gate bottom outer wall sets up to the slope form, hopper one side inner wall sets up to the slope form.
As a still further scheme of the utility model: the outer wall of one side of the cleaning box is provided with a first mounting groove, and the outer wall of one side of the mounting groove is provided with a conveying mechanism.
As a still further scheme of the utility model: transport mechanism includes motor two, running roller, driven shaft and belt, motor two sets up in mounting groove one side outer wall, two output shaft circumference outer walls of motor are provided with the action wheel, it has mounting groove two to wash case one side outer wall to open, the driven shaft sets up in two circumference inner walls of mounting groove, driven shaft and mounting groove two rotate to be connected, the running roller cup joints respectively in driving shaft and driven shaft circumference outer wall, the belt sets up in running roller circumference outer wall, belt one side outer wall is provided with the connecting plate more than two, the connecting plate is kept away from belt one side outer wall and is provided with the fortune silo, the relative both ends in fortune silo all are provided with the fixed block.
As a still further scheme of the utility model: and a clamping mechanism is arranged on the outer wall of one side of the fixed block.
As a still further scheme of the utility model: clamping mechanism includes splint, electric telescopic handle one and electric telescopic handle two, electric telescopic handle two sets up in fixed block one side outer wall, electric telescopic handle one sets up in two one sides outer walls of electric telescopic handle, splint set up in one side outer wall of electric telescopic handle, splint one side outer wall is provided with pressure sensor, it passes through bolted connection motor one to wash case one side outer wall, a motor output shaft circumference outer wall is provided with the movable rod, movable rod circumference outer wall has cup jointed the fly leaf.
As a still further scheme of the utility model: wash case one side outer wall and be provided with two above universal wheels, universal wheel one side outer wall is provided with fixed dog, washs case one side outer wall and is provided with operating keyboard, washs case one side outer wall and is provided with the observation window.
The utility model has the beneficial effects that:
1. through being provided with feed mechanism, the staff puts into the hopper with the piston rod in, because hopper one side inner wall sets up to the slope form for so the piston rod all can the landing in the hopper, because electric expansion plate can stretch out and draw back, make electric expansion plate can adjust the distance between electric expansion plate one side outer wall and hopper one side inner wall according to piston rod external diameter size, make the integrated device can adapt to not unidimensional piston rod material loading, increase the application range of integrated device.
2. Through being provided with the washing case, be used for depositing the washing liquid, make the piston rod at the in-process of carrying, can the immersion fluid wash, accomplish the piston rod and tentatively wash, alleviate staff intensity of labour, through being provided with transport mechanism, starter motor two, drive the driving shaft and rotate, and then drive the running roller and rotate, thereby make the belt rotate, make the connecting plate motion of being connected with the belt, make the conveying inslot piston rod can rotate, owing to be provided with clamping mechanism on the fly leaf of being connected with the conveying groove, press from both sides the piston rod through clamping mechanism and press from both sides tightly, prevent to have buoyancy in the washing liquid at the piston rod in the data send process, make the piston rod can't be stably in the conveying inslot.
3. Through being provided with clamping mechanism, be provided with electric telescopic handle two in clamping mechanism for the piston rod can be perpendicular to fixed block one side outer wall motion, and after the conveying was accomplished, through the motion of control electric telescopic handle two, the realization conveys the piston rod to the effect of fly leaf one side outer wall, makes things convenient for the staff to the collection of piston rod.
Drawings

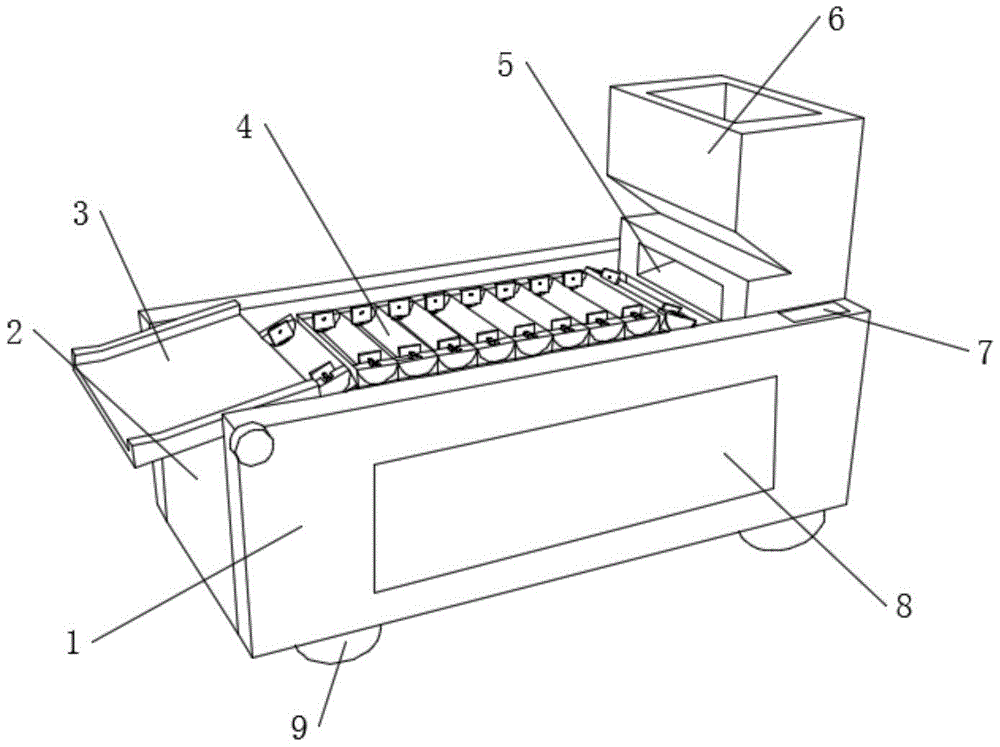

Fig. 1 is a schematic structural view of a gas spring piston rod processing and feeding device according to the present invention;
fig. 2 is a schematic top view of a gas spring piston rod processing and feeding device according to the present invention;
fig. 3 is a schematic structural view of a conveying mechanism of a gas spring piston rod processing and feeding device according to the present invention;
fig. 4 is a schematic structural view of a clamping mechanism of a gas spring piston rod processing and feeding device according to the present invention.
In the figure: 1 cleaning box, 2 fixed lids, 3 fly leaf, 4 fortune silo, 5 discharge gates, 6 hoppers, 7 operating keyboard, 8 observation windows, 9 universal wheels, 10 motor I, 11 running rollers, 12 electric telescopic plate, 13 fixed blocks, 14 driven shafts, 15 belts, 16 motor II, 17 connecting plates, 18 splint, 19 electric telescopic link I, 20 electric telescopic link II.
Detailed Description
The technical solution of the present patent will be described in further detail with reference to the following embodiments.
Reference will now be made in detail to embodiments of the present patent, examples of which are illustrated in the accompanying drawings, wherein like or similar reference numerals refer to the same or similar elements or elements having the same or similar function throughout. The embodiments described below with reference to the drawings are exemplary only for the purpose of explaining the present patent and are not to be construed as limiting the present patent.
In the description of this patent, it is to be understood that the terms "center," "upper," "lower," "front," "rear," "left," "right," "vertical," "horizontal," "top," "bottom," "inner," "outer," and the like are used in the orientations and positional relationships indicated in the drawings for the convenience of describing the patent and for the simplicity of description, and are not intended to indicate or imply that the referenced devices or elements must have a particular orientation, be constructed and operated in a particular orientation, and are not to be considered limiting of the patent.
In the description of this patent, it is noted that unless otherwise specifically stated or limited, the terms "mounted," "connected," and "disposed" are to be construed broadly and can include, for example, fixedly connected, disposed, detachably connected, disposed, or integrally connected and disposed. The specific meaning of the above terms in this patent may be understood by those of ordinary skill in the art as appropriate.
A feeding device for machining of a piston rod of an air spring is shown in figures 1 and 2 and comprises a cleaning box 1, wherein the outer wall of one side of the cleaning box 1 is connected with a fixed cover 2 through a hinge, cleaning liquid is arranged in the cleaning box 1, the bottom of the cleaning box 1 is arranged in a slope shape, the outer wall of one side of the cleaning box 1 is connected with a feeding mechanism through a bolt, the feeding mechanism comprises a discharging port 5, a hopper 6 and an electric expansion plate 12, the discharging port 5 is connected to the outer wall of one side of the cleaning box 1 through a bolt, the hopper 6 is connected to the outer wall of one side of the discharging port 5 through a bolt, the electric expansion plate 12 is connected to the outer wall of one side of the hopper 6 through a bolt, the outer wall of the bottom of the discharging port 5 is arranged in a slope shape, and the inner wall of one side of the hopper 6 is arranged in a slope shape; through being provided with feed mechanism, the staff puts into hopper 6 with the piston rod in, because hopper 6 one side inner wall sets up to the slope form, so the piston rod all can the landing in making hopper 6, because electric expansion plate 12 can stretch out and draw back, make electric expansion plate 12 can be according to piston rod external diameter, adjust the distance between 12 one side outer wall of electric expansion plate and 6 one side inner walls of hopper, make the integrated device can adapt to not unidimensional piston rod material loading, increase the application range of integrated device, through being provided with washing case 1, be used for depositing the washing liquid, make the piston rod at the in-process of carrying, can the immersion fluid wash, accomplish the piston rod and wash preliminarily, alleviate staff intensity of labour.
In order to achieve transport of the piston rod; as shown in fig. 1, 2, 3 and 4, the outer wall of one side of the cleaning box 1 is provided with a first mounting groove, the outer wall of one side of the mounting groove is connected with a transmission mechanism through a bolt, the transmission mechanism comprises a second motor 16, a roller 11, a driven shaft 14 and a belt 15, the second motor 16 is connected with the outer wall of one side of the mounting groove through a bolt, the circumferential outer wall of the output shaft of the second motor 16 is connected with a driving wheel through a bolt, the outer wall of one side of the cleaning box 1 is provided with a second mounting groove, the driven shaft 14 is arranged on the circumferential inner wall of the second mounting groove, the driven shaft 14 is rotatably connected with the second mounting groove, the roller 11 is respectively sleeved on the circumferential outer walls of the driving shaft and the driven shaft 14, the belt 15 is arranged on the circumferential outer wall of the roller 11, the outer wall of one side of the belt 15 is connected with more than two connecting plates 17 through hinges, the outer wall of one side of the connecting plates 17 far away from the belt 15 is connected with a material conveying groove 4 through a hinge, and the opposite two ends of the material conveying groove 4 are connected with fixed blocks 13 through bolts, the outer wall of one side of the fixed block 13 is connected with a clamping mechanism through a bolt, the clamping mechanism comprises a clamping plate 18, a first electric telescopic rod 19 and a second electric telescopic rod 20, the second electric telescopic rod 20 is connected to the outer wall of one side of the fixed block 13 through a bolt, the first electric telescopic rod 19 is connected to the outer wall of one side of the second electric telescopic rod 20 through a bolt, the clamping plate 18 is connected to the outer wall of one side of the first electric telescopic rod 19 through a bolt, the outer wall of one side of the clamping plate 18 is provided with a pressure sensor, the outer wall of one side of the cleaning box 1 is connected with a first motor 10 through a bolt, the circumferential outer wall of an output shaft of the first motor 10 is connected with a movable rod through a coupler, and the circumferential outer wall of the movable rod is sleeved with a movable plate 3; through being provided with transport mechanism, starter motor two 16, drive the driving shaft and rotate, and then drive running roller 11 and rotate, thereby make belt 15 rotate, make the connecting plate 17 motion of being connected with belt 15, make fortune silo 4 internal piston rod can rotate, owing to be provided with clamping mechanism on the fly leaf 3 of being connected with fortune silo 4, press from both sides the piston rod through clamping mechanism and press from both sides tightly, prevent in the data send process because the piston rod has buoyancy in the washing liquid, make the piston rod can't be stably in fortune silo 4, be provided with electric telescopic handle two 20 simultaneously in clamping mechanism, make the piston rod can be perpendicular to fixed block 13 one side outer wall motion, after the conveying is accomplished, through the motion of control electric telescopic handle two 20, realize conveying the effect of fly leaf 3 one side outer walls with the piston rod, make things convenient for the collection of staff to the piston rod.
To facilitate movement of the overall device; as shown in fig. 1, the outer wall of one side of the cleaning box 1 is connected with more than two universal wheels 9 through bolts, the outer wall of one side of each universal wheel 9 is provided with a fixed stop block, the outer wall of one side of the cleaning box 1 is connected with an operating keyboard 7 through bolts, and the outer wall of one side of the cleaning box 1 is connected with an observation window 8 through bolts; through being provided with observation window 8, make things convenient for the staff to look over and wash 1 inside behavior of case, through being provided with universal wheel 9, be provided with fixed dog on universal wheel 9, when needs remove the integrated device, pull fixed dog for universal wheel 9 can rotate, promote the integrated device will, the integrated device transports suitable position, when needs fix the integrated device, directly pulls back original definite position with fixed dog, realizes the fixed of integrated device.
When the feeding device is used, firstly, the whole device is conveyed to a proper position, a proper amount of cleaning liquid is poured into the cleaning box 1, then the piston rod is placed into the hopper 6, the length of the electric expansion plate 12 is controlled, the piston rod can enter the discharge port 5 through the electric expansion plate 12 and enter the material conveying groove 4 through the discharge port 5, the piston rod is clamped through the clamping mechanism, the piston rod is preliminarily cleaned through the cleaning liquid in the conveying process, and after the piston rod is conveyed to the proper position, the electric expansion rod 20 is started to convey the piston rod to the movable plate 3, so that the feeding process of the whole device is completed.
The above description is only for the preferred embodiment of the present invention, but the scope of the present invention is not limited thereto, and any person skilled in the art should be considered to be within the technical scope of the present invention, and equivalent alternatives or modifications according to the technical solution of the present invention and the inventive concept thereof should be covered by the scope of the present invention.
Claims (6)
1. The utility model provides an air spring piston rod processing material feeding unit, is including wasing case (1), its characterized in that, it is provided with fixed lid (2) to wash case (1) one side outer wall, be provided with the washing liquid in wasing case (1), it sets up to the slope form to wash case (1) bottom, it is provided with feed mechanism to wash case (1) one side outer wall, feed mechanism includes discharge gate (5), hopper (6) and electric expansion plate (12), discharge gate (5) set up in wasing case (1) one side outer wall, hopper (6) set up in discharge gate (5) one side outer wall, electric expansion plate (12) set up in hopper (6) one side outer wall, discharge gate (5) bottom outer wall sets up to the slope form, hopper (6) one side inner wall sets up to the slope form.
2. The feeding device for machining of the gas spring piston rod as claimed in claim 1, wherein a first installation groove is formed in the outer wall of one side of the cleaning box (1), and a conveying mechanism is arranged on the outer wall of one side of the installation groove.
3. The air spring piston rod machining feeding device as claimed in claim 2, wherein the conveying mechanism comprises a second motor (16), a roller (11), a driven shaft (14) and a belt (15), the second motor (16) is arranged on the outer wall of one side of the installation groove, the outer wall of the circumference of the output shaft of the second motor (16) is provided with a driving wheel, the outer wall of one side of the cleaning box (1) is provided with the second installation groove, the driven shaft (14) is arranged on the inner wall of the circumference of the second installation groove, the driven shaft (14) is rotatably connected with the second installation groove, the roller (11) is respectively sleeved on the outer walls of the circumferences of the driving shaft and the driven shaft (14), the belt (15) is arranged on the outer wall of the circumference of the roller (11), the outer wall of one side of the belt (15) is provided with more than two connecting plates (17), and the outer wall of one side, far away from the belt (15), of the connecting plates (17) is provided with a material conveying groove (4), and fixed blocks (13) are arranged at the two opposite ends of the material conveying groove (4).
4. A gas spring piston rod machining feeding device according to claim 3, characterized in that a clamping mechanism is arranged on the outer wall of one side of the fixing block (13).
5. The air spring piston rod machining feeding device as claimed in claim 4, wherein the clamping mechanism comprises a clamping plate (18), a first electric telescopic rod (19) and a second electric telescopic rod (20), the second electric telescopic rod (20) is arranged on the outer wall of one side of the fixed block (13), the first electric telescopic rod (19) is arranged on the outer wall of one side of the second electric telescopic rod (20), the clamping plate (18) is arranged on the outer wall of one side of the first electric telescopic rod (19), a pressure sensor is arranged on the outer wall of one side of the clamping plate (18), the outer wall of one side of the cleaning box (1) is connected with the first motor (10) through a bolt, a movable rod is arranged on the outer wall of the circumference of the output shaft of the first motor (10), and a movable plate (3) is sleeved on the outer wall of the circumference of the movable rod.
6. The feeding device for machining of the piston rod of the gas spring as claimed in claim 1, wherein the outer wall of one side of the cleaning box (1) is provided with more than two universal wheels (9), the outer wall of one side of each universal wheel (9) is provided with a fixed stop block, the outer wall of one side of the cleaning box (1) is provided with an operating keyboard (7), and the outer wall of one side of the cleaning box (1) is provided with an observation window (8).
