Abstract
本实用新型涉及鸡饲料加工技术领域，具体为鸡场饲料加工装置，包括加工釜、盖板、送料斗和移动组件，加工釜的上端设置有送料口，送料口的内侧固定有固定杆，固定杆贯穿盖板的中间，盖板罩在送料口的外侧，加工釜的侧端滑动连接有两个支架，两个支架上端的内侧面固定有长杆，长杆贯穿送料斗的下表面的外侧端，送料斗的下表面的内侧端铰接有液压杆，液压杆的外侧设置有固定板，送料斗的内侧面设置有移动组件，支架的下端的内侧面轴承连接有转轴，转轴上套有齿轮，齿轮的内侧面啮合连接在加工釜的侧端设置的锯齿上，通过可上下移动的送料斗，方便对较高的加工釜进行加料，送料斗向下倾斜时通过固定架推动盖板旋转，方便加料。
The utility model relates to the technical field of chicken feed processing, in particular to a chicken farm feed processing device, comprising a processing kettle, a cover plate, a feeding hopper and a moving component. The rod runs through the middle of the cover plate, and the cover plate covers the outside of the feeding port. The side ends of the processing kettle are slidably connected with two brackets. The inner sides of the upper ends of the two brackets are fixed with a long rod, which runs through the outer side of the lower surface of the feeding hopper. The inner side of the lower surface of the feeding hopper is hinged with a hydraulic rod, the outer side of the hydraulic rod is provided with a fixed plate, the inner side of the feeding hopper is provided with a moving component, the inner side bearing of the lower end of the bracket is connected with a rotating shaft, and a gear is sleeved on the rotating shaft The inner side of the gear is meshed and connected to the sawtooth set on the side end of the processing kettle. The feeding hopper that can move up and down is convenient for feeding the higher processing kettle. When the feeding hopper is inclined downward, the cover plate is rotated by the fixed frame. Easy to add.
Description
Technical Field
The utility model relates to the technical field of chicken feed processing, in particular to a chicken house feed processing device.
Background
The feed is a general term of food of animals raised by all people, when workers need to add raw materials into equipment, the feed hopper is higher in position, the feed is granular raw materials, so that the workers are very difficult and low in efficiency in the process of adding the feed, certain manpower and material resources are wasted, and a large amount of dust generated by the materials in the equipment in the working process after feeding can fly out to influence the physical health of the workers.
Disclosure of Invention
The utility model aims to provide a chicken house feed processing device to solve the problems in the background technology.
In order to achieve the purpose, the utility model provides the following technical scheme: chicken farm feed processing device, including processing cauldron, apron, feeding funnel and removal subassembly, the upper end of processing cauldron is provided with the pay-off mouth, the inboard of pay-off mouth is fixed with the dead lever, the dead lever runs through the centre of apron, the apron cover is in the outside of pay-off mouth, the side sliding connection of processing cauldron has two supports, the medial surface of two support upper ends is fixed with the stock, the stock runs through the outside end of the lower surface of feeding funnel, the medial extremity of the lower surface of feeding funnel articulates there is the hydraulic stem, the outside of hydraulic stem is provided with the fixed plate, the medial surface of feeding funnel is provided with the removal subassembly, the medial surface bearing of the lower extreme of support is connected with the pivot, the cover has the gear in the pivot, the medial surface meshing of gear is connected on the sawtooth of the side setting of processing cauldron.
Preferably, the cross-section of the support is T-shaped, a sliding block is not fixed on the inner side of a vertical rod of the support, and the sliding block is slidably connected in sliding grooves formed in two sides of the processing kettle.
Preferably, the outer side of the lower surface of the hopper is provided with an arc-shaped bulge, a round hole formed in the middle of the bulge is sleeved on the outer side of the long rod, two fixing blocks are fixed on two sides of the middle of the inner side end of the lower surface of the hopper, a round rod penetrates through the middle of each fixing block, and the middle of each round rod penetrates through the upper end of the hydraulic rod.
Preferably, the moving assembly comprises a fixed frame, a spring and a T-shaped rod, the fixed frame is in an inverted L shape, the inclined height of the fixed frame is arranged on the upper surface of the feeding port, the inner side end of the fixed frame is provided with a square hole, the width of the inner cavity of the square hole is larger than that of the square hole, and the spring is arranged in the inner cavity of the square hole.
Preferably, a T-shaped rod penetrates through the middle of the spring, one end of the spring is fixed at the bottom of the inner cavity of the square hole, the other end of the spring is fixed on the rod body of the T-shaped rod, a cross rod at the upper end of the T-shaped rod is inclined, the cross rod at the upper end of the T-shaped rod abuts against the inner side surface of the hopper, and the lower end of the T-shaped rod abuts against the outer side surface of the cover plate.
Preferably, the end of the rotating shaft penetrating through the supports is provided with a motor, the two fixed gears on the rotating shaft are symmetrically distributed, and the two ends of the fixing plate are fixed on the inner side surfaces of the two supports.
Compared with the prior art, the utility model has the beneficial effects that:
1. the feeding hopper capable of moving up and down is convenient for feeding a higher processing kettle, the long rod penetrating through the rear end of the feeding hopper is convenient for the feeding hopper to rotate, and the feeding hopper is telescopic through the hydraulic rod to conveniently discharge materials;
2. promote the mount when the hopper downward sloping, the lower extreme of mount promotes the apron and rotates to conveniently send the material in the hopper into the inner chamber of processing cauldron, when the hopper recovers the level, through the elasticity convenience mount reconversion of spring, be convenient for promote the apron many times and rotate.
Drawings

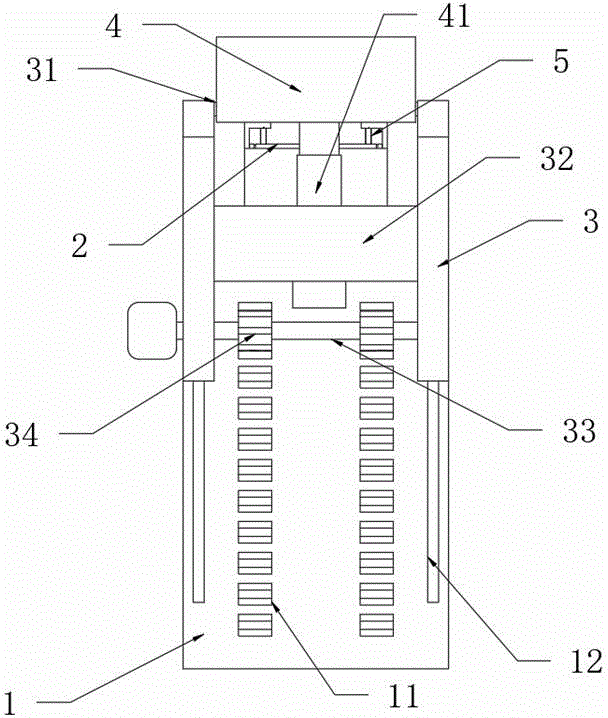

FIG. 1 is a perspective view of the present invention;
FIG. 2 is a three-dimensional view of the present invention;
FIG. 3 is a three-dimensional view of the cover plate of the present invention after rotation;
fig. 4 is an exploded three-dimensional view of the present invention.
In the figure: 1. a processing kettle; 11. saw teeth; 12. a chute; 2. a cover plate; 21. fixing the rod; 3. a support; 31. a long rod; 32. a fixing plate; 33. a rotating shaft; 34. a gear; 35. a slider; 4. a hopper; 41. a hydraulic lever; 5. a moving assembly; 51. a fixed mount; 52. a square hole; 53. a spring; 54. t-shaped rods.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
Referring to fig. 1 to 4, the present invention provides a technical solution: a chicken farm feed processing device comprises a processing kettle 1, a cover plate 2, a feeding hopper 4 and a moving assembly 5, wherein a feeding port is formed in the upper end of the processing kettle 1, a fixing rod 21 is fixed on the inner side of the feeding port, the fixing rod 21 penetrates through the middle of the cover plate 2, the cover plate 2 covers the outer side of the feeding port, the cover plate 2 is convenient to rotate, the raised dust generated in the working process of an inner cavity of the processing kettle 1 is convenient to shield after feeding, two supports 3 are slidably connected to the side end of the processing kettle 1, the cross section of each support 3 is T-shaped, sliders 35 are fixedly arranged on the inner sides of vertical rods of the supports 3 in a non-sliding mode, the sliders 35 are slidably connected into sliding grooves 12 formed in two sides of the processing kettle 1, the supports 3 are convenient to fix and move up and down, a rotating shaft 33 is connected to an inner side bearing at the lower end of each support 3, a gear 34 is sleeved on the rotating shaft 33, inner side surfaces of the gear 34 are meshed and connected to sawteeth 11 arranged at the side end of the processing kettle 1, one end of the rotating shaft 33 penetrates through the end of each support 3 and is provided with a motor, two fixed gears 34 on the pivot 33 are the symmetric distribution, and the medial surface of two support 3 upper ends is fixed with stock 31, and stock 31 runs through the outside end of the lower surface of hopper 4, through the start-up of motor, drives the rotation of gear 34 to drive two supports 3 and reciprocate in the outside of sawtooth 11, drive hopper 4 through moving support 3 and remove, the convenience is reinforced to the inner chamber of processing cauldron 1.
The outer side of the lower surface of the hopper 4 is provided with an arc-shaped bulge, a round hole formed in the middle of the bulge is sleeved on the outer side of the long rod 31, the hopper 4 is convenient to rotate, the inner side end of the lower surface of the hopper 4 is hinged with a hydraulic rod 41, two fixing blocks are fixed on two sides of the middle of the inner side end of the lower surface of the hopper 4, a round rod penetrates through the middle of each fixing block, the middle of each round rod penetrates through the upper end of the hydraulic rod 41 and is hinged to the lower end of the hopper 4 through the hydraulic rod 41, the hopper 4 is convenient to drive to rotate by taking the long rod 31 as a rotating shaft through the expansion and contraction of the hydraulic rod 41, the hopper 4 is convenient to unload, a fixing plate 32 is arranged on the outer side of the hydraulic rod 41, two ends of the fixing plate 32 are fixed on the inner side surfaces of the two supports 3, a moving assembly 5 is convenient to be arranged on the inner side surface supporting the hopper 4 of the hydraulic rod 41, and the cover plate 2 is convenient to rotate through the moving assembly 5 when the hopper 4 unloads, thereby facilitating the feeding of the processing kettle 1, the moving component 5 comprises a fixed frame 51, a spring 53 and a T-shaped rod 54, the fixed frame 51 is in an inverted L shape, the inclined height of the fixed frame 51 is on the upper surface of the feeding port, the inner side end of the fixed frame 51 is provided with a square hole 52 with an inner cavity width larger than that of the square hole 52, the spring 53 is arranged in the inner cavity of the square hole 52, the T-shaped rod 54 penetrates through the middle of the spring 53 to facilitate the movement of the T-shaped rod 54, one end of the spring 53 is fixed at the bottom of the inner cavity of the square hole 52, the other end of the spring 53 is fixed on the rod body of the T-shaped rod 54, the cross rod at the upper end of the T-shaped rod 54 is in an inclined shape, the cross rod at the upper end of the T-shaped rod 54 is abutted against the inner side surface of the feeding hopper 4, the lower end of the T-shaped rod 54 is abutted against the outer side surface of the cover plate 2, when the feeding hopper 4 is inclined inwards, the T-shaped rod 54 is driven to move towards the cover plate 2 along the square hole 52, thereby opening the feeding port, after feeding is finished, the feeding hopper 4 is restored to be horizontal, the T-shaped rod 54 is restored to be original through the elasticity of the spring 53, so that the feeding port is closed through the cover plate 2, flying-out of dust is reduced, and the cover plate 2 is convenient to push for many times to rotate.
The working principle is as follows: when in use, the two sides of the side surface of the processing kettle 1 are provided with sliding grooves 12, the sliding blocks 35 fixed at the lower ends of the inner side surfaces of the two brackets 3 are slidably connected in the sliding grooves 12, so that the brackets 3 can move up and down conveniently, the rotating shaft 33 is connected with the lower part of the inner side ends of the two brackets 3 through the bearing below the inner side ends of the two brackets 3, the two gears 34 are fixed on the rotating shaft 33, the gears 34 are meshed with the two saw teeth 11 arranged at the side surface of the processing kettle 1, the gear 34 is driven to rotate by starting the motor arranged at the outer side end of the rotating shaft 33, so that the two brackets 3 are driven to move up and down at the outer side of the saw teeth 11, the inner cavity of the processing kettle 1 is convenient to feed by moving the brackets 3, a long rod 31 is fixed between the upper ends of the two brackets 3, the long rod 31 is hinged below the outer side end of the feeding hopper 4, so that the feeding hopper 4 convenient to incline pours materials into a feeding port of the processing kettle 1, a round rod penetrates through a fixed block fixed below the front end of the hopper 4, the middle of the round rod penetrates through the upper end of a hydraulic rod 41, the hydraulic rod 41 is supported by a fixed plate 32 fixed between two brackets 3, the hydraulic rod 41 is driven to stretch by a hydraulic cylinder arranged at the lower end of the hydraulic rod 41 so as to drive the front end of the hopper 4 to rotate up and down, when the brackets 3 are positioned below and the hopper 4 rotates, feeding is facilitated in an upper inner cavity of the hopper 4 through the support of the hydraulic rod 41 and a long rod 31, when the brackets 3 are positioned above and the hopper 4 rotates downwards, the hopper 4 is facilitated to feed materials to a feeding port of the processing kettle 1, the conveying of the materials is facilitated through the hopper 4, a cover plate 2 is arranged at the upper end of the feeding port of the processing kettle 1, two ends of a fixed rod 21 penetrating through the middle of the cover plate 2 are fixed on the inner side wall of the feeding port, the rotation of the cover plate 2 is facilitated, the dust generated during the operation of the inner cavity of the processing kettle 1 is conveniently shielded after feeding, the two sides of the upper end of the feeding port are fixedly provided with the moving components 5, when the feeding hopper 4 inclines towards the feeding port for feeding, the side wall of the feeding hopper 4 presses on the surface of the moving components 5 to push the cover plate 2 to rotate, the materials are conveniently fed into the inner cavity of the processing kettle 1, the fixing frame 51 is obliquely fixed at the upper end of the feeding port, the T-shaped rod 54 penetrates through the square hole 52 formed in the inner side of the fixing frame 51, the upper end of the T-shaped rod 54 is abutted against the side surface of the feeding hopper 4, the lower end of the T-shaped rod 54 is abutted against the side end of the upper surface of the cover plate 2, the spring 53 arranged in the inner cavity of the square hole 52 is wound on the rod body of the T-shaped rod 54, when the feeding hopper 4 inclines towards the inner side, the T-shaped rod 54 is driven to move towards the cover plate 2 along the inclination direction of the fixing frame 51, so that the feeding port is opened by rotating the cover plate 2, convenient pay-off, the pay-off is accomplished, and hopper 4 recovers the level, and T-shaped pole 54 passes through the elasticity reconversion of spring 53 to close the pay-off mouth through apron 2, reduce the departure of dust, be convenient for promote apron 2 many times and rotate.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the utility model, the scope of which is defined in the appended claims and their equivalents.
Claims (6)
1. The utility model provides a chicken farm feed processing device, includes processing cauldron (1), apron (2), hopper (4) and removal subassembly (5), the upper end of processing cauldron (1) is provided with the pay-off mouth, and the inboard of pay-off mouth is fixed with dead lever (21), its characterized in that: the fixed rod (21) penetrates through the middle of the cover plate (2), the cover plate (2) covers the outer side of the feeding port, the side end of the processing kettle (1) is slidably connected with two supports (3), long rods (31) are fixed on the inner side faces of the upper ends of the two supports (3), the long rods (31) penetrate through the outer side ends of the lower surfaces of the hoppers (4), hydraulic rods (41) are hinged to the inner side ends of the lower surfaces of the hoppers (4), fixing plates (32) are arranged on the outer sides of the hydraulic rods (41), moving assemblies (5) are arranged on the inner side faces of the hoppers (4), rotating shafts (33) are connected to inner side face bearings of the lower ends of the supports (3), gears (34) are sleeved on the rotating shafts (33), and the inner side faces of the gears (34) are meshed and connected to saw teeth (11) arranged on the side ends of the processing kettle (1).
2. The chicken house feed processing device of claim 1, wherein: the cross-section of support (3) is the T font, and the inboard of the montant of support (3) exempts from to be fixed with slider (35), and slider (35) sliding connection is in the spout (12) that the both sides of processing cauldron (1) were seted up.
3. The chicken house feed processing device of claim 1, wherein: the outside of the lower surface of the hopper (4) is provided with an arc-shaped bulge, a round hole formed in the middle of the bulge is sleeved on the outside of the long rod (31), two fixing blocks are fixed on two sides of the middle of the inner side end of the lower surface of the hopper (4), a round rod penetrates through the middle of each fixing block, and the upper end of the hydraulic rod (41) penetrates through the middle of each round rod.
4. The chicken house feed processing device of claim 1, wherein: the moving assembly (5) comprises a fixed frame (51), a spring (53) and a T-shaped rod (54), the fixed frame (51) is inverted L-shaped, the inclined height of the fixed frame (51) is arranged on the upper surface of the feeding port, the inner side end of the fixed frame (51) is provided with a square hole (52) with an inner cavity width larger than that of the square hole, and the spring (53) is arranged in the inner cavity of the square hole (52).
5. The chicken house feed processing device of claim 4, wherein: a T-shaped rod (54) penetrates through the middle of the spring (53), one end of the spring (53) is fixed to the bottom of an inner cavity of the square hole (52), the other end of the spring (53) is fixed to the rod body of the T-shaped rod (54), a cross rod at the upper end of the T-shaped rod (54) is inclined, the cross rod at the upper end of the T-shaped rod (54) abuts against the inner side face of the hopper (4), and the lower end of the T-shaped rod (54) abuts against the outer side face of the cover plate (2).
6. The chicken house feed processing device of claim 1, wherein: the tip that support (3) were run through to the one end of pivot (33) is provided with the motor, and two fixed gears (34) on pivot (33) are the symmetric distribution, and the medial surface at two supports (3) is fixed at the both ends of fixed plate (32).
