CN216174631U - Belt cleaning device is used in medicinal material processing

Info

Publication number: CN216174631U
Application number: CN202122353699.8U
Authority: CN
Inventors: 杜金亮
Original assignee: Individual
Current assignee: Zhuoni County Jiufeng Ecological Pharmaceutical Co ltd
Priority date: 2021-09-27
Filing date: 2021-09-27
Publication date: 2022-04-05
Anticipated expiration: 2031-09-27

Abstract

The utility model relates to the technical field of medicinal material processing, and discloses a cleaning device for medicinal material processing, which comprises a bottom plate, wherein the top of the bottom plate is fixedly connected with the bottom of a cleaning bin, one end inside the cleaning bin is fixedly connected with one end of a fixed ring, the other end of the fixed ring is rotatably connected with one end of a rotating bin, the other end of the rotating bin is fixedly connected with one end of a power gear, and one side of the outer surface of the power gear is meshed with one side of the outer surface of a driven gear. This belt cleaning device is used in medicinal material processing, it rotates to drive rotatory storehouse through motor power, can accelerate the flow of water to erode the medicinal material surface, it is gentle and the cleaning performance is good to have reached the cleaning mode, can avoid the medicinal material to produce the damage at the cleaning process, and the cleaning efficiency is high, wash even thorough effect, it is comparatively simple to have solved current belt cleaning device for medicinal material processing, lead to the medicinal material damage easily, cause the damage to the quality of medicinal material, abluent inefficiency, the cleaning performance is poor, wash not enough even thorough problem.

Description

Belt cleaning device is used in medicinal material processing

Technical Field

The utility model relates to the technical field of medicinal material processing, in particular to a cleaning device for medicinal material processing.

Background

The traditional Chinese medicine is a traditional Chinese medicinal material, has long-flowing and extensive Chinese medicinal culture source and great spirit, is an important component of Chinese excellent culture, and is required to be cleaned in the processing process of the medicinal material so as to remove dirt such as soil carried during the collection of the medicinal material.

Present belt cleaning device for medicinal material processing is comparatively simple, leads to the medicinal material to damage easily, causes the damage to the quality of medicinal material, and abluent inefficiency, the cleaning performance is poor, washs thoroughly evenly inadequately, and directly discharges to the sewage after the washing, causes certain pollution, both wastes time and energy, has wasted the water resource, has very big influence scheduling problem to the environment in addition.

SUMMERY OF THE UTILITY MODEL

Technical problem to be solved

Aiming at the defects of the prior art, the utility model provides a cleaning device for processing medicinal materials, which has the advantages of mild cleaning mode, good cleaning effect, capability of avoiding damage of the medicinal materials in the cleaning process, ensuring the production quality of the medicinal materials, light structure, simple operation, high cleaning efficiency, uniform and thorough cleaning, capability of recycling the cleaned sewage and the like, and solves the problems that the existing cleaning device for processing the medicinal materials is simple, the medicinal materials are easily damaged, the quality of the medicinal materials is damaged, the cleaning efficiency is low, the cleaning effect is poor, the cleaning is not uniform and thorough enough, the cleaned sewage is directly discharged, certain pollution is caused, time and labor are wasted, water resources are wasted, and the environment is greatly influenced.

(II) technical scheme

In order to realize the effects that the cleaning mode is gentle and good in cleaning effect, the damage of medicinal materials in the cleaning process can be avoided, the production quality of the medicinal materials is ensured, the device is light in structure, simple to operate, high in cleaning efficiency, uniform and thorough in cleaning and capable of recycling the cleaned sewage, the utility model provides the following technical scheme: the utility model provides a belt cleaning device is used in medicinal material processing, includes the bottom plate, the top of bottom plate and the bottom fixed connection who washs the storehouse, the inside one end in washing storehouse and the one end fixed connection of fixed ring, the other end of fixed ring rotates with the one end in rotatory storehouse to be connected, the other end and the power gear one end fixed connection in rotatory storehouse, one side of power gear surface meshes with one side of driven gear surface, driven gear's axle center department and motor power's output fixed connection.

The top in washing storehouse and the bottom fixed connection that sprays the case, the other end that sprays the case and the one end fixed connection of first water pipe, the other end of first water pipe and the one end fixed connection of three-way pipe, the other end of three-way pipe and the one end fixed connection of second water pipe, the fixed surface of second water pipe installs the suction pump, the bottom in washing storehouse and filter equipment's one end sliding connection.

Preferably, one end of the cleaning bin is fixedly provided with a sealing door, the other end of the cleaning bin is fixedly provided with two air interchangers.

Preferably, the outer surface of the rotary bin is provided with a movable door, the inner surface of the rotary bin is fixedly provided with a plurality of material mixing strips, and the length of each material mixing strip is matched with the size of the rotary bin.

Preferably, the other end of the three-way pipe is fixedly connected with one end of a third water pipe, and a plurality of cleaning nozzles are fixedly mounted on the outer surface of the third water pipe.

Preferably, the bottom of the water suction pump is fixedly provided with a water collecting tank, one end of the second water pipe penetrates through the water collecting tank, and the water collecting tank is fixedly provided with a water inlet at one end close to the water suction pump.

Preferably, one end of the filter device is fixedly provided with a drawing handle, the filter layers are fixedly arranged in the filter device, and the number of the filter layers is three.

(III) advantageous effects

Compared with the prior art, the utility model provides a cleaning device for medicinal material processing, which has the following beneficial effects:

1. this belt cleaning device is used in medicinal material processing, it rotates to drive rotatory storehouse through motor power, can accelerate the flow of water to erode the medicinal material surface, it is gentle and the cleaning performance is good to have reached the cleaning mode, can avoid the medicinal material to produce the damage at the cleaning process, and the cleaning efficiency is high, wash even thorough effect, it is comparatively simple to have solved current belt cleaning device for medicinal material processing, lead to the medicinal material damage easily, cause the damage to the quality of medicinal material, abluent inefficiency, the cleaning performance is poor, wash not enough even thorough problem.

2. This belt cleaning device is used in medicinal material processing filters waste water through filter equipment, changes the inside air in rotatory storehouse through breather simultaneously, has reached and can carry out the effect of recycling to the sewage after wasing, has solved and has directly discharged to the sewage after wasing, causes certain pollution, both wastes time and energy, has wasted the water resource, has had the problem of very big influence to the environment.

Drawings

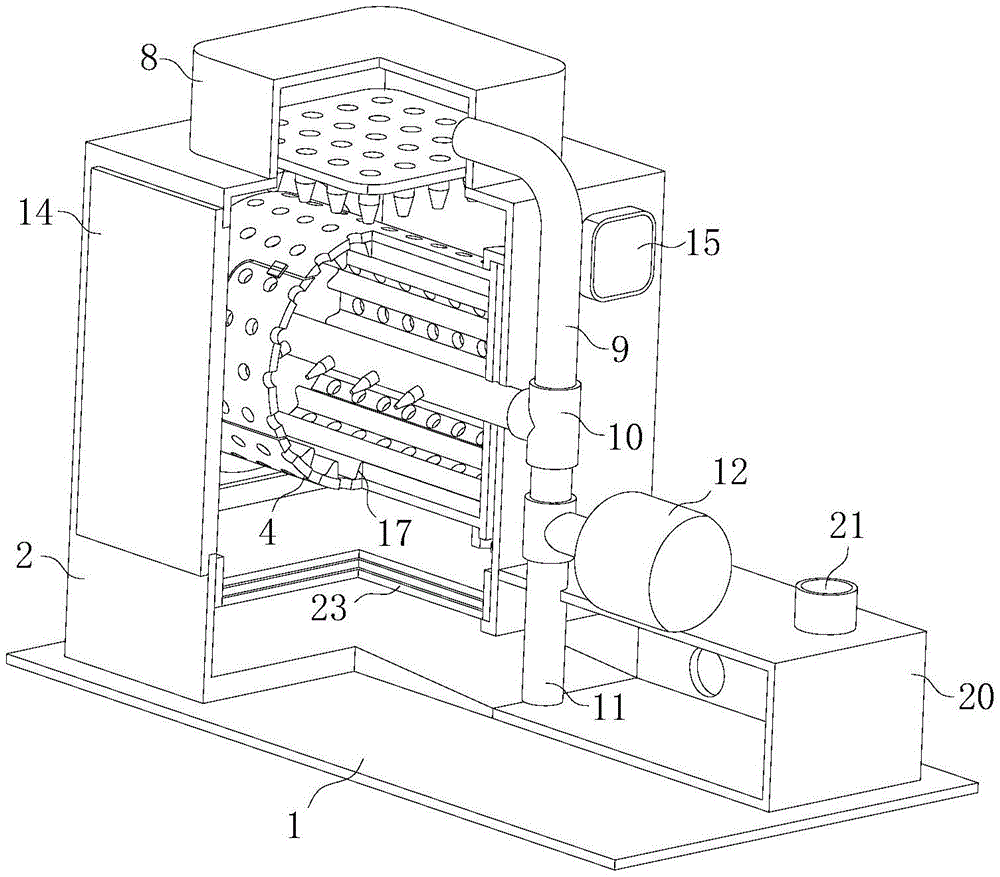

FIG. 1 is a cross-sectional view of a three-dimensional structure according to the present invention;

FIG. 2 is a right side sectional view of the present invention;

FIG. 3 is a cross-sectional view of a back structure of the present invention;

fig. 4 is a schematic front structural view of the present invention.

Wherein: the device comprises a base plate 1, a cleaning bin 2, a fixed ring 3, a rotating bin 4, a power gear 5, a driven gear 6, a power motor 7, a spraying box 8, a first water pipe 9, a three-way pipe 10, a second water pipe 11, a water suction pump 12, a filtering device 13, a sealing door 14, an air interchanger 15, a movable door 16, a material mixing strip 17, a third water pipe 18, a cleaning spray head 19, a water collecting tank 20, a water inlet 21, a pull handle 22 and a filtering layer 23.

Detailed Description

The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.

Referring to fig. 1-4, a cleaning device for processing medicinal materials comprises a bottom plate 1, the top of the bottom plate 1 is fixedly connected with the bottom of a cleaning bin 2, one end of the cleaning bin 2 is fixedly provided with a sealing door 14, the other end of the cleaning bin 2 is fixedly provided with an air interchanger 15, the number of the air interchangers 15 is two, air in the cleaning bin 2 can be rapidly replaced, one end of the interior of the cleaning bin 2 is fixedly connected with one end of a fixed ring 3, the other end of the fixed ring 3 is rotatably connected with one end of a rotating bin 4, the outer surface of the rotating bin 4 is provided with a movable door 16, the inner surface of the rotating bin 4 is fixedly provided with a plurality of material mixing strips 17, the length of the material mixing strips 17 is matched with the size of the rotating bin 4, the device can be more conveniently used, the cleaning mode is warm and soft, the cleaning effect is good, the other end of the rotating bin 4 is fixedly connected with one end of a power gear 5, one side of the outer surface of the power gear 5 is meshed with one side of the outer surface of the driven gear 6, and the axis of the driven gear 6 is fixedly connected with the output end of the power motor 7.

The top of the cleaning bin 2 is fixedly connected with the bottom of the spray box 8, the other end of the spray box 8 is fixedly connected with one end of a first water pipe 9, the other end of the first water pipe 9 is fixedly connected with one end of a three-way pipe 10, the other end of the three-way pipe 10 is fixedly connected with one end of a third water pipe 18, the outer surface of the third water pipe 18 is fixedly provided with a plurality of cleaning nozzles 19, the medicinal materials can be quickly and thoroughly cleaned, the other end of the three-way pipe 10 is fixedly connected with one end of a second water pipe 11, the outer surface of the second water pipe 11 is fixedly provided with a water suction pump 12, the bottom of the water suction pump 12 is fixedly provided with a water collecting tank 20, one end of the second water pipe 11 penetrates through the water collecting tank 20, meanwhile, one end of the water collecting tank 20 close to the water suction pump 12 is fixedly provided with a water inlet 21, the water flow supply can be guaranteed, the bottom of the cleaning bin 2 is slidably connected with one end of a filtering device 13, one end of the filtering device 13 is fixedly provided with a drawing handle 22, and the filter device 13 is fixedly provided with three filter layers 23 inside, and the number of the filter layers 23 is three, so that filtered sewage can be obtained.

When using, place proper amount of medicinal material in rotatory storehouse 4, then pour into proper amount water to washing 2 inside in the storehouse through the spray box 8 that wash the upper end in storehouse, start motor 7 simultaneously, motor 7 drives rotatory storehouse 4 rotatoryly, the rivers spout in passing through third water pipe 18 follow washing shower nozzle 19 and carry out the essence and wash simultaneously, can be discharged into filter equipment 13 with the used washing water after the medicinal material washs, after the filtration of filter layer 23 on filter equipment 13, can get rid of the unnecessary impurity of aquatic, and then make water utilized once more, the rivers after the filtration flow into header tank 20, the water in header tank 20 passes through suction pump 12 and gets into in spray box 8 and the third water pipe 18, wash the medicinal material once more.

It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the utility model, the scope of which is defined in the appended claims and their equivalents.

Claims

1. The utility model provides a belt cleaning device is used in medicinal material processing, includes bottom plate (1), its characterized in that: the top of the bottom plate (1) is fixedly connected with the bottom of the cleaning bin (2), one end of the interior of the cleaning bin (2) is fixedly connected with one end of the fixed circular ring (3), the other end of the fixed circular ring (3) is rotatably connected with one end of the rotating bin (4), the other end of the rotating bin (4) is fixedly connected with one end of the power gear (5), one side of the outer surface of the power gear (5) is meshed with one side of the outer surface of the driven gear (6), and the axis of the driven gear (6) is fixedly connected with the output end of the power motor (7);

the top in washing storehouse (2) and the bottom fixed connection who sprays case (8), the other end that sprays case (8) and the one end fixed connection of first water pipe (9), the other end of first water pipe (9) and the one end fixed connection of three-way pipe (10), the other end of three-way pipe (10) and the one end fixed connection of second water pipe (11), the outer fixed surface of second water pipe (11) installs suction pump (12), the bottom in washing storehouse (2) and the one end sliding connection of filter equipment (13).

2. The cleaning device for processing the medicinal materials, according to claim 1, is characterized in that: one end fixed mounting in washing storehouse (2) has sealing door (14), and the other end fixed mounting in washing storehouse (2) has breather (15), and the quantity of breather (15) is two.

3. The cleaning device for processing the medicinal materials, according to claim 1, is characterized in that: the outer surface of the rotating bin (4) is provided with a movable door (16), the inner surface of the rotating bin (4) is fixedly provided with a plurality of material mixing strips (17), and the length of each material mixing strip (17) is matched with the size of the rotating bin (4).

4. The cleaning device for processing the medicinal materials, according to claim 1, is characterized in that: the other end of the three-way pipe (10) is fixedly connected with one end of a third water pipe (18), and a plurality of cleaning spray heads (19) are fixedly arranged on the outer surface of the third water pipe (18).

5. The cleaning device for processing the medicinal materials, according to claim 1, is characterized in that: the bottom fixed mounting of suction pump (12) has header tank (20), and header tank (20) are run through to the one end of second water pipe (11), and header tank (20) have water inlet (21) at the one end fixed mounting who is close to suction pump (12) simultaneously.

6. The cleaning device for processing the medicinal materials, according to claim 1, is characterized in that: one end of the filtering device (13) is fixedly provided with a drawing handle (22), a filtering layer (23) is fixedly arranged inside the filtering device (13), and the number of the filtering layers (23) is three.
