Abstract
The utility model discloses an artificial flower lamp bonsai with high imaging effect, which comprises a base, wherein a flower rod for supporting flowers is arranged at the upper end of the base, the flowers are connected onto the flower rod, a lamp wire is connected to one side of the flower rod, the other end of the lamp wire extends to the upper end of the flowers and is connected with a flower bud, and a lamp source irradiating towards the flower direction is arranged in the flower bud. In addition, the lamp wire penetrates through the flower stem and the routing, and finally penetrates out of the connection position of the flower leaves, so that the flower bud can be better supported.
Description
Technical Field
The utility model relates to the technical field of artificial bonsais, in particular to an artificial festive lantern bonsai with a high imaging effect.
Background
The flower-lamp potted landscape is a product with ornamental value made by installing light in the potted landscape and irradiating the plants, the prior artificial flower-lamp potted landscape is common in the following types, the first type is to spirally wind a meteor light wire around the flower stem from bottom to top and can produce the effect of starlight flash, the method has the defects that the light source is directly exposed on the plant stem or the flower, but the light wire and the lamp cap can be seen in the daytime or at night without turning on the light, the method is not convenient for being placed in the open air, the second type is to install the light source on the base of the potted landscape and irradiate the light source upwards to achieve the purpose of illuminating the flower, the method is simple to install and can be provided with a large light source, but has the defects that the beautiful view above the potted landscape cannot be clearly seen, the eyes are easy to irradiate when the landscape is observed at ordinary times, in addition, the two methods are single in color developing effect, and only can display the color of the flower by the common light source, the self-defined color change of the flower cannot be realized, and the limitation is large.
SUMMERY OF THE UTILITY MODEL
In order to overcome the defects of the prior art, the utility model aims to provide an artificial festive lantern bonsai with high imaging effect, which aims to solve the technical problems that: the lamp line is not convenient to be placed in the open air when being exposed outside, the light source can not directly irradiate the flower and the color development effect of the flower is single.
In order to solve the technical problem, the utility model adopts the following technical scheme:
the utility model provides an artificial festive lantern potted landscape that video presentation effect is high, includes the base, the upper end of base is provided with the flower pole that is used for supporting the flower and uses, be connected with the flower on the flower pole, one side of flower pole is connected with the lamp line, and the other end of lamp line extends to the upper end of flower and is connected with the bud, be equipped with the lamp source that shines towards the flower direction in the bud.
Furthermore, flower leaves are arranged at the branches of the flower stems, and the joint of the lamp line and the flower stem is positioned at the joint of one flower leaf and the flower stem.
Furthermore, the flower is formed by splicing petals, and a coating area is arranged on the petals and used for coating reflective paint to realize light reflection.
Further, the coating area is positioned at the edge of the petal.
Furthermore, one side in the base is equipped with the control panel, and one side of control panel is equipped with the battery compartment, is equipped with the battery in the battery compartment, still be equipped with the closed switch of control fluorescent tube on the base, the side of base is equipped with the charging socket that is used for charging.
Furthermore, the number of the flowers is two, and the flowers are sequentially distributed at the upper position and the lower position of the flower rod.
Furthermore, the number of the flower rods is two, and the flower rods are randomly distributed on the base.
Furthermore, the lamp source is an LED lamp and internally provided with a lamp bead, and the lamp bead is a single blue lamp bead.
Further, the lamp source is an LED lamp and internally provided with a lamp bead. The lamp beads are multi-color combined lamp beads.
Furthermore, decorations are arranged on the base and the periphery of the flower rod.
Furthermore, a lampshade for covering the flowers, the flower stems and the buds is arranged on the base.
Furthermore, the base is provided with a sensing hole, and the control panel is integrated with a light sensor and a sound sensor for sensing the change of light and sound.
Compared with the prior art, the utility model has the beneficial effects that:
(1) the light source is arranged in the flower bud, the hidden type arrangement is achieved, the whole shape is attractive, the outdoor placement is convenient, the light source is located at the upper end of the flower, the light source can irradiate the position of the flower in a wider range, the flower can be better appreciated at night, the light wire penetrates through the flower pole, the light wire penetrates out of the connection position of the flower leaves, and the flower bud can be better supported.
(2) Through set up the coating district on the petal, scribble reflective coating in the coating district, and coating can be self-defined, so just can not be single when light shines the color development, can fully develop the colour of the colorful six colors of flower, increase the atmosphere that is full of life.
(3) By arranging the ornament, the natural landscape is simulated, so that the whole bonsai is more vivid.
Drawings

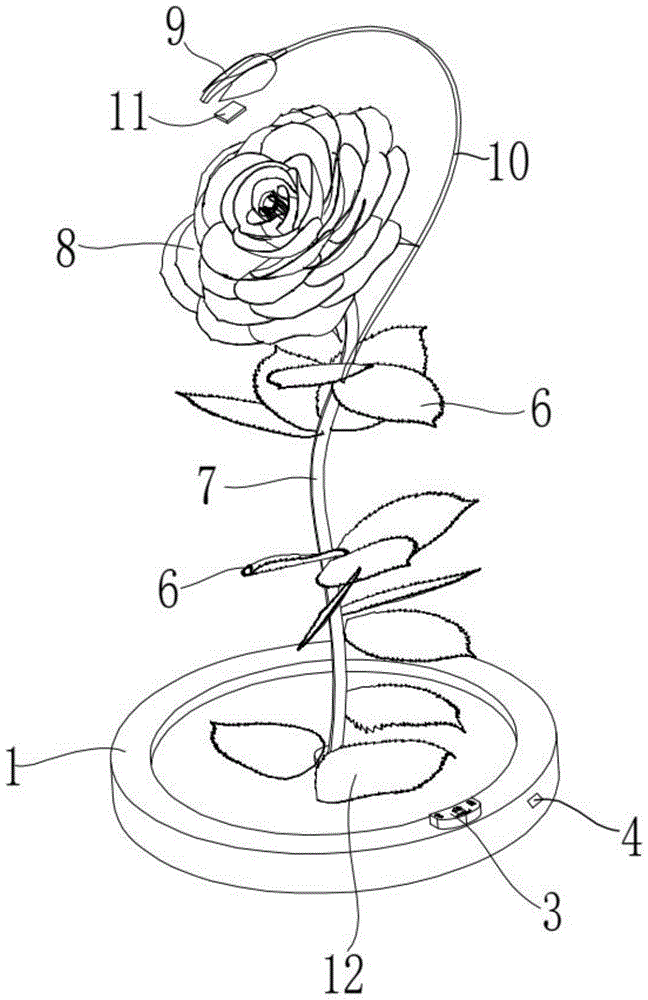

FIG. 1: the utility model is a patent integral structure diagram I;
FIG. 2: the utility model is a schematic diagram without flower leaves;
FIG. 3: the utility model is a schematic view of the integral stereoscopic angle in the upward viewing direction;
FIG. 4: the utility model is a second integral structure diagram;
FIG. 5: the utility model is a structural schematic diagram of flowers, petals and a coating area of the patent;
FIG. 6: the utility model discloses a drawing of two embodiments of the number of flowers;
FIG. 7: the utility model discloses a method for manufacturing a flower rod with the number of two embodiments;
FIG. 8: the utility model is a structural schematic diagram of the patent with a lampshade;
FIG. 9: the utility model is a schematic structural diagram of a base with an induction hole;
FIG. 10: is a schematic structural diagram of a control switch of the inductor.
In the figure: the novel multifunctional flashlight comprises a base-1, a battery-2, a switch-3, a charging socket-4, a control panel-5, flower leaves-6, flower stems-7, flowers-8, petals-801, a coating area-802, buds-9, light lines-10, a light source-11, a decoration-12, a lampshade-13, a light sensing hole-14 and a microphone hole-15.
Detailed Description
The present invention will be further described with reference to the accompanying drawings and the detailed description, and it should be noted that any combination of the embodiments or technical features described below can be used to form a new embodiment without conflict.
Referring to fig. 1 to 7, and initially to fig. 1, 2 and 4, the present invention discloses an artificial flower light bonsai with high visualization effect, which includes a base 1 made of wood or plastic material, a flower rod 7 for supporting flowers 8 is disposed at the upper end of the base 1, flower leaves 6 are disposed at the branches of the flower rod 7, preferably, the flower rod 7 is curved, the curved portion may be one or more, the flowers 8 are inserted at the top end or a portion close to the top end of the flower rod 7, as a preferred embodiment, the flower rod 7 is a solid tube, a light wire penetrates out of the base, is parallel to and upward from the periphery of the flower rod 7, is separated or forked from the flower rod 7 at the upper end of the flower rod 7, and reaches the upper side of the flowers 8 through a plurality of curves, as another embodiment, the flower rod 7 is a hollow tube, the interior of the hollow tube can pass through the light wire 10, the light wire 10 is preferably a hard metal lamp wire 10 with elasticity, the light wire 10 is connected with the control panel 5 positioned on the base 1, penetrates out of the small hole on the base 1 and finally penetrates into the hollow tube of the flower stem 7, then penetrates out of a certain position of the flower stem 7, the preferable penetrating position is the position where the flower leaf 6 and the flower stem 7 are connected, so that the light wire 10 can be prevented from directly penetrating out of the flower stem 7, the light wire 10 is not easy to support, the appearance is not attractive, the other end or the free end of the light wire 10 extends to the upper end of the flower 8 through one or more bends and is connected with the flower bud 9, specifically, the flower bud 9 is connected with one end of the light wire 10 far away from the flower stem 7, the opening of the flower bud 9 faces downwards, the light source 11 irradiating towards the flower 8 is arranged in the flower bud 9, the light wire 10 is directly communicated with the light source 11 to supply power to the light source 11, the flower bud 9 is provided with the support column 10, and the light wire 10 is made of hard material and can be bent and provided with elasticity, the user can adjust the irradiation area and the irradiation angle of the bud 9 at will.
Referring to fig. 5, in order to make the petals 801 have a better color development effect, a coating area 802 is provided on each or several of the petals 801, the coating area 802 may be at the edge of the petals 801, may be at a certain position in the middle of the petals 801, or is located at the back of the petals 801, the preferred position of the coating area 802 is at the edge of the surface of the petals 801, and extends together with the edge contour of the petals 801 to show the natural petal color, a reflective coating is coated in the coating area 802, the preferred reflective coating is a fluorescent coating, and the reflective effect of different colors can be realized by modulating paints of different colors, the preferred petals 801 are made of one or a combination of flannelette, felt and silk cloth.
Referring to fig. 4, specifically, be provided with the holding chamber in base 1, be equipped with control panel 5 in one side of holding intracavity, one side of control panel 5 is equipped with battery 2 storehouse, is equipped with battery 2 in the battery 2 storehouse, and battery 2 gives control panel 5 power supply, still be equipped with the closed switch 3 of control fluorescent tube on the base 1, the side of base 1 is equipped with charging socket 4 that is used for charging, and battery 2 adopts polymer rechargeable battery 2 or lithium rechargeable battery 2 or dry battery 2, can solve the problem of changing battery 2 for a long time.
Referring to fig. 6, as another embodiment, the number of the flowers 8 is two, and the flowers 8 are sequentially distributed at the upper and lower positions of the flower stem 7, and the number of the flowers 8 may also be odd or even, and the flowers are distributed on the branches.
Referring to fig. 7, as another embodiment, the number of the flower stalks 7 is two, and the flower stalks 7 are randomly distributed on the base 1, and on the premise that the base 1 is large enough, the number of the flower stalks 7 may be odd or even, and the number of the flowers 8, the light lines 10, and the buds 9 correspondingly connected to the flower stalks 7 increases as the number of the flower stalks 7 increases.
Referring to fig. 3, specifically, the light source 11 is an LED lamp including a lamp bead, the lamp bead is a single blue lamp bead, and the single blue lamp bead emits a single blue light to create a blue atmosphere.
With reference to fig. 3, the light source 11 is an LED lamp, and includes a lamp bead, which is a multi-color combined lamp bead, and emits multi-color light to irradiate the flower 8, so as to create a colorful atmosphere.
Referring to fig. 1 and 6, specifically, decorations 12 are further disposed on the base 1 and at the periphery of the flower rod 7, and the decorations 12 may be petals 801, leaves, lawns, cartoons, or other emulations, or a combination of one or more of them.
Referring to fig. 8, a lampshade for covering the flowers 8, the flower stems 7 and the flower buds 9 is further arranged on the base 1, the lampshade 13 is attached by glue or screwed down by threads or inserted into the slots to be movably arranged on the base 1, the preferred lampshade 13 is made of a cylindrical top dome-shaped and semitransparent glass material, so that a dream effect can be created by refraction of the lampshade 13 under light irradiation, the lampshade 13 is added to prevent rain and wind when placed outdoors, and the lampshade is dustproof and anti-aging when placed indoors, so that the durability of the product is improved.
Referring to fig. 9 and 10, in order to increase the intelligent control of the present invention, a sensing hole is formed in the base, the position of the sensing hole may be formed in the upper end or the side surface of the base, and a light sensor and a sound sensor are integrated on the control board, preferably, the sensing hole is a light sensing hole 14, the position of the light sensing hole 14 exactly corresponds to the light sensor, and as another embodiment, two sensing holes are formed, which are a light sensing hole 14 corresponding to the light sensor and a microphone hole 15 corresponding to the sound sensor, respectively, and are used for sensing changes of light and sound.
What need supplement is, be provided with the bifurcation on the bud 9, the bifurcation can let light disperse when shining, and changeable light atmosphere can be built to the light of dispersion.
The above embodiments are only preferred embodiments of the present invention, and the protection scope of the present invention is not limited thereby, and any insubstantial changes and substitutions made by those skilled in the art based on the present invention are within the protection scope of the present invention.
Claims (7)
1. The utility model provides an artificial festive lantern potted landscape that video presentation effect is high, includes the base, its characterized in that: the upper end of base is provided with the flower pole that is used for supporting the flower and uses, be connected with the flower on the flower pole, one side of flower pole is connected with the light line, and the other end of light line extends to the upper end of flower and is connected with the bud, be equipped with the lamp source that shines towards the flower direction in the bud, the flower is formed by the petal concatenation, be equipped with the coating district on the petal and be used for scribbling the reflecting paint in order to realize the reflection of light.
2. The artificial festive lantern potted landscape with high visualization effect of claim 1, wherein: the flower leaves are arranged at the branches of the flower stem, and the joint of the lamp line and the flower stem is positioned at the joint of one flower leaf and the flower stem.
3. The artificial festive lantern potted landscape with high visualization effect of claim 1, wherein: the coating area is located at the edge of the petals.
4. The artificial festive lantern potted landscape with high visualization effect of claim 1, wherein: one side in the base is equipped with the control panel, and one side of control panel is equipped with the battery compartment, is equipped with the battery in the battery compartment, still be equipped with the closed switch of control fluorescent tube on the base, the side of base is equipped with the charging socket that is used for charging.
5. The artificial festive lantern potted landscape with high visualization effect of claim 1, wherein: the lamp source is an LED lamp and internally provided with lamp beads, and the lamp beads are one or a combination of several of single blue lamp beads or multi-color combined lamp beads.
6. The artificial festive lantern potted landscape with high visualization effect of claim 1, wherein: the base is also provided with a lampshade for covering the flowers, the flower stems and the buds.
7. The artificial festive lantern potted landscape with high visualization effect of claim 4, wherein: the base is provided with a sensing hole, and the control panel is integrated with a light sensor and a sound sensor for sensing the change of light and sound.
