Abstract

The utility model relates to a solar energy lamp for decorating a garden, which comprises a lamp cover, a solar energy lamp wick assembly arranged in the lamp cover and an inserting rod connected with the bottom of the lamp cover. A light transmitting cover is arranged above the solar energy lamp wick assembly, and light transmitting decorative patterns are arranged on the light transmitting cover. The solar energy lamp for decorating the garden has the advantages of being good in decoration effects, strong in view performance, high in interestingness and simple in structure.

Description

A kind of solar energy lamp that is used to decorate the garden
Technical field
The utility model relates to solar energy lamp, is specifically related to a kind of solar energy lamp that is used to decorate the garden.
Background technology
For can energy-saving and emission-reduction, many solar lighting light fixtures have appearred in the development green illumination at present, like solar energy garden lamp, and solar energy street lamp, solar street light etc.The appearance of these lightings has beautified people's life, has practiced thrift a large amount of energy simultaneously.But, be used to decorate the solar energy lamp in garden at present, generally adopt the light that sends different colours in the light fixture to come the garden is decorated, this decorative effect is more single, and sight is not strong yet, and interest is also low.
The utility model content
In order to overcome the deficiency of prior art, the utility model provides the solar energy lamp that a kind of decorative effect is good, sight is strong, interest is high, the garden is decorated in simple in structure being used to.
In order to achieve the above object, the technical scheme of the utility model employing is following:
A kind of solar energy lamp that is used to decorate the garden comprises lampshade, is located at the Solar lamp core assembly in the lampshade, and the inserted link that is connected with lampshade bottom, and said Solar lamp core assembly top is provided with diffuser, and said diffuser is provided with the printing opacity decorative pattern.
As preferably, said printing opacity decorative pattern is maple leaf pattern or butterfly pattern or starry sky pattern.
As preferably, said lampshade comprises upper lamp shade, and with upper lamp shade snapping or the lower lamp shade that is spirally connected.Said lower lamp shade be shaped as umbrella shape.The outer surface of said lower lamp shade is provided with transparent convex tendon.The middle part of said lower lamp shade is provided with conical reflective cap, and the reflective cap of said taper shape is positioned at the below of Solar lamp core assembly.
As preferably, said inserted link is made up of intubate and ground plug; One end of said intubate is connected with lampshade bottom, and the other end is connected with the ground plug.The free end of said ground plug is provided with the tip.
The utility model compared with prior art; The diffuser of printing opacity decorative pattern is installed above the Solar lamp core assembly; When the Solar lamp core assembly was worked, light penetrated from the lampshade top through the printing opacity decorative pattern of diffuser, and light forms specific pattern; Both strengthened decorative effect, increased interesting and ornamental again; And the bottom of lampshade is provided with transparent convex tendon, and light can also penetrate through transparent convex tendon reverberation through the reflective cap of taper from lampshade bottom, form beautiful light lines, has further strengthened decorative effect.
Description of drawings
Fig. 1 is the structural representation of the solar energy lamp of the utility model embodiment;

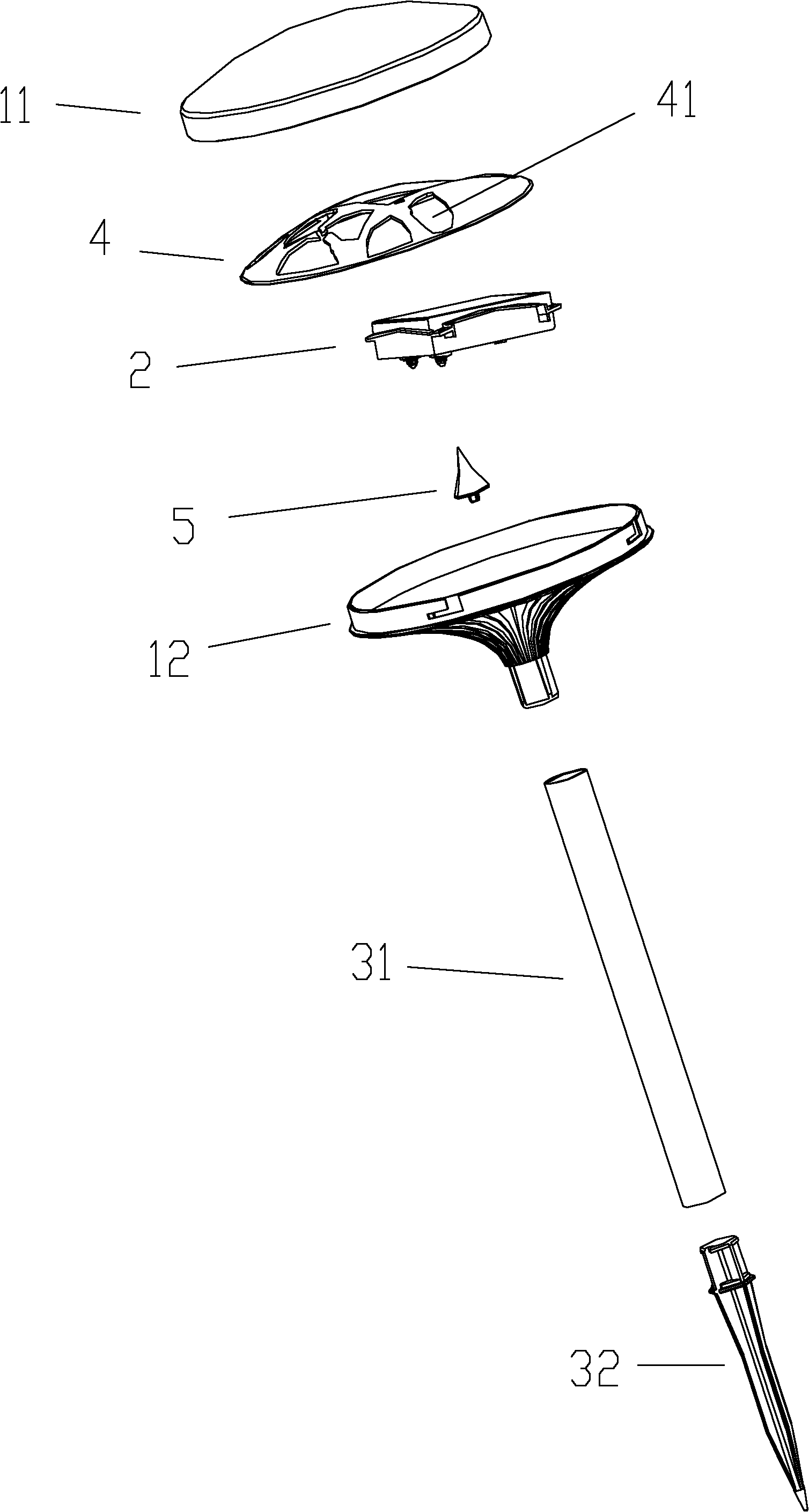

Fig. 2 is the assembling sketch map of Fig. 1;
Fig. 3 is the structural representation of bottom of the lower lamp shade of Fig. 2.
The specific embodiment
Like Fig. 1, shown in 2 and 3, a kind of solar energy lamp that is used to decorate the garden comprises lampshade 1, is located at the Solar lamp core assembly 2 in the lampshade 1, and the inserted link 3 that is connected with lampshade 1 bottom.
Said Solar lamp core assembly 2 is identical with prior art, is made up of containment vessel, solar panel, PCB circuit board, LED lamp, lithium iron battery etc., and parts such as solar panel, PCB circuit board, LED lamp, lithium iron battery are installed in the containment vessel.Said Solar lamp core assembly 2 has functions such as energy storage, battery management, LED control.
Said Solar lamp core assembly 3 tops are provided with diffuser 4, and said diffuser 4 is provided with printing opacity decorative pattern 41.Said printing opacity decorative pattern 41 can be maple leaf pattern or butterfly pattern or starry sky pattern, or other patterns.Said printing opacity decorative pattern 41 can be to form through boring on diffuser 4, also can be on diffuser 4, to print to form.
Said lampshade 1 is made by transparent material, and it comprises upper lamp shade 11, and with the lower lamp shade 12 of upper lamp shade 11 snappings (also can be to be spirally connected).Said lower lamp shade 12 be shaped as the umbrella shape shape.The outer surface of said lower lamp shade 12 is provided with transparent convex tendon 121, and promptly the bottom of lampshade 1 is provided with transparent convex tendon 121.The middle part of said lower lamp shade 12 is provided with conical reflective cap 5, and the reflective cap 5 of said taper shape is positioned at the below of Solar lamp core assembly 2, and place up the prominent tip of conical reflective cap 5, and the surface of conical reflective cap 5 is coated with white nickel.Because upper lamp shade 11 snaps together with lower lamp shade 12, thus can easy disassembly, after dismounting, can change inner diffuser 4, replace different floral designs.
Said inserted link 3 is made up of intubate 31 and ground plug 32, and an end of said intubate 31 is connected with lampshade 1 bottom, and the other end is connected with ground plug 32.The free end of said ground plug 32 is provided with the tip, and said tip can make things convenient for whole solar energy lamp to be inserted and secured on the ground in garden.
The foregoing description is that the utility model is comparatively preferably a kind of, and simple change that those skilled in the art make in the protection domain of the utility model or replacement all drop in the protection domain of the utility model.

Claims (7)

1. a solar energy lamp that is used to decorate the garden comprises lampshade, is located at the Solar lamp core assembly in the lampshade; And the inserted link that is connected with lampshade bottom; It is characterized in that said Solar lamp core assembly top is provided with diffuser, said diffuser is provided with the printing opacity decorative pattern.
2. solar energy lamp as claimed in claim 1 is characterized in that said lampshade comprises upper lamp shade, and with upper lamp shade snapping or the lower lamp shade that is spirally connected.
3. solar energy lamp as claimed in claim 2 is characterized in that, said lower lamp shade be shaped as umbrella shape.
4. solar energy lamp as claimed in claim 3 is characterized in that the outer surface of said lower lamp shade is provided with transparent convex tendon.
5. solar energy lamp as claimed in claim 3 is characterized in that, the middle part of said lower lamp shade is provided with conical reflective cap, and the reflective cap of said taper shape is positioned at the below of Solar lamp core assembly.
6. like each described solar energy lamp of claim 1-5, it is characterized in that said inserted link is made up of intubate and ground plug; One end of said intubate is connected with lampshade bottom, and the other end is connected with the ground plug.
7. solar energy lamp as claimed in claim 6 is characterized in that the free end of said ground plug is provided with the tip.
CN201120069040U 2011-03-16 2011-03-16 Solar energy lamp for decorating garden Expired - Fee Related CN202140952U (en)
