Abstract
The utility model discloses an intelligent system integrated control cabinet which comprises a base, wherein a protection mechanism is arranged at the top of the base and comprises two protection plates, the two protection plates are symmetrically arranged around a central axis of the base, first sliding grooves are formed in two sides of the inner wall of each protection plate, connecting sliding blocks are connected inside the first sliding grooves in a sliding mode, an adjusting baffle is fixedly connected between the two connecting sliding blocks, and the adjusting baffle penetrates through the protection plates and extends to the top. According to the height of the control cabinet body, the adjusting baffle is pulled upwards to enable the connecting sliding blocks on the two sides of the adjusting baffle to slide in the first sliding groove, after sliding is finished, adjusting screw holes in corresponding positions are selected, locking and fixing are carried out through the locking screws, after fixing is finished, the control cabinet body is inserted into the stable clamping groove, and the filtering baffle slides into the protective baffle through the second sliding groove to be dustproof.
Description
Technical Field
The utility model is used in the technical field of integrated control cabinets, and particularly relates to an intelligent system integrated control cabinet.
Background
The control cabinet is formed by assembling switch equipment, measuring instruments, protective electrical appliances and auxiliary equipment in a closed or semi-closed metal cabinet or on a screen according to the electrical wiring requirements, and the arrangement of the control cabinet meets the requirements of normal operation of an electric power system, is convenient to overhaul and does not endanger the safety of people and surrounding equipment. In normal operation, the circuit can be switched on or off by means of a manual or automatic switch. When the fault or abnormal operation occurs, the circuit is cut off or an alarm is given by the aid of the protective electric appliance. The measuring instrument can display various parameters in operation, and can also adjust some electrical parameters to prompt or send out signals for deviation from normal working state. It is commonly used in various power generation, distribution and transformation substations.
The switch board head on the existing market is usually directly installed on one side of a wall body, so that the problem of protection of the switch board when the switch board body is stably connected cannot be solved.
Therefore, it is necessary to invent an intelligent system integration control cabinet to solve the above problems.
SUMMERY OF THE UTILITY MODEL
The utility model aims to provide an intelligent system integrated control cabinet, wherein an adjusting baffle is pulled upwards according to the height of a control cabinet body, so that connecting sliding blocks on two sides of the adjusting baffle slide in a first sliding groove, adjusting screw holes in corresponding positions are selected after the sliding is finished, locking screws are used for locking and fixing, after the fixing is finished, the control cabinet body is inserted into a stable clamping groove, and a filtering baffle slides into a protective baffle through a second sliding groove for dust prevention, so that the defects in the technology are overcome.
In order to achieve the above purpose, the utility model provides the following technical scheme: an intelligent system integrated control cabinet comprises a base, wherein a protection mechanism is arranged at the top of the base and comprises two protection plates, the two protection plates are symmetrically arranged about a central axis of the base, first sliding grooves are formed in two sides of the inner wall of each protection plate, connecting sliding blocks are connected inside the first sliding grooves in a sliding mode, an adjusting baffle is fixedly connected between the two connecting sliding blocks, the adjusting baffle penetrates through the protection plates and extends to the top, adjusting screw holes penetrate through the protection plates and the adjusting baffle, locking screw rods are inserted into the adjusting screw holes, a plurality of adjusting screw holes are formed in the adjusting baffle, the distance between every two adjacent adjusting screw holes is equal, the protection baffle is fixedly connected between the tops of the two adjusting baffle plates, and second sliding grooves are formed in two sides of the inner wall of each protection baffle, and a filtering baffle is connected inside the second sliding groove in a sliding manner.
Preferably, a stable clamping groove penetrates through the top of the base, and the control cabinet body is inserted into the stable clamping groove.
Preferably, one side of the outer wall of the protection plate is fixedly connected with a connecting plate, an adjusting sliding groove penetrates through the connecting plate, a control screw rod is inserted into the adjusting sliding groove, and the outer wall of the control screw rod is in threaded connection with a control nut.
Preferably, the control screw rod is detachably connected with the adjusting sliding groove through a control nut.
Preferably, the adjusting baffle is fixedly connected with the protection plate through a locking screw.
Preferably, the number of the locking screw rods is two, and the two locking screw rods are symmetrically arranged around the central axis of the protection plate.
In the technical scheme, the utility model provides the following technical effects and advantages:
1. according to the height of the control cabinet body, the adjusting baffle is pulled upwards to enable the connecting sliding blocks on the two sides of the adjusting baffle to slide in the first sliding groove, after sliding is finished, adjusting screw holes in corresponding positions are selected, locking screws are used for locking and fixing, after fixing is finished, the control cabinet body is inserted into the stable clamping groove, and the filtering baffle slides into the protective baffle through the second sliding groove to be dustproof;
2. with the device to the place that needs to use, run through regulation spout with control screw and be connected fixedly with the wall body, carry out position locking through control screw, after the locking finishes, when the skew takes place for the position, can become flexible control nut, the pulling connecting plate makes control screw adjust in the inside slip of regulation spout, uses control nut to carry out the rigidity at last.
Drawings
In order to more clearly illustrate the embodiments of the present application or technical solutions in the prior art, the drawings needed to be used in the embodiments will be briefly described below, and it is obvious that the drawings in the following description are only some embodiments described in the present invention, and other drawings can be obtained by those skilled in the art according to the drawings.

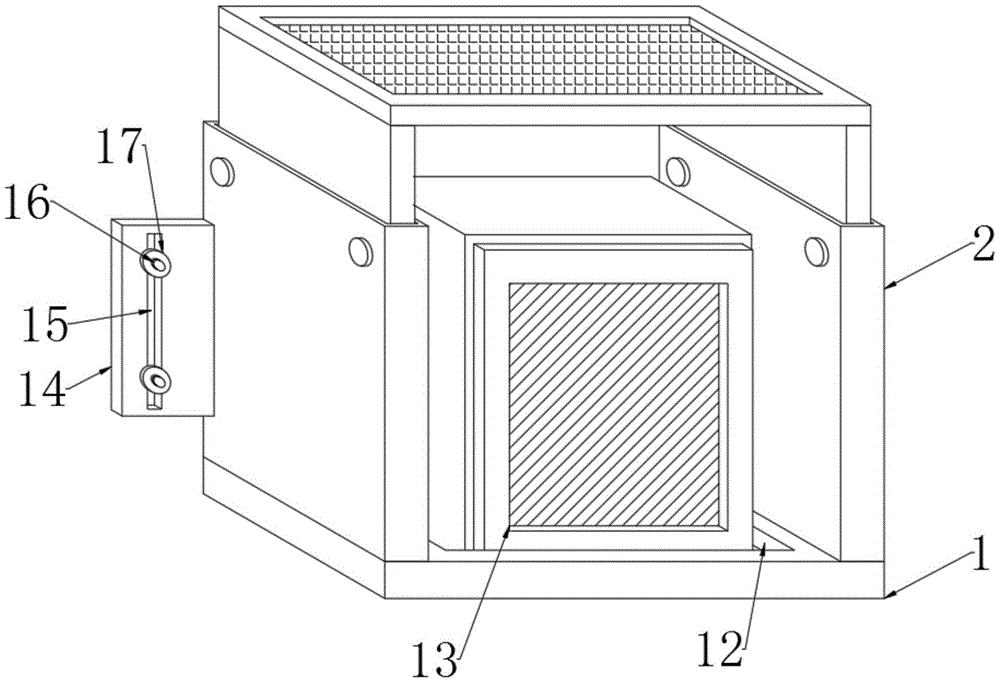

FIG. 1 is a schematic view of the overall structure of the present invention;
FIG. 2 is a partially enlarged schematic view of the shielding mechanism of the present invention;
FIG. 3 is a schematic front sectional view of the protection mechanism of the present invention;
FIG. 4 is an enlarged view of the structure at A in FIG. 3 according to the present invention;
FIG. 5 is a schematic top sectional view of the protective barrier of the present invention.
Description of reference numerals:
1. a base; 2. a protection mechanism; 3. a protection plate; 4. a first chute; 5. connecting the sliding block; 6. adjusting the baffle; 7. adjusting the screw hole; 8. locking the screw rod; 9. a protective baffle; 10. a second chute; 11. a filtering baffle; 12. a clamping groove is stabilized; 13. a control cabinet body; 14. a connecting plate; 15. adjusting the sliding chute; 16. controlling the screw; 17. the nut is controlled.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
The utility model provides an intelligent system integrated control cabinet as shown in figures 1-5, which comprises a base 1, wherein a protection mechanism 2 is arranged at the top of the base 1, the protection mechanism 2 comprises two protection plates 3, the two protection plates 3 are symmetrically arranged about the axis of the base 1, first sliding grooves 4 are respectively formed in two sides of the inner wall of each protection plate 3, connecting sliding blocks 5 are connected in the first sliding grooves 4 in a sliding manner, an adjusting baffle 6 is fixedly connected between the two connecting sliding blocks 5, the adjusting baffle 6 penetrates through the protection plates 3 and extends to the top, adjusting screw holes 7 are respectively formed in the protection plates 3 and the adjusting baffle 6 in a penetrating manner, locking screw rods 8 are inserted into the adjusting screw holes 7, the adjusting screw holes 7 in the adjusting baffle 6 are provided in a plurality, the distance between every two adjacent adjusting screw holes 7 is equal, two fixedly connected with guard flap 9 between 6 tops of adjusting the baffle, second spout 10 has all been seted up to guard flap 9 inner wall both sides, the inside sliding connection of second spout 10 has filtering baffle 11.
Further, in the above technical solution, a stable clamping groove 12 penetrates through the top of the base 1, and a control cabinet body 13 is inserted into the stable clamping groove 12.
Further, in the above technical scheme, one side of the outer wall of the protection plate 3 is fixedly connected with a connection plate 14, an adjusting sliding groove 15 penetrates through the connection plate 14, a control screw 16 is inserted into the adjusting sliding groove 15, and a control nut 17 is connected to the outer wall of the control screw 16 in a threaded manner.
Further, in the above technical solution, the control screw 16 is detachably connected to the adjusting chute 15 through a control nut 17.
Further, in the above technical solution, the adjusting baffle 6 is fixedly connected with the protection plate 3 through a locking screw 8.
Further, in the above technical solution, two locking screws 8 are provided, and the two locking screws 8 are symmetrically arranged about the central axis of the protection plate 3.
This practical theory of operation:
referring to the attached drawings 1-5 of the specification, when the device needs to be used, the device can be moved to a place needing to be used, the control screw 16 penetrates through the adjusting chute 15 to be connected and fixed with a wall body, the position is locked through the control screw 16, after the locking is finished, when the position deviates, the control screw cap 17 can be loosened, the connecting plate 14 is pulled, the control screw 16 is adjusted in the adjusting chute 15 in a sliding mode, and finally the control screw cap 17 is used for fixing the position;
referring to the attached drawings 1-5 of the specification, when the device is used, after the device is fixed, the adjusting baffle 6 is pulled upwards according to the height of the control cabinet body 13, so that the connecting sliding blocks 5 on the two sides of the adjusting baffle 6 slide in the first sliding grooves 4, after the device finishes sliding, the adjusting screw holes 7 corresponding to the positions are selected, the locking screw rods 8 are used for locking and fixing, after the device is fixed, the control cabinet body 13 is inserted into the stable clamping grooves 12, and the filtering baffle 11 slides to the inside of the protective baffle 9 through the second sliding grooves 10 to be dustproof.
The standard parts used in the utility model can be purchased from the market, the special-shaped parts can be customized according to the description of the specification and the accompanying drawings, the specific connection mode of each part adopts conventional means such as bolts, rivets, welding and the like mature in the prior art, the machines, the parts and equipment adopt conventional models in the prior art, and the circuit connection adopts the conventional connection mode in the prior art, so that the detailed description is omitted.
Although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that various changes in the embodiments and/or modifications of the utility model can be made, and equivalents and modifications of some features of the utility model can be made without departing from the spirit and scope of the utility model.
Claims (6)
1. The utility model provides an intelligent system integrated control cabinet, includes base (1), its characterized in that: the protective device is characterized in that a protective mechanism (2) is arranged at the top of the base (1), the protective mechanism (2) comprises two protective plates (3), the number of the protective plates (3) is two, the two protective plates (3) are symmetrically arranged about the central axis of the base (1), first sliding grooves (4) are formed in the two sides of the inner wall of each protective plate (3), connecting sliding blocks (5) are connected in the first sliding grooves (4) in a sliding manner, adjusting baffles (6) are fixedly connected between the two connecting sliding blocks (5), the adjusting baffles (6) penetrate through the protective plates (3) and extend to the top, adjusting screw holes (7) penetrate through the protective plates (3) and the adjusting baffles (6), locking screw rods (8) are inserted in the adjusting screw holes (7), the number of the adjusting screw holes (7) in the adjusting baffles (6) is multiple, the distance between every two adjacent adjusting screw holes (7) is equal, two fixedly connected with guard flap (9) between adjusting baffle (6) top, second spout (10) have all been seted up to guard flap (9) inner wall both sides, second spout (10) inside sliding connection has filtering baffle (11).
2. The intelligent system integrated control cabinet of claim 1, wherein: the top of the base (1) is penetrated with a stable clamping groove (12), and a control cabinet body (13) is inserted into the stable clamping groove (12).
3. The intelligent system integrated control cabinet of claim 1, wherein: the protective plate is characterized in that a connecting plate (14) is fixedly connected to one side of the outer wall of the protective plate (3), an adjusting sliding groove (15) penetrates through the connecting plate (14), a control screw rod (16) is inserted into the adjusting sliding groove (15), and a control nut (17) is connected to the outer wall of the control screw rod (16) in a threaded mode.
4. The intelligent system integration control cabinet of claim 3, wherein: the control screw rod (16) is detachably connected with the adjusting sliding groove (15) through a control screw cap (17).
5. The intelligent system integrated control cabinet of claim 1, wherein: the adjusting baffle (6) is fixedly connected with the protection plate (3) through a locking screw rod (8).
6. The intelligent system integrated control cabinet of claim 1, wherein: the number of the locking screw rods (8) is two, and the two locking screw rods (8) are symmetrically arranged around the central axis of the protection plate (3).
