Abstract
本实用新型公开了一种电控柜安装导轨，包括柜体，两个所述开槽之间共同卡接有空心滑管，所述空心滑管的两端均固定连接有卡盘，所述空心滑管的内部设有导杆，所述导杆的右端贯穿右侧所述卡盘滑动连接在右侧所述滑槽内，两个所述卡盘的左表面上均设有配合所述卡孔使用的卡条，左侧所述卡盘的左表面与所述滑板的右表面之间设有弹簧，所述空心滑管的外表面左侧设有L形通槽，所述导杆的外表面上设有配合所述L形通槽使用的凸块，所述空心滑管的外侧壁滑动连接有滑套，所述滑套的前表面设有安装板，可以方便调节电器设备之间的安装距离，使电控柜内的空间被更合理的利用，减少工作人员对电器设备布设和安装的麻烦。
The utility model discloses an installation guide rail for an electric control cabinet, which comprises a cabinet body, a hollow sliding pipe is commonly clamped between the two slots, and both ends of the hollow sliding pipe are fixedly connected with a chuck. A guide rod is arranged inside the hollow sliding tube, and the right end of the guide rod passes through the chuck on the right side and is slidably connected in the chute on the right side. For the clamping strip used for the clamping hole, a spring is provided between the left surface of the chuck on the left side and the right surface of the slide plate, an L-shaped through groove is provided on the left side of the outer surface of the hollow sliding tube, and the guide rod is There are bumps on the outer surface of the L-shaped through grooves, the outer side wall of the hollow sliding tube is slidably connected with a sliding sleeve, and the front surface of the sliding sleeve is provided with a mounting plate, which can facilitate the adjustment of the electrical equipment. The installation distance between them makes the space in the electric control cabinet more rationally used, and reduces the trouble for the staff to lay out and install the electrical equipment.
Description
Technical Field
The utility model relates to the technical field of electric control cabinet installation equipment, in particular to an electric control cabinet installation guide rail.
Background
The electric control cabinet is formed by assembling switch equipment, measuring instruments, protective electric appliances and auxiliary equipment in a closed or semi-closed metal cabinet or screen according to the electric wiring requirement, wherein the arrangement of the electric equipment meets the requirement of normal operation of a power system, is convenient to overhaul and does not endanger the safety of people and surrounding equipment. Therefore, the guide rail is required to be installed inside the electric control cabinet to facilitate flexible disassembly and installation of various electrical equipment, the guide rail installed inside the electric control cabinet is generally simple in structure and single in function, the installation positions of the various electrical equipment can not be flexibly adjusted, the installation positions of the electrical equipment with different specifications can not be more reasonable, space utilization inside the electric control cabinet is easy to achieve unreasonable, installation of the electrical equipment is made to be very troublesome, and therefore the electric control cabinet installation guide rail is provided.
SUMMERY OF THE UTILITY MODEL
The utility model aims to provide an electric control cabinet installation guide rail to solve the problems in the background technology.
In order to achieve the purpose, the utility model provides the following technical scheme: an electric control cabinet installation guide rail comprises a cabinet body, wherein the left side and the right side of the inner side wall of the cabinet body are respectively provided with a partition plate, the upper surfaces of the two partition plates are respectively provided with a slot, a hollow slide pipe is clamped between the two slots together, the two ends of the hollow slide pipe are respectively and fixedly connected with a chuck, a guide rod is arranged inside the hollow slide pipe, the positions of the left inner side wall and the right inner side wall of the cabinet body, which correspond to the guide rod, are respectively provided with a slide groove with a through upper side, the right end of the guide rod penetrates through the right side and is connected into the slide groove on the right side in a sliding manner, the left end of the guide rod penetrates through the left side and is fixedly connected with a slide plate, the slide plate is connected into the slide groove on the left side in a sliding manner, the right surfaces of the partition plates on the left side and the right side of the cabinet body, which correspond to the front side and the back sides of the slide groove, are respectively provided with a clamping strip matched with the clamping hole, the left side the left surface of chuck with be equipped with the spring between the right surface of slide, just the spring housing is in on the guide arm, the surface left side of hollow slide pipe is equipped with L shape and leads to the groove, be equipped with the cooperation on the surface of guide arm the lug that the groove used is led to L shape, the lateral wall sliding connection of hollow slide pipe has the sliding sleeve, the front surface of sliding sleeve is equipped with the mounting panel, the last lateral wall of the cabinet body is the opening setting, just the upper portion of the cabinet body is covered with the cabinet lid.
Preferably, the mounting plate is arranged in an L shape.
Preferably, the upper surface of the sliding sleeve is provided with a threaded hole in a penetrating manner.
Preferably, the number of the clamping strips on the chuck is four, and the four clamping strips are matched with the clamping holes for use.
Preferably, the cabinet cover is uniformly provided with heat dissipation through holes.
Preferably, the upper surface of the cabinet cover is provided with a dust screen.
Compared with the prior art, the utility model has the beneficial effects that: the utility model provides an automatically controlled cabinet installation guide rail, through the hollow slide tube that slides to the right side, make the card strip on the cardboard of both sides all deviate from in the card hole, the hollow slide tube of downward rotation again, make the lug card on the guide arm in the logical inslot on the left side upper portion that the groove is led to L shape, make the lug carry on spacingly to the hollow slide tube, make the spacing release of guide arm, make things convenient for the guide arm to slide, the hollow slide tube of upward rotation again after the position control is suitable, the spring resets, card strip card is gone into the position of through-hole to the guide arm and is fixed, be equipped with gliding sliding sleeve on the hollow slide tube, be equipped with the mounting panel on the sliding sleeve, can conveniently adjust the installation distance between the electrical equipment, conveniently install the electrical equipment of different specifications in the automatically controlled cabinet more reasonable, make the space in the automatically controlled cabinet by more reasonable utilization, reduce the staff and lay and the trouble of installation to electrical equipment.
Drawings

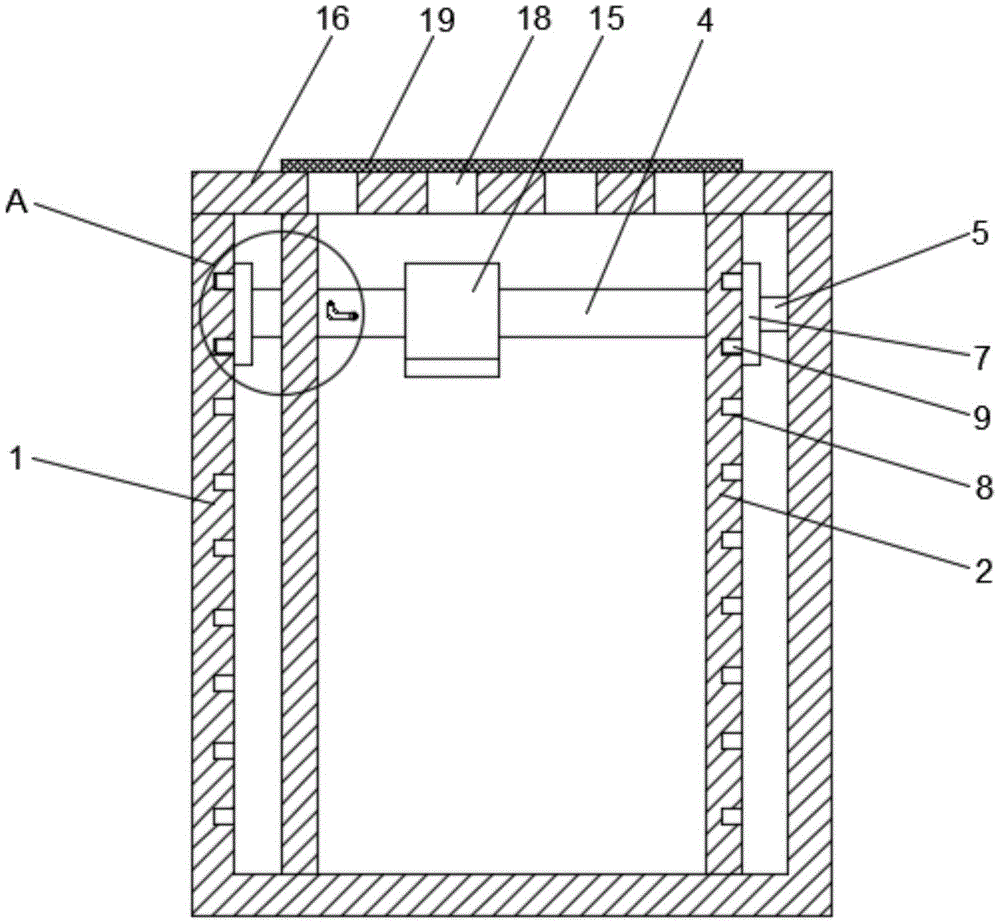

FIG. 1 is a front cross-sectional structural view of the present invention;
FIG. 2 is a top view of the open cabinet lid of the present invention;
FIG. 3 is a top cross-sectional block diagram of the present invention;
FIG. 4 is a right side view of the left interior surface of the cabinet of the present invention;
FIG. 5 is an enlarged view of a portion of FIG. 1 at A;
fig. 6 is a partially enlarged view of fig. 3 at B.
In the figure: 1-cabinet body, 2-partition board, 3-open slot, 4-hollow slide tube, 5-guide rod, 6-slide slot, 7-chuck, 8-clamp hole, 9-clamp strip, 10-slide plate, 11-spring, 12-L-shaped through slot, 13-lug, 14-slide sleeve, 15-mounting plate, 16-cabinet cover, 17-threaded hole, 18-heat dissipation through hole and 19-dustproof net.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
Referring to fig. 1-6, the present invention provides a technical solution: an electric control cabinet installation guide rail comprises a cabinet body 1, wherein the left side and the right side of the inner side wall of the cabinet body 1 are respectively provided with a partition plate 2, the upper surfaces of the two partition plates 2 are respectively provided with a slot 3, a hollow slide tube 4 is clamped between the two slots 3 together, so that the hollow slide tube 4 can slide up and down in the slot 3, two ends of the hollow slide tube 4 are respectively and fixedly connected with a chuck 7, a guide rod 5 is arranged in the hollow slide tube 4, the positions of the left inner side wall and the right inner side wall of the cabinet body 1, which correspond to the guide rod 5, are respectively provided with a slide groove 6 with a through upper side, the right end of the guide rod 5 penetrates through the right side, the chuck 7 is connected in the slide groove 6 on the right side in a sliding manner, the left end of the guide rod 5 penetrates through the left side, the slide plate 10 is connected in the slide groove 6 on the left side in a sliding manner, so that the guide rod 5 can slide up and down along the slide grooves 6 on two sides under the condition of no limit, the inner left surface and the right side of the cabinet body 1, the right surface of the partition board 2 corresponds to the front side and the rear side of the sliding chute 6, the front side and the rear side of the sliding chute 6 are uniformly provided with clamping holes 8, the left surfaces of the two chucks 7 are respectively provided with a clamping strip 9 matched with the clamping hole 8 for use, the left side of the chuck 7 is provided with a spring 11 between the left surface of the chuck 7 and the right surface of the sliding plate 10, the spring 11 is sleeved on the guide rod 5, the left side of the outer surface of the hollow sliding tube 4 is provided with an L-shaped through groove 12, the outer surface of the guide rod 5 is provided with a lug 13 matched with the L-shaped through groove 12 for use, the lug 13 is in sliding connection with the inner surface of the L-shaped through groove 12, the clamping strips 9 on the chucks 7 at the two sides of the hollow sliding tube 4 can slide out from the corresponding clamping holes 8 by sliding the hollow sliding tube 4 towards the right side, when the L-shaped through groove 12 on the hollow sliding tube 4 moves to the rightmost side, the lug 13 on the guide rod 5 can be located at the leftmost side of the L-shaped through groove 12, at the moment, the hollow sliding tube 4 is rotated downwards, so that the bump 13 enters the upper left groove of the L-shaped through groove 12, the bump 13 can clamp the position of the hollow sliding tube 4, the spring 11 can not pull the hollow sliding tube 4 back to the left, the clamping strips 9 on the chuck 7 can not be clamped into the clamping holes 8, the limiting of the guide rod 5 is relieved, the guide rod 5 can slide up and down, when the guide rod 5 slides to a proper position, the hollow sliding tube 4 can be rotated upwards, the clamping of the hollow sliding tube 4 by the bump 13 is relieved, the spring 11 resets, the hollow sliding tube 4 is pulled to the left side, the clamping strips 9 on the chucks 7 at two sides are clamped into the corresponding clamping holes 8, the positions of the guide rods 5 are fixed, a plurality of guide rods 5 can be installed in the cabinet body 1 when the electric appliance is used, the distance between the guide rods 5 is adjusted according to the specification of the electric appliance, so that the electric appliance can be reasonably arranged in the cabinet body 1, and the arrangement and installation of the electric appliance by workers are convenient, make the space utilization of automatically controlled cabinet more reasonable, the lateral wall sliding connection of hollow slide tube 4 has sliding sleeve 14, sliding sleeve 14's front surface is equipped with mounting panel 15, is used for installing electrical equipment on the mounting panel 15, and sliding sleeve 14 can the horizontal slip, conveniently adjusts the position between the electrical equipment, the last lateral wall of the cabinet body 1 is the opening setting, just the upper portion of the cabinet body 1 is covered with cabinet cover 16, opens cabinet cover 16 when installing many guide arms 5, conveniently from the upside with guide arm 5 slide in the spout 6 of the cabinet body 1 both sides.
Particularly, mounting panel 15 is L shape setting, and the electrical equipment that needs the installation can better be held to the mounting panel 15 of L shape, makes things convenient for electrical equipment's installation, makes the card that the electrical equipment that needs the installation can be more stable on the mounting panel 15 of L shape.
Specifically, the upper surface of the sliding sleeve 14 is provided with a threaded hole 17 in a penetrating manner, and after the sliding sleeve 14 with the mounting plate 15 slides to a proper mounting position, a bolt can be screwed into the threaded hole 17, so that the sliding sleeve 14 is more stably fixed on the hollow sliding tube 4, and the electrical equipment is more stably mounted.
Particularly, chuck 7 is last card strip 9 is four, and four card strip 9 all with card hole 8 cooperation is used, has four card strips 9 on the chuck 7, enables guide arm 5's location more stable.
Particularly, the cabinet cover 16 is uniformly provided with heat dissipation through holes 18, so that heat dissipation of the electrical equipment arranged inside the cabinet body 1 is facilitated.
Specifically, the upper surface of the cabinet cover 16 is provided with the dust screen 19, which is beneficial to preventing dust from entering the cabinet body 1 from the heat dissipation through hole 18, and reducing dust deposition on the electrical equipment inside the cabinet body 1.
The working principle is as follows: the utility model is connected with guide rods 5 in the sliding chutes 6 on two sides of the inner surface of the cabinet body 1, when in use, the hollow sliding tube 4 on the guide rod 5 slides to the right side, the clamping strips 9 on the chucks 7 on two sides of the hollow sliding tube 4 respectively disengage from the clamping holes 8 on the left side wall and the right side clapboard 2 in the cabinet body 1, so that the limit of the guide rod 5 is released, when the hollow sliding tube 4 slides to the right, and the position of the lug 13 on the guide rod 5 is positioned at the leftmost side of the L-shaped through groove 12, the hollow sliding tube 4 rotates downwards, the lug 13 is clamped in the through groove at the upper side of the left part of the L-shaped through groove 12, so that the hollow sliding tube 4 is limited, the hollow sliding tube 4 can not be pulled back by the spring 11, thus the guide rod 5 can slide up and down, the space between a plurality of guide rods 5 is controlled according to the specifications of different electrical equipment to be installed, when the guide rod 5 is adjusted to a proper position, the hollow sliding tube 4 is rotated upwards, lug 13 is deviate from the left side upper portion that L shape led to groove 12, hollow slide pipe 4 can not receive the spacing of lug 13 again this moment, spring 11 resets and will pull hollow slide pipe 4 to the left side, card 9 card on the messenger's both sides chuck 7 is gone into in the card hole 8 that corresponds, make the rigidity of guide arm 5, carry out the position control of many guide arms 5 like this, just can the rational utilization installation space in the cabinet body 1, make the mounted position of various electrical equipment more reasonable, electrical equipment installs on the mounting panel 15 of L shape, make electrical equipment's installation more stable, and can also slide from side to side through sliding sleeve 14 after the installation, adjust electrical equipment's horizontal position, screw hole 17 on sliding sleeve 14 is twisted through the bolt, make electrical equipment's installation more stable.
In the description of the present invention, unless otherwise expressly specified or limited, the terms "mounted," "connected," and "fixed" are to be construed broadly, e.g., as meaning either a fixed connection, a removable connection, or an integral part; can be mechanically or electrically connected; either directly or indirectly through intervening media, either internally or in any other relationship. The specific meanings of the above terms in the present invention can be understood in specific cases to those skilled in the art.
The standard parts used in the utility model can be purchased from the market, the special-shaped parts can be customized according to the description of the specification and the accompanying drawings, the specific connection mode of each part adopts conventional means such as mature bolts, rivets, welding and the like in the prior art, the machines, the parts and equipment adopt conventional models in the prior art, and the circuit connection adopts the conventional connection mode in the prior art, so that the detailed description is omitted.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the utility model, the scope of which is defined in the appended claims and their equivalents.
Claims (6)
1. The utility model provides an automatically controlled cabinet installation guide rail, includes the cabinet body (1), its characterized in that: the inside wall left and right sides of the cabinet body (1) all is equipped with baffle (2), two the upper surface of baffle (2) all is equipped with fluting (3), two joint jointly between fluting (3) has hollow slide tube (4), the equal fixedly connected with chuck (7) in both ends of hollow slide tube (4), the inside of hollow slide tube (4) is equipped with guide arm (5), two inside walls correspond about the cabinet body (1) the position of guide arm (5) all is equipped with spout (6) that the upside link up, the right-hand member of guide arm (5) runs through the right side chuck (7) sliding connection is on the right side in spout (6), the left end of guide arm (5) runs through the left side chuck (7) fixedly connected with slide (10), slide (10) sliding connection is in the left side in spout (6), the interior left surface and the right side of the cabinet body (1) the right surface of baffle (2) corresponds the front and back both sides of spout (6) are all even Be equipped with card hole (8), two all be equipped with the cooperation on the left surface of chuck (7) card strip (9), the left side that card hole (8) used chuck (7) the left surface of chuck (7) with be equipped with spring (11) between the right surface of slide (10), just spring (11) cover is in on guide arm (5), the surface left side of hollow slide pipe (4) is equipped with L shape and leads to groove (12), be equipped with the cooperation on the surface of guide arm (5) L shape leads to lug (13) that groove (12) used, the lateral wall sliding connection of hollow slide pipe (4) has sliding sleeve (14), the front surface of sliding sleeve (14) is equipped with mounting panel (15), the last lateral wall of the cabinet body (1) sets up for the opening, just the upper portion of the cabinet body (1) is covered with cabinet lid (16).
2. An electric control cabinet mounting rail according to claim 1, characterized in that: the mounting plate (15) is arranged in an L shape.
3. An electric control cabinet mounting rail according to claim 1, characterized in that: the upper surface of the sliding sleeve (14) is provided with a threaded hole (17) in a penetrating way.
4. An electric control cabinet mounting rail according to claim 1, characterized in that: the clamping strips (9) on the chuck (7) are four, and the clamping strips (9) are matched with the clamping holes (8) for use.
5. An electric control cabinet mounting rail according to claim 1, characterized in that: and heat dissipation through holes (18) are uniformly formed in the cabinet cover (16).
6. An electric control cabinet mounting rail according to claim 5, characterized in that: and the upper surface of the cabinet cover (16) is provided with a dustproof net (19).
