CN216099067U

CN216099067U - A slitter for tape processing

Info

Publication number: CN216099067U
Application number: CN202122225511.1U
Authority: CN
Inventors: 卜宪坤
Original assignee: Jilin Craftsman Electromechanical Equipment Co ltd
Current assignee: Jilin Craftsman Electromechanical Equipment Co ltd
Priority date: 2021-09-14
Filing date: 2021-09-14
Publication date: 2022-03-22
Anticipated expiration: 2031-09-14

Abstract

The utility model discloses a slitting machine for tape processing, which relates to the technical field of slitting machines. A No. 1 chute is provided on the outer surface of the rotating roller, a No. 1 slider is slidably connected to the inside of the No. 1 chute, and a No. 1 connecting block is fixedly installed on the lower surface of the limit plate. The inner side of the connecting block is rotatably connected with a No. 1 connecting rod, and the No. 1 connecting rod is rotatably connected with the No. 1 slider. The inner side of the limit plate is fixedly connected with a telescopic spring, and the telescopic spring is fixedly connected with the rotating roller. The beneficial effect of the new type is that the set limit plate is tightly stuck on the inner side of the tape by the elastic force of the telescopic spring, so that the tape is fixedly connected with the rotating roller, which can prevent sliding during the cutting process and improve the cutting quality of the tape. And the structure is simple and easy to operate.

Description

Cutting machine is used in sticky tape processing

Technical Field

The utility model relates to the technical field of splitting machines, in particular to a splitting machine for processing an adhesive tape.

Background

The splitting machine is a mechanical device for splitting wide paper, mica tapes or adhesive tapes into a plurality of narrow materials, is commonly used for paper making machinery, wire and cable mica tapes, adhesive tapes and printing and packaging machinery, mainly comprises a large-reel female roll and is split into products with different widths, and the splitting machine is widely applied to a plurality of working fields of people along with continuous development and continuous progress of science and technology, such as the splitting machine for processing the adhesive tapes.

SUMMERY OF THE UTILITY MODEL

Aiming at the defects of the prior art, the utility model provides a splitting machine for processing an adhesive tape, which solves the problems of poor fixing effect and poor functionality between the adhesive tape and a rotating roller in the background technology.

In order to achieve the purpose, the utility model is realized by the following technical scheme: the utility model provides a cutting machine is used in sticky tape processing, includes base and limiting plate, the last fixed surface of base installs the backup pad, one side of backup pad is rotated and is connected with the live-rollers, a spout has been seted up on the outside surface of live-rollers, the inboard sliding connection of a spout has a slider No. one, the lower fixed surface of limiting plate installs a connecting block, the inboard of a connecting block is rotated and is connected with a connecting rod, a connecting rod rotates with a slider and is connected, the inboard fixedly connected with expanding spring of limiting plate, expanding spring and live-rollers fixed connection.

Preferably, the upper surface of the base is fixedly provided with a support rod, and the side surface of the support plate is fixedly provided with a motor.

Preferably, the output end of the motor is fixedly connected with the rotating roller, a groove is formed in the rotating roller, and a first electromagnet device is arranged in the groove.

Preferably, the inner side of the limiting plate is fixedly connected with a linkage rod, and one end of the linkage rod is fixedly connected with a first magnetic block.

Preferably, the upper end fixedly connected with supporting seat of bracing piece, No. two spouts have been seted up to the lower surface of supporting seat, the inboard sliding connection of No. two spouts has No. two sliders, the inboard of No. two sliders is rotated and is connected with the connecting rod No. two, the lower surface of supporting seat is close to middle part position fixed mounting and has electric telescopic handle.

Preferably, electric telescopic handle's lower extreme fixedly connected with mount pad, the last fixed surface of mount pad installs No. two connecting blocks, No. two connecting blocks rotate with No. two connecting rods and are connected.

Preferably, the inside of mount pad is provided with electromagnet device No. two, T type spout has been seted up to the inside of mount pad, the inboard sliding connection of T type spout has T type slider, the lower fixed surface of T type slider installs the branch cutter, the last fixed surface of T type slider installs No. two magnetic blocks, the front surface of mount pad is close to below position and is provided with the reference scale mark.

The utility model provides a slitting machine for processing adhesive tapes, which has the following beneficial effects:

1. this cutting machine is used in sticky tape processing, the limiting plate that receives expanding spring's elasticity through the setting tightly blocks in the inboard of sticky tape, make sticky tape and live-rollers fixed connection, can prevent to cut the in-process and slide, the quality of cutting of sticky tape has been improved, and an electromagnet device through setting up, can produce certain appeal, make a magnetic block and an electromagnet device of gangbar one end contact, and then drive the inboard removal of a plurality of limiting plate, can dismantle the sticky tape, moreover, the steam generator is simple in structure, practice thrift a large amount of manpowers and time.

2. This cutting machine is used in sticky tape processing slides in the inboard of T type spout through the T type slider that sets up, and then adjusts the position between a plurality of branch cutter as required, can control the width that the sticky tape was cut, has improved the functionality of device effectively to through No. two electromagnet device that set up, make No. two magnetic blocks and No. two electromagnet device magnetism of T type slider upper surface be connected, thereby will divide the cutter fixed, its simple structure, the operation of being convenient for.

Drawings

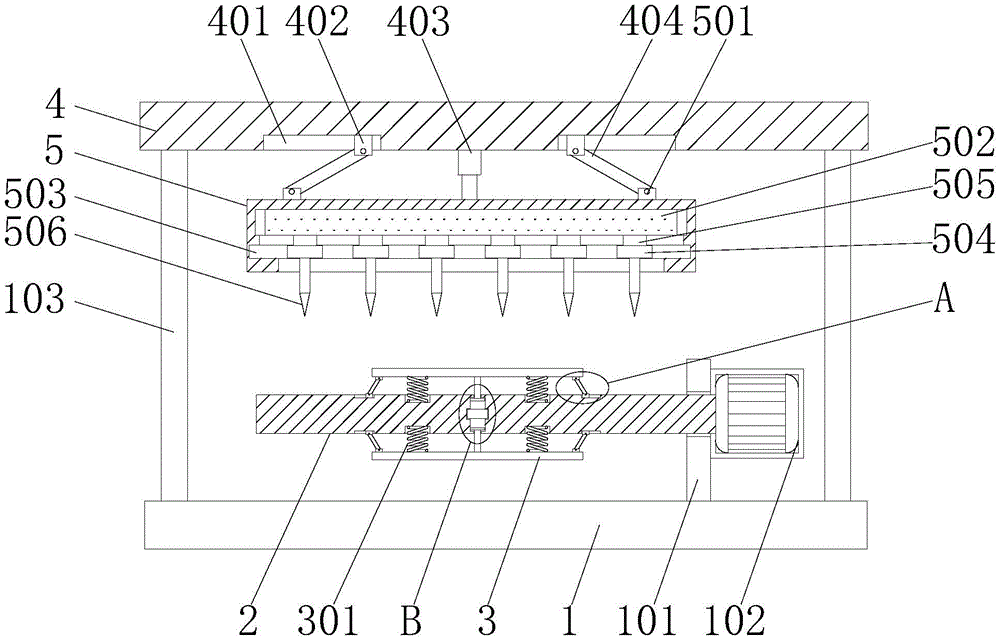

FIG. 1 is a schematic structural view of the present invention;

FIG. 2 is an enlarged view taken at A in FIG. 1 according to the present invention;

FIG. 3 is an enlarged view of the utility model at B in FIG. 1;

fig. 4 is a front view of the mount of the present invention.

In the figure: 1. a base; 101. a support plate; 102. a motor; 103. a support bar; 2. a rotating roller; 201. a first chute; 202. a first sliding block; 203. a groove; 204. a first electromagnet device; 3. a limiting plate; 301. a tension spring; 302. a first connecting block; 303. a first connecting rod; 304. a linkage rod; 305. a first magnetic block; 4. a supporting seat; 401. a second chute; 402. a second sliding block; 403. an electric telescopic rod; 404. a second connecting rod; 5. a mounting seat; 501. a second connecting block; 502. a second electromagnet device; 503. a T-shaped chute; 504. a T-shaped slider; 505. a second magnetic block; 506. a slitting knife; 507. reference is made to the graduation marks.

Detailed Description

The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments.

Referring to fig. 1 to 4, the present invention provides a technical solution: a slitting machine for processing adhesive tapes comprises a base 1 and a limiting plate 3, wherein a supporting plate 101 is fixedly arranged on the upper surface of the base 1, a supporting rod 103 is fixedly arranged on the upper surface of the base 1, a motor 102 is fixedly arranged on the side surface of the supporting plate 101, a rotating roller 2 is rotatably connected to one side of the supporting plate 101, a first sliding groove 201 is formed in the outer side surface of the rotating roller 2, a first sliding block 202 is slidably connected to the inner side of the first sliding groove 201, the output end of the motor 102 is fixedly connected with the rotating roller 2, a groove 203 is formed in the rotating roller 2, a first electromagnet device 204 is arranged in the groove 203, a first connecting block 302 is fixedly arranged on the lower surface of the limiting plate 3, a first connecting rod 303 is rotatably connected to the inner side of the first connecting block 302, the first connecting rod 303 is rotatably connected with the first sliding block 202, the limiting plate 3 drives the first sliding block 202 to slide in the first sliding groove 201 through the first connecting rod 303 during the moving process of the limiting plate 3, thereby having effective limiting effect, preventing the limiting plate 3 from moving left and right, the inner side of the limiting plate 3 is fixedly connected with an expansion spring 301, the expansion spring 301 is fixedly connected with a rotating roller 2, the limiting plate 3 arranged is tightly clamped at the inner side of the adhesive tape by the elasticity of the expansion spring 301, so that the adhesive tape is fixedly connected with the rotating roller 2, the sliding in the cutting process can be prevented, the cutting quality of the adhesive tape is improved, the inner side of the limiting plate 3 is fixedly connected with a linkage rod 304, one end of the linkage rod 304 is fixedly connected with a first magnetic block 305, and a certain attraction force can be generated by the arranged first electromagnet device 204, so that the first magnetic block 305 at one end of the linkage rod 304 is contacted with the first electromagnet device 204, and then a plurality of limiting plates 3 are driven to move towards the inner side, the adhesive tape can be detached, the structure is simple, a large amount of manpower and time are saved, the upper end of the supporting rod 103 is fixedly connected with a supporting seat 4, the lower surface of the supporting seat 4 is provided with a second sliding groove 401, the inner side of the second sliding groove 401 is connected with a second sliding block 402 in a sliding manner, the inner side of the second sliding block 402 is connected with a second connecting rod 404 in a rotating manner, the lower surface of the supporting seat 4 is fixedly provided with an electric telescopic rod 403 close to the middle position, the lower end of the electric telescopic rod 403 is fixedly connected with a mounting seat 5, the upper surface of the mounting seat 5 is fixedly provided with a second connecting block 501, the second connecting block 501 is rotatably connected with the second connecting rod 404, the inside of the mounting seat 5 is provided with a second electromagnet device 502, the inside of the mounting seat 5 is provided with a T-shaped sliding groove 503, the inner side of the T-shaped sliding groove 503 is connected with a T-shaped sliding block 504 in a sliding manner, the lower surface of the T-shaped sliding block 504 is fixedly provided with a slitting knife 506, the upper surface of the T-shaped sliding block 504 is fixedly provided with a second magnetic block 505, the T-shaped sliding block 504 slides on the inner side of the T-shaped sliding groove 503, and the positions between the slitting knives 506 are adjusted according to requirements, the width that the sticky tape was cut can be controlled, the functionality of device has been improved effectively to through No. two electromagnet device 502 that set up, make No. two magnetic block 505 and No. two electromagnet device 502 magnetism of T type slider 504 upper surface be connected, thereby it is fixed to divide cutter 506, its simple structure, the operation of being convenient for, the front surface of mount pad 5 is close to below position and is provided with reference scale mark 507, is favorable to adjusting the accurate position of dividing cutter 506.

In summary, when the slitting machine for processing the adhesive tape is used, firstly the first electromagnet device 204 is started to generate a certain attractive force, so that the first magnetic block 305 at one end of the linkage rod 304 is in contact with the first electromagnet device 204 to drive the plurality of limiting plates 3 to move towards the inner side, then the adhesive tape is sleeved on the outer side surface of the rotating roller 2, at this time, the first electromagnet device 204 is closed, the limiting plates 3 are tightly clamped at the inner side of the adhesive tape by the elastic force of the expansion springs 301, so that the adhesive tape is fixedly connected with the rotating roller 2 to prevent the adhesive tape from sliding in the slitting process, then the motor 102 is started to drive the adhesive tape to rotate through the rotating roller 2, then the electric telescopic rod 403 is started to enable the slitting knife 506 to be in contact with the adhesive tape to perform the slitting operation, and the second electromagnet device 502 is closed to control the T-shaped sliding block 504 to slide at the inner side of the T-shaped chute 503, then the positions of the plurality of slitting knives 506 are adjusted according to requirements, and then the second electromagnet device 502 is started, so that the second magnetic block 505 on the upper surface of the T-shaped sliding block 504 is magnetically connected with the second electromagnet device 502, the slitting knives 506 are fixed, the slitting width of the adhesive tape can be controlled, and the functionality of the device is effectively improved.

The above description is only for the preferred embodiment of the present invention, but the scope of the present invention is not limited thereto, and any person skilled in the art should be considered to be within the technical scope of the present invention, and equivalent alternatives or modifications according to the technical solution of the present invention and the inventive concept thereof should be covered by the scope of the present invention.

Claims

1. A slitting machine for tape processing, comprising a base (1) and a limit plate (3), characterized in that: a support plate (101) is fixedly installed on the upper surface of the base (1), and the support plate is One side of (101) is rotatably connected with a rotating roller (2), the outer surface of the rotating roller (2) is provided with a No. Block (202), a No. 1 connecting block (302) is fixedly installed on the lower surface of the limiting plate (3), and a No. 1 connecting rod (303) is rotatably connected to the inner side of the No. 1 connecting block (302). The No. 1 connecting rod (303) is rotatably connected with the No. 1 slider (202). The inner side of the limit plate (3) is fixedly connected with a telescopic spring (301), and the telescopic spring (301) is fixed to the rotating roller (2). connect.

2 . The slitting machine for tape processing according to claim 1 , wherein a support rod ( 103 ) is fixedly installed on the upper surface of the base ( 1 ), and the side surface of the support plate ( 101 ) is fixedly installed. 3 . A motor (102) is fixedly installed.

3. The slitting machine for tape processing according to claim 2, characterized in that: the output end of the motor (102) is fixedly connected with the rotating roller (2), and the interior of the rotating roller (2) is open There is a groove (203), and a No. 1 electromagnet device (204) is arranged inside the groove (203).

4. The slitting machine for tape processing according to claim 1, wherein a linkage rod (304) is fixedly connected to the inner side of the limit plate (3), and one end of the linkage rod (304) Fixed connection No. 1 magnetic block (305).

5. The slitting machine for tape processing according to claim 2, characterized in that: the upper end of the support rod (103) is fixedly connected with a support seat (4), and the lower surface of the support seat (4) A No. 2 chute (401) is opened, the inner side of the No. 2 chute (401) is slidably connected with a No. 2 slider (402), and the inner side of the No. 2 slider (402) is rotatably connected with a No. 2 connecting rod (404), an electric telescopic rod (403) is fixedly installed on the lower surface of the support base (4) near the middle position.

6. The slitting machine for tape processing according to claim 5, wherein the lower end of the electric telescopic rod (403) is fixedly connected with a mounting seat (5), and the upper part of the mounting seat (5) is fixedly connected with A No. 2 connecting block (501) is fixedly installed on the surface, and the No. 2 connecting block (501) is rotatably connected with a No. 2 connecting rod (404).

7. The slitting machine for tape processing according to claim 6, characterized in that: the inside of the mounting seat (5) is provided with a No. 2 electromagnet device (502), and the mounting seat (5) is provided with a No. A T-shaped sliding groove (503) is opened inside, and a T-shaped sliding block (504) is slidably connected to the inner side of the T-shaped sliding groove (503), and a slitter is fixedly installed on the lower surface of the T-shaped sliding block (504). A knife (506), a No. 2 magnetic block (505) is fixedly mounted on the upper surface of the T-shaped slider (504), and a reference scale line (507) is provided on the front surface of the mounting seat (5) near the lower position.
