The utility model relates to a transfer flatcar for rescue, which comprises a transfer bed plate, wherein an arch frame is fixed on the right side of the bottom end face of the transfer bed plate, a pedal is inserted into a gap between the transfer bed plate and the arch frame, a limiting plate is fixed on the left side of the bottom end face of the pedal, and a plurality of fastening bolts are spirally connected to the bottom end face of the arch frame; the left side wall of the transfer bed board is rotatably connected with a plurality of side stop rods through lower damping shafts, and the top ends of the side stop rods are connected with cross rods through upper damping shafts; the rear side wall of the transfer bed board is rotatably connected with a foot placing plate through a rotating mechanism, the rear end of the bottom end face of the transfer bed board is rotatably connected with auxiliary support rods which are bilaterally symmetrical through auxiliary damping shafts, and the bottom end face of the foot placing plate is connected with a clamping frame which is bilaterally symmetrical and is L-shaped; the utility model can facilitate the transfer of patients in the rescue process and the rescue operation of medical personnel in the transfer process of patients.
Description
Technical Field
The utility model relates to the technical field of medical auxiliary devices, in particular to a transferring flat car for rescue.
Background
In the rescue process, quick and timely medical measures need to be taken for the sick and dangerous wounded and patients to save lives. An important principle for rescuing patients is to strive for time, and various rescue instruments such as an electrical cardiac pacemaker, a respirator, a defibrillator, an electrocardiograph monitor and the like are available.
A transfer flat car is often used in rescue, and the transfer flat car is used as a conveying tool for conveying emergency patients or transferring the patients. The existing flat car only comprises a car frame and a base plate arranged on the car frame, and the flat car cannot adapt to patients without body types due to different heights of the patients, particularly the length of a car body is not enough, and ankles of the patients are directly placed at the edges of plastic, so that pressure sores are easily caused. And in addition, when the patient needs to be rescued in time, the nurse needs to lie prone to position the patient to carry out the heartbeat resuscitation operation on the body due to the special position, the workload of the nurse is increased, and therefore the transfer flat car in the prior art is improved, and the technical problem to be solved by the technical staff in the field is solved urgently.
Disclosure of Invention
The utility model aims to: the utility model provides a transport flatcar for rescue aims at making it can be convenient for transport the patient at the rescue in-process, and the medical personnel of being convenient for carry out the rescue operation to it at the in-process of transporting the patient moreover.
The technical scheme of the utility model is as follows: a transfer flatcar for rescue comprises a transfer bed plate, wherein an arch frame is fixed on the right side of the bottom end face of the transfer bed plate, a pedal is inserted into a gap between the transfer bed plate and the arch frame, a limiting plate is fixed on the left side of the bottom end face of the pedal, and a plurality of fastening bolts are spirally connected to the bottom end face of the arch frame; the left side wall of the transfer bed board is rotatably connected with a plurality of side stop rods through lower damping shafts, and the top ends of the side stop rods are connected with cross rods through upper damping shafts; the utility model discloses a bed board, including transport bed board, auxiliary damping axle, be connected with the foot through slewing mechanism rotation on the back lateral wall of transport bed board and shelve the board, the rear end of transporting bed board bottom face has bilateral symmetry's auxiliary strut through auxiliary damping axle rotation connection, the foot is shelved and is connected with bilateral symmetry and the joint frame that is the L type on the bottom face of board.
Preferably, the pedal is inserted in the gap between the transport bed board and the arch frame in a clearance fit mode, the end portion of the fastening bolt can penetrate through the arch frame on the bottom end face of the pedal, and the pedal in the arch frame can be locked and fixed through the fastening bolt.
Preferably, the landing leg is all installed to the edge of transporting bed board bottom face, dual brake wheel is installed to the bottom of landing leg.
Preferably, the below of transporting the bed board is installed and is put the thing frame, it puts the thing drawer to be provided with in the thing frame, can place the medical article that the rescue in-process was used and carry out classified storage in the thing drawer is put to the difference.
Preferably, the rear end of the lower portion of the transfer bed board is provided with a rescue equipment placing frame, so that the rescue equipment can be stored through the rescue equipment placing frame.
Preferably, slewing mechanism still includes the tip damping axle between the arch including being fixed in the arch of transporting bilateral symmetry on the bed board rear side wall, foot rest board passes through tip damping axle swivelling joint between two archs.
Preferably, the side wall of the transfer bed board is provided with a calling device.
Preferably, the top end face of the transfer bed board is bonded with a sanitary pad, the top end face of the foot placing board is bonded with bilaterally symmetrical foot pads, and the sanitary pad and the foot pads can be replaced to a certain extent according to the hygienic condition of the device.
Compared with the prior art, the utility model has the beneficial effects that: according to the utility model, through the design of adding the transfer bed plate, the arch frame, the pedal, the limiting plate, the fastening bolt, the lower damping shaft, the side stop lever, the damping shaft, the cross rod, the foot placing plate, the auxiliary damping shaft, the auxiliary support rod and the clamping frame, when a patient needing to be rescued is subjected to cardiopulmonary compression, the pedal can be used for supporting medical personnel, so that the medical personnel can conveniently perform cardiopulmonary resuscitation on the rescued patient, and when the height of the patient is too long, the foot of the patient can be supported through the foot placing plate, so that the condition that the patient is injured due to stress and droop is prevented.
Drawings
In order to more clearly illustrate the technical solutions of the embodiments of the present invention, the drawings required to be used in the description of the embodiments are briefly introduced below, the drawings in the following description are only some embodiments of the present invention, and it is obvious for those skilled in the art that other drawings can be obtained according to the drawings without creative efforts.

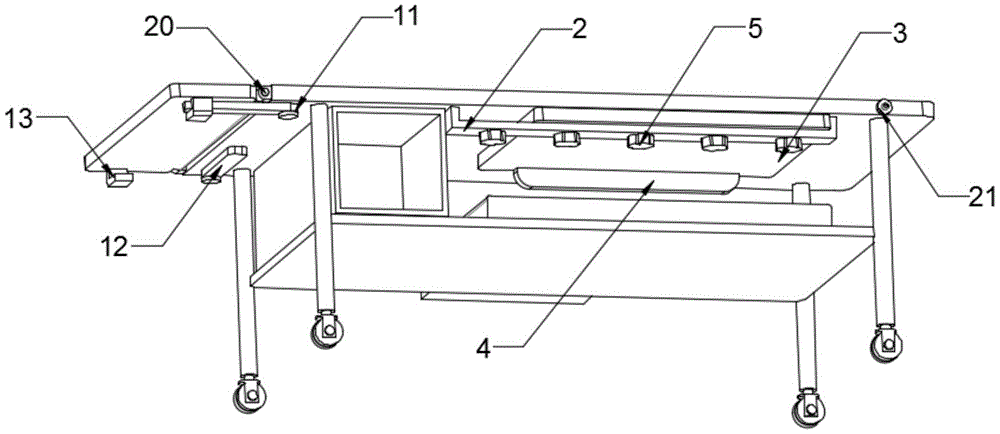

FIG. 1 is a perspective view of the present invention;
FIG. 2 is a schematic top view of the present invention;
FIG. 3 is a schematic front view of the present invention;
FIG. 4 is a schematic side view of the present invention;
the reference numerals in the drawings denote: 1-transferring bed board; 2-an arch frame; 3-treading the pedal; 4-a limiting plate; 5-fastening bolts; 6-lower damping shaft; 7-side stop lever; 8-upper damping shaft; 9-a cross bar; 10-a foot resting board; 11-an auxiliary damping shaft; 12-an auxiliary strut; 13-a snap frame; 14-a leg; 15-double brake wheels; 16-a storage frame; 17-a storage drawer; 18-the rescue equipment is put into the frame; 19-raised; 20-end damping shaft; 21-a caller; 22-sanitary pad; 23-foot pad.
Detailed Description
The above-described scheme is further illustrated below with reference to specific examples. It should be understood that these examples are for illustrative purposes and are not intended to limit the scope of the present invention. The conditions used in the examples may be further adjusted according to specific conditions, and the conditions used in the experiments are not specifically mentioned.
As shown in fig. 1 to 2, a transporting flatcar for rescue comprises a transporting bed board 1, wherein an arch frame 2 is fixed on the right side of the bottom end face of the transporting bed board 1, a pedal 3 is inserted into a gap between the transporting bed board 1 and the arch frame 2, a limiting plate 4 is fixed on the left side of the bottom end face of the pedal 3, and a plurality of fastening bolts 5 are spirally connected to the bottom end face of the arch frame 2.
In the embodiment, the pedal 3 is inserted into the gap between the transport bed plate 1 and the arch frame 2 in a clearance fit manner, the end part of the fastening bolt 5 can penetrate through the arch frame 2 and be arranged on the bottom end surface of the pedal 3, and the pedal 3 in the arch frame 2 can be locked and fixed through the fastening bolt 5; supporting legs 14 are arranged at the corners of the bottom end face of the transfer bed plate 1, and double brake wheels 15 are arranged at the bottom ends of the supporting legs 14; a storage frame 16 is arranged below the transfer bed board 1, a storage drawer 17 is arranged in the storage frame 16, and medical articles used in the rescue process can be placed in different storage drawers 17 for classified storage
As shown in fig. 3 to 4, a plurality of side blocking rods 7 are rotatably connected to the left side wall of the transfer bed plate 1 through lower damping shafts 6, and the top ends of the side blocking rods 7 are connected to a cross rod 9 through upper damping shafts 8; the rear side wall of the transfer bed board 1 is rotatably connected with a foot placing board 10 through a rotating mechanism, the rear end of the bottom end face of the transfer bed board 1 is rotatably connected with auxiliary supporting rods 12 which are bilaterally symmetrical through auxiliary damping shafts 11, and the bottom end face of the foot placing board 10 is connected with a clamping frame 13 which is bilaterally symmetrical and is L-shaped.
In this embodiment, the rear end below the transfer bed plate 1 is provided with a rescue equipment placing frame 18, so that rescue equipment can be accommodated through the rescue equipment placing frame 18; the rotating mechanism comprises left and right symmetrical bulges 19 fixed on the rear side wall of the transfer bed board 1 and end part damping shafts 20 between the bulges 19, and the foot placing board 10 is rotatably connected between the two bulges 19 through the end part damping shafts 20; a calling device 21 is arranged on the side wall of the transfer bed plate 1; a sanitary pad 22 is bonded on the top end face of the transfer bed board 1, foot pads 23 which are bilaterally symmetrical are bonded on the top end face of the foot placing board 10, and the forehead sanitary condition of the device can be positioned to a certain extent by replacing the sanitary pad 22 and the foot pads 23.
When the medical bed is used, firstly, clean sanitary pads 22 and foot pads 23 are respectively bonded on the top end surfaces of the transfer bed board 1 and the foot placement board 10, then the pedal 3 is pushed to enable the right side wall of the pedal to be flush with the right side wall of the transfer bed board 1, the fastening bolt 5 is screwed in a spiral mode to enable the fastening bolt to fix the pedal 3 between the transfer bed board 1 and the arched frame 2, and then rescue equipment and part of medical supplies can be respectively placed in the placement drawer 17 and the rescue equipment placement frame 18 to be stored.
In the process of transporting salvage, make the patient lie earlier and transport on bed board 1, can make foot rest board 10 rotate along tip damping axle 20 if patient's height overlength to rotate auxiliary strut 12 along auxiliary damping axle 11, can support fixedly (as shown in fig. 1) foot rest board 10 through with auxiliary strut 12 joint in joint frame 13. Secondly, at the in-process of transporting the turn, if need medical personnel to carry out cardiopulmonary resuscitation to the patient and press, then can pull out pedal 3 along transporting between bed board 1 and the arch frame 2, limiting plate 4 can prevent pedal 3 from pulling out the condition that takes place to drop along transporting between bed board 1 and the arch frame 2 completely this moment, when pedal 3 pulls out suitable width, the fastening bolt 5 of screwing up can be fixed pedal 3, can make pedal 3 support medical personnel this moment, thereby it presses to be convenient for medical personnel to carry out cardiopulmonary resuscitation to the rescue patient (as shown in fig. 3). In the process of transporting the patient, in order to prevent that the patient from dropping along the side of transporting bed board 1, can promote horizontal pole 9 and make it drive side pin 7 and rotate along lower damping shaft 6, keep off the side department of transporting bed board 1 and protect the patient until side pin 7 (as shown in fig. 3). The transferring flat car for rescue has reasonable structural design, strong practicability and excellent market popularization value.
The above is only a specific application example of the present invention, and the protection scope of the present invention is not limited in any way. In addition to the above embodiments, the present invention may have other embodiments. All technical solutions formed by using equivalent substitutions or equivalent transformations fall within the scope of the present invention.
Claims (8)
1. The utility model provides a salvage is with transporting flatcar which characterized in that: the transfer bed plate comprises a transfer bed plate (1), an arch frame (2) is fixed on the right side of the bottom end face of the transfer bed plate (1), a pedal (3) is inserted into a gap between the transfer bed plate (1) and the arch frame (2), a limiting plate (4) is fixed on the left side of the bottom end face of the pedal (3), and a plurality of fastening bolts (5) are spirally connected to the bottom end face of the arch frame (2); the left side wall of the transfer bed board (1) is rotatably connected with a plurality of side stop levers (7) through a lower damping shaft (6), and the top ends of the side stop levers (7) are connected with a cross rod (9) through an upper damping shaft (8); it shelves board (10) to be connected with the foot through slewing mechanism rotation on the rear side wall of transporting bed board (1), the rear end of transporting bed board (1) bottom face rotates auxiliary strut (12) that is connected with bilateral symmetry through auxiliary damping axle (11), the foot is shelved and is connected with bilateral symmetry and joint frame (13) that are the L type on the bottom face of board (10).
2. The transport trolley for rescue according to claim 1, wherein the pedal (3) is inserted into the gap between the transport bed plate (1) and the arch frame (2) in a clearance fit manner, and the end of the fastening bolt (5) can pass through the arch frame (2) and be arranged on the bottom end face of the pedal (3).
3. The transport flat carriage for rescue according to claim 1, characterized in that the corners of the bottom end face of the transport bed plate (1) are provided with legs (14), and the bottom ends of the legs (14) are provided with double brake wheels (15).
4. The transferring flatcar for rescuing as claimed in claim 1, wherein a storage frame (16) is installed below the transferring bed plate (1), and a storage drawer (17) is provided in the storage frame (16).
5. The transporting flatcar for rescuing as claimed in claim 1 wherein a rescuing equipment placing frame (18) is installed at the rear end under the transporting bed board (1).
6. The transport trolley for rescue according to claim 1, wherein the rotating mechanism comprises left and right symmetrical protrusions (19) fixed on the rear side wall of the transport bed plate (1), and further comprises end damping shafts (20) between the protrusions (19), and the foot resting plate (10) is rotatably connected between the two protrusions (19) through the end damping shafts (20).
7. A transport trolley for rescue according to claim 1, characterized in that the side wall of the transport bed board (1) is mounted with a beeper (21).
8. The transport cart for rescuing as claimed in claim 1, wherein sanitary pads (22) are bonded on the top end surface of the transport bed plate (1), and foot pads (23) are bonded on the top end surface of the foot resting plate (10) in bilateral symmetry.
