CN216058424U - Landscape plant culture pot suitable for multiple conditions

Info

Publication number: CN216058424U
Application number: CN202122415056.1U
Authority: CN
Inventors: 岳峰; 刘丽丽; 王宁; 韩志永
Original assignee: Henan Health Island Environmental Technology Co ltd
Current assignee: Henan Health Island Environmental Technology Co ltd
Priority date: 2021-10-08
Filing date: 2021-10-08
Publication date: 2022-03-18
Anticipated expiration: 2031-10-08

Abstract

The utility model relates to the field of green plant maintenance in residential areas, in particular to a landscape plant cultivation pot which is suitable for multi-occasion conditions. The invention aims to solve the problems in the prior art that the mode of the green plant cultivation rack is single, the landscaping ability is poor, and the shapes of the cultivation pots under different conditions are different and difficult to unify. The utility model comprises a quadrilateral base unit, the base unit is provided with a slot for erecting a vertical plate, the vertical plate is arc-shaped, hexagonal or triangular; The upper and lower surfaces of the water inlet and the water inlet to form the irrigation circuit base are provided with an assembly groove structure to realize slope-type assembly, and the base is also provided with a hanging buckle. The advantage is that the adaptation to various occasions can be completed through simple deformation, with high flexibility, low cost, easy maintenance and maintenance in the later stage, and more convenient landscaping.

Description

Landscape plant culture pot suitable for multiple conditions

Technical Field

The field of green plant maintenance in a residential area, in particular to a landscape plant culture pot suitable for multiple occasions.

Background

The greening of a community is related to the comfortable degree of residence of the community, and the satisfaction degree of residents on developers and property management is often improved by improving the greening rate. The landscape architecture is that the integral appreciation degree is improved by the artistic arrangement of the hillstones and the trees in the limited workpieces, and further the satisfaction degree of residents on the living environment is improved. Still further, in parks, squares, often also need appropriate green plants to make the scene, and applicant finds that, along with the more and more demand for green plants to make the scene under the big environment, the contradiction that the traditional work receiving assistance can not satisfy the present high-efficient production is gradually shown. In the prior art, equipment for accommodating green planting spaces, which can quickly adapt to conditions of various occasions, is lacked.

SUMMERY OF THE UTILITY MODEL

The utility model aims to solve the problems that the green plant culture shelf in the prior art is single in mode, poor in landscaping capability and difficult to unify culture pots in different situations and under different conditions.

The specific scheme of the utility model is as follows:

designing a landscape plant cultivation pot suitable for multiple conditions, which comprises a quadrilateral base unit, wherein the base unit is provided with a slot for inserting a vertical plate, the vertical plate is arc-shaped or linear, so that a circular or polygonal cultivation area is formed, and the base unit is of a root separating plate structure; the vertical plate is hollow and provided with a water outlet and a water inlet to form an irrigation loop, the upper surface and the lower surface of the base unit are provided with assembling groove structures, the base unit is further provided with a slope type assembling original, the top and the bottom of the vertical plate are provided with clamping grooves, sliding blocks are installed in the clamping grooves to be connected with the base unit or the upper vertical plate, and the base is further provided with hanging buckles.

In specific implementation, the upper part of the inner wall of the vertical plate is provided with a drip irrigation type water outlet, the bottom of the vertical plate is connected with a liquid conveying pipeline, and the other end of the liquid conveying pipeline is communicated with a liquid storage tank.

In specific implementation, the slope type assembling original piece comprises an inclined square block arranged on the base unit to form an installation slope surface, and the interior of the inclined square block is hollow.

In specific implementation, the main body of the hanging buckle is L-shaped, the transverse edge of the hanging buckle is inserted into the root separating plate structure, and the top end of the main body is provided with a hook bent downwards

In specific implementation, the vertical rod of the main body of the hanging buckle is a telescopic rod.

In specific implementation, a hinged connection is arranged between the cross rod and the vertical rod of the hanging buckle to adjust the angle.

In specific implementation, a water pump is arranged on the infusion pipeline, and a power supply in a power supply loop of the water pump is a solar battery.

In specific implementation, the bottom of the sliding block is clamped with a self-locking fixed block.

The utility model has the beneficial effects that:

the space occupied area is small, the pattern frame can be adjusted at any time according to garden design planning so as to place proper flower green plants, the bottom plate of the root separation layer is convenient for the whole moving, and the transition updating after the flowers and trees are in season is convenient;

the hanging type is various, and the hanging type can be hung on trees in a community and buildings;

the vertical plate can be hollow to reduce weight, can be filled with standby liquid to realize timely irrigation, and meanwhile, the vertical plate filled with the liquid plays a role in fixing the culture soil and prevents the culture soil from collapsing under the condition of heavy rain flood irrigation.

Drawings

FIG. 1 is a front view of the structure of the present invention;

FIG. 2 is a top view of the structure of the present invention;

FIG. 3 is a left side view of the structure of the present invention;

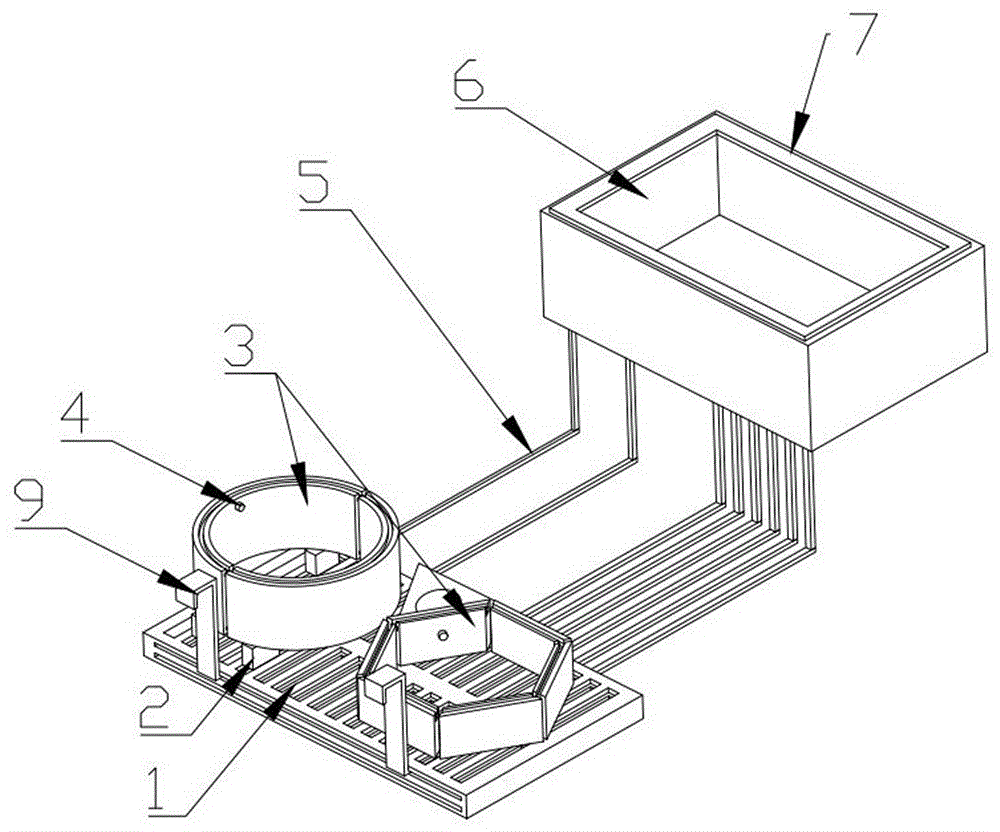

FIG. 4 is a perspective view of the structure of the present invention;

names of components in the drawings: 1. a base unit; 2. a slot; 3. a vertical plate; 4. a water outlet; 5. a fluid delivery conduit; 6. a liquid storage tank; 7. a solar cell; 8. an oblique square block; 9. hanging a buckle; 10. a card slot; 11. a slider; 12. and a self-locking fixing block.

Detailed Description

The preferred embodiments of the present invention will be described in conjunction with the accompanying drawings, and it will be understood that they are described herein for the purpose of illustration and explanation and not limitation.

Example 1

A landscape plant culture pot suitable for multiple conditions is disclosed, referring to figures 1 to 4, and comprises a quadrilateral base unit 1, wherein a slot 2 for inserting a vertical plate 3 is arranged on the base unit 1, the vertical plate 3 is arc-shaped or linear, so as to form a circular or polygonal culture area, and the base unit 1 is of a root separating plate structure; the riser 3 is hollow, is equipped with delivery port 4 and water inlet in order to form irrigation return circuit, is equipped with equipment groove structure on the upper and lower surface of base unit 1, still is equipped with the slope formula on base unit 1 and assembles the original paper, and the top and the bottom of riser 3 set up draw-in groove 10, and installation slider 11 is in order to connect base unit 1 or top riser 3 in the draw-in groove 10, still is equipped with on the base and hangs dress knot 9. On one hand, the design is used for zoning, and on the other hand, the vertical plate 3 filled with water has large self gravity, so that the wind-proof and flood-proof effects can be effectively achieved. After the plants are filled in the different patterns, the landscaping is formed, and meanwhile, the stability of the landscaping is ensured. In a specific working condition, a plurality of culture pots can be combined to form a large-area landscaping plane.

The upper part of the inner wall of the vertical plate 3 is provided with a drip irrigation type water outlet 4, the bottom of the vertical plate 3 is connected with a liquid conveying pipeline 5, and the other end of the liquid conveying pipeline 5 is communicated with a liquid storage tank 6. The liquid storage tank 6 is used for storing rainwater in daily environment.

The original paper is assembled to domatic formula includes the oblique square 8 that sets up on base unit 1 to form the installation domatic, 8 inside hollows of oblique square. The design can realize the establishment of the inclined surface modeling.

The main body of the hanging buckle 9 is L-shaped, the transverse edge of the hanging buckle is inserted into the root separating plate structure, the top end of the main body is provided with a hook bent downwards, and the hanging buckle is convenient to fix and hang.

The vertical rod of the main body of the hanging buckle 9 is a telescopic rod. This design ensures that the base unit 1 is hung on the diagonal while ensuring that it is parallel to the ground.

A hinged connection is arranged between the cross rod and the vertical rod of the hanging buckle 9 to adjust the angle.

The infusion pipeline 5 is provided with a water pump, and a power supply in a power supply loop of the water pump is a solar battery 7. The accumulation of daily power is facilitated.

The design forms a partition plan, individual flower individual culture media are filled in a planned circular or square block, and then the drip irrigation of plants is realized by using the infusion pipeline 5.

Example 2

In this embodiment, when the base unit 1 is suspended, the bottom of the sliding block 11 is clamped with the self-locking fixing block 12. The fixed block limits the slider 11 from the bottom and is fixed by the threaded connection base unit 1. Finally, it should be noted that: although the present invention has been described in detail with reference to the foregoing embodiments, those skilled in the art will understand that various changes, modifications and substitutions can be made without departing from the spirit and scope of the utility model as defined by the appended claims. Any modification, equivalent replacement, or improvement made within the spirit and principle of the present invention should be included in the protection scope of the present invention.

Claims

1. A landscape plant cultivation pot suitable for multiple occasions, characterized in that it comprises a quadrilateral base unit (1), and the base unit (1) is provided with a slot (2) in which a vertical plate (3) can be inserted , the vertical plate (3) is arc-shaped or linear, so as to form a circular or polygonal cultivation area, and the base unit (1) is a root plate structure; the vertical plate (3) is hollow and is provided with The water inlet (4) and the water inlet are used to form an irrigation circuit, the upper and lower surfaces of the base unit (1) are provided with an assembly groove structure, and the base unit (1) is also provided with a slope-type assembly original. The top and bottom parts of the vertical plate (3) are provided with a card slot (10), and a slider (11) is installed in the card slot (10) to connect the base unit (1) or the upper vertical plate (3). There are hanging buckles (9).

2. The landscape plant cultivation pot according to claim 1, characterized in that: the upper part of the inner wall of the vertical plate (3) is provided with a drip irrigation outlet (4), and the vertical plate (3) The bottom is connected to an infusion pipeline (5), and the other end of the infusion pipeline (5) is connected to a liquid storage tank (6).

3. The landscape plant cultivation pot adaptable to conditions of multiple occasions according to claim 1, wherein the slope-type assembly element comprises a sloping block (8) set on the base unit (1) to form an installation slope , the inside of the oblique block (8) is hollow.

4. The landscape plant cultivation pot adaptable to multiple occasions as claimed in claim 1, characterized in that: the main body of the hanging buckle (9) is L-shaped, and its horizontal side is inserted into the root-separating plate structure. The top of the main body is provided with a hook bent downward.

The landscape plant cultivation pot according to claim 4, characterized in that: the upright pole of the main body of the hanging buckle (9) is set as a telescopic pole.

6 . The landscape plant cultivation pot adaptable to multiple occasions according to claim 5 , characterized in that a hinged connection is provided between the horizontal bar and the vertical bar of the hanging buckle ( 9 ) to adjust the angle. 7 .

7. The landscape plant cultivation pot suitable for multiple occasions according to claim 2, characterized in that: a water pump is provided on the infusion pipeline (5), and in the power supply circuit of the water pump, the power source is a solar cell (7) .

8 . The landscape plant cultivation pot adaptable to multiple occasions according to claim 1 , wherein a self-locking fixing block ( 12 ) is clamped at the bottom of the slider ( 11 ). 9 .
