Abstract
The application discloses modular connector includes: a first terminal base; a second terminal block; the mounting structure comprises a mounting seat, a first terminal seat and a second terminal seat, wherein a sunken part and a first socket are arranged at one end of the mounting seat, the first socket penetrates through the mounting seat, the first terminal seat is arranged in the first socket, and the first terminal seat and the sunken part are oppositely arranged; the other end of the mounting seat is also provided with a second socket, the second socket penetrates through the mounting seat, and the second terminal seat is arranged in the second socket so as to form a second inserting cavity in the second socket; the shell is sleeved on the outer side of the mounting seat, and a first inserting cavity is formed between the shell and the concave part. According to the technical scheme, the board end space of the circuit board occupied after the connector is welded can be saved.
Description
Technical Field
The application relates to the technical field of connectors, in particular to a combined connector.
Background
The connectors in the existing market are mostly single connectors, and when the connectors are fixed on a welding plate, the space of the end of the circuit board is occupied, and when the welding plate needs to fix a plurality of connectors, the occupied area of the end of the circuit board is large, and the space waste of the end of the circuit board is easily caused.
SUMMERY OF THE UTILITY MODEL
The present application is directed to solving at least one of the problems in the prior art. Therefore, the application provides a combined connector, which can save the board end space of a circuit board occupied after the connector is welded.
The combined connector according to the embodiment of the application comprises:
a first terminal base;
a second terminal block;
the mounting structure comprises a mounting seat, wherein one end of the mounting seat is provided with a sunken part and a first socket, the first socket penetrates through the mounting seat, the first terminal seat is arranged in the first socket, and the first terminal seat and the sunken part are oppositely arranged; the other end of the mounting seat is also provided with a second socket, the second socket penetrates through the mounting seat, and the second terminal seat is arranged in the second socket so as to form a second inserting cavity in the second socket;
the shell, the shell cover is located the outside of mount pad, the shell with form first grafting chamber between the depressed part.
The combined connector according to the embodiment of the application has at least the following advantages: compared with the technical scheme in the prior art, the technical scheme in the application comprises an installation seat, wherein a concave part and a first socket are arranged at one end of the installation seat, the first socket penetrates through the installation seat, a first terminal seat is arranged in the first socket, the first terminal seat and the concave part are oppositely arranged, and a shell is sleeved on the outer side of the installation seat to form a first splicing cavity between the shell and the concave part; the other end of the mounting seat is provided with a second socket, and the second terminal seat is arranged in the second socket so as to form a second plugging cavity in the second socket, thereby forming a laminated connector and saving board end space of a circuit board occupied by a welded board of the connector; the two terminal seats are arranged on one mounting seat, so that the structural strength of the connector can be enhanced, and the problem that the connector is easy to deform and easily desolder due to the fact that the connector bears external force after being welded with a board is solved; in addition, the formed laminated connectors share the same shell, so that the anti-electromagnetic interference function of the connectors can be enhanced; according to the technical scheme, the board end space of the circuit board occupied after the connector is welded can be saved.
According to some embodiments of the present application, a plurality of second terminals are disposed in the second terminal holder, each of the second terminals includes a contact portion and a main body portion, one side of the contact portion is connected to one end of the main body portion, the other end of the main body portion is used for grounding, and the contact portion is hook-shaped.
According to some embodiments of the present application, a plurality of terminal grooves are formed in the second socket, and the terminal grooves and the second terminals are arranged in a one-to-one correspondence; the contact part comprises a right-angle part and an abutting part, the abutting part is connected with one side, close to the end part, of the right-angle part, and an included angle is formed between the abutting part and one side of the right-angle part; the other side of the right angle part is connected with one end of the main body part, the abutting part is matched with the shape of the terminal groove, and the abutting part is clamped in the corresponding terminal groove.
According to some embodiments of the application, the combined connector further comprises a spacer, the spacer comprises a first connecting portion and a second connecting portion, the first connecting portion is connected with the second connecting portion, the first connecting portion is arranged in the recess, a plurality of first elastic pieces are arranged on the first connecting portion, the first elastic pieces are opposite to the first terminal base, and the first elastic pieces are used for being connected with an external connector.
According to some embodiments of the present application, the housing is provided with a plurality of second elastic pieces, the second elastic pieces are arranged opposite to the first inserting cavity, and the second elastic pieces are used for being connected with an external connector.
According to some embodiments of the application, be provided with a plurality of on the depressed part and dodge the groove, dodge the groove with first shell fragment one-to-one sets up, dodge the groove and be used for dodging taking place the corresponding of deformation first shell fragment.
According to some embodiments of the present application, the mounting base is further provided with an insertion groove, and the first connecting portion is inserted into the insertion groove; the plug-in connection groove is also internally provided with a first clamping groove, the first connecting part is provided with a third elastic sheet corresponding to the first clamping groove, and the third elastic sheet is clamped in the first clamping groove.
According to some embodiments of the present application, a fourth card slot is disposed on a side surface of the mounting seat, a fourth elastic piece is disposed on the second connecting portion, and the fourth elastic piece is inserted between the fourth card slot and the housing; and the fourth elastic piece is also provided with a lug which is abutted against the inner side of the shell.
According to some embodiments of the present application, the second terminal base and the mounting base are provided with a first clamping block and a second clamping groove therebetween, and the first clamping block is clamped in the second clamping groove.
According to some embodiments of the application, a fifth elastic sheet is arranged on the inner side surface of the shell, a third clamping groove is arranged on the inner side surface of the mounting seat, the fifth elastic sheet and the third clamping groove are correspondingly arranged, and the fifth elastic sheet is clamped in the third clamping groove.
Additional aspects and advantages of the present application will be set forth in part in the description which follows and, in part, will be obvious from the description, or may be learned by practice of the present application.
Drawings
The above and/or additional aspects and advantages of the present application will become apparent and readily appreciated from the following description of the embodiments, taken in conjunction with the accompanying drawings of which:

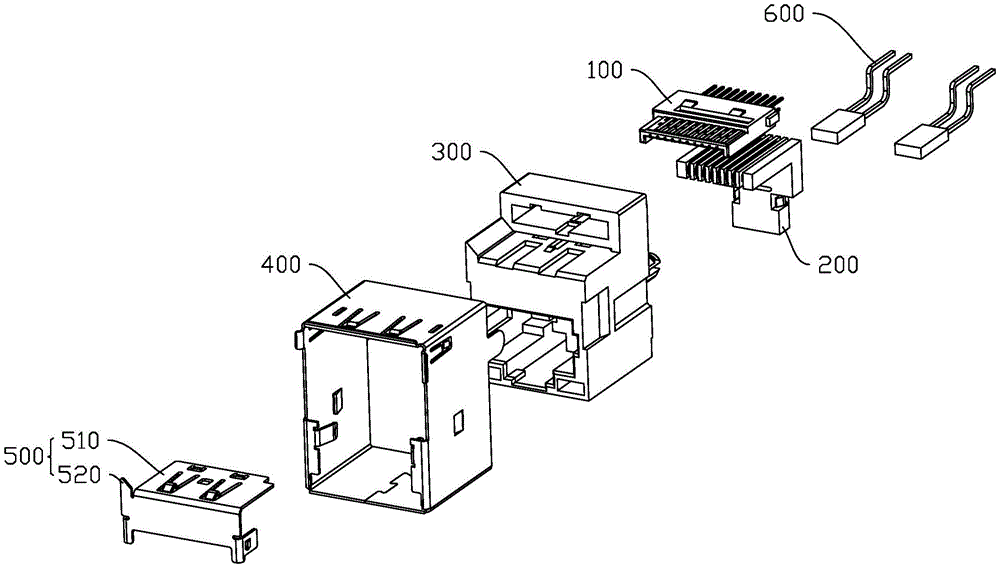

fig. 1 is an exploded view of a modular connector according to an embodiment of the present application;
FIG. 2 is a schematic diagram of a modular connector according to an embodiment of the present application;
FIG. 3 is a cross-sectional view of a mounting block in a modular connector according to an embodiment of the present application;
FIG. 4 is a schematic diagram of the structure of the spacer, the housing and the mounting block in the modular connector according to an embodiment of the present application;
fig. 5 is a schematic structural diagram of a mounting base, a first terminal base and a second terminal base in a combined connector according to an embodiment of the present application;
fig. 6 is a schematic structural diagram of a second terminal block in the combined connector according to an embodiment of the present application.
Reference numerals:
a first terminal holder 100;
a second terminal block 200; a contact portion 211; a main body portion 212; a first latch 220;
a mount 300; a fifth card slot 310; a terminal groove 320; an avoidance slot 330; a plug groove 340; a first card slot 341; a fourth card slot 350; a third card slot 370; a first jack 380; a second socket 390;
a housing 400; a second resilient piece 410; a fifth elastic sheet 420; the second latch 430;
a separator 500; a first connection portion 510; a first resilient piece 511; a third elastic sheet 512;
a second connection portion 520; a fourth spring plate 521; a bump 5211;
an LED lamp 600.
Detailed Description
Reference will now be made in detail to embodiments of the present application, examples of which are illustrated in the accompanying drawings, wherein like or similar reference numerals refer to the same or similar elements or elements having the same or similar function throughout. The embodiments described below with reference to the drawings are exemplary only for the purpose of explaining the present application and are not to be construed as limiting the present application.
In the description of the present application, it is to be understood that the positional descriptions, such as the directions of up, down, front, rear, and the like, referred to as positional or positional relationships, are based on the directions or positional relationships shown in the drawings, and are only for convenience of describing the present application and simplifying the description, but do not indicate or imply that the device or element referred to must have a specific orientation, be constructed and operated in a specific orientation, and thus, should not be construed as limiting the present application.
In the description of the present application, the meaning of a plurality is one or more, the meaning of a plurality is two or more, and larger, smaller, larger, etc. are understood as excluding the present number, and larger, smaller, inner, etc. are understood as including the present number. If the first and second are described for the purpose of distinguishing technical features, they are not to be understood as indicating or implying relative importance or implicitly indicating the number of technical features indicated or implicitly indicating the precedence of the technical features indicated.
In the description of the present application, unless otherwise expressly limited, terms such as set, mounted, connected and the like should be construed broadly, and those skilled in the art can reasonably determine the specific meaning of the terms in the present application by combining the detailed contents of the technical solutions.
Referring to fig. 1 to 6, a combined connector according to an embodiment of the present application includes: a first terminal holder 100; a second terminal block 200; the mounting structure comprises a mounting base 300, wherein a concave part and a first socket 380 are arranged at one end of the mounting base 300, the first socket 380 penetrates through the mounting base 300, a first terminal base 100 is arranged in the first socket 380, and the first terminal base 100 and the concave part are arranged oppositely; the other end of the mounting base 300 is further provided with a second socket 390, the second socket 390 penetrates through the mounting base 300, and the second terminal base 200 is arranged in the second socket 390 so as to form a second plugging cavity in the second socket 390; the outer shell 400 is sleeved outside the mounting seat 300, and a first plugging cavity is formed between the outer shell 400 and the concave part.
It is understood that the first terminal block 100 is a DisplayPort terminal block; it is understood that the first terminal block 100 and the second terminal block 200 may be provided as terminal blocks of the same structure or different structures.
It can be understood that the stacked connector can be formed by disposing the first terminal block 100 and the second terminal block 200 on both ends of the mounting block 300, respectively, and sleeving the housing 400 on the mounting block 300, so that the board end space of the circuit board occupied after the connector is soldered can be saved.
It can be understood that, by arranging two terminal blocks on one mounting block 300, the structural strength of the connector can be enhanced, and the problem that the connector is easy to deform and easily desolder due to external force bearing after being welded on a board can be solved; in addition, the stacked connectors formed share the same housing 400, which can enhance the anti-electromagnetic interference function of the connectors.
It is understood that several LED lamps 600 are also disposed within the mounting base 300.
Referring to fig. 5 and 6, according to some embodiments of the present application, a plurality of second terminals are disposed in the second terminal holder 200, each of the second terminals includes a contact portion 211 and a body portion 212, one side of the contact portion 211 is connected to one end of the body portion 212, the other end of the body portion 212 is used for grounding, and the contact portion 211 is in a hook shape.
It is understood that a plurality of second terminals are disposed in the second terminal block 200, the second terminals are RJ45 terminals, and the RJ45 terminal block can be formed by disposing RJ45 terminals in the second terminal block 200.
Referring to fig. 3 and 5, according to some embodiments of the present application, a plurality of terminal grooves 320 are disposed in the second socket 390, and the terminal grooves 320 and the second terminals are disposed in a one-to-one correspondence; the contact part 211 comprises a right-angle part and an abutting part, the abutting part is connected with one side of the right-angle part close to the end part, and an included angle is formed between the abutting part and one side of the right-angle part; the other side of the right angle portion is connected with one end of the main body portion 212, the abutting portion matches with the shape of the terminal groove 320, and the abutting portion is clamped in the corresponding terminal groove 320.
It is understood that a plurality of terminal grooves 320 are provided in the second socket 390, and the terminal grooves 320 are obliquely provided; when the second terminal base 200 is inserted into the second jack 390, the second terminal base 200 is clamped in the second jack 390, and the abutting portion of the second terminal on the second terminal base 200 is clamped in the corresponding terminal groove 320.
Referring to fig. 1 and 4, according to some embodiments of the present disclosure, the combined connector further includes a spacer 500, the spacer 500 includes a first connection portion 510 and a second connection portion 520, the first connection portion 510 and the second connection portion 520 are connected, the first connection portion 510 is disposed in the recess, the first connection portion 510 is provided with a plurality of first elastic pieces 511, the first elastic pieces 511 are opposite to the first terminal holder 100, and the first elastic pieces 511 are used for being connected with an external connector.
It is understood that the spacer 500 includes a first connection portion 510 and a second connection portion 520, the first connection portion 510 and the second connection portion 520 are of an integral structure, and the first connection portion 510 and the second connection portion 520 are perpendicular to each other.
It can be understood that, when the external connector is mated with the first plug cavity, the external connector can be connected with the external connector through the first elastic sheet 511, and the external connector can be clamped and fixed in the first plug cavity.
Referring to fig. 2 and 4, according to some embodiments of the present application, a plurality of second resilient pieces 410 are disposed on the housing 400, the second resilient pieces 410 are disposed opposite to the first plugging cavity, and the second resilient pieces 410 are used for connecting with an external connector.
It is understood that the housing 400 and the recess form a first plug cavity therebetween; the shell 400 is provided with a plurality of second elastic sheets 410, and the second elastic sheets 410 are arranged opposite to the first inserting cavity; when the external connector is butted with the first plugging cavity, the external connector can be connected with the external connector through the second elastic sheet 410, and the external connector is clamped and fixed in the first plugging cavity.
Referring to fig. 3 and 4, according to some embodiments of the present disclosure, the recess is provided with a plurality of avoiding grooves 330, the avoiding grooves 330 are arranged in a one-to-one correspondence with the first elastic pieces 511, and the avoiding grooves 330 are used for avoiding the deformed corresponding first elastic pieces 511.
It can be understood that the recess is provided with a plurality of avoiding grooves 330, and the avoiding grooves 330 and the first elastic pieces 511 are arranged in a one-to-one correspondence manner; when the first elastic sheet 511 is connected with the external connector and deforms, the deformed corresponding first elastic sheet 511 can be avoided through the avoiding groove 330, and the first elastic sheet 511 is beneficial to clamping the external connector in the first inserting cavity.
Referring to fig. 3, according to some embodiments of the present application, a socket 340 is further disposed on the mounting base 300, and the first connecting portion 510 is plugged into the socket 340; a first clamping groove 341 is further disposed in the insertion groove 340, a third elastic piece 512 corresponding to the first clamping groove 341 is disposed on the first connecting portion 510, and the third elastic piece 512 is clamped in the first clamping groove 341.
It can be understood that the mounting base 300 is further provided with a plug-in groove 340, one end of the first connecting portion 510 is plugged into the plug-in groove 340, and the other end of the first connecting portion 510 is connected with the second connecting portion 520; still be provided with first draw-in groove 341 in the inserting groove 340, be provided with the third shell fragment 512 that corresponds with first draw-in groove 341 on the first connecting portion 510, through corresponding first draw-in groove 341 and the third shell fragment 512 that set up, can be fixed in on the depressed part first connecting portion 510 joint.
Referring to fig. 4, according to some embodiments of the present application, a fourth card slot 350 is disposed on a side surface of the mounting base 300, a fourth elastic sheet 521 is disposed on the second connecting portion 520, and the fourth elastic sheet 521 is inserted between the fourth card slot 350 and the housing 400; the fourth resilient piece 521 is further provided with a protrusion 5211, and the protrusion 5211 abuts against the inner side of the housing 400.
It can be understood that the side of the mounting base 300 is provided with a fourth slot 350, and the second connecting portion 520 is provided with a fourth spring 521; when the housing 400 is sleeved on the outer side of the mounting seat 300, the fourth resilient piece 521 is inserted between the fourth locking groove 350 and the housing 400, and the fourth resilient piece 521 is further provided with a projection 5211, and the projection 5211 can abut against the inner side of the housing 400.
Referring to fig. 5 and 6, according to some embodiments of the present disclosure, a first latch 220 and a second latch slot are disposed between the second terminal base 200 and the mounting base 300, and the first latch 220 is latched in the second latch slot.
It can be understood that the second terminal holder 200 and the mounting holder 300 can be snap-fixed by the provision of the first and second snap grooves 220 and 220.
Referring to fig. 4, according to some embodiments of the present application, a fifth elastic sheet 420 is disposed on an inner side surface of the housing 400, a third locking groove 370 is disposed on an inner side surface of the mounting base 300, the fifth elastic sheet 420 and the third locking groove 370 are correspondingly disposed, and the fifth elastic sheet 420 is locked in the third locking groove 370.
It can be understood that, when the housing 400 is sleeved outside the mounting base 300, the fifth elastic sheet 420 is clamped in the corresponding third clamping groove 370, so that the relative positions of the housing 400 and the mounting base 300 can be fixed, and the mounting base 300 is limited in the housing 400.
It can be understood that the inner side surface of the housing 400 is further provided with a second clamping block 430, and the outer side surface of the mounting seat 300 is provided with a fifth clamping groove 310, when the housing 400 is sleeved on the outer side of the mounting seat 300, the second clamping block 430 is clamped in the fifth clamping groove 310, and the relative positions of the housing 400 and the mounting seat 300 can be fixed through the second clamping block 430 and the fifth clamping groove 310, and the mounting seat 300 is limited in the housing 400.
The modular connector of the present embodiment is described in detail as one specific embodiment with reference to fig. 1 to 6.
A modular connector comprising:
a first terminal holder 100;
a plurality of second terminals are arranged in the second terminal block 200, each second terminal comprises a contact part 211 and a main body part 212, one side of the contact part 211 is connected with one end of the main body part 212, the other end of the main body part 212 is used for grounding, and the contact part 211 is in a hook shape; the contact part 211 comprises a right-angled part and an abutting part, the abutting part is connected with one side of the right-angled part close to the end part, an included angle is formed between the abutting part and one side of the right-angled part, and the other side of the right-angled part is connected with one end of the main body part 212;
the mounting structure comprises a mounting base 300, wherein a concave part and a first socket 380 are arranged at one end of the mounting base 300, the first socket 380 penetrates through the mounting base 300, a first terminal base 100 is arranged in the first socket 380, and the first terminal base 100 and the concave part are arranged oppositely; a second socket 390 is further arranged at the other end of the mounting base 300, the second socket 390 penetrates through the mounting base 300, a first clamping block 220 and a second clamping groove are arranged between the second terminal base 200 and the mounting base 300, the first clamping block 220 and the second clamping groove are clamped, and the second terminal base 200 is clamped in the second socket 390 so as to form a second inserting cavity in the second socket 390; a plurality of terminal grooves 320 are arranged in the second socket 390, the terminal grooves 320 and the second terminals are arranged in a one-to-one correspondence manner, the shapes of the terminal grooves 320 are matched with the abutting parts, and the abutting parts are clamped in the corresponding terminal grooves 320;
the shell 400 is sleeved outside the mounting seat 300, and a first inserting cavity is formed between the shell 400 and the concave part; the shell 400 is provided with a plurality of second elastic pieces 410, the second elastic pieces 410 are arranged opposite to the first inserting cavity, and the second elastic pieces 410 are used for being connected with an external connector; a fifth elastic sheet 420 is arranged on the inner side surface of the shell 400, a third clamping groove 370 is arranged on the inner side surface of the mounting base 300, the fifth elastic sheet 420 and the third clamping groove 370 are correspondingly arranged, and the fifth elastic sheet 420 is clamped in the third clamping groove 370;
the spacer 500, the spacer 500 includes a first connection portion 510 and a second connection portion 520, the first connection portion 510 and the second connection portion 520 are connected; the mounting base 300 is further provided with an insertion groove 340, and the first connecting portion 510 is inserted into the insertion groove 340; a first clamping groove 341 is further arranged in the inserting groove 340, a third elastic piece 512 corresponding to the first clamping groove 341 is arranged on the first connecting part 510, and the third elastic piece 512 is clamped in the first clamping groove 341; the first connecting portion 510 is provided with a plurality of first elastic pieces 511, the first elastic pieces 511 are opposite to the first terminal base 100, and the first elastic pieces 511 are used for connecting with an external connector; the concave part is provided with a plurality of avoiding grooves 330, the avoiding grooves 330 are arranged in one-to-one correspondence with the first elastic sheets 511, and the avoiding grooves 330 are used for avoiding the corresponding first elastic sheets 511 which are deformed;
a fourth clamping groove 350 is formed in the side surface of the mounting seat 300, a fourth elastic sheet 521 is arranged on the second connecting portion 520, and the fourth elastic sheet 521 is inserted between the fourth clamping groove 350 and the shell 400; the fourth resilient piece 521 is further provided with a protrusion 5211, and the protrusion 5211 abuts against the inner side of the housing 400.
In the description herein, references to the description of the term "one embodiment," "some embodiments," "an illustrative embodiment," "an example," "specifically," or "some examples" or the like are intended to mean that a particular feature, structure, material, or characteristic described in connection with the embodiment or example is included in at least one embodiment or example of the application. In this specification, the schematic representations of the terms used above do not necessarily refer to the same embodiment or example. Furthermore, the particular features, structures, materials, or characteristics described may be combined in any suitable manner in any one or more embodiments or examples.
While embodiments of the present application have been shown and described, it will be understood by those of ordinary skill in the art that: many changes, modifications, substitutions and alterations to these embodiments may be made without departing from the principles and spirit of this application, and are intended to be included within the scope of this application.
Claims (10)
1. A modular connector, comprising:
a first terminal base;
a second terminal block;
the mounting structure comprises a mounting seat, wherein one end of the mounting seat is provided with a sunken part and a first socket, the first socket penetrates through the mounting seat, the first terminal seat is arranged in the first socket, and the first terminal seat and the sunken part are oppositely arranged; the other end of the mounting seat is also provided with a second socket, the second socket penetrates through the mounting seat, and the second terminal seat is arranged in the second socket so as to form a second inserting cavity in the second socket;
the shell, the shell cover is located the outside of mount pad, the shell with form first grafting chamber between the depressed part.
2. The modular connector of claim 1 wherein: the second terminal seat is internally provided with a plurality of second terminals, each second terminal comprises a contact part and a main body part, one side of the contact part is connected with one end of the main body part, the other end of the main body part is used for grounding, and the contact part is in a hook shape.
3. The modular connector of claim 2, wherein: a plurality of terminal grooves are formed in the second socket, and the terminal grooves and the second terminals are arranged in a one-to-one correspondence manner; the contact part comprises a right-angle part and an abutting part, the abutting part is connected with one side, close to the end part, of the right-angle part, and an included angle is formed between the abutting part and one side of the right-angle part; the other side of the right angle part is connected with one end of the main body part, the abutting part is matched with the shape of the terminal groove, and the abutting part is clamped in the corresponding terminal groove.
4. The modular connector of claim 1 wherein: the combined connector further comprises a spacer, the spacer comprises a first connecting portion and a second connecting portion, the first connecting portion is connected with the second connecting portion, the first connecting portion is arranged in the recessed portion, a plurality of first elastic pieces are arranged on the first connecting portion, the first elastic pieces are opposite to the first terminal base, and the first elastic pieces are used for being connected with an external connector.
5. The modular connector of claim 1 or 4, wherein: the shell is provided with a plurality of second elastic pieces, the second elastic pieces are arranged opposite to the first inserting cavity, and the second elastic pieces are used for being connected with an external connector.
6. The modular connector of claim 4 wherein: the concave part is provided with a plurality of avoiding grooves, the avoiding grooves and the first elastic pieces are arranged in a one-to-one correspondence mode, and the avoiding grooves are used for avoiding the first elastic pieces corresponding to deformation.
7. The modular connector of claim 4 wherein: the mounting seat is also provided with an insertion groove, and the first connecting part is inserted in the insertion groove; the plug-in connection groove is also internally provided with a first clamping groove, the first connecting part is provided with a third elastic sheet corresponding to the first clamping groove, and the third elastic sheet is clamped in the first clamping groove.
8. The modular connector of claim 4 wherein: a fourth clamping groove is formed in the side face of the mounting seat, a fourth elastic sheet is arranged on the second connecting portion, and the fourth elastic sheet is inserted between the fourth clamping groove and the shell; and the fourth elastic piece is also provided with a lug which is abutted against the inner side of the shell.
9. The modular connector of claim 1 wherein: and a first clamping block and a second clamping groove are arranged between the second terminal seat and the mounting seat, and the first clamping block is clamped in the second clamping groove.
10. The modular connector of claim 1 wherein: the inner side surface of the shell is provided with a fifth elastic sheet, the inner side surface of the mounting seat is provided with a third clamping groove, the fifth elastic sheet and the third clamping groove are correspondingly arranged, and the fifth elastic sheet is clamped in the third clamping groove.
