The utility model discloses integrated equipment for medical wastewater treatment, which relates to the technical field of wastewater treatment and comprises a treatment box and a collection box, wherein a transverse partition plate is arranged inside the treatment box and divides the treatment box into an upper chamber and a lower chamber, a vertical partition plate is arranged inside the upper chamber and divides the upper chamber into a left chamber and a right chamber, a water inlet pipe is arranged on the right side wall of the lower chamber, a water pumping mechanism is arranged on the right side of the lower chamber, a floating ball is arranged inside the water pumping mechanism and is used for providing buoyancy for a connecting plate, so that the connecting plate floats on the surface of wastewater to pump the wastewater, impurities such as solid and the like in substances naturally precipitate at the bottom of the treatment box, when more impurities precipitate at the bottom, a blow-down valve is opened, the impurities are guided into the collection box under the gravity action of the wastewater, the treatment pressure of the device is reduced, and the collection and treatment of the impurities such as the solid and the like are facilitated, the treatment pressure of the filtering mechanism is reduced, and the sewage purification effect is better.

Description

Medical wastewater treatment integrated equipment
Technical Field
The utility model relates to the technical field of sewage treatment, in particular to medical wastewater treatment integrated equipment.
Background
The medical wastewater is mainly discharged from diagnosis and treatment rooms, laboratory rooms, sickrooms, laundry rooms, operating rooms and the like of hospitals, has very complex sewage sources and components and poor water quality uniformity, is mixed with a certain amount of pathogenic bacteria, viruses and the like, is discharged into rivers, lakes and seas through a wastewater treatment device aiming at the medical wastewater at present, but has large occupied area of the conventional wastewater treatment device, and the killing effect of most of water treated by the medical wastewater treatment system on the pathogenic bacteria is limited, so that the wastewater containing bacteria has great harm to animals, plants and human bodies after being discharged into the environment, and can seriously damage vegetation, kill the animals, cause plague and other hazards.
Solid particles are not lacked in the medical wastewater, but when the medical wastewater is treated by the wastewater treatment equipment in the prior art, the medical wastewater and the solid particles in the wastewater are treated together, the solid particles in the medical wastewater are not separated, and the treatment mode easily causes pipeline blockage in the wastewater treatment equipment, so that the wastewater treatment equipment cannot work normally, and the long-term use of the wastewater treatment equipment is not facilitated.
Disclosure of Invention
Aiming at the problems in the prior art, the utility model aims to provide medical wastewater treatment integrated equipment which is more efficient in wastewater treatment.
In order to achieve the purpose, the utility model provides the following technical scheme: the sewage treatment device comprises a treatment box and a collection box, wherein a transverse partition plate is arranged inside the treatment box, the transverse partition plate divides the treatment box into an upper cavity and a lower cavity, a vertical partition plate is arranged in the upper cavity, the upper cavity is divided into a left cavity and a right cavity by the vertical partition plate, a water inlet pipe is arranged on the right side wall of the lower cavity, a water pumping mechanism is arranged on the right side of the lower cavity, the bottom of the lower cavity is arranged into a conical shape, a sewage valve is arranged at the bottom of the conical shape and communicated with the collection box through a first sewage discharge pipe, the output end of the water pumping mechanism is connected with a water guide pipe, the other end of the water guide pipe extends into the right cavity from the top end of the vertical partition plate, a filter screen is obliquely arranged at the top end of the right cavity, a second sewage discharge pipe is arranged on the outer wall of the treatment box corresponding to the bottom of the filter screen, the other end of the second sewage discharge pipe is communicated with the collection box, and a first baffle is arranged below the filter screen, wherein be provided with the intake pipe between first baffle and the filter screen, the intake pipe is installed on the outer wall of handling the case, and the drain valve is installed in the left side of first baffle simultaneously to the below of baffle is provided with filtering mechanism, wherein installs the drain pipe on the corresponding processing case outer wall in filtering mechanism bottom.
As a further scheme of the utility model: the water pumping mechanism comprises a second water pump and a connecting plate, wherein the second water pump is installed on the top wall of the connecting plate, meanwhile, a boss is arranged on the left side of the transverse partition plate, a plurality of groups of telescopic rods are installed on the top wall of the connecting plate, the other end of each telescopic rod is installed on the bottom wall of the boss, auxiliary support is carried out on the connecting plate, a plurality of groups of floating balls are installed on the bottom wall of the connecting plate, the input end of the second water pump is connected with a liquid pumping pipe, the other end of the liquid pumping pipe extends out of the bottom of the connecting plate, and the output end of the second water pump is connected with a water guide pipe.
As a further scheme of the utility model: the filtering mechanism comprises an active carbon filtering layer, a zeolite filtering layer and a ceramic filtering layer, wherein the active carbon filtering layer, the zeolite filtering layer and the ceramic filtering layer are sequentially arranged on the bottom wall of the right chamber from top to bottom, a second baffle is arranged between the active carbon filtering layer and the zeolite filtering layer, an opening is formed in one end, away from the liquid guide valve, of the second baffle, a third baffle is arranged between the zeolite filtering layer and the ceramic filtering layer, and an opening is formed in one side, close to the liquid guide valve, of the third baffle.
As a further scheme of the utility model: be provided with the puddler between first baffle and the filter screen, the puddler rotates and installs on the left and right sides wall of right cavity to the left side end of puddler passes through the coupling joint on the output shaft of motor, and the motor is installed in left cavity, wherein installs multiunit stirring leaf on the outer wall of puddler.
As a further scheme of the utility model: the filter plate is arranged inside the collecting box, the first water pump is arranged at the bottom of the collecting box, the liquid return pipe is arranged at the output end of the first water pump, and the other end of the liquid return pipe is communicated with the right chamber.
As a still further scheme of the utility model: and an ultraviolet germicidal lamp is arranged on the top wall of the treatment box.
Due to the adoption of the technical scheme, the utility model has the following advantages: the sewage treatment device is provided with the water pumping mechanism, the floating ball is arranged in the water pumping mechanism and used for providing buoyancy for the connecting plate, so that the connecting plate floats on the surface of sewage to extract the sewage, solid impurities in substances and the like naturally precipitate at the bottom of the treatment box, when more impurities precipitate at the bottom, the drain valve is opened, the impurities are led into the collection box under the action of the gravity of the sewage, the treatment pressure of the device is reduced, the collection and treatment of the solid impurities and the like are facilitated, and the treatment pressure of the filtering mechanism is reduced.
Drawings

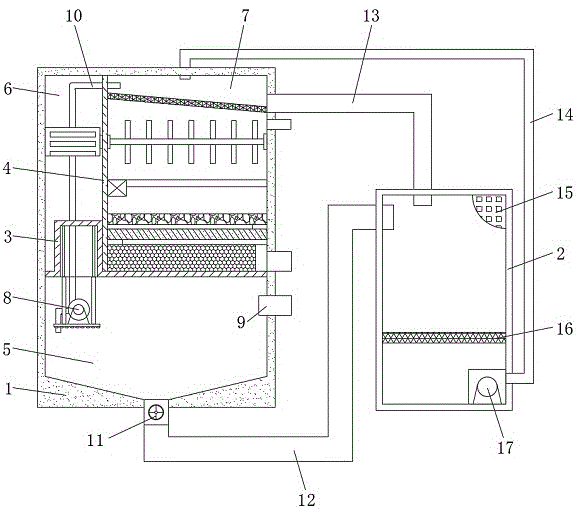

FIG. 1 is a schematic structural diagram of the present invention.
Fig. 2 is a schematic structural diagram of the water pumping mechanism of the present invention.
FIG. 3 is a schematic diagram of the internal structure of the right chamber according to the present invention.
As shown in the figure: 1. the device comprises a treatment box, 2, a collection box, 3, a transverse partition plate, 4, a vertical partition plate, 5, a lower chamber, 6, a left chamber, 7, a right chamber, 8, a water pumping mechanism, 9, a water inlet pipe, 10, a water guide pipe, 11, a blow-off valve, 12, a first blow-off pipe, 13, a second blow-off pipe, 14, a liquid return pipe, 15, an ultraviolet germicidal lamp, 16, a filter plate, 17, a first water pump, 18, a second water pump, 19, a connecting plate, 20, a telescopic rod, 21, a floating ball, 22, a liquid pumping pipe, 23, a filter screen, 24, a stirring rod, 25, a stirring blade, 26, a motor, 27, a first baffle, 28, a liquid guide valve, 29, an active carbon filter layer, 30, a zeolite filter layer, 31, a ceramic filter layer, 32, a second baffle, 33, a third baffle, 34, a water discharge pipe, 35 and an air inlet pipe.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
Referring to fig. 1 to 3, in the embodiment of the utility model, an integrated medical wastewater treatment device comprises a treatment tank 1 and a collection tank 2, wherein a transverse partition plate 3 is installed inside the treatment tank 1, the treatment tank 1 is divided into an upper chamber and a lower chamber 5 by the transverse partition plate 3, a vertical partition plate 4 is installed inside the upper chamber, the upper chamber is divided into a left chamber 6 and a right chamber 7 by the vertical partition plate 4, a water inlet pipe 9 is installed on the right side wall of the lower chamber 5, a water pumping mechanism 8 is installed on the right side of the lower chamber 5, the bottom of the lower chamber 5 is provided with a conical shape, a drain valve 11 is installed at the bottom of the conical shape, the drain valve 11 is communicated with the collection tank 2 through a drain pipe 12, solid impurities in the sewage naturally precipitate at the bottom of the lower chamber, the sewage on the upper layer is pumped out by the water pumping mechanism 8, when the bottom precipitates are more impurities, the drain valve 11 is opened, impurities are led into the collecting box 2 under the action of gravity of sewage, the treatment pressure of the device is reduced, and collection and treatment of solid impurities are facilitated, meanwhile, the output end of the water pumping mechanism 8 is connected with the water guide pipe 10, the other end of the water guide pipe 10 extends into the right chamber 7 from the top end of the vertical partition plate 4, the top end of the right chamber 7 is obliquely provided with the filter screen 23, the outer wall of the treatment box 1 corresponding to the bottom of the filter screen 23 is provided with the sewage discharge pipe II 13, the other end of the sewage discharge pipe II 13 is communicated with the collecting box 2, so that sewage is secondarily filtered through the filter screen 23, impurities in the sewage are fully reduced, meanwhile, the first baffle plate 27 is arranged below the filter screen 23, the air inlet pipe 35 is arranged between the first baffle plate 27 and the filter screen 23, the air inlet pipe 35 is arranged on the outer wall of the treatment box 1, ozone is led into the right chamber 7 through the air inlet pipe 35, meanwhile, a liquid guide valve 28 is installed on the left side of the first baffle plate 27, and a filtering mechanism is arranged below the baffle plate 27, wherein a drain pipe 34 is installed on the outer wall of the treatment tank 1 corresponding to the bottom of the filtering mechanism.
Referring to fig. 2, it can be seen that: the water pumping mechanism 8 comprises a second water pump 18 and a connecting plate 19, wherein the second water pump 18 is installed on the top wall of the connecting plate 19, meanwhile, a boss is arranged on the left side of the diaphragm plate 3, a plurality of groups of telescopic rods 20 are installed on the top wall of the connecting plate 19, the other ends of the telescopic rods 20 are installed on the bottom wall of the boss, the connecting plate 19 is supported in an auxiliary mode, a plurality of groups of floating balls 21 are installed on the bottom wall of the connecting plate 19 and used for providing buoyancy for the connecting plate 19, the connecting plate 19 floats on the surface of sewage, a liquid pumping pipe 22 is connected to the input end of the second water pump 18, the other end of the liquid pumping pipe 22 extends out of the bottom of the connecting plate 19, the output end of the second water pump 18 is connected with the water guide pipe 10, and therefore the sewage is guided into the right chamber 7 through the second water pump 18.
Referring to fig. 3, it can be seen that: the filtering mechanism comprises an active carbon filtering layer 29, a zeolite filtering layer 30 and a ceramic filtering layer 31, wherein the active carbon filtering layer 29, the zeolite filtering layer 30 and the ceramic filtering layer 31 are sequentially arranged on the bottom wall of the right chamber 7 from top to bottom, meanwhile, a second baffle 32 is arranged between the active carbon filtering layer 29 and the zeolite filtering layer 30, one end, far away from the liquid guide valve 28, of the second baffle 32 is provided with an opening, a third baffle 33 is arranged between the zeolite filtering layer 30 and the ceramic filtering layer 31, one side, close to the liquid guide valve 28, of the third baffle 33 is provided with an opening, sewage flows in a snake shape through the arranged second baffle 32 and the third baffle 33 at the active carbon filtering layer 29, the zeolite filtering layer 30 and the ceramic filtering layer 31, the treatment effect of the filtering mechanism is improved, and the sewage purification effect is better.
Specifically, be provided with puddler 24 between first baffle 27 and the filter screen 23, puddler 24 rotates and installs on the left and right sides wall of right cavity 7 to puddler 24's left side end passes through the coupling joint on motor 26's output shaft, and motor 26 installs in left cavity 6, wherein installs multiunit stirring leaf 25 on puddler 24's the outer wall, stirs sewage through motor drive stirring leaf 25, makes sewage and ozone contact more abundant.
Specifically, the filter plate 16 is arranged inside the collection box 2, the first water pump 17 is arranged at the bottom of the collection box 2, the liquid return pipe 14 is arranged at the output end of the first water pump 17, and the other end of the liquid return pipe 14 is communicated with the right chamber 7, so that the wastewater in the solid is guided into the treatment box for treatment.
Preferably, an ultraviolet germicidal lamp 15 is mounted on the top wall of the treatment chamber 1 to sterilize the solid.

Claims (6)

1. The utility model provides a medical wastewater treatment integration equipment, is including handling case (1) and collecting box (2), its characterized in that: the treatment box is characterized in that a transverse partition plate (3) is arranged inside the treatment box (1), the transverse partition plate (3) divides the treatment box (1) into an upper cavity and a lower cavity (5), a vertical partition plate (4) is arranged in the upper cavity, the upper cavity is divided into a left cavity (6) and a right cavity (7) by the vertical partition plate (4), a water inlet pipe (9) is arranged on the right side wall of the lower cavity (5), a water pumping mechanism (8) is arranged on the right side of the lower cavity (5), the bottom of the lower cavity (5) is arranged into a conical shape, a blow-off valve (11) is arranged at the bottom of the conical shape, the blow-off valve (11) is communicated with the collection box (2) through a blow-off pipe I (12), the output end of the water pumping mechanism (8) is connected with a water guide pipe (10), the other end of the water guide pipe (10) extends into the right cavity (7) from the top end of the vertical partition plate (4), and a filter screen (23) is obliquely arranged at the top end of the right cavity (7), wherein install blow off pipe two (13) on the processing case (1) outer wall that the bottom of filter screen (23) corresponds, the other end and collecting box (2) intercommunication of blow off pipe two (13) are in the same place, the below of filter screen (23) is provided with first baffle (27) simultaneously, wherein be provided with intake pipe (35) between first baffle (27) and filter screen (23), intake pipe (35) are installed on the outer wall of processing case (1), drain valve (28) are installed in the left side of first baffle (27) simultaneously, and the below of baffle (27) is provided with filter mechanism, wherein install drain pipe (34) on the processing case (1) outer wall that the filter mechanism bottom corresponds.
2. The integrated medical wastewater treatment apparatus according to claim 1, wherein: the water pumping mechanism (8) comprises a second water pump (18) and a connecting plate (19), wherein the second water pump (18) is installed on the top wall of the connecting plate (19), meanwhile, the left side of the transverse partition plate (3) is provided with a boss, a plurality of groups of telescopic rods (20) are installed on the top wall of the connecting plate (19), the other ends of the telescopic rods (20) are installed on the bottom wall of the boss, auxiliary support is conducted on the connecting plate (19), a plurality of groups of floating balls (21) are installed on the bottom wall of the connecting plate (19), the input end of the second water pump (18) is connected with a liquid pumping pipe (22), the other end of the liquid pumping pipe (22) extends out of the bottom of the connecting plate (19), and the output end of the second water pump (18) is connected with the water guide pipe (10).
3. The integrated medical wastewater treatment apparatus according to claim 1 or 2, wherein: the filtering mechanism comprises an activated carbon filtering layer (29), a zeolite filtering layer (30) and a ceramic filtering layer (31), wherein the activated carbon filtering layer (29), the zeolite filtering layer (30) and the ceramic filtering layer (31) are sequentially arranged on the bottom wall of the right chamber (7) from top to bottom, a second baffle (32) is arranged between the activated carbon filtering layer (29) and the zeolite filtering layer (30), an opening is formed in one end, far away from the liquid guide valve (28), of the second baffle (32), a third baffle (33) is arranged between the zeolite filtering layer (30) and the ceramic filtering layer (31), and an opening is formed in one side, close to the liquid guide valve (28), of the third baffle (33).
4. The integrated medical wastewater treatment apparatus according to claim 1 or 2, wherein: be provided with puddler (24) between first baffle (27) and filter screen (23), puddler (24) rotate to install on the left and right sides wall of right cavity (7) to the left side end of puddler (24) passes through the coupling joint on the output shaft of motor (26), and motor (26) are installed in left cavity (6), wherein install multiunit stirring leaf (25) on the outer wall of puddler (24).
5. The integrated medical wastewater treatment apparatus according to claim 1 or 2, wherein: the filter plate (16) is installed inside the collecting box (2), the first water pump (17) is installed at the bottom of the collecting box (2), the liquid return pipe (14) is installed at the output end of the first water pump (17), and the other end of the liquid return pipe (14) is communicated with the right chamber (7).
6. The integrated medical wastewater treatment apparatus according to claim 1 or 2, wherein: an ultraviolet germicidal lamp (15) is arranged on the top wall of the treatment box (1).
