The utility model discloses a filing cabinet for classified storage of financial accounting and financial statements, which relates to the technical field of filing cabinets and comprises a filing cabinet body, wherein the filing cabinet body consists of an upper storage chamber and a lower storage chamber, the upper storage chamber and the lower storage chamber are both provided with door plates in a hinged manner, a plurality of groups of bearing plates are arranged in the lower storage chamber, and a plurality of groups of separating assemblies are arranged on the outer wall of each bearing plate in a sliding manner; the partition assembly comprises a partition plate arranged in a sliding mode with the bearing plate, a movable plate is hinged to one end of the partition plate, storage boxes are arranged on the outer walls of the two sides of the movable plate respectively, and a reset assembly used for adjusting the movable plate to move is arranged at one end of the partition plate. According to the utility model, when the staff need to place and take out the financial statement, the movable plate is moved to the same plane with the partition plate, so that the movable plate is prevented from obstructing the use of the staff, and the staff can conveniently replace and exchange the information card and the drying agent at the same time of the same plane with the partition plate.
Description
Technical Field
The utility model relates to the technical field of file cabinets, in particular to a file cabinet for classified storage of financial statements of financial accounting.
Background
Filing cabinet: belonging to office furniture series. Namely, the cabinet is used for storing the archival data; is a relatively traditional harness for preserving files, which is usually a case with a cover and a cabinet with a door.
The drier among the present most filing cabinet is placed comparatively at will, and partial drier can be pushed down by the file, perhaps pushed into the filing cabinet depths by the file, leads to when needing to change the drier, and the staff need slowly seek in the filing cabinet, and it is troublesome.
SUMMERY OF THE UTILITY MODEL
The utility model aims to: in order to solve the problems, the file cabinet for storing financial statements of financial accounting in a classified mode is provided.
In order to realize the above-mentioned purpose, this filing cabinet that financial accounting financial statement classification was deposited has adopted following technical scheme: the file cabinet comprises a file cabinet body, wherein the file cabinet body consists of an upper storage chamber and a lower storage chamber, the upper storage chamber and the lower storage chamber are both provided with door plates in a hinged mode, a plurality of groups of bearing plates are arranged inside the lower storage chamber, and a plurality of groups of partition assemblies are arranged on the outer walls of the bearing plates in a sliding mode;
the partition assembly comprises a partition plate arranged in a sliding mode with the bearing plate, a movable plate is hinged to one end of the partition plate, storage boxes are arranged on the outer walls of the two sides of the movable plate respectively, and a reset assembly used for adjusting the movable plate to move is arranged at one end of the partition plate.
Further, the storing box comprises the drying box that is used for placing the drier and the information box that is used for placing the information card, U-shaped hole has been seted up to the intermediate position of storing box.
Further, the drying box is located the intermediate position of fly leaf outer wall, the information box comprises the spout of fly leaf both sides.
Further, the through hole has been seted up to the position that the fly leaf is located the inside of storing box, a plurality of bleeder vents have been seted up to the outer wall of storing box.
Further, the reset assembly consists of a reset spring and a baffle, and the baffle is attached to the outer wall of the movable plate.
Furthermore, one end of the movable plate, which is positioned in the partition plate, is matched with the baffle plate.
Compared with the prior art, the utility model has the following beneficial effects:
according to the utility model, when the staff need to place and take out the financial statement, the movable plate is moved to the same plane with the partition plate, so that the movable plate is prevented from obstructing the use of the staff, and the staff can conveniently replace and exchange the information card and the drying agent at the same time of the same plane with the partition plate.
Drawings
FIG. 1 is an external view of a filing cabinet for classifying financial statements in financial accounting according to the present invention;
FIG. 2 is a front view of a partition assembly for classifying and storing financial statements in accordance with the present invention;

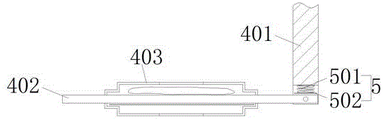

FIG. 3 is a schematic structural diagram of a reset assembly for classified storage of financial statements in financial accounting according to the present invention.
In the figure: 1. a body; 2. a door panel; 3. a carrier plate; 4. a partition assembly; 401. a partition plate; 402. a movable plate; 403. a storage box; 5. a reset assembly; 501. a return spring; 502. and a baffle plate.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments.
In the description of the present invention, it is to be understood that the terms "upper", "lower", "front", "rear", "left", "right", "top", "bottom", "inner", "outer", and the like, indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, are merely for convenience in describing the present invention and simplifying the description, and do not indicate or imply that the device or element being referred to must have a particular orientation, be constructed and operated in a particular orientation, and thus, should not be construed as limiting the present invention.
Referring to fig. 1-3, the filing cabinet for classified storage of financial accounting and financial statements comprises a filing cabinet body 1, wherein the filing cabinet body 1 is composed of an upper storage chamber and a lower storage chamber, the upper storage chamber and the lower storage chamber are both provided with door plates 2 in a hinged manner, a plurality of groups of loading plates 3 are arranged inside the lower storage chamber, and a plurality of groups of partition assemblies 4 are arranged on the outer walls of the loading plates 3 in a sliding manner;
the partition assembly 4 comprises a partition plate 401 arranged in a sliding manner with the bearing plate 3, one end of the partition plate 401 is hinged with a movable plate 402, the outer walls of two sides of the movable plate 402 are respectively provided with a storage box 403, and one end of the partition plate 401 is provided with a reset assembly 5 for adjusting the movement of the movable plate 402; in practical application, will descend the storing room through baffle 401 and cut apart into a plurality of independent spaces to the person of facilitating the use classified storage avoids financial statement to place the confusion.
Further, the storage box 403 is composed of a drying box for placing a drying agent and an information box for placing an information card, and a U-shaped hole is formed in the middle of the storage box 403; the drying box is positioned in the middle of the outer wall of the movable plate 402, and the information box is composed of sliding grooves on two sides of the movable plate 402; in practical application, the U-shaped hole is formed in the middle of the storage box 403, so that the drying agent and the information card can be taken out by a worker conveniently.
Further, a through hole is formed in the movable plate 402 at the position inside the storage box 403, and a plurality of air holes are formed in the outer wall of the storage box 403; in practical application, through the through hole formed in the movable plate 402, the information card is kept dry, and the phenomenon that the handwriting of the information card is fuzzy due to dampness is avoided; the air holes are formed in the outer wall of the storage box 403, so that the drying agent can dry the lower storage chamber conveniently.
Further, one end of the movable plate 402 located in the partition 401 is matched with the baffle 502; in practical application, a hinge point of the movable plate 402 and the partition 401 is located at a central axis of the partition 401, and one end of the movable plate 402 close to the partition 401 is flush with an outer wall of the partition 401, so that when the movable plate 402 is perpendicular to the partition 401, the baffle 502 is attached to an outer wall of one of two sides of the movable plate 402 under the action of the return spring 501, and the movement of the baffle 502 is limited; when the movable plate 402 and the partition 401 are in the same plane, the baffle 502 presses the end surface of the movable plate 402 under the action of the return spring 501, so that the movable plate 402 and the partition 401 keep the same plane; when the staff need place and take out financial statement, remove fly leaf 402 to with baffle 401 coplanar to avoid fly leaf 402 to hinder the staff and use, fly leaf 402 and baffle 401 coplanar can make things convenient for the staff to change and change information card and drier simultaneously.
The above description is only for the preferred embodiment of the present invention, but the scope of the present invention is not limited thereto, and any person skilled in the art should be considered to be within the technical scope of the present invention, and equivalent alternatives or modifications according to the technical solution of the present invention and the inventive concept thereof should be covered by the scope of the present invention.
Claims (6)
1. The filing cabinet for classified storage of financial statements of financial accounting comprises a body (1) of the filing cabinet, wherein the body (1) consists of an upper storage chamber and a lower storage chamber, the upper storage chamber and the lower storage chamber are both provided with door plates (2) in a hinged manner, and a plurality of groups of bearing plates (3) are arranged inside the lower storage chamber, and the filing cabinet is characterized in that a plurality of groups of partition assemblies (4) are arranged on the outer wall of each bearing plate (3) in a sliding manner;
the partition assembly (4) comprises a partition plate (401) arranged in a sliding mode with the bearing plate (3), a movable plate (402) is hinged to one end of the partition plate (401), storage boxes (403) are respectively arranged on the outer walls of the two sides of the movable plate (402), and a reset assembly (5) used for adjusting the movement of the movable plate (402) is arranged at one end of the partition plate (401).
2. The filing cabinet of financial accounting statement classification storage of claim 1, wherein the storage box (403) comprises a drying box for placing drying agent and an information box for placing information card, and a U-shaped hole is opened at the middle position of the storage box (403).
3. The filing cabinet of claim 2, wherein the drying box is located at a middle position of the outer wall of the movable plate (402), and the information box is composed of sliding grooves at two sides of the movable plate (402).
4. The filing cabinet of claim 1, wherein the movable plate (402) is provided with a through hole at a position inside the storage box (403), and the outer wall of the storage box (403) is provided with a plurality of air holes.
5. The filing cabinet of a financial accounting statement classification storage of claim 1, wherein the reset component (5) is composed of a reset spring (501) and a baffle (502), the baffle (502) is attached to the outer wall of the movable plate (402).
6. The filing cabinet of claim 5, wherein the movable plate (402) is fitted with the baffle (502) at one end of the partition (401).
