CN215976474U

CN215976474U - A kind of cloth wrinkle removal equipment for jacket production

Info

Publication number: CN215976474U
Application number: CN202122303156.5U
Authority: CN
Inventors: 翁兆林; 李龙俊
Original assignee: Anhui Shilin Garment Co ltd
Current assignee: TIANJIN YUJIAN GARMENT Co.,Ltd.
Priority date: 2021-09-23
Filing date: 2021-09-23
Publication date: 2022-03-08
Anticipated expiration: 2031-09-23

Abstract

The utility model provides a cloth wrinkle removal device for jacket production, which comprises a box body, a cloth placing device, a cloth collecting device, a rotating roller, a first air cylinder, a heating box, a fan and a second air cylinder. A connecting plate is fixedly connected, the first air cylinder is fixedly connected to the top of the connecting plate, a connecting bracket is fixedly connected to the movable end of the first air cylinder, and a pressure roller is connected to the inside of the connecting bracket through the rotating shaft, and the heating The top of the box is fixedly connected with a heat conduction box. In the utility model, through the rotating roller, the first air cylinder, the connecting bracket and the pressing roller, the pressing roller and the rotating roller can squeeze the cloth, and the cloth can be preliminarily leveled, so that the wrinkles on the cloth can be reduced, and the improvement of the cloth can be further improved. The wrinkle removal efficiency of the cloth, and after the cloth is heated to remove the wrinkle, the pressing roller and the rotating roller can press the cloth to adjust the tightness of the cloth, so that the effect of the cloth wrinkle removal can be improved.

Description

Cloth wrinkle removing equipment for jacket production

Technical Field

The utility model relates to the technical field of garment production, in particular to cloth wrinkle removing equipment for jacket production.

Background

The garment production refers to the garment production and processing process in the textile industry, and comprises the processes of designing, cutting, sewing, sizing, packaging and the like;

chinese patent (publication number: CN208733335U, publication date: 2019.04.12) discloses a cloth leveling and wrinkle-removing device, which comprises a frame and a pressing device, wherein a finishing table with a smooth and flat upper surface is horizontally arranged on the frame, and the pressing device is arranged on the finishing table and connected with the frame; the pressing device comprises a guide plate arranged on the arranging platform and close to the arranging platform, and a pressing device which is connected with the rack and controls the guide plate to lift is arranged on the guide plate. The utility model provides a cloth leveling and wrinkle removing device, which is used in cloth weaving operation or cloth collecting occasions of cloth printing and dyeing, or other occasions needing to be finished and to be leveled, and is used for finishing cloth, removing wrinkles and unevenness, promoting attractiveness and ensuring the quality of the cloth. But the device does not recover the waste heat of cloth heating, so that the energy of the waste heat is wasted, the energy consumption of the device is higher, and the production cost of the device is higher.

SUMMERY OF THE UTILITY MODEL

The utility model aims to solve the defects in the prior art and provides cloth wrinkle removing equipment for jacket production.

In order to achieve the purpose, the utility model adopts the following technical scheme: a piece of cloth wrinkle removing equipment for jacket production comprises a box body, a cloth placing device, a cloth collecting device, a rotating roller, a first air cylinder, a heating box, a fan and a second air cylinder, wherein two inner walls of the box body are fixedly connected with connecting plates, the first air cylinder is fixedly connected to the top of the connecting plates, the movable end of the first air cylinder is fixedly connected with a connecting support, the inside of the connecting support is rotatably connected with a compression roller through a rotating shaft, the top of the heating box is fixedly connected with a heat conduction box, the top of the heating box is fixedly connected with a first conduit, one end of the first conduit penetrates through the bottom of the heat conduction box and extends to the inside of the heat conduction box, the top end of the first conduit is fixedly connected with a second conduit, the top of the second conduit is fixedly connected with a plurality of heat conduction pipes at equal intervals, the top of the heat conduction box is provided with a plurality of heat conduction holes, and the movable end of the second air cylinder is fixedly connected with a movable box, a plurality of slots are formed in the bottom of the movable box at equal intervals.

Preferably, the rotating roller is positioned right above the press roller.

Preferably, the bottom of the fan is fixedly connected with two hoses, and the bottom ends of the two hoses penetrate through the top of the movable box and extend into the movable box.

Preferably, both sides wall of activity case all fixedly connected with baffle, the baffle slope sets up.

Preferably, the movable box is positioned right above the heat conduction box.

The utility model has the following beneficial effects:

1. the cloth wrinkle removing device for jacket production comprises a heating box, a first conduit, a second conduit, a heat conduction pipe, a heat conduction box, a heat conduction hole, a movable box, a slot, a fan and a hose, the hot air in the heating box can be guided into the heat conduction box through the heat conduction pipe, so that the hot air can heat the cloth through the heat conduction holes to remove wrinkles, the fan can recover the hot air through the hose, thereby avoiding the heat of the hot air from being radiated into the air, the fan can also guide the recovered hot air into the heating box, so that the hot air can be recycled, the waste of heat is effectively avoided, the production cost can be saved, and the hot air is recycled by the fan, so that the hot air in the heat conduction box can be accelerated to flow into the movable box, therefore, the heating of the cloth can be accelerated, and the wrinkle removing efficiency of the cloth is effectively improved.

2. This cloth removes fold equipment for jacket production, through live-rollers, first cylinder, linking bridge, compression roller for compression roller and live-rollers can extrude cloth, can tentatively level and smooth cloth, thereby make the fold that can reduce on the cloth, further improve the fold efficiency of removing to cloth, in addition after the fold is removed in cloth heating, the elasticity that cloth can be adjusted to cloth extrusion to compression roller and live-rollers, make can improve the effect that cloth removed the fold.

Drawings

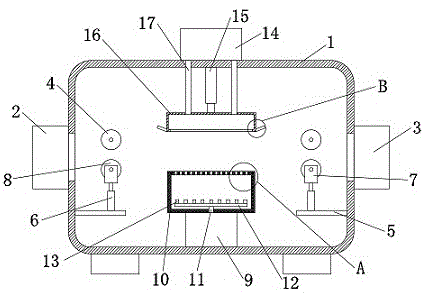

FIG. 1 is a cross-sectional view of the overall structure of the present invention;

FIG. 2 is an enlarged view of the utility model at A of FIG. 1;

fig. 3 is an enlarged view of the present invention at B of fig. 1.

Wherein, 1, a box body; 2. a cloth releasing device; 3. a cloth collecting device; 4. a rotating roller; 5. a connecting plate; 6. a first cylinder; 7. connecting a bracket; 8. a compression roller; 9. a heating box; 10. a heat conducting box; 11. a first conduit; 12. a second conduit; 13. a heat conducting pipe; 14. a fan; 15. a second cylinder; 16. a movable box; 17. a hose; 18. a heat conduction hole; 19. a guide plate; 20. and (4) slotting.

Detailed Description

The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.

Example (b):

as shown in fig. 1-3, an embodiment of the present invention provides a piece of cloth wrinkle removing equipment for jacket production, including a box body 1, a cloth placing device 2, a cloth receiving device 3, a rotating roller 4, a first cylinder 6, a heating box 9, a fan 14 and a second cylinder 15, wherein both inner walls of the box body 1 are fixedly connected with a connecting plate 5, the first cylinder 6 is fixedly connected to the top of the connecting plate 5, the movable end of the first cylinder 6 is fixedly connected with a connecting bracket 7, the inside of the connecting bracket 7 is rotatably connected with a pressing roller 8 through a rotating shaft, the top of the heating box 9 is fixedly connected with a heat conducting box 10, the top of the heating box 9 is fixedly connected with a first conduit 11, one end of the first conduit 11 penetrates through the bottom of the heat conducting box 10 and extends into the heat conducting box 10, the top of the first conduit 11 is fixedly connected with a second conduit 12, the top of the second conduit 12 is fixedly connected with a plurality of heat conducting pipes 13 at equal intervals, the top of the heat conduction box 10 is provided with a plurality of heat conduction holes 18, the movable end of the second cylinder 15 is fixedly connected with a movable box 16, and the bottom of the movable box 16 is provided with a plurality of slots 20 at equal intervals.

The rotating roller 4 is positioned right above the pressing roller 8, so that the rotating roller 4 and the pressing roller 8 can clamp cloth and can primarily level the cloth, wrinkles on the cloth can be reduced, the wrinkle removing efficiency of the cloth is further improved, and after the cloth is heated and wrinkles are removed, the pressing roller 8 and the rotating roller 4 extrude the cloth to adjust the tightness of the cloth, so that the wrinkle removing effect of the cloth can be improved; the bottom of the fan 14 is fixedly connected with two hoses 17, the bottom ends of the two hoses 17 penetrate through the top of the movable box 16 and extend into the movable box 16, and hot air in the movable box 16 can be led out through the hoses 17, so that the hot air in the movable box 16 can be recycled; the two side walls of the movable box 16 are fixedly connected with guide plates 19, the guide plates 19 are obliquely arranged, and the cloth is conveniently pressed between the movable box 16 and the heat conducting box 10 through the guide plates 19; the movable box 16 is positioned right above the heat conduction box 10, so that the heat conduction box 10 and the movable box 16 can conveniently remove wrinkles of the cloth.

The working principle is as follows: when the cloth wrinkle removing device for jacket production is used, cloth can be placed through the cloth placing device 2, the cloth can be stored through the cloth collecting device 3, the connecting support 7 can be driven to move upwards through the first air cylinder 6, the press roller 8 on the connecting support 7 can move towards the direction close to the rotating roller 4, so that the press roller 8 and the rotating roller 4 can extrude the cloth, the cloth can be primarily leveled, wrinkles on the cloth can be reduced, the wrinkle removing efficiency of the cloth can be further improved, after the wrinkle removing of the cloth is heated, the tightness of the cloth can be adjusted through the extrusion of the press roller 8 and the rotating roller 4 on the cloth, the wrinkle removing effect of the cloth can be improved, the movable box 16 can be driven to move downwards through the second air cylinder 15, the movable box 16 and the heat conduction box 10 can extrude the cloth, hot air in the heating box 9 can be guided into the heat conduction box 10 through the heat conduction pipe 13, make the hot-air can heat cloth through heat conduction hole 18 and remove the fold, and fan 14 then can retrieve the hot-air through hose 17, the heat of having avoided the hot-air gives off in the air, fan 14 can also be with the leading-in heating cabinet 9 of the hot-air of retrieving, make and retrieve the hot-air and recycle, the heat waste has been avoided effectively, can practice thrift manufacturing cost, and retrieve the hot-air through fan 14, make the hot-air that can accelerate in the heat conduction case 10 flow to the movable box 16, thereby make and to accelerate the heating to cloth, the fold efficiency of removing to cloth has been improved effectively.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the utility model, the scope of which is defined in the appended claims and their equivalents.

Claims

1. A cloth wrinkle removal device for jacket production, comprising a box body (1), a cloth placing device (2), a cloth collecting device (3), a rotating roller (4), a first air cylinder (6), a heating box (9) ), the fan (14) and the second cylinder (15), characterized in that: the two inner walls of the box (1) are fixedly connected with a connecting plate (5), and the first cylinder (6) is fixedly connected to the connecting plate (5). On the top of the plate (5), a connecting bracket (7) is fixedly connected to the movable end of the first cylinder (6), and a pressing roller (8) is connected to the inside of the connecting bracket (7) through a rotating shaft, and the heating A heat conduction box (10) is fixedly connected to the top of the box (9), a first conduit (11) is fixedly connected to the top of the heating box (9), and one end of the first conduit (11) penetrates the heat conduction box (10) The bottom of the first conduit (11) is fixedly connected with a second conduit (12), and the top of the second conduit (12) is equidistantly and fixedly connected with a plurality of A heat conducting pipe (13), a plurality of heat conducting holes (18) are formed on the top of the heat conducting box (10), a movable box (16) is fixedly connected to the movable end of the second cylinder (15), and the movable box ( The bottom of 16) is equally spaced with a plurality of slots (20).

2 . The device for removing wrinkling of fabrics for jacket production according to claim 1 , wherein the rotating roller ( 4 ) is located just above the pressing roller ( 8 ). 3 .

3. The device for removing wrinkles from fabrics for jacket production according to claim 1 or 2, characterized in that: two hoses (17) are fixedly connected to the bottom of the fan (14), and the two hoses are The bottom end of (17) penetrates the top of the movable box (16) and extends into the interior of the movable box (16).

4 . The device for removing wrinkling of cloth for jacket production according to claim 3 , wherein the two side walls of the movable box ( 16 ) are fixedly connected with guide plates ( 19 ), and the guide plates ( 19 ) are inclined. 5 . set up.

5 . The device for removing wrinkling of fabrics for jacket production according to claim 1 , wherein the movable box ( 16 ) is located directly above the heat conduction box ( 10 ). 6 .
