Abstract

The utility model discloses a granny rag device that clothing production line was used, including granny rag device body, the cloth mounting bracket, cloth heating device, cloth straightening device, cloth drying device and cloth coiling mechanism, granny rag device body middle part fixed mounting has the workstation, it is connected with the compression roller to flatten the bracing piece top rotation, it is connected with down the compression roller to flatten the bracing piece bottom rotation, workstation right side fixed mounting has the cloth coiling mechanism, cloth coiling mechanism left side rotation is connected with driving motor, driving motor's output has cup jointed driving belt, driving motor was kept away from to driving belt's one end inboard has cup jointed the rolling cylinder, cloth coiling mechanism middle part fixed mounting has the supporting shoe, the fixed draw-in groove of having seted up in supporting shoe top, draw-in groove inside wall joint has the rolling cylinder, the rolling cylinder periphery is. This granny rag device that clothing production line was used has avoided the cloth fold to appear through setting up to influence clothing preparation, has reduced intensity of labour, has improved work efficiency.

Description

Cloth pulling device for clothing production line
Technical Field
The utility model relates to a granny rag device technical field specifically is a granny rag device that clothing production line was used.
Background
With the rapid industrial development, the garment manufacturing industry gradually develops from the traditional manpower intensive type to the industrial and automatic direction, in the process, some large-scale automatic machines and equipment are widely applied, and as common automatic equipment, a cloth spreading machine is a machine for processing cloth appearing in the early 90 th century so as to convey rolled flexible cloth and facilitate the use of subsequent cutting work.
However, the prior cloth spreading machine is not smooth enough, wrinkles often appear, and the cloth spreading machine is not automatic enough, so that the working efficiency is low, therefore, the cloth spreading device for the clothing production line needs to be provided urgently at the present stage, the labor intensity can be reduced, and the work efficiency is improved.
Disclosure of Invention
An object of the utility model is to provide a granny rag device that clothing production line was used to solve the problem that proposes among the above-mentioned background art.
In order to achieve the above object, the utility model provides a following technical scheme: a cloth spreading device for a clothing production line comprises a cloth spreading device body, a cloth mounting rack, a cloth heating device, a cloth straightening device, a cloth drying device and a cloth rolling device, wherein the middle part of the cloth spreading device body is fixedly provided with a workbench, the bottom of the cloth spreading device body is fixedly provided with a supporting leg, the supporting leg is fixedly arranged at the bottom of the workbench, the left side of the top of the workbench is fixedly provided with a cloth mounting rack, the bottom of the cloth mounting rack is fixedly provided with a cloth barrel supporting rod, the cloth mounting rack is fixedly arranged at the top of the workbench through the cloth barrel supporting rod, the top of the cloth barrel supporting rod is fixedly provided with a connecting groove, the inner side wall of the connecting groove is clamped with a cloth roller, the periphery of the cloth roller is spliced with a cloth barrel, the middle position of the top of the workbench, the top of the heater is fixedly connected with a connecting pipe, the top of the back of the connecting pipe is fixedly connected with an air injection pipe, the middle position of the top of the workbench is fixedly provided with a cloth straightening device, the bottom of the cloth straightening device is fixedly provided with a flattening support rod, the top of the flattening support rod is rotatably connected with an upper compression roller, the bottom of the flattening support rod is rotatably connected with a lower compression roller, the right end of the top of the workbench is fixedly provided with a cloth drying device, the bottom of the cloth drying device is fixedly provided with a fan, the top of the fan is fixedly connected with a ventilation pipe, the top of the back of the ventilation pipe is fixedly connected with a ventilation plate, the right side of the workbench is fixedly provided with a cloth rolling device, the left side of the cloth rolling device is, the supporting shoe top is fixed and is seted up the draw-in groove, and the draw-in groove inside wall joint has the rolling cylinder, and the rolling cylinder periphery is pegged graft and is had the second cloth section of thick bamboo.
Preferably, the cloth heating device, the cloth straightening device and the cloth drying device are all fixedly installed at the top of the workbench, and the cloth heating device, the cloth straightening device and the cloth drying device are sequentially arranged from left to right along the same horizontal line.
Preferably, go up the compression roller and rotate to be connected at the bracing piece top that flattens, the compression roller rotates to be connected in the bracing piece bottom that flattens down, and goes up the compression roller and be located directly over the compression roller down, and both flatten the bracing piece and level setting from top to bottom.
Preferably, the weight of the upper pressing roller is larger than that of the lower pressing roller, a gap is reserved between the upper pressing roller and the lower pressing roller, and the height of the gap is matched with the thickness of the cloth.
Preferably, the gas ejector pipe is fixedly connected to the top of the back of the connecting pipe, and a plurality of groups of matched through holes are formed in the surface of the top of the gas ejector pipe.
Compared with the prior art, the utility model discloses possess following beneficial effect: this granny rag device that clothing production line was used often appears the fold for solving current granny rag device and not leveling, leads to work efficiency low, the user demand's that can not satisfy problem, this granny rag device that clothing production line was used is through setting up compression roller and the cooperation of lower compression roller on using, goes up the compression roller dead weight and extrudees the cloth, presses the cloth to level, has avoided the cloth fold to appear and has influenced the clothing preparation, has reduced intensity of labour, has improved work efficiency.
Drawings

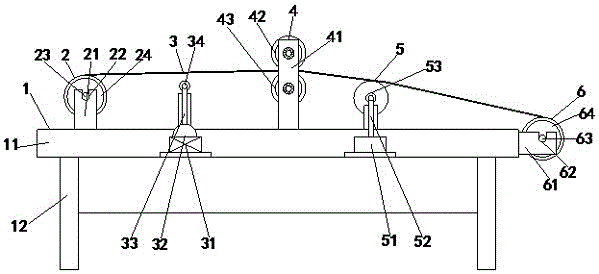

FIG. 1 is a schematic front view of the present invention;
FIG. 2 is a schematic view of the back structure of the present invention;
fig. 3 is a schematic side view of the gas lance of the present invention.
In the figure: 1 spreading device body, 11 workstations, 12 supporting legs, 2 cloth mounting racks, 21 cloth section of thick bamboo bracing pieces, 22 connecting grooves, 23 cloth rollers, 24 cloth sections of thick bamboo, 3 cloth heating device, 31 storage water tank, 32 heater, 33 connecting pipes, 34 jet pipes, 4 cloth straightening devices, 41 flattening bracing pieces, 42 upper compression roller, 43 lower compression roller, 5 cloth drying device, 51 fan, 52 ventilation pipe, 53 ventilation board, 6 cloth rolling device, 61 supporting block, 62 draw-in groove, 63 rolling roller, 64 second cloth sections of thick bamboo, 7 driving motor, 71 driving belt.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-3, the present invention provides a technical solution: a cloth spreading device for a clothing production line comprises a cloth spreading device body 1, a cloth mounting frame 2, a cloth heating device 3, a cloth straightening device 4, a cloth drying device 5 and a cloth rolling device 6, wherein a workbench 11 is fixedly arranged in the middle of the cloth spreading device body 1, a supporting leg 12 is fixedly arranged at the bottom of the cloth spreading device body 1, the supporting leg 12 is fixedly arranged at the bottom of the workbench 11, a cloth mounting frame 2 is fixedly arranged at the left side of the top of the workbench 11, a cloth cylinder supporting rod 21 is fixedly arranged at the bottom of the cloth mounting frame 2, the cloth mounting frame 2 is fixedly arranged at the top of the workbench 11 through the cloth cylinder supporting rod 21, a connecting groove 22 is fixedly arranged at the top end of the cloth cylinder supporting rod 21, a cloth roller 23 is clamped on the inner side wall of the connecting groove 22, a cloth cylinder 24 is spliced on the periphery of the cloth roller 23, the cloth heating device 3, the back of the water storage tank 31 is fixedly connected with a heater 32, the top of the heater 32 is fixedly connected with a connecting pipe 33, the top of the back of the connecting pipe 33 is fixedly connected with an air injection pipe 34, the air injection pipe 34 is fixedly connected with the top of the back of the connecting pipe 33, the top surface of the top of the air injection pipe 34 is provided with a plurality of groups of adaptive through holes, a cloth straightening device 4 is fixedly installed at the middle position of the top of the workbench 11, a flattening support rod 41 is fixedly installed at the bottom of the cloth straightening device 4, the top of the flattening support rod 41 is rotatably connected with an upper compression roller 42, the bottom of the flattening support rod 41 is rotatably connected with a lower compression roller 43, the weight of the upper compression roller 42 is larger than that of the lower compression roller 43, a gap is left between the upper compression roller 42 and the lower compression roller 43, the height of the gap is, the two flattening support rods 41 are arranged horizontally up and down, the right end of the top of the workbench 11 is fixedly provided with a cloth drying device 5, the cloth heating device 3, the cloth straightening device 4 and the cloth drying device 5 are all fixedly arranged at the top of the workbench 11, the cloth heating device 3, the cloth straightening device 4 and the cloth drying device 5 are sequentially arranged along the same horizontal line from left to right, the bottom of the cloth drying device 5 is fixedly provided with a fan 51, the top of the fan 51 is fixedly connected with a ventilation pipe 52, the top of the back of the ventilation pipe 52 is fixedly connected with a ventilation plate 53, the right side of the workbench 11 is fixedly provided with a cloth rolling device 6, the left side of the cloth rolling device 6 is rotatably connected with a driving motor 7, the output end of the driving motor 7 is sleeved with a driving belt 71, the inner side of one end of the driving belt 71, the top of the supporting block 61 is fixedly provided with a clamping groove 62, the inner side wall of the clamping groove 62 is clamped with a winding roller 63, and the periphery of the winding roller 63 is inserted with a second cloth cylinder 64.
The working principle is as follows: this granny rag device that clothing production line was used, in use, through setting up cloth mounting bracket 2, cup joint cloth section of thick bamboo 21 in cloth roller 23 periphery earlier, through setting up cloth heating device 3, heat into the steam state through setting up the water of heater 32 in with storage water tank 31, spout vapor dispersion through setting up jet-propelled pipe 34, flatten the cloth after will heating through last compression roller 42 and bottom roller 43 through setting up cloth leveling device 4, air-dry after passing through cloth drying device 5 through the cloth after flattening, at last carry out the rolling through the cloth coiling mechanism.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims (5)

1. The utility model provides a granny rag device that clothing production line was used, includes granny rag device body (1), cloth mounting bracket (2), cloth heating device (3), cloth straightening device (4), cloth drying device (5) and cloth coiling mechanism (6), its characterized in that: the cloth spreading device is characterized in that a workbench (11) is fixedly arranged in the middle of a cloth spreading device body (1), supporting legs (12) are fixedly arranged at the bottom of the cloth spreading device body (1), the supporting legs (12) are fixedly arranged at the bottom of the workbench (11), a cloth mounting frame (2) is fixedly arranged on the left side of the top of the workbench (11), a cloth drum supporting rod (21) is fixedly arranged at the bottom of the cloth mounting frame (2), the cloth mounting frame (2) is fixedly arranged at the top of the workbench (11) through the cloth drum supporting rod (21), a connecting groove (22) is fixedly formed in the top end of the cloth drum supporting rod (21), a cloth roller (23) is clamped on the inner side wall of the connecting groove (22), a cloth drum (24) is inserted in the periphery of the cloth roller (23), a cloth heating device (3) is fixedly arranged at the middle position of the top of the workbench (11), a, the water storage tank (31) is fixedly connected with a heater (32) at the back, the heater (32) is fixedly connected with a connecting pipe (33) at the top, the connecting pipe (33) is fixedly connected with an air injection pipe (34) at the back top, a cloth straightening device (4) is fixedly installed at the top middle position of the workbench (11), a flattening support rod (41) is fixedly installed at the bottom of the cloth straightening device (4), the top of the flattening support rod (41) is rotatably connected with an upper compression roller (42), the bottom of the flattening support rod (41) is rotatably connected with a lower compression roller (43), a cloth drying device (5) is fixedly arranged at the right end of the top of the workbench (11), a fan (51) is fixedly arranged at the bottom of the cloth drying device (5), a ventilation pipe (52) is fixedly connected with the top of the fan (51), and a, workstation (11) right side fixed mounting has cloth coiling mechanism (6), cloth coiling mechanism (6) left side is rotated and is connected with driving motor (7), driving belt (71) have been cup jointed to the output of driving motor (7), driving motor's one end inboard is cup jointed winding drum (63) is kept away from in driving belt (71), cloth coiling mechanism (6) middle part fixed mounting has supporting shoe (61), draw-in groove (62) have been seted up to supporting shoe (61) top fixed, draw-in groove (62) inside wall joint has winding drum (63), and winding drum (63) periphery is pegged graft and is had second cloth section of thick bamboo (64).
2. The napping device for a garment production line as recited in claim 1, wherein: the cloth heating device (3), the cloth straightening device (4) and the cloth drying device (5) are fixedly mounted at the top of the workbench (11), and the cloth heating device (3), the cloth straightening device (4) and the cloth drying device (5) are sequentially arranged from left to right along the same horizontal line.
3. The napping device for a garment production line as recited in claim 1, wherein: go up compression roller (42) and rotate to be connected at bracing piece (41) top of flattening, compression roller (43) rotate down and connect in bracing piece (41) bottom of flattening, and go up compression roller (42) and be located compression roller (43) directly over down, the both upper and lower level settings of bracing piece (41) of flattening.
4. The napping device for a garment production line as recited in claim 1, wherein: the weight of the upper pressing roller (42) is larger than that of the lower pressing roller (43), a gap is reserved between the upper pressing roller (42) and the lower pressing roller (43), and the height of the gap is matched with the thickness of the cloth.
5. The napping device for a garment production line as recited in claim 1, wherein: the gas injection pipe (34) is fixedly connected to the top of the back of the connecting pipe (33), and a plurality of groups of matched through holes are formed in the surface of the top of the gas injection pipe (34).
