Abstract

The utility model discloses a power distribution cabinet with temperature detection and regulation, and relates to the technical field of power equipment. According to the power distribution cabinet with the temperature detection and adjustment function, the energy device is arranged, the solar energy resource is utilized to cool and radiate the power distribution cabinet, the temperature sensing device is arranged to process temperature data measured by the temperature sensor, the air cooling heat dissipation device is arranged to accelerate air circulation in the cabinet, and the water cooling sensing device is arranged to absorb heat of air in the cabinet by using condensate with high heat absorption strength.

Description

Power distribution cabinet with temperature detection and adjustment functions
Technical Field
The utility model relates to the technical field of power equipment, in particular to a power distribution cabinet with a temperature detection and adjustment function.
Background
The power distribution cabinet is equipment for dividing a power supply inlet wire into a plurality of paths of outlet wires, is final-stage equipment of a power distribution system, is a general name of a motor control center, and mainly has the main functions of collecting and redistributing electric energy firstly and providing protection, monitoring and control for circuits.
The existing power distributor is poor in heat dissipation capacity, when the power distribution cabinet is long in working time and current is too large, temperature rise can cause burning of the whole power distribution cabinet, and therefore the power distribution cabinet with the temperature detection and adjustment function is provided.
SUMMERY OF THE UTILITY MODEL
The utility model mainly aims to provide a power distribution cabinet with a temperature detection and adjustment function, which can effectively solve the problem of poor heat dissipation capability in the background technology.
In order to achieve the purpose, the utility model adopts the technical scheme that: a power distribution cabinet with temperature detection and regulation comprises a main body, an energy device, a lighting device, a temperature sensing device, an air cooling heat dissipation device and a water cooling heat dissipation device, wherein the main body comprises a shell, a first partition plate and a second partition plate, a plurality of mounting grooves are formed in the surfaces of two sides in the main body, the first partition plate and the second partition plate are respectively connected with the mounting grooves, the energy device comprises a solar cell panel and a storage battery box, a square hole is formed in the upper surface of the shell, the solar cell panel penetrates through the square hole to be connected with the upper surface of the shell, the lower surface of the storage battery box is connected with the upper surface of the first partition plate, the lighting device comprises a spring button and a lighting lamp, a round hole is formed in one side surface in the shell, one side surface of the spring button is connected with the round hole, a lamp hole is formed in the upper surface in the shell, and one side surface of the lighting lamp is connected with the lamp hole, temperature-sensing device includes the information processing case, information processing case side surface and the inside side surface connection of shell, air-cooled heat abstractor includes that fan and second keep off the eaves, the inside side surface of shell is equipped with a plurality of installing ports, and is a plurality of the fan is connected with a plurality of installing ports respectively, and is a plurality of the second keeps off eaves side surface and welds with a plurality of installing ports respectively, water-cooled heat abstractor includes coolant liquid case and water pump, coolant liquid case lower surface and the inside surface connection of shell, water pump lower surface and the inside surface connection of shell.
Preferably, the main part still includes cabinet door, handle and first rain eaves, cabinet door side surface passes through hinged joint with shell side surface, handle side surface and cabinet door opposite side surface are connected, shell and cabinet door side surface all are equipped with a plurality of ventilation holes, and are a plurality of first rain eaves side surface welds with a plurality of vents respectively, and the effect of first rain eaves prevents that rainy day rainwater from flowing into the switch board, leads to the circuit short circuit.
Preferably, the inside lithium cell that is equipped with of battery box, solar cell panel passes through electric wire electric connection with the lithium cell, and solar cell panel changes solar energy resource into the electric energy and stores in the inside lithium cell of battery box, and the resource waste is avoided to the rational utilization renewable resource.
Preferably, spring button passes through electric wire electric connection with the light, the light passes through electric wire electric connection with the battery box, opens the back when the cabinet door, and the inside spring of spring button resumes former appearance, makes light switch on power supply open, closes the cabinet door after, and the spring is compressed, makes light power off to reach the effect of opening the door and turn on the light automatically.
Preferably, temperature-sensing device still includes temperature sensor, information processing case side surface is equipped with the perforation, temperature sensor one end is passed the perforation and is connected with information processing case side surface, information processing case passes through electric wire electric connection with the battery box, and the information processing incasement is equipped with the singlechip, behind the data processing who conveys temperature sensor, orders corresponding radiating device.
Preferably, air-cooled heat abstractor still includes motor and mount, motor one end and fan side surface are connected, and is a plurality of mount both ends are connected with fan side surface and motor week side surface respectively, and is a plurality of the motor all passes through electric wire and battery box electric connection, and the hot-air in the fan extraction switch board makes the air of outside normal atmospheric temperature get into in the switch board to reach radiating effect.
Preferably, water-cooling heat abstractor still includes condensate pipe and connecting pipe, coolant liquid case upper surface is equipped with the water inlet, condensate pipe one end is connected with the water inlet, the condensate pipe other end is connected with a water pump side surface, coolant liquid case side surface is equipped with the delivery port, connecting pipe one end is connected with the delivery port, the connecting pipe other end is connected with water pump opposite side surface, the water pump passes through electric wire electric connection with the battery box, and through the water pump extraction condensate make its circulation flow back to the coolant liquid case behind the whole condensate pipe, the condensate absorbs the heat in the switch board during to reach radiating effect.
Compared with the prior art, the utility model has the following beneficial effects:
according to the utility model, the energy device is arranged, and the solar energy resource is utilized to cool and radiate the power distribution cabinet, so that the environment is protected, and the waste of resources is avoided.
According to the utility model, the temperature sensing device is arranged to process the temperature data measured by the temperature sensor, so that the equipment can perform heat dissipation in different modes at different internal temperatures.
The air-cooled heat dissipation device is arranged, and heat dissipation is performed in a mode that a fan is used for extracting hot air, so that air circulation in the cabinet is accelerated.
According to the utility model, the water-cooling induction device is arranged, and the condensate with high heat absorption strength is used for absorbing the heat of the air in the cabinet, so that the high-efficiency heat dissipation efficiency is achieved.
Drawings

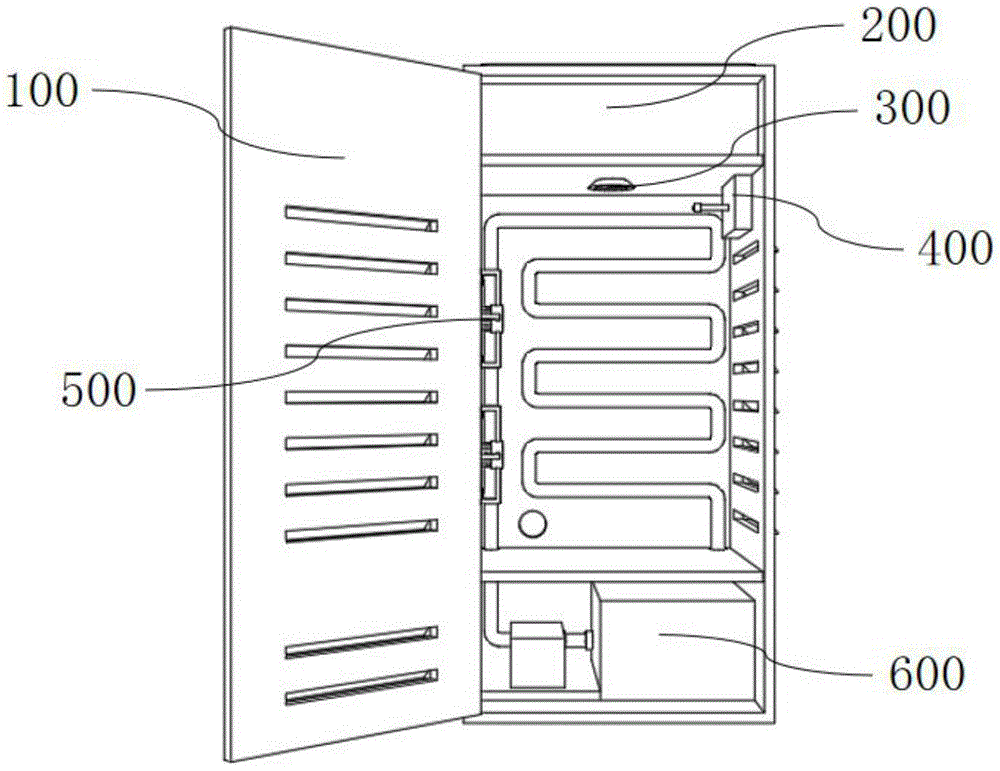

FIG. 1 is a schematic diagram of an overall external structure of a power distribution cabinet with temperature detection and regulation according to the present invention;
FIG. 2 is a schematic diagram of an overall external structure of a power distribution cabinet with temperature detection and regulation according to the present invention;
FIG. 3 is a schematic diagram of an overall external structure of a power distribution cabinet with temperature detection and regulation according to the present invention;
FIG. 4 is a schematic diagram of an internal front view structure of a power distribution cabinet with temperature detection and regulation according to the present invention;
fig. 5 is a schematic diagram of a part a of fig. 4 showing a power distribution cabinet with temperature detection and regulation according to the present invention;
fig. 6 is a partially enlarged schematic diagram of a power distribution cabinet with temperature detection and regulation in fig. 4 at the position B.
In the figure: 100. a main body; 110. a housing; 120. a first separator; 130. a second separator; 140. a cabinet door; 150. a handle; 160. a first rain eaves; 200. an energy device; 210. a solar panel; 220. a battery case; 300. an illumination device; 310. a spring button; 320. an illuminating lamp; 400. a temperature sensing device; 410. a temperature sensor; 420. an information processing box; 500. an air-cooled heat sink; 510. a fan; 520. a motor; 530. a second rain eaves; 540. a fixed mount; 600. a water-cooling heat dissipation device; 610. a coolant tank; 620. a water pump; 630. a condensate pipe; 640. and (4) connecting the pipes.
Detailed Description
In order to make the technical means, the creation characteristics, the achievement purposes and the effects of the utility model easy to understand, the utility model is further described with the specific embodiments.
In the description of the present invention, it should be noted that the terms "upper", "lower", "inner", "outer", "front", "rear", "both ends", "one end", "the other end", and the like indicate orientations or positional relationships based on those shown in the drawings, and are only for convenience of description and simplicity of description, but do not indicate or imply that the referred device or element must have a specific orientation, be constructed in a specific orientation, and be operated, and thus, should not be construed as limiting the present invention. Furthermore, the terms "first" and "second" are used for descriptive purposes only and are not to be construed as indicating or implying relative importance.
In the description of the present invention, it is to be noted that, unless otherwise explicitly specified or limited, the terms "mounted," "disposed," "connected," and the like are to be construed broadly, such as "connected," which may be fixedly connected, detachably connected, or integrally connected; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meanings of the above terms in the present invention can be understood in specific cases to those skilled in the art.
Referring to fig. 1-6, the present invention is a power distribution cabinet with temperature detection and regulation, including a main body 100, an energy device 200, a lighting device 300, a temperature sensing device 400, an air-cooled heat dissipating device 500, and a water-cooled heat dissipating device 600, wherein the main body 100 includes a casing 110, a first partition 120, and a second partition 130, the two side surfaces inside the main body 100 are provided with a plurality of mounting slots, the first partition 120 and the second partition 130 are respectively connected to the plurality of mounting slots, the energy device 200 includes a solar cell panel 210 and a battery box 220, the upper surface of the casing 110 is provided with a square hole, the solar cell panel 210 passes through the square hole to be connected to the upper surface of the casing 110, the lower surface of the battery box 220 is connected to the upper surface of the first partition 120, the lighting device 300 includes a spring button 310 and a lighting lamp 320, one side surface inside the casing 110 is provided with a circular hole, one side surface of the spring button 310 is connected to the circular hole, the upper surface inside the casing 110 is provided with a lamp hole, 320 a side surface of light and lamp hole connection, temperature-sensing device 400 includes information processing case 420, information processing case 420 side surface and the inside side surface connection of shell 110, forced air cooling heat abstractor 500 includes fan 510 and second fender rain eaves 530, the inside side surface of shell 110 is equipped with a plurality of installing ports, a plurality of fans 510 are connected with a plurality of installing ports respectively, a plurality of second fender rain eaves 530 a side surface respectively with a plurality of installing ports welding, water-cooling heat abstractor 600 includes coolant liquid case 610 and water pump 620, coolant liquid case 610 lower surface and the inside surface connection of shell 110, water pump 620 lower surface and the inside surface connection of shell 110.
Further, main part 100 still includes cabinet door 140, handle 150 and first eaves 160 that keeps off rain, cabinet door 140S side surface passes through hinged joint with shell 110 side surface, handle 150 side surface and cabinet door 140 opposite side surface are connected, shell 110 and cabinet door 140 side surface all are equipped with a plurality of ventilation holes, a plurality of first eaves 160 side surfaces weld with a plurality of vents respectively, the effect of first eaves 160 that keeps off rain prevents that rainy day rainwater from flowing into the switch board, lead to the circuit short circuit.
Further, the inside lithium cell that is equipped with of battery box 220, solar cell panel 210 passes through electric wire electric connection with the lithium cell, and solar cell panel 210 changes solar energy resource into the electric energy and stores in the inside lithium cell of battery box 220, and the resource waste is avoided to the rational utilization renewable resources.
Further, spring button 310 passes through electric wire electric connection with light 320, and light 320 passes through electric wire electric connection with battery box 220, and after cabinet door 140 opened, the inside spring of spring button 310 resumes the former state, makes light 320 switch on power and opens, closes cabinet door 140 after, and the spring is compressed, makes light 320 turn off power to reach the effect of opening the door and turn on the light automatically.
Further, temperature-sensing device 400 still includes temperature sensor 410, and information processing box 420 side surface is equipped with the perforation, and temperature sensor 410 one end is passed the perforation and is connected with information processing box 420 side surface, and information processing box 420 passes through electric wire electric connection with battery box 220, is equipped with the singlechip in the information processing box 420, processes the data that temperature sensor 410 conveyed the back, instructs corresponding radiating device.
Further, air-cooled heat abstractor 500 still includes motor 520 and mount 540, and motor 520 one end is connected with fan 510 side surface, and a plurality of mounts 540 both ends are connected with fan 510 side surface and motor 520 week side surface respectively, and a plurality of motors 520 all pass through electric wire and battery box 220 electric connection, and the fan extracts the hot-air in the switch board, makes the air of outside normal atmospheric temperature get into in the switch board to reach radiating effect.
Further, the water-cooling heat dissipation device 600 further comprises a condensate pipe 630 and a connecting pipe 640, a water inlet is formed in the upper surface of the cooling liquid tank 610, one end of the condensate pipe 630 is connected with the water inlet, the other end of the condensate pipe 630 is connected with the surface of one side of the water pump 620, a water outlet is formed in the surface of one side of the cooling liquid tank 610, one end of the connecting pipe 640 is connected with the water outlet, the other end of the connecting pipe 640 is connected with the surface of the other side of the water pump 620, the water pump 620 is electrically connected with the storage battery tank 220 through a wire, the condensate is extracted through the water pump 620 and flows back to the cooling liquid tank 610 after flowing to the whole condensate pipe 630, and the condensate absorbs heat in the power distribution cabinet in the period, so that the heat dissipation effect is achieved.
The working principle of the utility model is as follows:
referring to fig. 1-6, the present invention is a power distribution cabinet with temperature detection and regulation, wherein a motor 520 is JS-50T, a water pump 620 is KM310B, a solar panel 210 converts solar energy into electric energy to be stored in a storage battery box 220 to provide electric energy for the whole heat dissipation and lighting processes, when the power distribution cabinet is operated for too long time or the line current is too large, the internal temperature of the power distribution cabinet rises, a temperature sensor 410 rapidly senses the temperature and transmits the temperature data to an information processing box 420, the temperature data is analyzed by the information processing box 420 and then transmitted to the motor 520 and the water pump 620, when a signal is transmitted to the motor 520, the motor 520 drives a fan 510 to rotate to perform heat dissipation treatment in the cabinet, when the signal is transmitted to the water pump 620, the water pump 620 pumps the cooling fluid in a cooling fluid tank 610 to a cooling fluid pipe 630 through a connection pipe 640 and finally flows into the cooling fluid tank 610 again, in the process, the cooling liquid absorbs heat in the cabinet to achieve the heat dissipation effect, and the heat dissipation mode is pollution-free and cannot damage the environment.
The foregoing shows and describes the general principles and broad features of the present invention and advantages thereof. It will be understood by those skilled in the art that the present invention is not limited to the embodiments described above, which are described in the specification and illustrated only to illustrate the principle of the present invention, but that various changes and modifications may be made therein without departing from the spirit and scope of the present invention, which fall within the scope of the utility model as claimed. The scope of the utility model is defined by the appended claims and equivalents thereof.

Claims (7)

1. The utility model provides a take switch board of temperature detection regulation, includes main part (100), energy device (200), lighting device (300), temperature-sensing device (400), air-cooled heat abstractor (500) and water-cooled heat abstractor (600), its characterized in that: the solar energy power generation device is characterized in that the main body (100) comprises a shell (110), a first partition plate (120) and a second partition plate (130), a plurality of mounting grooves are formed in the surfaces of two sides in the main body (100), the first partition plate (120) and the second partition plate (130) are respectively connected with the mounting grooves, the energy source device (200) comprises a solar cell panel (210) and a storage battery box (220), a square hole is formed in the upper surface of the shell (110), the solar cell panel (210) penetrates through the square hole to be connected with the upper surface of the shell (110), the lower surface of the storage battery box (220) is connected with the upper surface of the first partition plate (120), the illuminating device (300) comprises a spring button (310) and an illuminating lamp (320), a round hole is formed in the surface of one side in the shell (110), one side surface of the spring button (310) is connected with the round hole, and a lamp hole is formed in the upper surface in the shell (110), light (320) side surface and lamp hole connection, temperature-sensing device (400) are including information processing case (420), information processing case (420) side surface and the inside side surface connection of shell (110), air-cooled heat abstractor (500) are including fan (510) and second fender rain eaves (530), the inside side surface of shell (110) is equipped with a plurality of installing orificess, and is a plurality of fan (510) are connected with a plurality of installing orificess respectively, and are a plurality of second fender rain eaves (530) side surface welds with a plurality of installing orificess respectively, water-cooled heat abstractor (600) are including coolant liquid case (610) and water pump (620), coolant liquid case (610) lower surface and the inside surface connection of shell (110), water pump (620) lower surface and the inside surface connection of shell (110).
2. The power distribution cabinet with the temperature detection and regulation function according to claim 1, characterized in that: main part (100) still include cabinet door (140), handle (150) and first eaves (160) that keeps off rain, cabinet door (140) a side surface passes through hinged joint with shell (110) a side surface, handle (150) a side surface and cabinet door (140) opposite side surface are connected, shell (110) and cabinet door (140) a side surface all are equipped with a plurality of ventilation holes, and are a plurality of first eaves (160) a side surface welds with a plurality of ventilation holes respectively.
3. The power distribution cabinet with the temperature detection and regulation function according to claim 1, characterized in that: the solar energy battery box is characterized in that a lithium battery is arranged inside the battery box (220), and the solar cell panel (210) is electrically connected with the lithium battery through an electric wire.
4. The power distribution cabinet with the temperature detection and regulation function according to claim 1, characterized in that: the spring button (310) is electrically connected with the illuminating lamp (320) through an electric wire, and the illuminating lamp (320) is electrically connected with the storage battery box (220) through an electric wire.
5. The power distribution cabinet with the temperature detection and regulation function according to claim 1, characterized in that: the temperature sensing device (400) further comprises a temperature sensor (410), a through hole is formed in one side surface of the information processing box (420), one end of the temperature sensor (410) penetrates through the through hole to be connected with one side surface of the information processing box (420), and the information processing box (420) is electrically connected with the storage battery box (220) through an electric wire.
6. The power distribution cabinet with the temperature detection and regulation function according to claim 1, characterized in that: air-cooled heat abstractor (500) still includes motor (520) and mount (540), motor (520) one end and fan (510) side surface connection, it is a plurality of mount (540) both ends respectively with fan (510) side surface and motor (520) week side surface connection, it is a plurality of motor (520) all pass through electric wire and battery box (220) electric connection.
7. The power distribution cabinet with the temperature detection and regulation function according to claim 1, characterized in that: water-cooling heat abstractor (600) still includes condensate pipe (630) and connecting pipe (640), coolant liquid case (610) upper surface is equipped with the water inlet, condensate pipe (630) one end is connected with the water inlet, condensate pipe (630) other end and water pump (620) side surface are connected, coolant liquid case (610) side surface is equipped with the delivery port, connecting pipe (640) one end is connected with the delivery port, connecting pipe (640) other end and water pump (620) opposite side surface are connected, water pump (620) and battery case (220) pass through electric wire electric connection.
