Abstract
本实用新型公开了一种具有水循环除尘系统的氢氧化钙粉末输送装置，包括输送装置本体，所述输送装置本体底部的两侧均固定连接有支架，两个支架的底部固定连接有水箱，所述输送装置本体的顶部固定连接有护罩，所述护罩的顶部固定连接有第一风机。本实用新型通过设置输送装置本体、支架、水箱、护罩、第一风机、进气罩、输气管、导流块、滤板、电机、旋转杆、搅拌杆、喷淋箱、水泵、出水管、进水管、喷头、集尘罩、固定盒、弹簧、限位板、限位杆、连接架、清洁刷、第二风机、第一连接管和第二连接管，解决了现有氢氧化钙粉末输送装置没有除尘功能的问题，该氢氧化钙粉末输送装置，具备有除尘功能的优点。
The utility model discloses a calcium hydroxide powder conveying device with a water circulation dust removal system, comprising a conveying device body, two sides of the bottom of the conveying device body are fixedly connected with brackets, and the bottoms of the two brackets are fixedly connected with a water tank. A protective cover is fixedly connected to the top of the conveying device body, and a first fan is fixedly connected to the top of the protective cover. The utility model is provided with a conveying device body, a bracket, a water tank, a protective cover, a first fan, an air inlet cover, an air transmission pipe, a guide block, a filter plate, a motor, a rotating rod, a stirring rod, a spray box, a water pump, and a water outlet pipe. , water inlet pipe, nozzle, dust cover, fixed box, spring, limit plate, limit rod, connecting frame, cleaning brush, second fan, first connecting pipe and second connecting pipe, which solves the problem of existing calcium hydroxide The powder conveying device does not have the problem of the dust removal function, and the calcium hydroxide powder conveying device has the advantage of having the dust removal function.
Description
Technical Field
The utility model relates to the technical field of calcium hydroxide processing, in particular to a calcium hydroxide powder conveying device with a water circulation dust removal system.
Background
Calcium hydroxide is a white powdery solid, commonly called hydrated lime, slaked lime, and the aqueous solution is called as clear lime water, and in the processing production mode of calcium hydroxide, generally all use lime slaking method, need use conveyor at the in-process of calcium hydroxide processing at present, but current conveyor does not have the dust removal function, when carrying calcium hydroxide powder, can lead to the dust to fly away in the air, the polluted environment, the surface of conveyer belt also adheres to the dust easily simultaneously, inconvenient clearance has reduced conveyor's practicality.
SUMMERY OF THE UTILITY MODEL
The utility model aims to provide a calcium hydroxide powder conveying device with a water circulation dust removal system, which has the advantage of a dust removal function and solves the problem that the existing calcium hydroxide powder conveying device does not have the dust removal function.
In order to achieve the purpose, the utility model provides the following technical scheme: a calcium hydroxide powder conveying device with a water circulation dust removal system comprises a conveying device body, wherein two sides of the bottom of the conveying device body are fixedly connected with supports, the bottoms of the two supports are fixedly connected with a water tank, the top of the conveying device body is fixedly connected with a protective cover, the top of the protective cover is fixedly connected with a first fan, the bottom of the first fan penetrates through an inner cavity of the protective cover and is communicated with an air inlet cover, the top of the first fan is communicated with a gas pipe, one end, away from the first fan, of the gas pipe penetrates through the bottom of the inner cavity of the water tank, the bottom of the inner cavity of the water tank is fixedly connected with a flow guide block, the top of the flow guide block is fixedly connected with a filter plate, the left side of the water tank is fixedly connected with a motor, the right side of the output end of the motor is fixedly connected with a rotary rod, and the right end of the rotary rod penetrates through the water tank and is movably connected with the filter plate, the right sides of the top and the bottom of the rotating rod are fixedly connected with stirring rods, the top of the water tank is communicated with a spray box, the top of the water tank is fixedly connected with a water pump positioned on the right side of the spray box, the top and the bottom of the water pump are respectively communicated with a water outlet pipe and a water inlet pipe, the bottom of the water inlet pipe is communicated with an inner cavity of the water tank, one end of the water outlet pipe, far away from the water pump, is communicated with a spray head, the surface of the water outlet pipe is communicated with a spray head, the top of the spray box is communicated with a dust hood, the front side and the rear side of the top of the dust hood are fixedly connected with fixing boxes, the bottom of the inner cavity of the fixing boxes is fixedly connected with a spring, the top of the spring is fixedly connected with a limiting plate, the top of the limiting plate is fixedly connected with a limiting rod, the top of the limiting rod is communicated with the top of the fixing boxes and is fixedly connected with connecting frames, and a cleaning brush is fixedly connected between the two connecting frames, the left side of the spraying box is fixedly connected with a second fan, the top and the bottom of the second fan are respectively communicated with a first connecting pipe and a second connecting pipe, the bottom of the second connecting pipe penetrates through the inner cavity of the water tank, and one end, far away from the second fan, of the first connecting pipe extends to the top of the dust hood.
Preferably, the bottoms of the two sides of the water tank are communicated with drain pipes, and one end, far away from the water tank, of each drain pipe is provided with a pipe cover.
Preferably, the top of the cleaning brush is in contact with the conveying device body, and the flow guide block is triangular.
Preferably, the guide plates are fixedly connected to the two sides of the bottom of the inner cavity of the spraying box and are triangular.
Preferably, the surface of the filter plate is fixedly connected with the inner wall of the water tank, and the connection parts of the surface of the rotating rod, the water tank and the filter plate are movably connected through bearings.
Preferably, the front surface of the water tank is provided with an observation window, and the surface of the limiting plate is in sliding connection with the inner wall of the fixed box.
Compared with the prior art, the utility model has the following beneficial effects:
1. the utility model solves the problem that the existing calcium hydroxide powder conveying device does not have a dust removal function by arranging the conveying device body, the support, the water tank, the protective cover, the first fan, the air inlet cover, the air delivery pipe, the flow guide block, the filter plate, the motor, the rotating rod, the stirring rod, the spraying box, the water pump, the water outlet pipe, the water inlet pipe, the spray head, the dust collection cover, the fixing box, the spring, the limiting plate, the limiting rod, the connecting frame, the cleaning brush, the second fan, the first connecting pipe and the second connecting pipe.
2. The conveying device comprises a conveying device body, a support, a flow guide block, a flow guide plate, a stirring rod, a spring, a cleaning brush, a bearing and a rotating rod.
Drawings

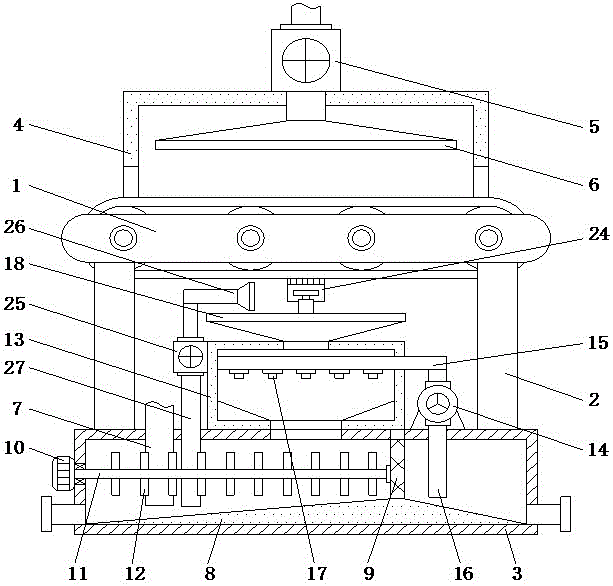

FIG. 1 is a schematic structural view of the present invention;
FIG. 2 is a left side cross-sectional view of a portion of the structure of the present invention;
fig. 3 is a partial enlarged view of a in fig. 2 according to the present invention.
In the figure: 1. a conveying device body; 2. a support; 3. a water tank; 4. a shield; 5. a first fan; 6. an air intake hood; 7. a gas delivery pipe; 8. a flow guide block; 9. filtering the plate; 10. a motor; 11. rotating the rod; 12. a stirring rod; 13. a spray box; 14. a water pump; 15. a water outlet pipe; 16. a water inlet pipe; 17. a spray head; 18. a dust collection cover; 19. a fixing box; 20. a spring; 21. a limiting plate; 22. a limiting rod; 23. a connecting frame; 24. a cleaning brush; 25. a second fan; 26. a first connecting pipe; 27. a second connecting pipe.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
In the description of the present invention, it should be noted that the terms "upper", "lower", "inner", "outer", "front", "rear", "both ends", "one end", "the other end", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of describing the present invention and simplifying the description, but do not indicate or imply that the referred device or element must have a specific orientation, be constructed in a specific orientation, and be operated, and thus, should not be construed as limiting the present invention. Furthermore, the terms "first" and "second" are used for descriptive purposes only and are not to be construed as indicating or implying relative importance.
In the description of the present invention, it is to be noted that, unless otherwise explicitly specified or limited, the terms "mounted", "provided", "connected", and the like are to be construed broadly, such as "connected", which may be fixedly connected, detachably connected, or integrally connected; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meanings of the above terms in the present invention can be understood in specific cases to those skilled in the art.
Referring to fig. 1-3, a calcium hydroxide powder conveying device with a water circulation dust removal system comprises a conveying device body 1, wherein two sides of the bottom of the conveying device body 1 are fixedly connected with a support 2, the bottoms of the two supports 2 are fixedly connected with a water tank 3, the top of the conveying device body 1 is fixedly connected with a shield 4, the top of the shield 4 is fixedly connected with a first fan 5, the bottom of the first fan 5 penetrates through the inner cavity of the shield 4 and is communicated with an air inlet cover 6, the top of the first fan 5 is communicated with an air delivery pipe 7, one end of the air delivery pipe 7, far away from the first fan 5, penetrates through the bottom of the inner cavity of the water tank 3, the bottom of the inner cavity of the water tank 3 is fixedly connected with a flow guide block 8, the top of the flow guide block 8 is fixedly connected with a filter plate 9, the left side of the water tank 3 is fixedly connected with a motor 10, the right side of the output end of the motor 10 is fixedly connected with a rotary rod 11, and the right end of the rotary rod 11 penetrates through the water tank 3 and is movably connected with the filter plate 9, the stirring rods 12 are fixedly connected to the top and the right side of the bottom of the rotating rod 11, the top of the water tank 3 is communicated with a spraying box 13, the top of the water tank 3 is fixedly connected with a water pump 14 positioned on the right side of the spraying box 13, the top and the bottom of the water pump 14 are respectively communicated with a water outlet pipe 15 and a water inlet pipe 16, the bottom of the water inlet pipe 16 is communicated with the inner cavity of the water tank 3, one end of the water outlet pipe 15 far away from the water pump 14 is communicated with the inner cavity of the spraying box 13, the surface of the water outlet pipe 15 is communicated with a spray head 17, the top of the spraying box 13 is communicated with a dust hood 18, the front side and the rear side of the top of the dust hood 18 are both fixedly connected with a fixing box 19, the bottom of the inner cavity of the fixing box 19 is fixedly connected with a spring 20, the top of the spring 20 is fixedly connected with a limiting plate 21, the top of the limiting plate 21 is fixedly connected with a limiting rod 22, the top of the limiting rod 22 is communicated with the top of the fixing box 19 and is fixedly connected with a connecting frame 23, a cleaning brush 24 is fixedly connected between the two connecting frames 23, a second fan 25 is fixedly connected on the left side of the spray box 13, the top and the bottom of the second fan 25 are respectively communicated with a first connecting pipe 26 and a second connecting pipe 27, the bottom of the second connecting pipe 27 penetrates into the inner cavity of the water tank 3, one end of the first connecting pipe 26, which is far away from the second fan 25, extends to the top of the dust collection cover 18, the bottoms of the two sides of the water tank 3 are both communicated with drain pipes, one end of each drain pipe, which is far away from the water tank 3, is sleeved with a pipe cover, the top of the cleaning brush 24 is in contact with the conveying device body 1, the flow guide block 8 is triangular, flow guide plates are fixedly connected on the two sides of the bottom of the inner cavity of the spray box 13, the flow guide plates are triangular, the surface of the filter plate 9 is fixedly connected with the inner wall of the water tank 3, the joints of the water tank 3 and the filter plate 9 are both movably connected through bearings, an observation window is arranged on the front surface of the water tank 3, the surface of the limiting plate 21 is connected with the inner wall of the fixing box 19 in a sliding manner, the support 2 is arranged, the effect of supporting the conveying device body 1 can be achieved, the flow guide block 8 and the flow guide plate are arranged, the mixing between dust airflow and clean water is facilitated by the arrangement of the stirring rod 12, the efficiency and the effect of dust adsorbed by clean water are improved, dust is prevented from escaping along with the airflow again, the contact between the top of the cleaning brush 24 and the conveying device body 1 can be ensured by the arrangement of the spring 20, the cleaning brush 24 can be used for cleaning the surface of the conveying device body 1, the rotation of the rotating rod 11 can be facilitated by the arrangement of the bearing, and the conveying device body 1, the support 2, the water tank 3, the protective cover 4, the first fan 5, the air inlet cover 6, the air conveying pipe 7, the flow guide block 8, the filter plate 9, the motor 10, the rotating rod 11 and the stirring rod 12 are arranged, the rotating rod 11 is convenient to rotate, Spray box 13, water pump 14, outlet pipe 15, inlet tube 16, shower nozzle 17, dust cage 18, fixed box 19, spring 20, limiting plate 21, gag lever post 22, link 23, cleaning brush 24, second fan 25, first connecting pipe 26 and second connecting pipe 27, solved the problem that current calcium hydrate powder conveyor does not have the dust removal function, this calcium hydrate powder conveyor possesses the advantage that has the dust removal function.
When the conveying device is used, the conveying device body 1 can convey calcium hydroxide materials, the first fan 5 is started to input generated dust into water in an inner cavity of the water tank 3 through the matching of the air inlet cover 6 and the air conveying pipe 7, part of dust in the gas can be adsorbed by the water, then the gas moves upwards to enter the spraying tank 13, the water pump 14 is started to pump out the water in the water tank 3 through the matching of the water inlet pipe 16 and the water outlet pipe 15 and then is sprayed out through the spray head 17 to carry out spraying treatment on the gas, the sprayed water can reenter the water tank 3 to circulate, the filter plate 9 can prevent the dust from entering the water inlet pipe 16, due to the arrangement of the spring 20, the top of the cleaning brush 24 can be always in contact with the conveying device body 1, in the running process of the conveying device body 1, the cleaning brush 24 can clean the surface of the conveying device body 1, and slightly larger impurities can fall downwards to enter the spraying tank 13 through the dust collection cover 18, can mix in aqueous after spraying, the cooperation that second fan 25 opened through first connecting pipe 26 and second connecting pipe 27 can be handled in the dust input water tank 3 that wafts in the air, and the cooperation that motor 10 moved through rotary rod 11 can drive puddler 12 and rotate, is favorable to the mixture between dust air current and the clear water, improves the dust and is by absorbent efficiency and effect of clear water, avoids the dust to escape along with the air current once more.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the utility model, the scope of which is defined in the appended claims and their equivalents.
