Abstract
The utility model discloses a multistation synchronous grinding device for machining a ferrite core, wherein a support frame serving as a support protection device is placed at an appointed position, and first motors are arranged on the left side and the right side of the top of the support frame; the working frame is fixed at the top end of the middle position of the supporting frame, a placing groove is formed in the supporting frame, and a placing table is fixed at the top of the working frame; the method comprises the following steps: one end of the pull rope is connected with one side of the rack through the fixed pulley, and one end of the clamping rod is fixed on the outer side of the guide rod. This synchronous grinding device of multistation is used in iron oxide magnetic core processing is provided with the stay cord, and the output through first motor drives first threaded rod and rotates, and then makes the rack will drive the connecting gear and rotate to make the second threaded rod will rotate in the inside of standing groove, thereby make things convenient for the centre gripping pole to carry out the centre gripping to placing the material on the platform.
Description
Technical Field
The utility model relates to the technical field of processing of iron oxide magnetic cores, in particular to a multi-station synchronous grinding device for processing the iron oxide magnetic cores.
Background
The in-process of iron oxide core in processing needs to polish the outside of iron oxide core, consequently need use grinding device, and grinding device's on the market kind has a lot of, but still has certain weak point:
the utility model discloses a polishing device for processing a magnetic core, which adopts a spring to replace a hand to apply pressure on a polishing disc, can increase the polishing uniformity of the polishing disc and improve the quality of the magnetic core, adopts automation to replace manual work, reduces the labor intensity of workers, is more humanized, but has certain defects.
Therefore, the multi-station synchronous grinding device for machining the iron oxide magnetic core can well solve the problems.
SUMMERY OF THE UTILITY MODEL
The utility model aims to provide a multi-station synchronous grinding device for machining a ferrite core, and aims to solve the problems that the grinding device in the prior market provided by the background art cannot well clamp multiple groups of objects, further, the processing is convenient and synchronous, the efficiency of single processing is low, the time for grinding materials cannot be well saved, certain scraps are easily generated in the grinding process, and the grinding device in the market cannot well treat the scraps.
In order to achieve the purpose, the utility model provides the following technical scheme: a multi-station synchronous grinding device for machining a ferrite core is characterized in that a support frame serving as a support protection device is placed at an appointed position, and first motors are mounted on the left side and the right side of the top of the support frame;
the working frame is fixed at the top end of the middle position of the supporting frame, a placing groove is formed in the supporting frame, and a placing table is fixed at the top of the working frame;
the method comprises the following steps:
the output end of the first motor is connected with a first threaded rod, the outer side of the first threaded rod is arranged on the inner side of one end of the polishing device body, one side of the polishing device body is connected with a pull rope, one end of the pull rope is connected with one side of a rack through a fixed pulley, and one end of the rack is connected with the inner wall of the working frame through a vortex spring;
the top of rack is connected with connecting gear, connecting gear's inboard is fixed with the second threaded rod, the outside of second threaded rod is connected with the supporting rod, the outside at the guide bar is fixed to the one end of supporting rod.
Preferably, the rack is arranged inside the working frame, and the fixed pulley is arranged inside the working frame, so that the pull rope can drive the rack to move conveniently through the fixed pulley.
Preferably, the both ends of guide bar are fixed in the inside of work frame, be threaded connection between the outside of second threaded rod and the inboard of supporting rod to make things convenient for the second threaded rod to drive the supporting rod and remove.
Preferably, the rack passes through to constitute elastic sliding structure between the inner wall of vortex spring and workstation, for the integration setting between the bottom of connecting gear and one side of rack, and then make things convenient for the rack to drive the connecting gear and rotate.
Preferably, the second motor is installed to inside one side of workstation, just the output of second motor is connected with the turning block, the bottom of placing the platform is fixed with the bull stick, just the rotation groove has been seted up to the bottom of bull stick, the inside in rotation groove is provided with the turning block, just the outside at bull stick top is fixed with down the flitch, the one end setting of flitch is in the inside of silo down, through above setting, and then conveniently cleans the sweeps at unloading board top.
Preferably, the feed chute is arranged in the working frame, and the lower material plate forms an up-and-down sliding structure through the rotating rod and the inner wall of the feed chute, so that the scraps at the top of the lower material plate can flow into the feed chute.
Preferably, clearance fit is formed between the inner wall of the rotating groove and the outer wall of the rotating block, so that the rotating block can drive the rotating rod to move up and down conveniently.
Compared with the prior art, the utility model has the beneficial effects that: the multistation synchronous grinding device for processing the iron oxide magnetic core;
(1) the clamping device is characterized in that a pull rope is arranged, the first threaded rod is driven to rotate through the output end of a first motor, so that the first threaded rod can drive the polishing device body to descend, the polishing device body can drive the pull rope to roll, the pull rope can drive a rack to move through a fixed pulley, the rack can drive a connecting gear to rotate, the second threaded rod can rotate inside the placing groove, a clamping rod connected to the outer side of the second threaded rod can move through a guide rod, and the clamping rod can clamp materials on the placing table conveniently;
(2) be provided with and rotate the groove, the output through the second motor drives the turning block and rotates, and then makes the inboard of turning block will remove in the inside that rotates the groove to make the bull stick carry out the up-and-down motion, and then make the lower flitch of fixing in the bull stick outside shake, thereby the sweeps at flitch top will circulate the inside of feed chute down, and then conveniently clean the sweeps.
Drawings

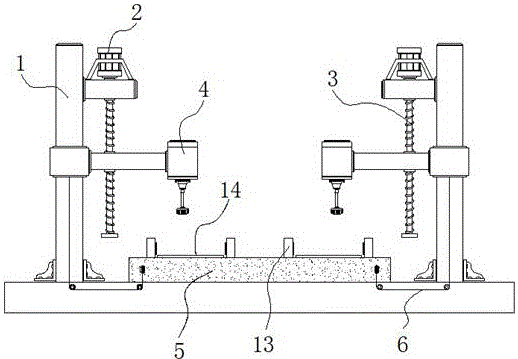

FIG. 1 is a schematic front view of the present invention;
FIG. 2 is a schematic top sectional view of the inventive work frame;
FIG. 3 is an enlarged view of a portion a of FIG. 2 according to the present invention;
FIG. 4 is a schematic sectional view of the connecting structure of the rotary rod and the blanking plate according to the present invention;
fig. 5 is an enlarged view of the structure at b in fig. 4 according to the present invention.
In the figure: 1. a support frame; 2. a first motor; 3. a first threaded rod; 4. polishing the device body; 5. a working frame; 6. pulling a rope; 7. a fixed pulley; 8. a rack; 9. a scroll spring; 10. a connecting gear; 11. a placement groove; 12. a second threaded rod; 13. a clamping rod; 14. a placing table; 15. a guide bar; 16. a second motor; 17. rotating the block; 18. a rotating rod; 1801. a rotating groove; 19. a blanking plate; 20. and (4) discharging the trough.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
Referring to fig. 1-5, the present invention provides a technical solution: the utility model provides a synchronous grinding device of multistation for iron oxide magnetic core processing, includes: the grinding device comprises a support frame 1, a first motor 2, a first threaded rod 3, a grinding device body 4, a working frame 5, a pull rope 6, a fixed pulley 7, a rack 8, a vortex spring 9, a connecting gear 10, a placing groove 11, a second threaded rod 12, a clamping rod 13, a placing table 14, a guide rod 15, a second motor 16, a rotating block 17, a rotating rod 18, a rotating groove 1801, a blanking plate 19 and a blanking groove 20;
a support frame 1 serving as a support protection device is placed at a designated position, and first motors 2 are mounted on the left side and the right side of the top of the support frame 1;
the working frame 5 is fixed at the top end of the middle position of the support frame 1, a placing groove 11 is formed in the support frame 1, and a placing table 14 is fixed at the top of the working frame 5;
the method comprises the following steps:
the output end of the first motor 2 is connected with a first threaded rod 3, the outer side of the first threaded rod 3 is arranged on the inner side of one end of a polishing device body 4, one side of the polishing device body 4 is connected with a pull rope 6, one end of the pull rope 6 is connected with one side of a rack 8 through a fixed pulley 7, and one end of the rack 8 is connected with the inner wall of the working frame 5 through a vortex spring 9;
with reference to fig. 1-3, firstly, a material to be processed is placed on the top of a working frame 5, and then the first motor 2 is started, so that the output end of the first motor 2 drives the first threaded rod 3 to rotate on the top of a support frame 1, and further the first threaded rod 3 conveniently drives the polishing device body 4 to move on two ends of the working frame 5, so that the polishing device body 4 can drive the pull rope 6 to wind, meanwhile, the other end of the pull rope 6 is connected to one end of the rack 8 through the fixed pulley 7, so that the rack 8 can move inside the working frame 5, so that the rack 8 can drive the connecting gear 10 to rotate, because the inner side of the connecting gear 10 is fixed with the second threaded rod 12, so that the second threaded rod 12 can rotate inside the placing groove 11, and the outer side of the second threaded rod 12 is in threaded connection with the clamping rod 13, through the rotation of second threaded rod 12, and then make second threaded rod 12 will drive supporting rod 13 and carry out horizontal migration through guide bar 15 in the inside of standing groove 11, make things convenient for the stable centre gripping that carries on of material to conveniently process.
The top of the rack 8 is connected with a connecting gear 10, a second threaded rod 12 is fixed on the inner side of the connecting gear 10, a clamping rod 13 is connected on the outer side of the second threaded rod 12, and one end of the clamping rod 13 is fixed on the outer side of the guide rod 15.
The rack 8 is provided inside the work frame 5, and the fixed pulley 7 is provided inside the work frame 5.
Two ends of the guide rod 15 are fixed in the working frame 5, and the outer side of the second threaded rod 12 is in threaded connection with the inner side of the clamping rod 13.
The rack 8 forms an elastic sliding structure with the inner wall of the working frame 5 through the scroll spring 9, and the bottom end of the connecting gear 10 and one side of the rack 8 are integrally arranged.
Combine figure 1, figure 4 and figure 5, at first through starting second motor 16, and then make the output of second motor 16 drive turning block 17 and rotate, because the inboard setting at turning block 17 top is in the inside of turning groove 1801, when turning block 17 carries out the in-process of rotation, unloading board 19 will carry out certain up-and-down fluctuation motion to make the sweeps at unloading board 19 top will fall into the inside of unloading groove 20 through the shake, and then conveniently collect the sweeps.
The blanking groove 20 is arranged in the working frame 5, and the blanking plate 19 forms a vertical sliding structure with the inner wall of the blanking groove 20 through the rotating rod 18.
The inner wall of the rotating groove 1801 is in clearance fit with the outer wall of the rotating block 17.
The working principle is as follows: firstly, a material to be processed is placed at the top of a working frame 5, and then a first motor 2 is started, so that the output end of the first motor 2 can drive a first threaded rod 3 to rotate at the top of a support frame 1, and further the first threaded rod 3 can conveniently drive a polishing device body 4 to move at two ends of the working frame 5, so that a second threaded rod 12 can rotate in a placing groove 11, a clamping rod 13 is in threaded connection with the outer side of the second threaded rod 12, and through the rotation of the second threaded rod 12, the second threaded rod 12 can drive the clamping rod 13 to horizontally move in the placing groove 11 through a guide rod 15, so that the material can be stably clamped, and the processing is convenient; first, by starting the second motor 16, when the rotating block 17 rotates, the blanking plate 19 will move up and down to some extent, so that the waste at the top of the blanking plate 19 falls into the blanking groove 20 by shaking, and the waste is collected conveniently.
Those not described in detail in this specification are within the skill of the art.
