Dustless polisher with function is collected to dust

Technical Field

The utility model relates to the technical field of polishing, in particular to a dust-free polishing machine with a dust collecting function.

Background

Sanding, which is one of surface modification techniques, generally refers to a processing method for changing physical properties of a material surface by friction with the aid of a rough object (sand paper or the like containing particles of relatively high hardness) mainly for the purpose of obtaining a specific surface roughness.

Polishing can be used to each field, and the finish wall body is polished also one of them, only polishes the wall body and levels and just can make the more reasonable going on of work of spraying paint, and the in-process that the wall body was polished can produce a large amount of dusts, and most wall body grinding device do not possess the dust and collect the structure, and this dust that leads to scattering can be attached to each place, influences follow-up paint spraying quality, reduction device result of use.

SUMMERY OF THE UTILITY MODEL

The utility model aims to provide a dust-free grinding machine with a dust collecting function, which aims to solve the problems that a large amount of dust is generated in the wall grinding process in the background technology, most wall grinding devices are not provided with a dust collecting structure, and scattered dust is possibly attached to all places to influence the subsequent paint spraying quality and reduce the using effect of the device.

In order to achieve the purpose, the utility model provides the following technical scheme: the utility model provides a dustless polisher with function is collected to dust, collects the mechanism including grinding machanism, installation mechanism, actuating mechanism, dust, grinding machanism includes the fixed block, the front end fixed mounting of fixed block has the piece of polishing, the front end fixed mounting of the piece of polishing has the abrasive paper of polishing, the rear end fixed mounting of fixed block has the connecting seat, the rear end fixed mounting of connecting seat has the connecting block.

Preferably, installation mechanism includes the connecting plate, the front end fixed mounting of connecting plate has the installation piece, swing joint between installation piece and the connecting block ensures the rationality of device structure operation.

Preferably, actuating mechanism includes protecting sheathing, protecting sheathing's inside fixed mounting has grinding motor, the transmission end of grinding motor front end runs through installation mechanism and extends to grinding mechanism's inside, has ensured driving force's reasonable going on, has improved the work efficiency of device.

Preferably, the dust collecting mechanism is including collecting the box, the fixed mounting groove that is provided with in middle part of collecting the box upper end, looks adaptation between mounting groove and the actuating mechanism, the left and right sides fixed mounting who collects the box rear end has the fan box, the fixed collecting vat that is provided with in the left and right sides of collecting the box front end, the left and right sides fixed mounting who collects the box inside has the motor that induced drafts, the transmission end fixed mounting who induced drafts the motor front end has the suction fan, the front side fixed mounting of suction fan has the filter screen, and the dust of being convenient for is collected going on of work.

Preferably, the rear end of connecting block extends to the inside of installation mechanism, swing joint between installation mechanism and the connecting block for the connection between grinding machanism and the installation mechanism is more stable, and is difficult for droing when nimble pivoted.

Preferably, installation mechanism is located grinding machanism's rear end, swing joint between grinding machanism and the installation mechanism, actuating mechanism is located installation mechanism's rear end, the dust is collected the below that the mechanism is located the actuating mechanism outer end, the below fixed mounting of actuating mechanism outer end has the support handrail, support the handrail and be located the rear of dust collection mechanism, this setting makes the device rational in infrastructure.

Compared with the prior art, the utility model has the beneficial effects that:

1. according to the dust-free grinding machine with the dust collection function, the dust collection mechanism is arranged in the device, so that air flow guiding can be performed on dust generated by grinding, the dust collection work is assisted, the influence of dust scattered by people on paint spraying or other works is facilitated, and the use effect of the device is improved;

2. according to the dust-free grinding machine with the dust collecting function, the rear end of the connecting block extends into the mounting mechanism, the grinding mechanism and the mounting mechanism are connected more stably due to the arrangement, the grinding mechanism is not easy to fall off while rotating flexibly, and the grinding effect of the grinding mechanism is improved;

3. this dustless polisher with dust collection function collects the filter screen structure that the fan front side in the structure set up, can protect the component, and the effectual dust that reduces silt up the phenomenon of stifled structure takes place, has improved the life and the running quality of device.

Drawings

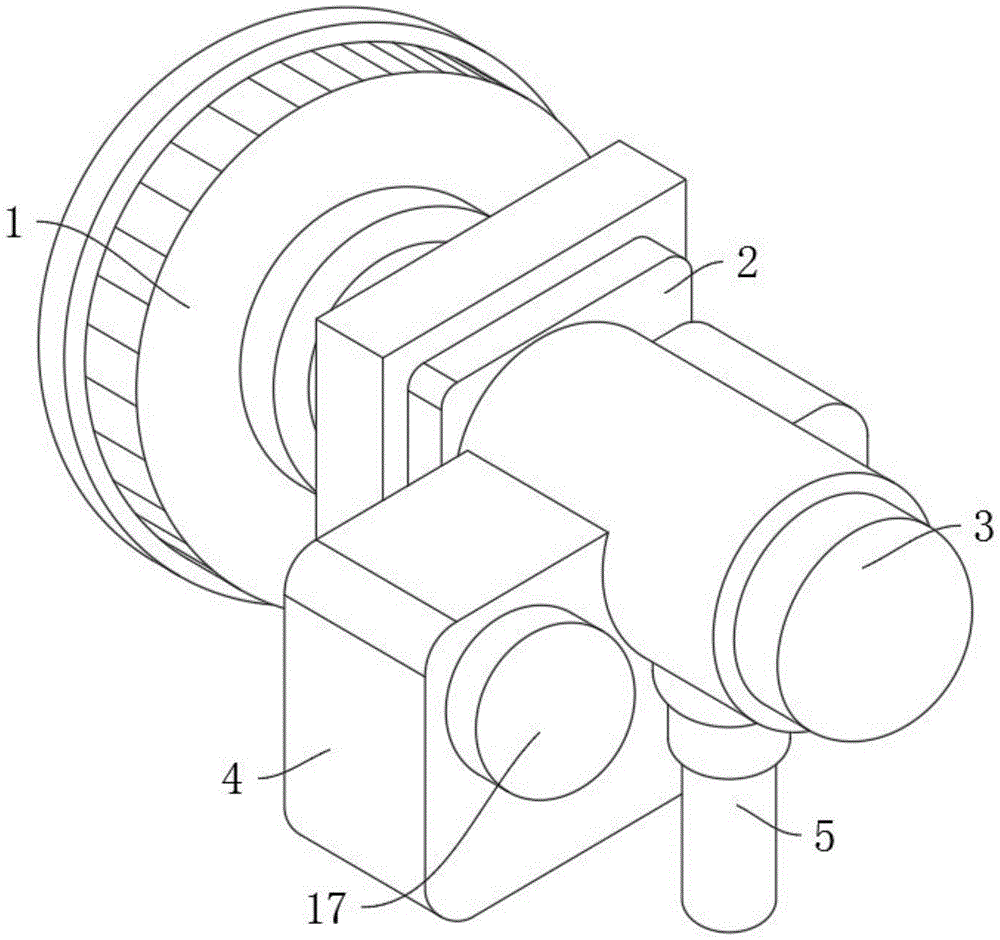

FIG. 1 is a schematic perspective view of the present invention;

FIG. 2 is a schematic cross-sectional view of the present invention;

FIG. 3 is a schematic perspective view of a collection tank according to the present invention;

fig. 4 is a schematic cross-sectional structure diagram of the suction motor of the present invention.

In the figure: 1. a polishing mechanism; 2. an installation mechanism; 3. a drive mechanism; 4. a dust collection mechanism; 5. a support arm rest; 6. a fixed block; 7. grinding blocks; 8. sanding sand paper; 9. a connecting seat; 10. connecting blocks; 11. a connecting plate; 12. mounting blocks; 13. a protective housing; 14. polishing the motor; 15. a collection box; 16. mounting grooves; 17. a fan box; 18. collecting tank; 19. an air suction motor; 20. an air suction fan; 21. and (4) a filter screen.

Detailed Description

The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.

Referring to fig. 1-4, the present invention provides a technical solution: the utility model provides a dustless polisher with function is collected to dust, collects mechanism 4 including grinding machanism 1, installation mechanism 2, actuating mechanism 3, dust, and grinding machanism 1 includes fixed block 6, and the front end fixed mounting of fixed block 6 has sanding block 7, and sanding block 7's front end fixed mounting has sanding abrasive paper 8, and fixed block 6's rear end fixed mounting has connecting seat 9, and the rear end fixed mounting of connecting seat 9 has connecting block 10.

Further, installation mechanism 2 includes connecting plate 11, and the front end fixed mounting of connecting plate 11 has installation piece 12, swing joint between installation piece 12 and the connecting block 10, through installing installation mechanism 2 in the device, with actuating mechanism 3 and grinding machanism 1 stable connection, the rationality of guarantee device structure operation improves the result of use.

Further, actuating mechanism 3 includes protecting sheathing 13, and protecting sheathing 13's inside fixed mounting has grinding motor 14, and the transmission end of grinding motor 14 front end runs through installation mechanism 2 and extends to grinding mechanism 1's inside, through installing actuating mechanism 3 in the device rear, provides drive power to grinding mechanism, and grinding motor 14 runs through installation mechanism 2 and extends to grinding mechanism 1's inside, has ensured the reasonable of drive power and has gone on, has improved the work efficiency of device.

Further, the dust collecting mechanism 4 comprises a collecting box 15, a mounting groove 16 is fixedly arranged in the middle of the upper end of the collecting box 15, the mounting groove 16 is matched with the driving mechanism 3, a fan box 17 is fixedly arranged on the left side and the right side of the rear end of the collecting box 15, collecting grooves 18 are fixedly arranged on the left side and the right side of the front end of the collecting box 15, an air suction motor 19 is fixedly arranged on the left side and the right side of the inner part of the collecting box 15, a suction fan 20 is fixedly arranged at the transmission end of the front end of the air suction motor 19, a filter screen 21 is fixedly arranged on the front side of the suction fan 20, the dust collecting mechanism 4 is arranged below the device, the dust collecting mechanism is fixedly connected with the driving mechanism 3 through the matching between the mounting groove 16 and the driving mechanism 3, the dust collecting work is facilitated, the suction fan 20 is driven to rotate by the operation of the air suction motor 19 in the fan box 17, the dust in front of the upper part is guided and sucked into the collecting box 15, and the dust collecting effect is improved, the cooperation sets up the filter screen 21 in the fan front side, restricts the dust, avoids the dust to carry out the fan inside, leads to the inside tiny gap of fan to become silted up, influences its working effect.

Further, the rear end of connecting block 10 extends to the inside of installation mechanism 2, swing joint between installation mechanism 2 and the connecting block 10, and the setting of connecting block 10 makes the connection between grinding machanism 1 and the installation mechanism 2 more stable, and is difficult for droing when nimble pivoted, has improved grinding machanism 1's the effect of polishing.

Further, installation mechanism 2 is located the rear end of grinding machanism 1, swing joint between grinding machanism 1 and the installation mechanism 2, and actuating mechanism 3 is located the rear end of installation mechanism 2, and dust collection mechanism 4 is located the below of the 3 outer ends of actuating mechanism, and the below fixed mounting of the 3 outer ends of actuating mechanism has support handrail 5, supports handrail 5 and is located the rear of dust collection mechanism 4, should set up and make the device rational in infrastructure, the operation is effectual.

The working principle is as follows: the device is a dust-free grinding machine with a dust collecting function, and can be used for grinding the wall surface before painting, the device is moved to a proper position, then a driving mechanism 3 drives a grinding mechanism 1 to grind the wall surface, the dust generated by grinding is collected in a dust collecting mechanism 4, the whole device is reasonable in operation, a fixing block 6 and a grinding block 7 fix a grinding abrasive paper 8, a grinding structure is stably connected by a connecting seat 9 and a connecting block 10 behind the fixing block, the use effect is improved, the mounting block 12 and the connecting block 10 are movably connected, so that the grinding structure can flexibly rotate and is not easy to fall off, the driving mechanism 3 is arranged behind the device and provides driving force for the grinding structure, an outer protective shell 13 protects an internal motor from being damaged by external force, the dust collecting mechanism 4 is arranged below the device and is fixedly connected with the driving mechanism 3 through the matching between a mounting groove 16 and the driving mechanism 3, the dust of being convenient for collects going on of work, 19 work drive suction fans 20 of induced draft motor in the fan box 17 rotate, with the dust guide suction in upper portion the place ahead collect the box 15 in, support handrail 5 and supply the people handheld, the location of polishing of help, each part of the device mutually supports makes the device whole more reasonable, the effectual work efficiency that has improved.

Finally, it should be noted that the above-mentioned contents are only used for illustrating the technical solutions of the present invention, and not for limiting the protection scope of the present invention, and that the simple modifications or equivalent substitutions of the technical solutions of the present invention by those of ordinary skill in the art can be made without departing from the spirit and scope of the technical solutions of the present invention.

Claims

1. A dust-free grinding machine with a dust collection function, comprising a grinding mechanism (1), an installation mechanism (2), a driving mechanism (3), and a dust collection mechanism (4), characterized in that: the grinding mechanism (1) ) comprises a fixed block (6), the front end of the fixed block (6) is fixedly installed with a grinding block (7), the front end of the grinding block (7) is fixedly installed with grinding sandpaper (8), and the fixed block (6) A connecting seat (9) is fixedly installed at the rear end of the connecting seat (9), and a connecting block (10) is fixedly installed at the rear end of the connecting seat (9).

2 . The dust-free sander with dust collection function according to claim 1 , wherein the installation mechanism ( 2 ) comprises a connecting plate ( 11 ), and the front end of the connecting plate ( 11 ) is fixedly installed. 3 . There is a mounting block (12), and the mounting block (12) and the connecting block (10) are movably connected.

3. A dust-free sander with a dust collection function according to claim 1, wherein the drive mechanism (3) comprises a protective casing (13), and the interior of the protective casing (13) is fixedly installed There is a grinding motor (14), and the driving end of the front end of the grinding motor (14) penetrates the mounting mechanism (2) and extends to the interior of the grinding mechanism (1).

4. A dust-free sander with a dust collection function according to claim 1, characterized in that: the dust collection mechanism (4) comprises a collection box (15), and the middle part of the upper end of the collection box (15) A mounting groove (16) is fixedly provided, and the mounting groove (16) is matched with the driving mechanism (3). Collection grooves (18) are fixedly arranged on the left and right sides of the front end of the collection box (15), and suction motors (19) are fixedly installed on the left and right sides of the inside of the collection box (15). A suction fan (20) is fixedly installed on the transmission end of the front end, and a filter screen (21) is fixedly installed on the front side of the suction fan (20).

5. A dust-free grinding machine with a dust collection function according to claim 1, characterized in that: the rear end of the connecting block (10) extends to the inside of the installation mechanism (2), and the installation mechanism ( 2) Active connection with connection block (10).

6. A dust-free sander with dust collection function according to claim 1, characterized in that: the mounting mechanism (2) is located at the rear end of the grinding mechanism (1), and the grinding mechanism (1) and the The mounting mechanisms (2) are movably connected, the driving mechanism (3) is located at the rear end of the mounting mechanism (2), the dust collecting mechanism (4) is located below the outer end of the driving mechanism (3), and the driving mechanism ( 3) A supporting armrest (5) is fixedly installed below the outer end, and the supporting armrest (5) is located behind the dust collecting mechanism (4).
