Abstract
The utility model provides a multifunctional Bluetooth radio, which comprises a body and a solar panel, wherein the solar panel is provided with a first connecting position, the rear side of the body is provided with a second connecting position, the first connecting position is rotationally connected with the second connecting position, the solar panel is electrically connected with the body, the body is provided with a loudspeaker and an LED lamp, the LED lamp and the loudspeaker are both electrically connected with the body, a supporting position for supporting a mobile phone and two fixing positions for fixing the mobile phone to the outside are arranged above the body, and the supporting position is positioned between the two fixing positions; this multi-functional bluetooth radio can be gone out to carry effectual utilization solar energy when using and continue a journey, also can provide the structure of a support cell-phone for the user moreover for the user can watch the cell-phone at suitable angle.
Description
Technical Field
The utility model relates to the technical field of articles for daily use, in particular to a multifunctional Bluetooth radio.
Background
The Bluetooth player is a device which can wirelessly connect a mobile phone supporting the Bluetooth function with the sound equipment and play audio; the existing Bluetooth player uses 3.5mm, a stereo audio interface outputs to a sound box, and a USB standard interface supplies power; the wireless transmission distance is about 10 meters, when the mobile phone is used, the matching device turns on the sound equipment and the USB power supply, turns on the Bluetooth of the mobile phone, selects to search the Bluetooth, the mobile phone searches the Bluetooth equipment, selects to perform matching, and automatically completes matching.
At present, because the Bluetooth player on the market is made into a portable type, the size of a pool inside the Bluetooth player is small, the electric quantity is not suitable for long-time use, and the Bluetooth player is difficult to charge and continue a journey under the condition that the electric quantity is insufficient when the Bluetooth player is carried outside and used.
Along with the continuous increase of cell-phone function, people more and more use the cell-phone to see the screen or play games etc. but hold the cell-phone hand for a long time and can be tired very much, so just various types of cell phone stands have appeared, along with the people who use the bluetooth player is more and more, and the function demand on the bluetooth player is then more and more wide, and can be used for setting up the cell-phone and also can be the equipment of player then receive popular again.
Therefore, it is necessary to provide a multifunctional bluetooth radio to solve the above problems.
SUMMERY OF THE UTILITY MODEL
In order to solve the above problems, the present invention provides a multifunctional bluetooth radio to solve the above problems.
The utility model is realized by the following technical scheme:
the utility model provides a multifunctional Bluetooth radio, which comprises a body and a solar panel, wherein a first connecting position is arranged on the solar panel, a second connecting position is arranged on the rear side of the body, the first connecting position is rotatably connected with the second connecting position, the solar panel is electrically connected with the body, a loudspeaker and an LED lamp are arranged on the body, the LED lamp and the loudspeaker are electrically connected with the body, a supporting position for supporting a mobile phone and two fixing positions for fixing the mobile phone to the outside are arranged above the body, and the supporting position is arranged between the two fixing positions.
Furthermore, a placing groove for fixing the mobile phone is arranged on the supporting position.
Furthermore, be equipped with first backup pad on the support position, first backup pad is located standing groove one side.
Furthermore, a second supporting plate is arranged on the supporting position and is positioned on one side of the placing groove and far away from the first supporting plate.
Furthermore, the body is provided with a receiving antenna for receiving wireless signals.
Furthermore, a plurality of keys are arranged above the body and are arranged in sequence.
Furthermore, a rotating column is arranged on the first connecting position, a rotating groove is arranged on the second connecting position, and the rotating column is contained in the rotating groove.
The utility model has the beneficial effects that:
the utility model provides a multifunctional Bluetooth radio, which comprises a body and a solar panel, wherein when the multifunctional Bluetooth radio is used outside, the solar panel can provide extra electric quantity for a Bluetooth player, and a support position can effectively support a mobile phone when the multifunctional Bluetooth radio is played, so that a user can use the mobile phone assuredly; in conclusion, this multi-functional bluetooth radio can effectively utilize solar energy to continue a journey when going out to carry the use, also can provide the structure of a support cell-phone for the user moreover for the user can watch the cell-phone at suitable angle.
Drawings

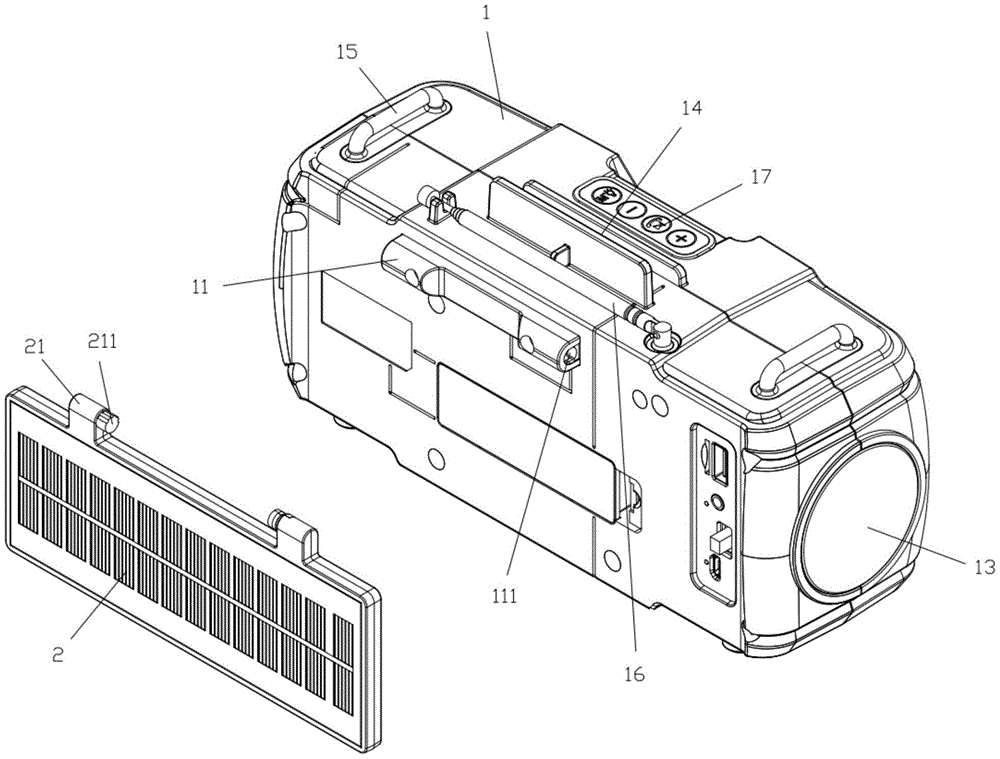

FIG. 1 is an exploded view of a multi-function Bluetooth radio in accordance with the present invention;
fig. 2 is an overall schematic diagram of the multifunctional bluetooth radio set according to the present invention.
Detailed Description
In order to more clearly and completely explain the technical scheme of the utility model, the utility model is further explained with reference to the attached drawings.
Referring to fig. 1 and fig. 2, the utility model provides a multifunctional bluetooth radio, which includes a body 1 and a solar panel 2, wherein the solar panel 2 is provided with a first connection position 21, the rear side of the body 1 is provided with a second connection position 11, the first connection position 21 is rotatably connected with the second connection position 11, the solar panel 2 is electrically connected with the body 1, the body 1 is provided with a speaker 12 and an LED lamp 13, the LED lamp 13 is electrically connected with the speaker 12 and the body 1, a support position 14 for supporting a mobile phone and two fixing positions 15 for fixing the mobile phone to the outside are arranged above the body 1, and the support position 14 is located between the two fixing positions 15; the first connecting position 21 is provided with a rotating column 211, the second connecting position 11 is provided with a rotating groove 111, and the rotating column 211 is accommodated in the rotating groove 111; further, the body 1 is provided with a receiving antenna 16 for receiving wireless signals; a plurality of keys 17 are arranged above the body 1, and the keys 17 are arranged in sequence.
In the present embodiment:
the body 1 is a Bluetooth player main body, a circuit board and a battery are arranged in the body, a Bluetooth module, a data receiving module, a charging module and a discharging module are arranged on the circuit board, the Bluetooth module is used for carrying out Bluetooth connection with a mobile phone of a user, the data receiving module is electrically connected with a receiving antenna 16, the charging module is respectively electrically connected with the solar panel 2 and the battery, and the discharging module is respectively electrically connected with the loudspeaker 12 and the LED lamp 13;
the second connecting position 11 is used for providing a structure which is rotatably connected with the solar panel 2 for the body 1;
the rotation groove 111 is used for providing a placing space for the rotation column 211;
the loudspeaker 12 is used for playing sound;
the LED lamp 13 is used for illuminating outside, and a user can use the multifunctional Bluetooth radio for illumination in a dim environment;
the supporting position 14 is used for supporting the mobile phone;
the fixing position 15 is used for winding the braces, so that the multifunctional Bluetooth radio can be hung and fixed outwards;
the receiving antenna 16 is used for receiving external radio signals;
the keys 17 are used for playing/pausing and answering calls;
the solar panel 2 is used for charging the battery and can be turned over to adjust the optimal angle to receive the maximum energy of sunlight;
the first connecting position 21 is used for providing a structure which is rotatably connected with the body 1 for the solar panel 2;
the rotation column 211 is used for providing a rotating support structure for the first connection position 21;
specifically, when the Bluetooth player is used outside, the solar panel 2 can provide extra electric quantity for the Bluetooth player, and the support position 14 can effectively support the mobile phone when the Bluetooth player is played, so that a user can assume that the mobile phone is used;
in conclusion, this multi-functional bluetooth radio can effectively utilize solar energy to continue a journey when going out to carry the use, also can provide the structure of a support cell-phone for the user moreover for the user can watch the cell-phone at suitable angle.
Further, a placing groove 141 for fixing the mobile phone is arranged on the supporting position 14; the supporting position 14 is provided with a first supporting plate 142, and the first supporting plate 142 is positioned at one side of the placing groove 141; the supporting position 14 is provided with a second supporting plate 143, and the second supporting plate 143 is located at one side of the placing groove 141 and away from the first supporting plate 142.
In the present embodiment:
the placing slot 141 is used for providing a placing space for the mobile phone;
the first supporting plate 142 is used for providing a supporting structure for the back of the mobile phone placed in the placing groove 141, and the height dimension of the first supporting plate 142 is larger than that of the second supporting plate 143;
the second supporting plate 143 is used to provide a supporting structure for the bottom of the cellular phone placed in the placing groove 141.
Of course, the present invention may have other embodiments, and based on the embodiments, those skilled in the art can obtain other embodiments without any creative effort, and all of them are within the protection scope of the present invention.
Claims (7)
1. The utility model provides a multifunctional Bluetooth radio, its characterized in that, includes body and solar panel, the last first junction position that is equipped with of solar panel, the body rear side is equipped with the second junction position, first junction position with the second junction position rotates to be connected, solar panel with the body electricity is connected, be equipped with speaker, LED lamp on the body, the LED lamp with the speaker is all the body electricity is connected, the body top is equipped with the support position, two that are used for supporting the cell-phone and is used for the fixed position of external fixed, the support position is located two between the fixed position.
2. The multifunctional Bluetooth radio of claim 1, wherein the support station is provided with a placement slot for fixing a mobile phone.
3. The multifunctional Bluetooth radio of claim 2, wherein a first support plate is disposed on the support position and is located on one side of the placement groove.
4. The multifunctional Bluetooth radio receiver of claim 3, wherein a second supporting plate is disposed on the supporting position, and the second supporting plate is located on one side of the placing groove and away from the first supporting plate.
5. The multifunctional bluetooth radio according to claim 1, wherein the body is provided with a receiving antenna for receiving wireless signals.
6. The multifunctional Bluetooth radio of claim 1, wherein the body has a plurality of buttons arranged in sequence.
7. The multifunctional bluetooth radio receiver of claim 1, wherein the first connection position is provided with a rotation post, the second connection position is provided with a rotation groove, and the rotation post is accommodated in the rotation groove.
