Abstract
The utility model discloses multifunction portable sound equipment. The multifunction portable sound equipment comprises a main function seat and a sound equipment function seat which is sleeved under the main function seat, wherein a function key panel and a main circuit board are disposed inside the main function seat; the inside of the main circuit board is provided with a bluetooth transmission port, a microphone port and an FM frequency modulation voice receiving antenna, and the main circuit board is electrically connected with a charging battery, an audio input interface, a data transmission interface and a TF card slot. The multifunctional portable sound equipment adopts a one-piece structure of multiple functions, has various functions for selection, and is convenient to use: the multifunctional portable sound equipment can be used while being connected with a cell phone, can be directly used for reception, and can be used for card reading while a TF card in inserted therein; the multifunctional portable sound equipment is simple in structure and smart and elegant in appearance, has a large-capacity battery which can be carried for long-term use, is safe and stable in cooperation with a hang hook, and is convenient to carry.
Description
Technical field
The utility model relates to a kind of sound equipment, is specifically related to a kind of Multifunctional portable stereo system.
Background technology
At present, it is of all kinds that audio frequency is on the market play product, portable, high tone quality, family's composite type etc. is arranged, as players such as MP3 player and broadcast receivers, this type of player is realized its outdoor carrying function by rechargeable battery is set, what high tone quality sound equipment and family's Combined sound were pursued is high-quality result of broadcast, but limits to very much in the function of other side.Simultaneously, the digital product that uses at present such as mobile phone etc. all are equipped with the functions such as bluetooth, and when needing audio plays or conversation, major part is to connect conversation by insert earphone or bluetooth earphone, can not guarantee speech quality and audio frequency play quality.Can realize multi-functional broadcast if develop, portable sound equipment, can by the novel product of bluetooth handoff calls, will be new innovation and improvement direction again simultaneously.
The utility model content
The purpose of this utility model is to solve above defective, provides structure small and exquisite simple, easy to use, can synchronize with mobile phone the Multifunctional portable stereo system of use.
The purpose of this utility model is achieved in the following ways:
Multifunctional portable stereo system, comprise function of tonic chord seat and the acoustic function seat that is socketed in function of tonic chord seat below, this function of tonic chord seat and acoustic function cover for seat form the tubbiness sound equipment after connecing combination, this function of tonic chord seat inside is provided with function button plate and main circuit board, this main circuit board is built-in with Bluetooth transmission mouth, microphone opening and FM FM radio antenna, and electrically be connected with rechargeable battery, audio input interface, data transmission interface and TF card card inserting mouth, fixedly be bolted with loudspeaker in this acoustic function seat, make the loudspeaker sound mouth down, be provided with taper under the loudspeaker sound mouth and help soundboard.
As preferably, described function button plate top is provided with console board, be provided with status indicator lamp in this console board, the functions such as this console board can carry out volume adjusting, stops broadcast, switch and song selection, status indicator lamp is used for the incoming call prompting demonstration and played songs shows, after connecting by Bluetooth function with mobile phone when sound equipment, this status indicator lamp reminding user glisteningly during incoming call.
As preferably, be provided with metal net mask around this acoustic function seat side, this metal net mask is communicated with the loudspeaker sound mouth, and the sound that loudspeaker send is propagated by this metal net mask, and metal net mask can also play the effect of protection loudspeaker simultaneously.
As preferably, half waist external diameter of this tubbiness sound equipment is provided with portable buckling.Half waist external diameter of this tubbiness sound equipment also is provided with and can entangles the dismountable silica gel snare that this buckles, and when not needing to use this to buckle, can put the silica gel snare, and silica gel snare good springiness is easy to assemble; When needs carry this sound equipment, can pull down the silica gel ring cover, expose and buckle, be convenient for carrying on suspension member buckling to detain to lanyard or other simultaneously.
As preferably, this function of tonic chord seat and acoustic function seat are made of the ABS material.
As preferably, this rechargeable battery is lithium battery.
As preferably, these loudspeaker are mega bass loudspeaker.
As preferably, be provided with rubber blanket bottom this acoustic function seat.
The utility model product is multifunction structure, and function one is built-in with FM FM radio antenna, can carry out the radio reception of FM high frequency; Function two, embedded with bluetooth transmission mouth and microphone opening, can carry out bluetooth with mobile phone and connect rear displaying audio file, and use the normal talking function by microphone, incoming call is arranged when normal play MP3 song simultaneously, the mobile phone communication state can be automatically switched to, MP3 music state can be oneself switched to again after having conversed; Function three, rechargeable battery can be saved large capacity electric weight, do not need external power supply also can normally use for a long time; Function four, the TF card card inserting mouth of setting can directly read voice data and this voice data of normal play in the TF card; Function five, external diameter are provided with and buckle, and safety and stability is convenient for carrying; Function six after carrying out the bluetooth connection with mobile phone, can realize bluetooth hand-free function, directly carries out hand-free call with sound equipment; Function seven, main circuit board are built-in with the call reminding signal, after connecting by bluetooth with mobile phone, have the flicker of incoming call prompting sound and incoming call prompting lamp and remind.
The beneficial effect that the utility model produces is: adopt Multifunction integrated structure, easy to use, function can variously be selected, and can connect with mobile phone use, and directly radio reception is used, and can insert TF card Card Reader and use; It is simple in structure, and outward appearance is small and exquisite attractive in appearance, and high capacity cell can portably use for a long time simultaneously, coordinates to buckle safety and stability, is convenient for carrying, and is simple.
Description of drawings
Fig. 1 is the overall structure schematic diagram of the utility model function portable audio;

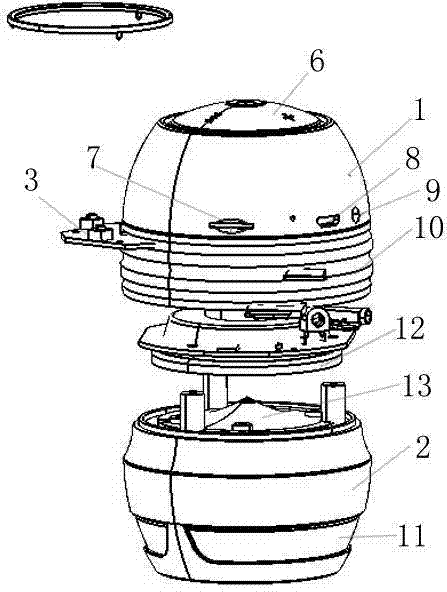

Fig. 2 is the STRUCTURE DECOMPOSITION figure of the utility model function portable audio;
Fig. 3 is the cutaway view of the utility model function portable audio;
In figure, 1 function of tonic chord seat, 2 acoustic function seats, 3 function button plates, 4 main circuit boards, 5 rechargeable batteries, 6 console boards, 7TF card card inserting mouth, 8 data transmission interfaces, 9 audio input interfaces, 10 silica gel snares, 11 metal net masks, 12 loudspeaker, 13 tapers help soundboard.
Embodiment
Further describe the utility model below in conjunction with drawings and Examples; based on the embodiment in the utility model; those of ordinary skills belong to not making all embodiment that obtain under the creative work prerequisite scope that the utility model is protected.
The present embodiment, with reference to Fig. 1～3, Multifunctional portable stereo system comprises function of tonic chord seat 1 and the acoustic function seat 2 that is socketed in function of tonic chord seat 1 below, form the tubbiness sound equipments after this function of tonic chord seat 1 and the 2 socket combinations of acoustic function seat, be provided with rubber blanket in this acoustic function seat 2 bottoms.This function of tonic chord seat 1 inside is provided with function button plate 3 and main circuit board 4, this main circuit board 4 is built-in with Bluetooth transmission mouth, microphone opening and FM FM radio antenna, and electrically be connected with rechargeable battery 5, audio input interface 9, data transmission interface 8 and TF card card inserting mouth 7, the interior loudspeaker 12 that fixedly are bolted with of this acoustic function seat 2, make loudspeaker 12 sound mouths down, be provided with taper under loudspeaker 12 sound mouths and help soundboard 13.
Wherein, built-in FM FM radio antenna can carry out the radio reception of FM high frequency; Built-in Bluetooth transmission mouth and microphone opening, can carry out bluetooth with mobile phone and connect rear displaying audio file, and use the normal talking function by microphone, simultaneously when normal play MP3 song if any incoming call, the mobile phone communication state can be automatically switched to, MP3 music state can be oneself switched to again after having conversed; Rechargeable battery 5 is for can save large capacity lithium electric weight, and can continue does not for a long time need external power supply can normally use to the sound equipment power supply yet; The TF card card inserting mouth 7 that arranges can directly read voice data and this audio file data of normal play in the TF card.
In addition, be provided with console board 6 above function button plate 3, be provided with status indicator lamp in this console board 6, the functions such as this console board 6 can carry out volume adjusting, stops broadcast, switch and song selection, status indicator lamp is used for the incoming call prompting demonstration and played songs shows, after connecting by Bluetooth function with mobile phone when sound equipment, this status indicator lamp reminding user glisteningly during incoming call.Be provided with metal net mask 11 around this acoustic function seat 2 sides, this metal net mask 11 is communicated with loudspeaker 12 sound mouths, and the sound that loudspeaker 12 send is propagated by this metal net mask 11, and metal net mask 11 can also play 12 effects of protection loudspeaker simultaneously.
Half waist external diameter at this tubbiness sound equipment is provided with portable buckling.Half waist external diameter of this tubbiness sound equipment also is provided with and can entangles the dismountable silica gel snare 10 that this buckles, and when not needing to use this to buckle, can put silica gel snare 10, and silica gel snare 10 good springiness are easy to assemble; When needs carry this sound equipment, can pull down silica gel ring cover 10, expose and buckle, be convenient for carrying on suspension member buckling to detain to lanyard or other simultaneously, external diameter is provided with and buckles, and safety and stability is convenient for carrying.After carrying out the bluetooth connection with mobile phone, can realize bluetooth hand-free function, directly carry out hand-free call with sound equipment; Main circuit board is built-in with the call reminding signal, after connecting by bluetooth with mobile phone, has the flicker of incoming call prompting sound and incoming call prompting lamp and reminds.
When using this sound equipment, the TF card of can directly pegging graft carries out PM3 to be play, and also can be used as common broadcast receiver simultaneously and uses, and can also connect mobile phone by bluetooth, plays handset audio and normal mobile phone communication.Adopt Multifunction integrated structure, easy to use, function can variously be selected, and can connect with mobile phone use, and directly radio reception is used, and can insert TF card Card Reader and use; It is simple in structure, and outward appearance is small and exquisite attractive in appearance, and high capacity cell can portably use for a long time simultaneously, coordinates to buckle safety and stability, is convenient for carrying, and is simple.
Claims (9)
1. Multifunctional portable stereo system, comprise function of tonic chord seat and the acoustic function seat that is socketed in function of tonic chord seat below, this function of tonic chord seat and acoustic function cover for seat form the tubbiness sound equipment after connecing combination, it is characterized in that: this function of tonic chord seat inside is provided with function button plate and main circuit board, this main circuit board is built-in with the Bluetooth transmission mouth, microphone opening and FM FM radio antenna, and electrically be connected with rechargeable battery, audio input interface, data transmission interface and TF card card inserting mouth, fixedly be bolted with loudspeaker in this acoustic function seat, make the loudspeaker sound mouth down, be provided with taper under the loudspeaker sound mouth and help soundboard.
2. Multifunctional portable stereo system according to claim 1, is characterized in that: be provided with console board above described function button plate, be provided with status indicator lamp in this console board.
3. Multifunctional portable stereo system according to claim 1 is characterized in that: be provided with metal net mask around this acoustic function seat side, this metal net mask is communicated with the loudspeaker sound mouth.
4. Multifunctional portable stereo system according to claim 1, it is characterized in that: half waist external diameter of this tubbiness sound equipment is provided with portable buckling.
5. Multifunctional portable stereo system according to claim 4, it is characterized in that: half waist external diameter of this tubbiness sound equipment also is provided with and can entangles the dismountable silica gel snare that this buckles.
6. according to claim 1 ~ 5 described Multifunctional portable stereo systems of any one, it is characterized in that: this function of tonic chord seat and acoustic function seat are made of the ABS material.
7. according to claim 1 ~ 5 described Multifunctional portable stereo systems of any one, it is characterized in that: this rechargeable battery is lithium battery.
8. according to claim 1 ~ 5 described Multifunctional portable stereo systems of any one, it is characterized in that: these loudspeaker are mega bass loudspeaker.
9. according to claim 1 ~ 5 described Multifunctional portable stereo systems of any one, is characterized in that: be provided with rubber blanket bottom this acoustic function seat.
