CN215662096U

CN215662096U - Full-automatic plate pressing machine for packing box

Info

Publication number: CN215662096U
Application number: CN202120126451.5U
Authority: CN
Inventors: 佟连超
Original assignee: Qingdao Changyunda Logistics Equipment Co ltd
Current assignee: Qingdao Suda Packaging Co.,Ltd.
Priority date: 2021-01-18
Filing date: 2021-01-18
Publication date: 2022-01-28
Anticipated expiration: 2031-01-18

Abstract

The utility model discloses a full-automatic plate pressing machine for a packaging box, which comprises a base, wherein the upper surface of the base is fixedly connected with a shell, the inner wall of one side of the shell is fixedly connected with an electric telescopic rod, one end of the electric telescopic rod is fixedly connected with a connecting block, the upper surface of the connecting block is fixedly connected with a motor, one end of an output shaft of the motor is fixedly connected with a gear, one side of the connecting block is fixedly connected with a placing plate, two sides of the connecting block are fixedly connected with fixing blocks, one side of each fixing block is provided with a sliding groove, one side of each sliding groove is movably connected with a pressing block, the bottom of each pressing block is fixedly connected with a rack, the gear is meshed with the rack, and the upper surface of the base is fixedly connected with a second slideway. The automatic workpiece fixing device solves the problem that workpieces need to be manually fixed before a plate pressing machine works, improves the working efficiency of the plate pressing machine, meets the requirements of people, realizes full-automatic production, and is high in automation degree, time-saving and labor-saving.

Description

Full-automatic plate pressing machine for packing box

Technical Field

The utility model relates to the technical field of pressing plates, in particular to a full-automatic plate pressing machine for a packing box.

Background

The phenomenon that the limit was warped can appear in the packing box in the manufacture process, if not correct it and can make the packing box when using, unable normal use, when the packing box wraps up article, also very trouble simultaneously, consequently need flatten the limit of warping of packing box, so provide the full-automatic push plate device that a packing box was used.

Through retrieval, the patent of granted publication No. CN208227455U discloses a full-automatic push plate device, including master control equipment and conveyer belt, the outside of conveyer belt is provided with protective housing, and protective housing adopts various steel tile to build and forms, and protective housing's bottom both sides are provided with the lateral wall. The above patents suffer from the following disadvantages: before the plate pressing machine works, a workpiece needs to be manually fixed, so that the working efficiency of the plate pressing machine is influenced, and the requirements of people cannot be met.

SUMMERY OF THE UTILITY MODEL

The utility model aims to solve the defects in the prior art and provides a full-automatic plate pressing machine for a packing box.

In order to achieve the purpose, the utility model adopts the following technical scheme:

the utility model provides a full-automatic push plate device that packing box was used, includes the base, the last fixed surface of base is connected with the shell, one side inner wall fixedly connected with electric telescopic handle of shell, electric telescopic handle's one end fixedly connected with connecting block, the last fixed surface of connecting block is connected with the motor, and the one end fixedly connected with gear of motor output shaft, and one side fixedly connected with of connecting block places the board, the both sides fixedly connected with fixed block of connecting block, one side of fixed block are equipped with the spout, and one side swing joint of spout has the compact heap, and the bottom fixedly connected with rack of compact heap, gear and rack mesh mutually.

Further, the upper surface of base fixedly connected with second slide, second slide and connecting block swing joint.

Furthermore, the upper surface of base fixedly connected with bracing piece, the top fixedly connected with guide rail of bracing piece, guide rail and place board swing joint.

Further, the top inner wall fixedly connected with hydraulic pump of shell, the one end fixedly connected with slide of hydraulic pump, the lower fixed surface of slide is connected with the mould board.

Further, one side inner wall fixedly connected with first slide of shell, first slide and slide swing joint.

Furthermore, the upper surface of the base is fixedly connected with two guide rods, and the guide rods are movably connected with the sliding plate.

The utility model has the beneficial effects that:

1. the gear is driven to rotate through the motor, the gear is meshed with the rack, the two racks are made to be close to each other, and then the pressing block is driven to slide on one side of the sliding groove, so that the packaging box plate on the plate can be clamped and fixed to the sliding device of the placing plate, the problem that a manual workpiece needs to be manually fixed before the plate pressing machine works is solved, the working efficiency of the plate pressing machine is improved, and the requirements of people are met.

2. Through the setting of hydraulic pump and mould board, can be making the slide at one side lapse of first slide to drive mould board downstream, thereby make mould board and place the packing box in close contact with on the board, thereby flatten the packing box, so reciprocal, realize full automatic production, degree of automation is high, labour saving and time saving.

3. Through placing mutually supporting setting of board, connecting block, electric telescopic handle, second slide, guide rail to transport the packing box to the mould board under, so that to flattening of packing box, easy operation, convenient to use has improved the flexibility of device.

Drawings

Fig. 1 is a schematic perspective view of a fully automatic board pressing machine for a package box according to the present invention;

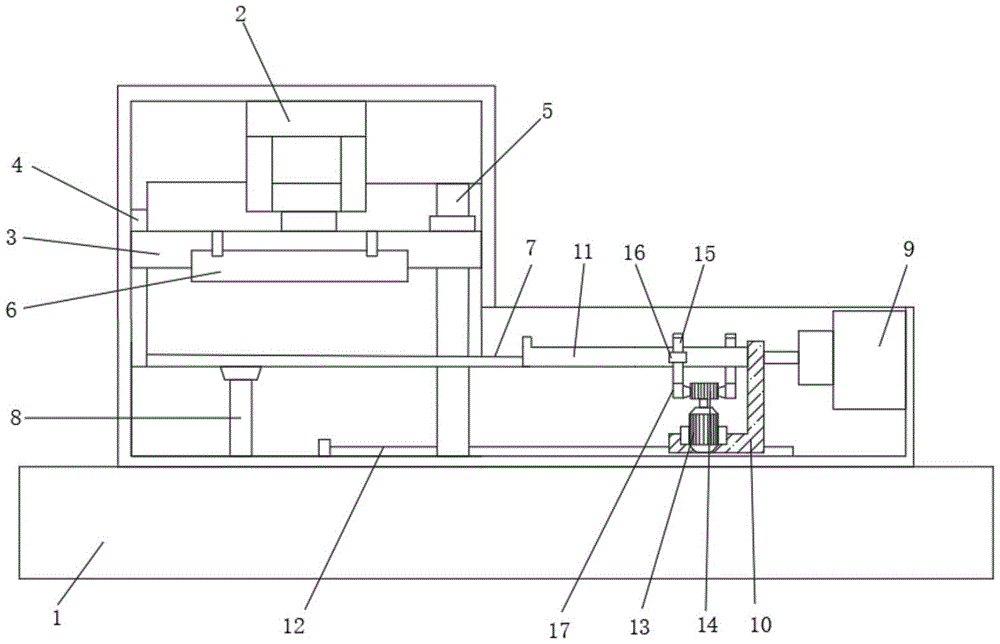

FIG. 2 is a schematic cross-sectional front view of a fully automatic board pressing machine for a packing box according to the present invention;

FIG. 3 is a schematic side view, partially in section, of a fully automatic board pressing machine for a package box according to the present invention;

in the figure: 1. a base; 2. a hydraulic pump; 3. a slide plate; 4. a first slideway; 5. a guide bar; 6. a mold plate; 7. a guide rail; 8. a support bar; 9. an electric telescopic rod; 10. connecting blocks; 11. placing the plate; 12. a second slideway; 13. a motor; 14. a gear; 15. a compression block; 16. a fixed block; 17. a rack.

Detailed Description

The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments.

Referring to fig. 1-3, a full-automatic plate pressing machine for a packaging box comprises a base 1, wherein a shell is fixed on the upper surface of the base 1 through bolts, an electric telescopic rod 9 is fixed on the inner wall of one side of the shell through bolts, a connecting block 10 is fixed at one end of the electric telescopic rod 9 through bolts, a motor 13 is fixed on the upper surface of the connecting block 10 through bolts, the connecting block 10 plays a role in mounting the motor 13, one end of an output shaft of the motor 13 is connected with a gear 14 through a key, the motor 13 drives the gear 14 to rotate, a placing plate 11 is fixed on one side of the connecting block 10 through bolts, a sliding way is arranged on one side of the connecting block 10 by stretching of the electric telescopic rod 9 to push the connecting block 10 to be arranged on one side of a second sliding way 12, fixed blocks 16 are fixed on two sides of the connecting block 10 through bolts, a sliding groove is arranged on one side of the fixed block 16, a pressing block 15 is connected with a rack 17 through a sliding way in a sliding way, and the bottom key of the pressing block 15 is connected with a rack 17, the gear 14 is engaged with the rack 17, and since the gear 14 is engaged with the rack 17, the two racks 17 are made to approach each other, so that the pressing block 15 slides on one side of the fixing block 16, thereby sliding toward the placing plate 11, and clamping and fixing the packing box board on the placing plate 11.

Wherein, the upper surface of the base 1 is fixed with a second slideway 12 through bolts, the second slideway 12 is connected with a connecting block 10 in a sliding way, the upper surface of the base 1 is fixed with a support rod 8 through bolts, the top end of the support rod 8 is fixed with a guide rail 7 through bolts, the support rod 8 plays a supporting role for the guide rail 7, the guide rail 7 is connected with a placing plate 11 in a sliding way, the connecting block 10 moves and simultaneously drives the placing plate 11 to slide at one side of the guide rail 7, the top inner wall of the shell is fixed with a hydraulic pump 2 through bolts, one end of the hydraulic pump 2 is fixed with a sliding plate 3 through bolts, the lower surface of the sliding plate 3 is fixed with a mould plate 6 through bolts, the inner wall at one side of the shell is fixed with a first slideway 4 through bolts, the hydraulic pump 2 and the mould plate 6 are designed to enable the sliding plate 3 to slide downwards at one side of the first slideway 4, thereby driving the mould plate 6 to move downwards, thereby enabling the mould plate 6 to be in close contact with a packing box on the placing plate 11, thereby flatten the packing box, so reciprocal, realize full-automatic production, degree of automation is high,

first slide

4 and 3 sliding connection of slide, and base 1's upper surface has two guide bars 5 through the bolt fastening, and guide bar 5 plays spacing effect to slide 3 to when slide 3 is gliding downwards or upwards, slip that can be stable, guide bar 5 and slide 3 sliding connection.

The working principle is as follows: when in use, firstly, the packing box board is placed on the placing board 11, then the motor 13 is started, the gear 14 is driven to rotate by the motor 13, the two racks 17 are mutually close because the gear 14 is meshed with the racks 17, and further the pressing block 15 slides on one side of the fixed block 16, so as to slide towards the placing board 11, and the packing box board on the placing board 11 is clamped and fixed, then the electric telescopic rod 9 is started, so as to push the connecting block 10 on one side of the second slideway 12 by utilizing the stretching of the electric telescopic rod 9, and drive the placing board 11 to slide on one side of the guide rail 7, so as to convey the packing box board to be right below the mould board 6 by the placing board 11, and simultaneously, the hydraulic pump 2 is started, the sliding plate 3 is driven to slide downwards on one side of the first slideway 4 by utilizing the stretching of the hydraulic pump 2, and the mould board 6 is in close contact with the packing box board on the placing board 11, thereby flattening the packing box, reciprocating in this way and realizing full-automatic production.

The above description is only for the preferred embodiment of the present invention, but the scope of the present invention is not limited thereto, and any person skilled in the art should be considered to be within the technical scope of the present invention, and equivalent alternatives or modifications according to the technical solution of the present invention and the inventive concept thereof should be covered by the scope of the present invention.

In the description of this patent, it is to be understood that the terms "center," "upper," "lower," "front," "rear," "left," "right," "vertical," "horizontal," "top," "bottom," "inner," "outer," and the like are used in the orientations and positional relationships indicated in the drawings for the convenience of describing the patent and for the simplicity of description, and are not intended to indicate or imply that the referenced devices or elements must have a particular orientation, be constructed and operated in a particular orientation, and are not to be considered limiting of the patent.

Claims

1. The utility model provides a full-automatic push plate device that packing box was used, includes base (1), its characterized in that, the last fixed surface of base (1) is connected with the shell, one side inner wall fixedly connected with electric telescopic handle (9) of shell, one end fixedly connected with connecting block (10) of electric telescopic handle (9), the last fixed surface of connecting block (10) is connected with motor (13), one end fixedly connected with gear (14) of motor (13) output shaft, and one side fixedly connected with of connecting block (10) places board (11), both sides fixedly connected with fixed block (16) of connecting block (10), one side of fixed block (16) are equipped with the spout, and one side swing joint of spout has compact heap (15), the bottom fixedly connected with rack (17) of compact heap (15), and gear (14) and rack (17) mesh mutually.

2. The full-automatic plate pressing machine for the packaging box is characterized in that a second slide way (12) is fixedly connected to the upper surface of the base (1), and the second slide way (12) is movably connected with the connecting block (10).

3. The full-automatic plate pressing machine for the packaging box is characterized in that a supporting rod (8) is fixedly connected to the upper surface of the base (1), a guide rail (7) is fixedly connected to the top end of the supporting rod (8), and the guide rail (7) is movably connected with a placing plate (11).

4. The full-automatic plate pressing machine for the packing cases is characterized in that a hydraulic pump (2) is fixedly connected to the inner wall of the top of the shell, a sliding plate (3) is fixedly connected to one end of the hydraulic pump (2), and a die plate (6) is fixedly connected to the lower surface of the sliding plate (3).

5. The full-automatic plate pressing machine for the packing cases according to claim 4 is characterized in that a first slide way (4) is fixedly connected to the inner wall of one side of the shell, and the first slide way (4) is movably connected with the sliding plate (3).

6. The full-automatic plate pressing machine for the packing cases is characterized in that two guide rods (5) are fixedly connected to the upper surface of the base (1), and the guide rods (5) are movably connected with the sliding plate (3).
