Abstract
The utility model discloses a multi-angle adjustable camera support, which comprises a limiting disc, wherein the limiting disc is an installation base of the whole device, a fixed rod is vertically fixed at the lower end of the limiting disc, and a rotatable support frame is connected to the limiting disc through a columnar shaft at equal angles; the mounting plate is rotatably connected to the limiting disc through a columnar shaft, the mounting plate and the limiting disc are distributed in parallel, an adjusting mechanism adjusting screw rod is connected to a bearing in the mounting plate, and the adjusting screw rod penetrates through the mounting plate; the sliding rod is connected to the mounting plate in a sliding mode, and a limiting rod is fixed to the tail end of the sliding rod. This multi-angle regulation formula camera support adopts linkage adjustment mechanism can realize the synchro-control to the support frame to guarantee that the angle that opens of support frame keeps unanimous, and then guarantee the stability of support, cooperation multidirectional angle adjustment mechanism can realize the angle modulation effect to the perpendicular of camera and horizontal direction, conveniently adapts to different shooting demands.
Description
Technical Field
The utility model relates to the technical field of cameras, in particular to a multi-angle adjustable camera support.
Background
When outdoor photography is carried out, a camera support is generally required to be used for supporting a camera, so that the photography operation is convenient, and the existing camera support has certain defects when in use, such as the case;
the portable camera bracket for the single lens reflex camera, such as the publication No. CN212298347U, has the advantage of being convenient for installing the single lens reflex camera, and solves the problems that the existing single lens reflex camera is generally fixed and installed by bolts and nuts during installation, the installation of the bolts and the nuts is too complicated, a specific tool is required for installation and disassembly, and the use by a user is inconvenient;
the above prior art scheme also exists when in use:
1. when supporting and fixing are carried out, a plurality of supporting rods need to be adjusted in a rotating mode in sequence, and the lower ends of the supporting rods are difficult to ensure to be in the same plane, so that the stability of the fixing and supporting device is low;
2. after the camera is fixed, the shooting angle is not convenient to adjust, so that the problems that the whole support needs to be moved when the angle is changed, the operation is complicated and the like are caused;
improvements are needed to address the above problems.
SUMMERY OF THE UTILITY MODEL
The utility model aims to provide a multi-angle adjustable camera support, which aims to solve the problems of unstable fixation and inconvenience in camera angle adjustment caused by inconvenient adjustment in the background technology.
In order to achieve the purpose, the utility model provides the following technical scheme: a multi-angle adjustable camera stand, comprising:
the limiting disc is a mounting base of the whole device, a fixing rod is vertically fixed at the lower end of the limiting disc, and the limiting disc is connected with a rotatable support frame through a columnar shaft at equal angles;
the mounting plate is rotatably connected to the limiting disc through a columnar shaft, the mounting plate and the limiting disc are distributed in parallel, an adjusting mechanism adjusting screw rod is connected to a bearing in the mounting plate, and the adjusting screw rod penetrates through the mounting plate;
the sliding rod is connected to the mounting plate in a sliding mode, a limiting rod is fixed to the tail end of the sliding rod, and the limiting rod is connected into the limiting disc in a sliding mode;
the placing plate is rotatably connected to the mounting plate through a columnar shaft, and the side plates are vertically and symmetrically fixed on the placing plate.
Preferably, the fixed rod is also provided with a movable cylinder and a connecting rod;
the movable cylinder is connected to the fixed rod in a sliding mode to achieve an adjusting effect;
the connecting rod is rotatably connected to the movable cylinder through the columnar shaft and is rotatably connected to the supporting frames through the columnar shaft, synchronous adjustment of the supporting frames can be achieved through the mechanism, integrity between the supporting frames is guaranteed, the lower surfaces of the supporting frames are located in the same plane, and accordingly the fixing stability of the whole support is guaranteed.
Preferably, still be provided with the spring that provides the effort on the gag lever post, and the spring other end is fixed on the mounting panel to gag lever post and spacing disc block each other realize the positioning action, provide the effort through the spring and make gag lever post and spacing disc carry out the block, thereby realize the regulation and the positioning action to the horizontal position of camera.
Preferably, adjusting screw passes through screw thread and movable block interconnect, and movable block sliding connection is on the mounting panel to be connected with rotatable bull stick on the movable block, the bull stick rotates through the column axle simultaneously and connects on placing the board, drives the movable block through rotating adjusting screw and removes, cooperates the rotation transmission effect of bull stick, thereby drives and places the board and rotate, and then realizes camera vertical direction angle modulation effect.
Preferably, through screw thread and clamping screw interconnect on the curb plate, and clamping screw bearing connects on the limiting plate to the limiting plate symmetric distribution is placing the board both sides, and through rotating clamping screw, the screw thread connection effect of cooperation clamping screw and curb plate can drive the limiting plate and remove, realizes the spacing fixed action to the camera.
Preferably, the limiting plate is symmetrically provided with guide rods for guiding, the guide rods are connected to the side plates in a sliding mode, and when the limiting plate moves under the action of the fixing screw rods, the stability of the limiting plate in the moving process is guaranteed under the sliding guiding action between the guide rods and the side plates.
Compared with the prior art, the utility model has the beneficial effects that: this multi-angle regulation formula camera support adopts linkage adjustment mechanism can realize the synchro-control to the support frame to guarantee that the angle that opens of support frame keeps unanimous, and then guarantee the stability of support, cooperation multidirectional angle adjustment mechanism can realize the angle modulation effect to the perpendicular of camera and horizontal direction, conveniently adapts to different shooting demands.
1. When placing whole support, at first promote the activity drum and slide on the dead lever, the rotation transmission effect of cooperation connecting rod can drive a plurality of support frames and carry out synchronous rotation and open, and the convenience is supported whole device, and it can to fix the activity drum through the bolt at last.
2. When the angle of adjusting the camera, at first the pulling slide bar makes gag lever post extrusion spring and spacing disc separation, remove the fixed action of mounting panel, rotate the angle modulation effect that the mounting panel realized the horizontal direction again, realize the positioning action through gag lever post and spacing disc block at last, the rethread rotates adjusting screw and drives the movable block removal, the transmission of cooperation bull stick can drive and place the board and carry out the vertical direction around the mounting panel and rotate, realize the vertical angle regulation of mounting panel, thereby the realization is to the multidirectional regulatory action of camera.
Drawings

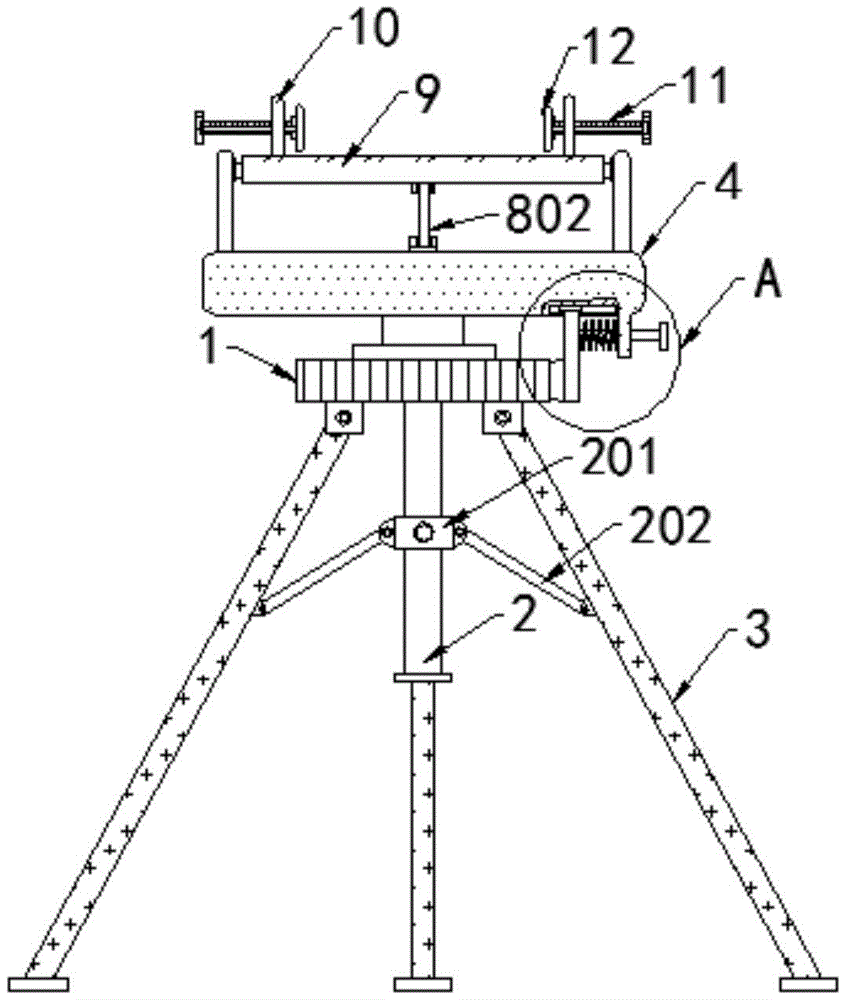

FIG. 1 is a schematic view of a front view of a limiting disc according to the present invention;
FIG. 2 is an enlarged view of the structure at A in FIG. 1 according to the present invention;
FIG. 3 is a schematic bottom view of the spacing disc of the present invention;
FIG. 4 is a side view, cross-sectional structural schematic of the mounting plate of the present invention;
FIG. 5 is a schematic top view of the mounting plate of the present invention.
In the figure: 1. a limiting disc; 2. fixing the rod; 201. a movable cylinder; 202. a connecting rod; 3. a support frame; 4. mounting a plate; 5. a slide bar; 6. a spring; 7. a limiting rod; 8. adjusting the screw rod; 801. a movable block; 802. a rotating rod; 9. placing the plate; 10. a side plate; 11. fixing the screw rod; 12. a limiting plate; 13. a guide rod.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
Referring to fig. 1-5, the present invention provides a technical solution: a multi-angle adjustable camera stand, comprising:
the limiting disc 1 is a mounting base of the whole device, a fixing rod 2 is vertically fixed at the lower end of the limiting disc 1, and the limiting disc 1 is connected with a rotatable support frame 3 through a columnar shaft at an equal angle;
the mounting plate 4 is rotatably connected to the limiting disc 1 through a columnar shaft, the mounting plate 4 and the limiting disc 1 are distributed in parallel, an adjusting mechanism adjusting screw 8 is connected to an inner bearing of the mounting plate 4, and the adjusting screw 8 penetrates through the mounting plate 4;
the sliding rod 5 is connected to the mounting plate 4 in a sliding mode, a limiting rod 7 is fixed to the tail end of the sliding rod 5, and the limiting rod 7 is connected into the limiting disc 1 in a sliding mode;
The fixed rod 2 is also provided with a movable cylinder 201 and a connecting rod 202; the movable cylinder 201 is connected to the fixed rod 2 in a sliding mode to achieve the adjusting effect; the connecting rod 202 is rotatably connected to the movable cylinder 201 through a columnar shaft for transmission, and the connecting rod 202 is rotatably connected to the support frame 3 through the columnar shaft.
At first expand the support of folding accomodating, relieve the fixed action between activity drum 201 and the dead lever 2 through the bolt, promote activity drum 201 again and slide on dead lever 2, thereby drive connecting rod 202 and rotate, through the rotation transmission effect of connecting rod 202, it opens to drive a plurality of support frames 3 to rotate around spacing disc 1 in step through the column axle, guarantee the lower terminal surface of support frame 3 on the coplanar, and then guarantee the stability of support, it can to fix activity drum 201 through the bolt at last.
The limiting rod 7 is also provided with a spring 6 for providing acting force, the other end of the spring 6 is fixed on the mounting plate 4, and the limiting rod 7 and the limiting disc 1 are mutually clamped to realize the positioning function; the adjusting screw 8 is connected with the movable block 801 through threads, the movable block 801 is connected to the mounting plate 4 in a sliding mode, the movable block 801 is connected with a rotatable rotating rod 802, and meanwhile the rotating rod 802 is connected to the placing plate 9 in a rotating mode through a columnar shaft.
In the shooting process, when the horizontal angle of the camera needs to be adjusted, firstly, the slide bar 5 is pulled to drive the limiting rod 7 to slide in the limiting disc 1 and extrude the spring 6 to contract, when the limiting rod 7 is separated from the limiting disc 1, the fixing action between the limiting disc 1 and the mounting plate 4 is released, then the mounting plate 4 is rotated to realize the angle adjustment action in the horizontal direction of the camera, after the adjustment is finished, the sliding rod 5 is loosened, the limiting rod 7 is clamped and fixed with the limiting disc 1 under the action of the extrusion spring 6 to realize the positioning function, when the vertical angle of the camera needs to be adjusted, the adjusting screw 8 is firstly rotated to drive the movable block 801 to move through the threaded connection, and then drive bull stick 802 and rotate, through the transmission effect of bull stick 802, make and place board 9 and carry out the vertical direction rotation around mounting panel 4 to the realization is to the vertical direction angle modulation effect of camera.
The side plates 10 are connected with the fixed screw rods 11 through threads, the fixed screw rods 11 are in bearing connection with the limiting plates 12, and the limiting plates 12 are symmetrically distributed on two sides of the placing plate 9; the limiting plate 12 is also symmetrically provided with guide rods 13 for guiding, and the guide rods 13 are slidably connected with the side plates 10.
When fixing the camera, place the camera on placing board 9 to rotate clamping screw 11, drive limiting plate 12 through the threaded connection effect between clamping screw 11 and curb plate 10 and remove, until limiting plate 12 realize fixed can to the centre gripping of camera, when limiting plate 12 removed, through the slip guide effect between guide arm 13 and curb plate 10, guarantee limiting plate 12 and remove the stability of process, thereby accomplish the fixed of camera.
The working principle is as follows: as shown in fig. 1 to 5, when the multi-angle adjustable camera stand is used, the stand which is folded and stored is firstly unfolded, by adjusting the position of the movable cylinder 201 on the fixed rod 2 and matching with the transmission action of the connecting rod 202, the plurality of support frames 3 can be synchronously opened to realize the unfolding and fixing of the support, when the camera is fixed, the position of the limiting plate 12 is adjusted by rotating the fixing screw 11 to realize the clamping and fixing function of the camera, when the angle needs to be adjusted, the horizontal angle adjustment of the camera can be realized by releasing the fixing action between the limiting disc 1 and the mounting plate 4 through the limiting rod 7, the adjusting screw 8 is rotated to drive the movable block 801 to move, and the placing plate 9 can be driven to rotate by matching with the transmission action of the rotating rod 802, so that the vertical adjusting action of the camera can be realized, and further realize the multidirectional regulation effect of camera, this is this multi-angle regulation formula camera support's theory of operation.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the utility model, the scope of which is defined in the appended claims and their equivalents.
Claims (6)
1. A multi-angle adjustable camera support, comprising:
the limiting disc is a mounting base of the whole device, a fixing rod is vertically fixed at the lower end of the limiting disc, and the limiting disc is connected with a rotatable support frame through a columnar shaft at equal angles;
the mounting plate is rotatably connected to the limiting disc through a columnar shaft, the mounting plate and the limiting disc are distributed in parallel, an adjusting mechanism adjusting screw rod is connected to a bearing in the mounting plate, and the adjusting screw rod penetrates through the mounting plate;
the sliding rod is connected to the mounting plate in a sliding mode, a limiting rod is fixed to the tail end of the sliding rod, and the limiting rod is connected into the limiting disc in a sliding mode;
the placing plate is rotatably connected to the mounting plate through a columnar shaft, and the side plates are vertically and symmetrically fixed on the placing plate.
2. The multi-angle adjustable camera bracket of claim 1, wherein: the fixed rod is also provided with a movable cylinder and a connecting rod;
the movable cylinder is connected to the fixed rod in a sliding mode to achieve an adjusting effect;
the connecting rod is rotatably connected to the movable cylinder through a columnar shaft for transmission, and the connecting rod is rotatably connected to the support frame through the columnar shaft.
3. The multi-angle adjustable camera bracket of claim 1, wherein: still be provided with the spring that provides the effort on the gag lever post, and the spring other end is fixed on the mounting panel to the locating action is realized to gag lever post and spacing disc block each other.
4. The multi-angle adjustable camera bracket of claim 1, wherein: adjusting screw passes through screw thread and movable block interconnect, and movable block sliding connection is on the mounting panel to be connected with rotatable bull stick on the movable block, the bull stick rotates through the column axle simultaneously and connects on placing the board.
5. The multi-angle adjustable camera bracket of claim 1, wherein: the side plates are connected with the fixed screw rods through threads, the fixed screw rods are connected to the limiting plates through bearings, and the limiting plates are symmetrically distributed on two sides of the placing plate.
6. The multi-angle adjustable camera bracket of claim 5, wherein: and guide rods with guiding function are symmetrically arranged on the limiting plate and are connected to the side plates in a sliding manner.
