Abstract
The utility model discloses a drum-type tea leaf dryer, and relates to the technical field of dryers. The on-line screen storage device comprises a base, fixedly connected with second supporting shoe on the base, swing joint has the stoving bucket on the second supporting shoe, fixedly connected with motor on the base, be provided with the transfer line on the motor, the right side fixedly connected with gear of transfer line, the first supporting block of fixedly connected with on the base, this drum-type tealeaves drying-machine sets up the third dwang, makes first bevel gear rotate through the control lever, drives the threaded rod and then rotates and make the nut remove, can adjust the length of movable rod according to the volume of drying tealeaves, has solved present tealeaves drying-machine's puddler, and the length of puddler can't be adjusted according to the volume of drying tealeaves to the drum-type, and the puddler extrudees tealeaves easily when the stirring for cause destruction to the overall structure of tealeaves, bring the problem of unnecessary loss.
Description
Technical Field
The utility model relates to the technical field of dryers, in particular to a drum type tea dryer.
Background
Tea is a traditional Chinese drink, is also a special famous drink in China, forms various tea products in the Chinese famous historical culture, and is classified according to the classification method of Chen \25035homemadein China: the green tea, the black tea, the oolong tea, the white tea, the yellow tea and the black tea form rich tea flavor, so that people can select more tea products, the production processes of the tea products are different, but most of the tea products have a drying process, so that the tea forms unique fire aroma.
Present drum-type tealeaves drying-machine's puddler can't adjust the length of puddler according to the volume of drying tealeaves, and the puddler extrudees tealeaves easily when the stirring for lead to the fact destruction to the overall structure of tealeaves, bring the unnecessary loss.
SUMMERY OF THE UTILITY MODEL
Technical problem to be solved
In view of the deficiencies of the prior art, the present invention provides a drum type tea dryer which solves the problems set forth in the background art.
(II) technical scheme
In order to achieve the purpose, the utility model is realized by the following technical scheme: a drum-type tea leaf dryer comprises a base, wherein a second supporting block is fixedly connected to the base, a drying barrel is movably connected to the second supporting block, a motor is fixedly connected to the base, a transmission rod is arranged on the motor, a gear is fixedly connected to the right side of the transmission rod, a first supporting block is fixedly connected to the base, the transmission rod is movably connected to the first supporting block, a rack is fixedly connected to the drying barrel, the top of the gear is meshed with the bottom of the rack, a first rotating rod is fixedly connected to the right side of the gear, a first transmission assembly is fixedly connected to the right side of the first rotating rod, a second rotating rod is fixedly connected to the top of the first transmission assembly, a second transmission assembly is fixedly connected to the top of the second rotating rod, a third rotating rod is fixedly connected to the left side of the second transmission assembly, the fixed frame of fixedly connected with on the third dwang, swing joint has the threaded rod on the third dwang, the bottom fixedly connected with second bevel gear of threaded rod, second bevel gear and the meshing of first bevel gear, fixedly connected with control lever on the first bevel gear, the top threaded connection of threaded rod has the nut, the bottom fixedly connected with movable rod of nut.
Preferably, the movable rod is fixedly connected with a fixed plate, the fixed plate is fixedly connected with a spring, and the top of the spring is fixedly connected with a protection block.
Preferably, the right side of the drying barrel is fixedly connected with a material pipe, the third rotating rod is fixedly connected with a fixing rod, and the material pipe is movably connected with the fixing rod.
Preferably, the material pipe is provided with a slide rail, and the slide rail is movably connected with a fixing rod.
Preferably, a feeding port is arranged on the left side of the drying barrel.
Preferably, the inside of the third rotating rod is movably connected with a control rod.
(III) advantageous effects
The utility model provides a drum-type tea dryer. The method has the following beneficial effects:
(1) this drum-type tealeaves drying-machine sets up the third dwang, make first bevel gear rotate through the control lever, it follows to rotate and makes the nut remove to drive the threaded rod, can be according to the volume of drying tea the length of adjusting the movable rod, the puddler of present drum-type tealeaves drying-machine has been solved, the length of puddler can't be adjusted according to the volume of drying tea, the puddler extrudees tealeaves when stirring easily, make the overall structure to tealeaves lead to the fact destruction, bring the problem of unnecessary loss.
(2) This drum-type tealeaves drying-machine is provided with the protection piece at the top of movable rod, further protects tealeaves not extruded by the movable rod when can making the movable rod pivoted, has protected the overall structure of tealeaves, sets up first drive assembly and makes the stoving bucket rotate with third dwang opposite direction, has improved drum-type tealeaves drying-machine's stoving effect, makes tealeaves dry more even.
Drawings

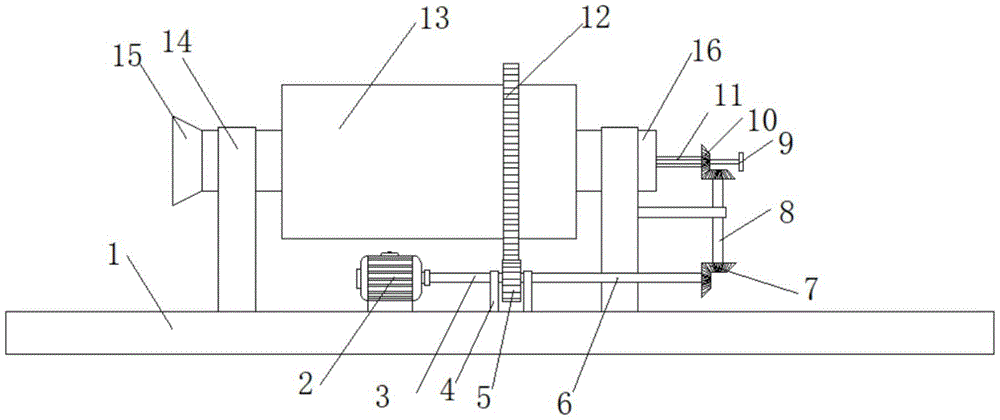

FIG. 1 is a schematic diagram of the structure of the present invention;
FIG. 2 is a schematic side perspective view of a drying tub of the present invention;
FIG. 3 is a schematic perspective side view of a structural tube of the present invention;
FIG. 4 is an enlarged view of a portion of the structure A of the present invention;
FIG. 5 is an enlarged view of a portion of structure B of the present invention;
FIG. 6 is an enlarged view of a portion of the structure C of the present invention.
In the figure: the device comprises a base 1, a motor 2, a transmission rod 3, a first supporting block 4, a gear 5, a first rotating rod 6, a first transmission assembly 7, a second rotating rod 8, a control rod 9, a second transmission assembly 10, a third rotating rod 11, a rack 12, a drying barrel 13, a second supporting block 14, a feeding port 15, a material pipe 16, a first bevel gear 17, a second bevel gear 18, a fixed frame 19, a threaded rod 20, a nut 21, a movable rod 22, a fixed plate 23, a spring 24, a protective block 25 and a fixed rod 26.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
Referring to fig. 1-6, the present invention provides a technical solution: a drum-type tea leaf dryer comprises a base 1, a second supporting block 14 is fixedly connected to the base 1, a drying barrel 13 is movably connected to the second supporting block 14, a feeding port 15 is arranged on the left side of the drying barrel 13, a motor 2 is fixedly connected to the base 1, a transmission rod 3 is arranged on the motor 2, a gear 5 is fixedly connected to the right side of the transmission rod 3, a first supporting block 4 is fixedly connected to the base 1, the transmission rod 3 is movably connected to the first supporting block 4, a rack 12 is fixedly connected to the drying barrel 13, the top of the gear 5 is meshed with the bottom of the rack 12, a first rotating rod 6 is fixedly connected to the right side of the gear 5, a first transmission component 7 is fixedly connected to the right side of the first rotating rod 6, a second rotating rod 8 is fixedly connected to the top of the first transmission component 7, a second transmission component 10 is fixedly connected to the top of the second rotating rod 8, and a third rotating rod 11 is fixedly connected to the left side of the second transmission component 10, a material pipe 16 is fixedly connected to the right side of the drying barrel 13, a fixed rod 26 is fixedly connected to the third rotating rod 11, the fixed rod 26 is movably connected to the material pipe 16, a slide rail is arranged on the material pipe 16, the fixed rod 26 is movably connected to the slide rail, a control rod 9 is movably connected to the inside of the third rotating rod 11, a fixed frame 19 is fixedly connected to the third rotating rod 11, a threaded rod 20 is movably connected to the third rotating rod 11, a second bevel gear 18 is fixedly connected to the bottom of the threaded rod 20, the second bevel gear 18 is meshed with the first bevel gear 17, the control rod 9 is fixedly connected to the first bevel gear 17, a nut 21 is connected to the top of the threaded rod 20 in a threaded manner, a movable rod 22 is fixedly connected to the bottom of the nut 21, a fixed plate 23 is fixedly connected to the movable rod 22, a spring 24 is fixedly connected to the fixed plate 23, a protection block 25 is fixedly connected to the top of the spring 24, and a protection block 25 is arranged at the top of the movable rod 22, further protect tealeaves not extruded by movable rod 22 when can making movable rod 22 pivoted, the overall structure of tealeaves has been protected, it makes drying barrel 13 rotate with third dwang 11 opposite direction to set up first drive assembly 7, drum-type tealeaves drying-machine's stoving effect has been improved, make tealeaves stoving more even, this drum-type tealeaves drying-machine sets up third dwang 11, make first bevel gear 17 rotate through control lever 9, it makes nut 21 remove to drive threaded rod 20 following to rotate, can adjust the length of movable rod 22 according to the volume of stoving tealeaves, the puddler of present drum-type tealeaves drying-machine has been solved, the length of puddler can't be adjusted according to the volume of stoving tealeaves, the puddler extrudees tealeaves when the stirring easily, make the overall structure to tealeaves lead to the fact destruction, bring the problem of unnecessary loss.
When the tea drying machine is used, the motor 2 is turned on, the motor 2 is improved to drive the transmission rod 3 to rotate, the transmission rod 3 is rotated to drive the gear 5 to rotate, the rotation of the gear 5 is improved to enable the rack 12 to drive the drying barrel 13 to rotate, the gear 5 rotates to drive the first rotation rod 6 to rotate, the first rotation rod 6 rotates to drive the first transmission component 7 to rotate, the first transmission component 7 rotates to drive the second rotation rod 8 to rotate, the second rotation rod 8 rotates to drive the second transmission component 10 to rotate, the second transmission component 10 rotates to drive the third rotation rod to rotate, the drying barrel 13 rotates in the direction opposite to that of the third rotation rod 11, the third rotation rod 11 rotates to drive the movable frame 19 and the movable rod 22, the drying effect of the roller type tea drying machine is improved, tea is dried more uniformly, the control rod 9 is rotated according to the amount of dried tea, the first bevel gear 17 is driven to rotate through the rotation of the control rod 9, first bevel gear 17 rotates and drives second bevel gear 18 and rotate, second bevel gear 18 rotates and drives threaded rod 20 and rotate, make nut 21 reciprocate under threaded rod 20 pivoted effect, nut 21 reciprocates and drives movable rod 22 and reciprocate, length that stretches out movable rod 22 is adjusted, be provided with protection piece 25 at movable rod 22 top, protection tealeaves is not extruded by movable rod 22 when can making movable rod 22 pivoted, the overall structure of tealeaves has been protected, this drum-type tealeaves drying-machine practicality has been increased.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the utility model, the scope of which is defined in the appended claims and their equivalents.
Claims (6)
1. The utility model provides a drum-type tealeaves drying-machine, includes base (1), its characterized in that: the drying machine is characterized in that a second supporting block (14) is fixedly connected to the base (1), a drying barrel (13) is movably connected to the second supporting block (14), a motor (2) is fixedly connected to the base (1), a transmission rod (3) is arranged on the motor (2), a gear (5) is fixedly connected to the right side of the transmission rod (3), a first supporting block (4) is fixedly connected to the base (1), the transmission rod (3) is movably connected to the first supporting block (4), a rack (12) is fixedly connected to the drying barrel (13), the top of the gear (5) is meshed with the bottom of the rack (12), a first rotating rod (6) is fixedly connected to the right side of the gear (5), a first transmission component (7) is fixedly connected to the right side of the first rotating rod (6), and a second rotating rod (8) is fixedly connected to the top of the first transmission component (7), the top fixedly connected with second transmission assembly (10) of second dwang (8), the left side fixedly connected with third dwang (11) of second transmission assembly (10), fixed frame (19) of fixedly connected with is gone up in third dwang (11), swing joint has threaded rod (20) on third dwang (11), the bottom fixedly connected with second bevel gear (18) of threaded rod (20), second bevel gear (18) and first bevel gear (17) meshing, fixedly connected with control lever (9) on first bevel gear (17), the top threaded connection of threaded rod (20) has nut (21), the bottom fixedly connected with movable rod (22) of nut (21).
2. A tumble tea dryer as claimed in claim 1, characterized in that: the movable rod (22) is fixedly connected with a fixing plate (23), the fixing plate (23) is fixedly connected with a spring (24), and the top of the spring (24) is fixedly connected with a protection block (25).
3. A tumble tea dryer as claimed in claim 1, characterized in that: the right side fixedly connected with material pipe (16) of stoving bucket (13), fixedly connected with dead lever (26) on third dwang (11), swing joint has dead lever (26) on material pipe (16).
4. A tumble tea dryer as claimed in claim 3, characterized in that: the material pipe (16) is provided with a slide rail, and the slide rail is movably connected with a fixing rod (26).
5. A tumble tea dryer as claimed in claim 1, characterized in that: and a feeding port (15) is formed in the left side of the drying barrel (13).
6. A tumble tea dryer as claimed in claim 1, characterized in that: the inside swing joint of third dwang (11) has control lever (9).
