Abstract
The utility model belongs to the field of natural gas related equipment, and particularly relates to a high-rotating-speed and high-power piston type compressor piston, which is characterized in that: the piston rod is arranged on one side of the piston, the piston ring is arranged on the piston, the support rings are arranged among the piston rings, the staggered end gaps are arranged on the support rings, the notches are arranged on the piston rings, and the other end of the piston is the cylinder head end.
Description
Technical Field
The utility model belongs to the field of natural gas related equipment, and particularly relates to a piston of a high-speed and high-power piston compressor.
Background
The compressor is mainly used for compressing low-pressure gas into high-pressure gas, wherein the reciprocating piston compressor has a wide pressure increasing range, and the mechanical reciprocating piston compressor used in the current market has a wide market application field, such as: the compressor is used in the fields of gas pressurization, such as an inflating pump, a natural gas pressurization conveying station, a natural gas filling station, the chemical industry, an emptying natural gas recovery station, the engineering field, the medical field and the like;
the piston compressor used in the market converts rotary motion into reciprocating linear motion of a piston to enable the piston to form a compression process of gas in a cylinder, the main structure is that a motor drives the rotary motion of a connecting rod connected with a crankshaft supported in a crankcase to convert into linear motion through connecting a crosshead, the crosshead is connected with a piston rod of the piston rod and is provided with a piston body, so that the piston can realize reciprocating motion in the cylinder to perform the compression process of the gas, and the gas in the cylinder is sealed by filling materials to prevent the gas from leaking from the piston rod to achieve the compression process and the sealing process of the gas; the basic requirements of a compressor for oil and gas fields generally fall into five aspects: the requirement is suitable for the gas quality requirement of natural gas, and the method is specially designed for the oil and gas field process; strong variable working condition adaptability is required; the variety is required to be normalized and serialized; the installation and the operation and maintenance are required to be convenient; continuous operation and high reliability are required.
The compressor piston assembly comprises a piston body, a piston rod, a piston ring, a supporting ring and the like. Different piston structures and materials are available for cylinders with different cylinder diameters, different working pressures, different working media, whether oil is injected or not, and the like.
For the cylinder with larger cylinder diameter, a welded piston body structure is generally adopted; for the cylinder with the medium cylinder diameter, a cast piston body is adopted; for the cylinder with small cylinder diameter, more forgings can be selected.
According to different working media, working pressure and working temperature, the die is designed into a casting structure or a forging structure according to actual working requirements. Regardless of the structure, the valve has a wide valve chamber and an air chamber.
The cylinder is made of high-strength gray cast iron, nodular cast iron or forged steel according to the working pressure.
SUMMERY OF THE UTILITY MODEL
Aiming at the defects in the prior art, the utility model provides a piston of a high-rotating-speed and high-power piston type compressor.
A high-speed high-power piston compressor piston which characterized in that: the piston rod is arranged on one side of the piston, a plurality of piston rings are arranged on the piston, the support rings are arranged among the piston rings, staggered end gaps are arranged on the support rings, the notches are arranged on the piston rings, and the other end of the piston is the cylinder head end.
The piston rings are arranged in parallel with each other.
The piston is provided with at least 2 piston rings.
The working pressure of the support ring was 2500 Psi.
The working pressure of the piston is as follows: 2500 Psi.
The working pressure of the piston ring is as follows: 2800 Psi.
The working pressure of the piston rod is as follows: 3500 Psi.
The utility model has the beneficial effects that:
1. the utility model solves the problem of excessive abrasion in the use process of the existing equipment, greatly reduces the energy consumption while ensuring the reliability of the equipment and saves the production cost.
2. The utility model has simple structure and solves the problems of service performance and service life of wearing parts such as piston rings, support rings and the like on the piston assembly of the moving part of the existing equipment under the condition of high rotating speed.
3. The piston assembly is specially designed for oil and gas field process, and the compressor for the oil and gas field designed by the piston assembly is integrally skid-mounted, is designed with high power and high rotating speed, and has the characteristics of compact structure, small occupied area, convenience in installation and the like.
Reference numerals
1. Piston rod, 2, crankshaft end, 3, piston, 4, piston ring, 5, support ring, 6, stagger end clearance, 7, incision, 8, cylinder head end.
Drawings

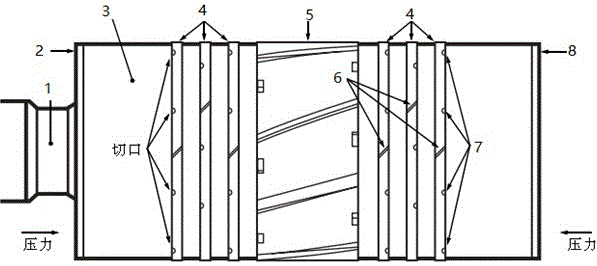

FIG. 1 is a schematic structural diagram of the present invention.
The specific implementation mode is as follows:
example 1:
a high-speed high-power piston compressor piston which characterized in that: piston rod 1, bent axle end 2, piston 3 ring, support ring 5, the end clearance 6 that staggers, incision 7 and cylinder head end 8, one side of piston 3 sets up piston rod 1, set up a plurality of pistons 3 ring on the piston 3, set up between a plurality of pistons 3 ring support ring 5, be provided with the end clearance 6 that staggers on the support ring 5, piston 3 ring is last to be set up incision 7, the other end of piston 3 does cylinder head end 8.
The plurality of rings of pistons 3 arranged on the piston 3 are parallel to each other.
At least 2 piston 3 rings are arranged on the piston 3.
The operating pressure of the support ring 5 is 2500 Psi.
Example 2:
a high-speed high-power piston compressor piston which characterized in that: piston rod 1, bent axle end 2, piston 3 ring, support ring 5, the end clearance 6 that staggers, incision 7 and cylinder head end 8, one side of piston 3 sets up piston rod 1, set up a plurality of pistons 3 ring on the piston 3, set up between a plurality of pistons 3 ring support ring 5, be provided with the end clearance 6 that staggers on the support ring 5, piston 3 ring is last to be set up incision 7, the other end of piston 3 does cylinder head end 8.
The plurality of rings of pistons 3 arranged on the piston 3 are parallel to each other.
At least 2 piston 3 rings are arranged on the piston 3.
The working pressure of the piston 3 is: 2500 Psi.
Example 3:
a high-speed high-power piston compressor piston which characterized in that: piston rod 1, bent axle end 2, piston 3 ring, support ring 5, the end clearance 6 that staggers, incision 7 and cylinder head end 8, one side of piston 3 sets up piston rod 1, set up a plurality of pistons 3 ring on the piston 3, set up between a plurality of pistons 3 ring support ring 5, be provided with the end clearance 6 that staggers on the support ring 5, piston 3 ring is last to be set up incision 7, the other end of piston 3 does cylinder head end 8.
The plurality of rings of pistons 3 arranged on the piston 3 are parallel to each other.
At least 2 piston 3 rings are arranged on the piston 3.
The working pressure of the piston 3 ring is as follows: 2800 Psi.
The working pressure of the piston rod 1 is as follows: 3500 Psi.
Example 4:
a high-speed high-power piston compressor piston which characterized in that: piston rod 1, bent axle end 2, piston 3 ring, support ring 5, the end clearance 6 that staggers, incision 7 and cylinder head end 8, one side of piston 3 sets up piston rod 1, set up a plurality of pistons 3 ring on the piston 3, set up between a plurality of pistons 3 ring support ring 5, be provided with the end clearance 6 that staggers on the support ring 5, piston 3 ring is last to be set up incision 7, the other end of piston 3 does cylinder head end 8.
The plurality of rings of pistons 3 arranged on the piston 3 are parallel to each other.
At least 2 piston 3 rings are arranged on the piston 3.
The operating pressure of the support ring 5 is 2500 Psi.
The working pressure of the piston 3 is: 2500 Psi.
Example 5:
a high-speed high-power piston compressor piston which characterized in that: piston rod 1, bent axle end 2, piston 3 ring, support ring 5, the end clearance 6 that staggers, incision 7 and cylinder head end 8, one side of piston 3 sets up piston rod 1, set up a plurality of pistons 3 ring on the piston 3, set up between a plurality of pistons 3 ring support ring 5, be provided with the end clearance 6 that staggers on the support ring 5, piston 3 ring is last to be set up incision 7, the other end of piston 3 does cylinder head end 8.
The plurality of rings of pistons 3 arranged on the piston 3 are parallel to each other.
At least 2 piston 3 rings are arranged on the piston 3.
The operating pressure of the support ring 5 is 2500 Psi.
The working pressure of the piston 3 is: 2500 Psi.
The working pressure of the piston rod 1 is as follows: 3500 Psi.
Example 6:
a high-speed high-power piston compressor piston which characterized in that: piston rod 1, bent axle end 2, piston 3 ring, support ring 5, the end clearance 6 that staggers, incision 7 and cylinder head end 8, one side of piston 3 sets up piston rod 1, set up a plurality of pistons 3 ring on the piston 3, set up between a plurality of pistons 3 ring support ring 5, be provided with the end clearance 6 that staggers on the support ring 5, piston 3 ring is last to be set up incision 7, the other end of piston 3 does cylinder head end 8.
The plurality of rings of pistons 3 arranged on the piston 3 are parallel to each other.
At least 2 piston 3 rings are arranged on the piston 3.
The operating pressure of the support ring 5 is 2500 Psi.
The working pressure of the piston 3 is: 2500 Psi.
The working pressure of the piston 3 ring is as follows: 2800 Psi.
The working pressure of the piston rod 1 is as follows: 3500 Psi.
Claims (7)
1. A high-speed high-power piston compressor piston which characterized in that: piston rod (1), bent axle end (2), piston (3) ring, support ring (5), stagger end gap (6), incision (7) and cylinder head end (8), one side of piston (3) sets up piston rod (1), set up a plurality of pistons (3) ring on piston (3), set up between a plurality of pistons (3) ring support ring (5), be provided with stagger end gap (6) on support ring (5), set up on piston (3) ring incision (7), the other end of piston (3) does cylinder head end (8).
2. The high-speed high-power piston compressor piston as claimed in claim 1, wherein: the plurality of piston (3) rings arranged on the piston (3) are mutually parallel.
3. The high-speed high-power piston compressor piston as claimed in claim 1, wherein: the piston (3) is provided with at least 2 piston (3) rings.
4. The high-speed high-power piston compressor piston as claimed in claim 1, wherein: the operating pressure of the support ring (5) is 2500 Psi.
5. The high-speed high-power piston compressor piston as claimed in claim 1, wherein: the working pressure of the piston (3) is as follows: 2500 Psi.
6. The high-speed high-power piston compressor piston as claimed in claim 1, wherein: the working pressure of the piston (3) ring is as follows: 2800 Psi.
7. The high-speed high-power piston compressor piston as claimed in claim 1, wherein: the working pressure of the piston rod (1) is as follows: 3500 Psi.
