Abstract

The utility model discloses an intelligent garbage can which comprises an outer box body and a box cover, wherein the box cover is arranged on the outer box body, and a garbage inlet is formed in the side surface of the box cover; the garbage classification box comprises a box body, a first partition plate and a second partition plate, wherein the interior of the box body is divided into three garbage storage areas by the first partition plate and the second partition plate; garbage classification case top is provided with garbage classification mechanism, and garbage classification mechanism includes first support, first dodge gate, second dodge gate, first electric telescopic handle and second electric telescopic handle, and first support fixed mounting is installed on the support holder, and the swash plate that a slope set up is installed to first support. The garbage can has the advantages of small volume and attractive appearance, and can realize the classified collection of garbage.

Description

Wisdom garbage bin
Technical Field
The utility model relates to the technical field of garbage collection devices, in particular to an intelligent garbage can.
Background
The garbage bin is an indispensable necessity in people's life. The plastic garbage can is a product used in many industries of cleaning and environmental sanitation, and brings cleanness, sanitation and environmental protection to cities, communities and various public places. In China, more than about 5 hundred million garbage cans are used, and 66 percent of the garbage cans are made of iron sheets and wood.
With the change of the using method of the garbage can, people pay more and more attention to the protection of the environment; garbage classification generally refers to a general term of a series of activities for storing, delivering and transporting garbage according to a certain rule or standard, and converting the garbage into public resources. The classification aims to improve the resource value and the economic value of the garbage and strive for making the best use of the garbage.
The garbage belongs to the private goods of the public in the classified storage stage, becomes regional quasi-public resources of a community or a community where the public is located after being put in a classified mode by the public, and becomes public resources without exclusivity after being carried to a garbage concentration point or a transfer station in a classified mode. From the viewpoint of methods for classifying domestic garbage in various cities at home and abroad, the domestic garbage is classified according to the components and the production amount of the garbage and by combining the resource utilization and the treatment mode of local garbage.
The classified collection of the garbage can reduce the garbage treatment amount and treatment equipment, reduce the treatment cost, reduce the consumption of land resources and have social, economic, ecological and other benefits.
In prior art, in order to realize garbage classification, a plurality of garbage cans are generally arranged at a garbage collection point, so that garbage points are very disordered and not attractive.
SUMMERY OF THE UTILITY MODEL
The utility model aims to provide an intelligent garbage can which has the advantages of small size and attractive appearance and can realize classified collection of garbage.
In order to solve the technical problems, the technical scheme adopted by the utility model is as follows:
an intelligent garbage can comprises an outer box body and a box cover, wherein the box cover is installed on the outer box body, and a garbage inlet is formed in the side face of the box cover; the garbage classification box comprises a box body, a first partition plate and a second partition plate, wherein the interior of the box body is divided into three garbage storage areas by the first partition plate and the second partition plate;
a garbage classification mechanism is arranged above the garbage classification box and comprises a first support, a first movable door, a second movable door, a first electric telescopic rod and a second electric telescopic rod, the first support is fixedly arranged on a supporting support, the first support is provided with an inclined plate which is obliquely arranged, the inclined plate is provided with a first feeding port and a second feeding port, the tail ends of the first feeding port, the second feeding port and the inclined plate respectively correspond to three garbage storage areas, and the first movable door and the second movable door are respectively hinged in the first feeding port and the second feeding port; the fixed end of the first electric telescopic rod is hinged with the box cover, and the movable end of the first electric telescopic rod is hinged with the first movable door; the fixed end of the second electric telescopic rod is hinged with the box cover, and the movable end of the second electric telescopic rod is hinged with the second movable door;
the garbage inlet is provided with an electric sliding door assembly, a first button, a second button and a third button are arranged above the box cover, a controller is arranged inside the box cover, and the first button, the second button, the third button, the first electric telescopic rod, the second electric telescopic rod and the electric sliding door assembly are all connected with the controller.
The electric sliding door assembly comprises a motor, a sliding door, a guide rail, a gear and a rack, the guide rail is arranged on the box cover and close to a garbage inlet, the sliding door is slidably mounted on the guide rail, the rack is mounted on the sliding door, the motor is mounted on the box cover, the gear is mounted on the output end of the motor, the gear and the rack are meshed with each other, and the motor is connected with the controller.
Further optimize, be provided with the handle on the waste classification case.
Further optimize, outer box bottom is provided with the isolation pad.
Further optimize, the bottom of the garbage classification box body is provided with a water leakage hole, and a water collecting box is arranged at the bottom of the garbage classification box body in a sliding mode.
Wherein, be provided with level sensor in the header tank, level sensor with the controller, the controller is connected with remote alarm device.
Compared with the prior art, the utility model has the following beneficial effects:
the garbage can mainly comprises an outer box body, a box cover, a garbage sorting mechanism and other components, wherein the outer box body and the box cover are connected to form a main body structure of the garbage can, and garbage can be conveniently put in through a garbage inlet; the classified storage of the garbage is realized through the arranged garbage classification box, and three garbage storage areas are formed in the box body of the garbage classification box under the division of the first partition plate and the second partition plate and are used for temporarily storing different types of garbage; meanwhile, the classification of the garbage is realized through the arranged garbage classification mechanism, so that the thrown garbage enters the corresponding garbage storage area;
in actual use, a user selects a corresponding button according to the type of the thrown garbage, then the garbage is thrown into the garbage inlet, and the garbage slides along the inclined plate arranged on the first support, so that the garbage can slide into a corresponding garbage storage area; the utility model integrates the garbage classification function into a whole and has the advantages of convenient use, small volume and beautiful appearance.
Drawings
In order to more clearly illustrate the technical solutions of the embodiments of the present invention, the drawings that are required to be used in the embodiments will be briefly described below, it should be understood that the following drawings only illustrate some embodiments of the present invention and therefore should not be considered as limiting the scope, and for those skilled in the art, other related drawings can be obtained according to the drawings without inventive efforts.
Fig. 1 is a schematic view of the overall structure of the present invention.

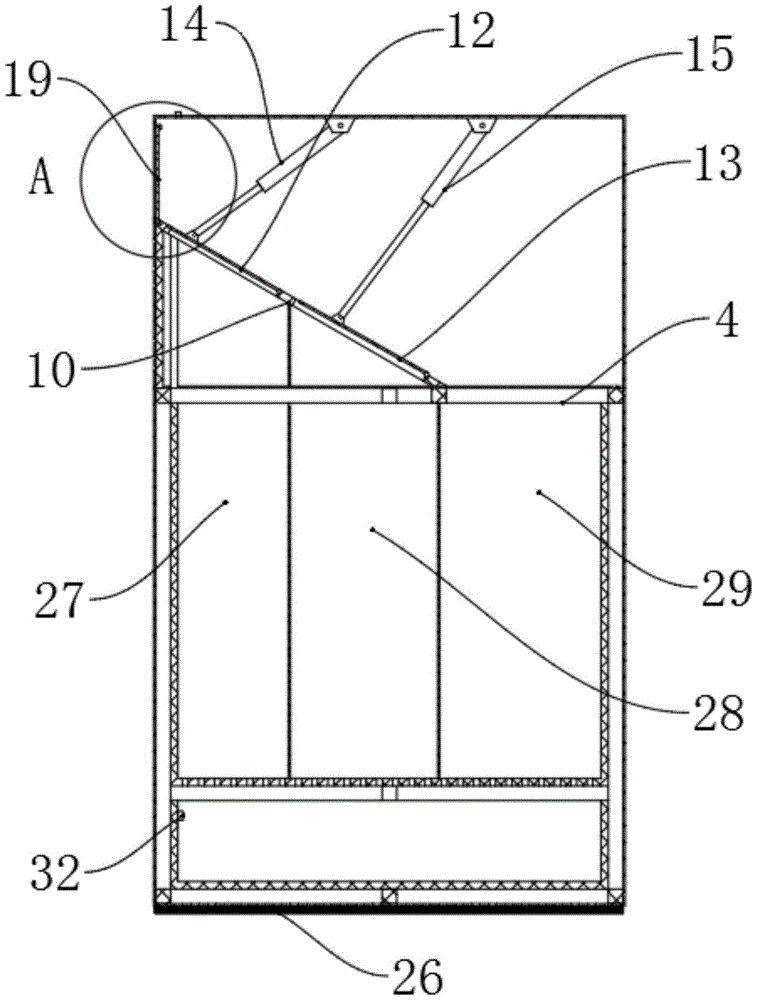

FIG. 2 is a schematic view of the internal structure of the present invention.
Fig. 3 is a schematic view of the overall structure of the garbage classification box of the present invention.
FIG. 4 is a schematic diagram of the position relationship between the first bracket and the supporting bracket according to the present invention.
FIG. 5 is an enlarged view of a portion of FIG. 2 according to the present invention.
Reference numerals: 1-an outer box, 2-a box cover, 3-a garbage inlet, 4-a supporting bracket, 5-a mounting position, 6-a garbage classification box, 7-a box, 8-a first partition, 9-a second partition, 10-a garbage classification mechanism, 11-a first bracket, 12-a first movable door, 13-a second movable door, 14-a first electric telescopic rod, 15-a second electric telescopic rod, 16-a sloping plate, 17-a first inlet, 18-a second inlet, 19-an electric sliding door component, 20-a sliding door, 21-a guide rail, 22-a first button, 23-a second button, 24-a third button, 25-a handle, 26-an isolation pad, 27-a recyclable garbage storage area, 28-a non-recyclable garbage storage area, 29-other garbage storage areas, 30-a water collecting tank, 31-a water leakage hole and 32-a liquid level sensor.
Detailed Description
The present invention will be further described with reference to the following examples, which are intended to illustrate only some, but not all, of the embodiments of the present invention. Based on the embodiments of the present invention, other embodiments used by those skilled in the art without any creative effort belong to the protection scope of the present invention.
Example one
The embodiment discloses an intelligent garbage can which comprises an outer box body 1 and a box cover 2, wherein the box cover 2 is installed on the outer box body 1, and a garbage inlet 3 is formed in the side face of the box cover 2; the garbage classification device comprises an outer box body 1, a supporting bracket 4, a mounting position 5, a garbage classification box 6, a garbage storage box and a garbage storage box, wherein the supporting bracket 4 is arranged in the outer box body 1, the mounting position 5 is arranged on the side surface of the outer box body 1, the garbage classification box 6 is slidably mounted on the mounting position 5, the garbage classification box 6 comprises a box body 7, a first partition plate 8 and a second partition plate 9, and the first partition plate 8 and the second partition plate 9 divide the interior of the box body 7 into three garbage storage areas;
a garbage classification mechanism 10 is arranged above the garbage classification box 6, the garbage classification mechanism 10 comprises a first support 11, a first movable door 12, a second movable door 13, a first electric telescopic rod 14 and a second electric telescopic rod 15, the first support 11 is fixedly arranged on the support 4, the first support 11 is provided with an inclined plate 16 which is obliquely arranged, the inclined plate 16 is provided with a first feeding port 17 and a second feeding port 18, the tail ends of the first feeding port 17, the second feeding port 18 and the inclined plate 16 respectively correspond to three garbage storage areas, and the first movable door 12 and the second movable door 13 are respectively hinged in the first feeding port 17 and the second feeding port 18; the fixed end of the first electric telescopic rod 14 is hinged with the box cover 2, and the movable end is hinged with the first movable door 12; the fixed end of the second electric telescopic rod 15 is hinged with the box cover 2, and the movable end is hinged with the second movable door 13;
the garbage inlet 3 is provided with an electric sliding door assembly 19, a first button 22, a second button 23 and a third button 24 are arranged above the box cover 2, a controller is arranged inside the box cover 2, and the first button 22, the second button 23, the third button 24, the first electric telescopic rod 14, the second electric telescopic rod 15 and the electric sliding door assembly 19 are all connected with the controller.
Further preferably, the electric sliding door assembly 19 comprises a motor, a sliding door 20, a guide rail 21, a gear and a rack, wherein the guide rail 21 is arranged on the box cover 2 and is close to the garbage inlet 3, the sliding door 20 is slidably arranged on the guide rail 21, the rack is arranged on the sliding door 20, the motor is arranged on the box cover 2, the gear is arranged on the output end of the motor, the gear and the rack are mutually meshed, and the motor is connected with the controller; thus, when the first button 22, the second button 23 and the third button 24 are pressed, the controller controls the motor to drive, the motor drives the gear to rotate, the sliding door 20 is driven to slide on the guide rail 21, the garbage inlet 3 is opened, a user can conveniently throw garbage, after the garbage throwing is finished, the motor starts the driving sliding door 20 again to do return motion after a certain period of time, and the garbage inlet 3 is closed; can effectively prevent the internal smell from leaking.
Wherein, the garbage classification box 6 is provided with a handle 25; the arranged handle 25 is convenient for pulling out the garbage classification box 6 and is convenient for cleaning workers to operate.
Further preferably, the bottom of the outer box body 1 is provided with an isolation pad 26; the outer box body 1 can be separated from the ground in the using process, and the purposes of moisture prevention and rust prevention are achieved.
The garbage can mainly comprises an outer box body 1, a box cover 2, a garbage sorting mechanism 10 and other components, wherein the outer box body 1 and the box cover 2 are connected to form a main body structure of the garbage can, and garbage can be conveniently put in through a garbage inlet 3; the classified storage of the garbage is realized through the arranged garbage classification box 6, and the box body 7 of the garbage classification box 6 forms three garbage storage areas for temporarily storing different types of garbage under the division of the first partition plate 8 and the second partition plate 9; meanwhile, the classification of the garbage is realized through the arranged garbage classification mechanism 10, so that the thrown garbage enters the corresponding garbage storage area;
in actual use, a user selects a corresponding button according to the type of the thrown garbage, then the garbage is thrown into the garbage inlet 3, and the garbage slides along the inclined plate 16 arranged on the first support 11, so that the garbage can slide into a corresponding garbage storage area; the utility model integrates the garbage classification function into a whole and has the advantages of convenient use, small volume and beautiful appearance.
To facilitate a further understanding of the present invention, a specific process for its use will be further described below.
The three garbage storage areas are respectively: a recyclable waste storage area 27, a non-recyclable waste storage area 28 and other waste storage areas 29, which can be sorted in other sorting manners in actual use;
the first feeding port 17 and the first movable door 12 correspond to the recyclable waste storage area 27;
the second feeding port 18 and the second movable door 13 correspond to the unrecoverable garbage storage area 28;
the tail end of the sloping plate 16 and other garbage storage areas 29;
the first button 22, the second button 23 and the third button 24 can be in different colors and configured with descriptive characters.
Therefore, when a user puts garbage, the user can correspondingly press the button; such as: the user puts in the recyclable garbage, and the recyclable garbage can be pushed by the user to press the first button 22, at the moment, the controller controls the motor to be started, and the sliding door 20 is driven to move to open the garbage inlet 3; meanwhile, the first electric telescopic rod 14 is started to drive the first movable door 12 to rotate; the garbage slides on the inclined plate 16 after entering, and then slides into the recyclable garbage storage area 27 when sliding to the first feeding port 17; then, the first electric telescopic rod 14 drives the first movable door 12 and the motor drives the sliding door 20 to perform a return motion.
Example two
The present embodiment is further optimized on the basis of the first embodiment, in the present embodiment, the bottom of the box body 7 of the garbage classification box 6 is provided with the water leakage hole 31, and the water collection box 20 is slidably arranged at the bottom of the garbage classification box 6. The arrangement can realize dry-wet separation of garbage.
Further optimize, be provided with level sensor 32 in the header tank 20, level sensor 32 with the controller, the controller is connected with remote alarm device. The water quantity in the water collecting tank 20 can be monitored in real time through the arranged liquid level sensor 32, and after the preset water level is reached, the alarm is given by the arranged remote alarm device to remind a worker to process in time.
While preferred embodiments of the present invention have been described, additional variations and modifications in those embodiments may occur to those skilled in the art once they learn of the basic inventive concepts. Therefore, it is intended that the appended claims be interpreted as including preferred embodiments and all such alterations and modifications as fall within the scope of the utility model. The above description is only for the purpose of illustrating the preferred embodiments of the present invention and is not to be construed as limiting the utility model, it should be noted that any modifications, equivalents and improvements made within the spirit and principle of the present invention should be included in the scope of the present invention.

Claims (6)

1. The utility model provides an wisdom garbage bin, its characterized in that: the garbage can comprises an outer box body and a box cover, wherein the box cover is arranged on the outer box body, and a garbage inlet is formed in the side surface of the box cover; the garbage classification box comprises a box body, a first partition plate and a second partition plate, wherein the interior of the box body is divided into three garbage storage areas by the first partition plate and the second partition plate;
a garbage classification mechanism is arranged above the garbage classification box and comprises a first support, a first movable door, a second movable door, a first electric telescopic rod and a second electric telescopic rod, the first support is fixedly arranged on a supporting support, the first support is provided with an inclined plate which is obliquely arranged, the inclined plate is provided with a first feeding port and a second feeding port, the tail ends of the first feeding port, the second feeding port and the inclined plate respectively correspond to three garbage storage areas, and the first movable door and the second movable door are respectively hinged in the first feeding port and the second feeding port; the fixed end of the first electric telescopic rod is hinged with the box cover, and the movable end of the first electric telescopic rod is hinged with the first movable door; the fixed end of the second electric telescopic rod is hinged with the box cover, and the movable end of the second electric telescopic rod is hinged with the second movable door;
the garbage inlet is provided with an electric sliding door assembly, a first button, a second button and a third button are arranged above the box cover, a controller is arranged inside the box cover, and the first button, the second button, the third button, the first electric telescopic rod, the second electric telescopic rod and the electric sliding door assembly are all connected with the controller.
2. The intelligent trash can of claim 1, wherein: the electric sliding door assembly comprises a motor, a sliding door, a guide rail, a gear and a rack, wherein the guide rail is arranged on the box cover and close to a garbage inlet, the sliding door is slidably arranged on the guide rail, the rack is arranged on the sliding door, the motor is arranged on the box cover, the gear is arranged on the output end of the motor, the gear and the rack are meshed with each other, and the motor is connected with the controller.
3. The intelligent trash can of claim 1, wherein: the garbage classification box is provided with a handle.
4. The intelligent trash can of claim 1, wherein: the bottom of the outer box body is provided with an isolation pad.
5. The intelligent trash can of any one of claims 1-4, wherein: the bottom of the garbage classification box body is provided with a water leakage hole, and a water collecting box is arranged at the bottom of the garbage classification box body in a sliding mode.
6. The intelligent trash can of claim 5, wherein: a liquid level sensor is arranged in the water collecting tank, the liquid level sensor is connected with the controller, and the controller is connected with a remote alarm device.
