Abstract
The utility model relates to a connecting structure, in particular to a connecting structure of a detachable assembled metal panel, which comprises a first connecting piece, a second connecting piece and an insert, wherein the insert is arranged between the first connecting piece and the second connecting piece; the first connecting piece comprises a fixing part, the fixing part is provided with a concave buckling part, an arc-shaped buckling part is arranged on the lower side of the concave buckling part, a connecting part positioned on the other side of the concave buckling part is arranged on the arc-shaped buckling part, and the first connecting piece and the second connecting piece are consistent in structure; the utility model discloses a self tapping screw installs first connecting piece and second connecting piece in the wall body, reduce the space between first connecting piece and the second connecting piece through T type plug-in components and outer corner plug-in components, through the sawtooth of the sawtooth cooperation connecting portion on T type plug-in components and the outer corner plug-in components, fix first panel and second panel, it is more convenient to install and dismantle, good steadiness and durability have, possess high flexibility simultaneously, can be suitable for different panel thickness and use angle.
Description
Technical Field
The utility model relates to a connection structure, especially a demountable assembly formula metal decking's connection structure.
Background
In recent years, the popularization of policies about assembly type housing and assembly type decoration in China is increasing. The panels for assembly finishing are manufactured in advance in factory workshops and then transported to a construction site for assembly and installation. The existing assembly type panel is generally directly installed on a wall body, the fixing mode is simple and crude, the panel is easy to fall off, the requirement on the limitation of the panel is high, a connecting gap is easy to appear when the thickness of the panel is not uniform, the using effect is influenced, the installation mode can not be flexibly adjusted according to the thickness of the panel, the applicability is single, and the individual requirements of different panels in the market can not be met.
SUMMERY OF THE UTILITY MODEL
The utility model aims at providing a demountable assembly formula metal decking's connection structure. The utility model discloses can carry out the installation of assembled house, used panel in kitchen and bathroom, have simple installation, firm reliable, installation accuracy height, can adjust mounted position according to panel thickness is nimble simultaneously.
The technical scheme of the utility model: a connecting structure of a detachable assembled metal panel comprises a first connecting piece, a second connecting piece and an insert, wherein the insert is arranged between the first connecting piece and the second connecting piece; the first connecting piece comprises a fixing part, the fixing part is provided with a concave buckling part, an arc-shaped buckling part is arranged on the lower side of the concave buckling part, a connecting part positioned on the other side of the concave buckling part is arranged on the arc-shaped buckling part, and the first connecting piece and the second connecting piece are consistent in structure; the plug-in components are arranged on the concave buckling parts, and a second panel and a first panel are arranged between the first connecting component and the plug-in components and between the second connecting component and the plug-in components respectively.
In the above connection structure of the detachable metal panel, the first panel and the second panel are slidably engaged with the insert.
In the above connection structure of the detachable metal panel, the insert is a T-shaped insert or an outer corner insert.
In the connection structure of the detachable assembly type metal panel, the T-shaped plug-in unit comprises a T-shaped plug-in unit body, and the vertical end of the T-shaped plug-in unit body is provided with the sawtooth-shaped grains.
In the connection structure of the detachable assembled metal panel, the outer corner plug-in includes a square plug-in body, a pair of insertion pieces arranged at a right angle is arranged at a right angle of the square plug-in body, and the insertion pieces are matched with the concave buckling part; and sawtooth-shaped grains are arranged on two edges at the right angle.
In the connection structure of the detachable metal panel, the inner side surface of the connection portion has a saw-toothed texture.
In the connection structure of the detachable metal panel, the fixing portion and the connecting portion can be adjusted in position according to the actual thickness of the wall plate.
In the above connection structure of the detachable metal panel, the first connector, the second connector, the T-shaped plug-in unit, and the outer corner plug-in unit are all aluminum members.
In the connection structure of the detachable assembly type metal panel, the first connecting piece and the second connecting piece are fixed on the wall body through self-tapping screws.
Compared with the prior art, the utility model has the advantages that the first connecting piece and the auxiliary connecting piece are arranged on the wall body through the self-tapping screw, the installation and the disassembly are more convenient, the panel requirement can be met, the adjustment is carried out, the connection between the first panel and the second panel is carried out through the T-shaped plug-in or the outer corner plug-in, the gap between the first panel and the second panel can be reduced, the T-shaped plug-in can lead the panels to be stably connected when the panel is on the plane wall body or the internal corner of the wall body, the outer corner plug-in can lead the panels to be connected at the external corner of the wall body, the connecting structure can be used in different environments, the first panel and the second panel are in friction fit through the saw-toothed grains on the T-shaped plug-in and the outer corner plug-in to match the saw-toothed grains of the connecting part, the connecting part and the connecting part can be adjusted in size, the connecting structure has high flexibility, and can be suitable for different panel thicknesses and use angles, the first connecting piece, the second connecting piece, the T-shaped plug-in units and the outer corner plug-in units are all aluminum components, so that the panel is guaranteed to have enough strength and rigidity during installation, and the panel has excellent stability and durability.
Drawings

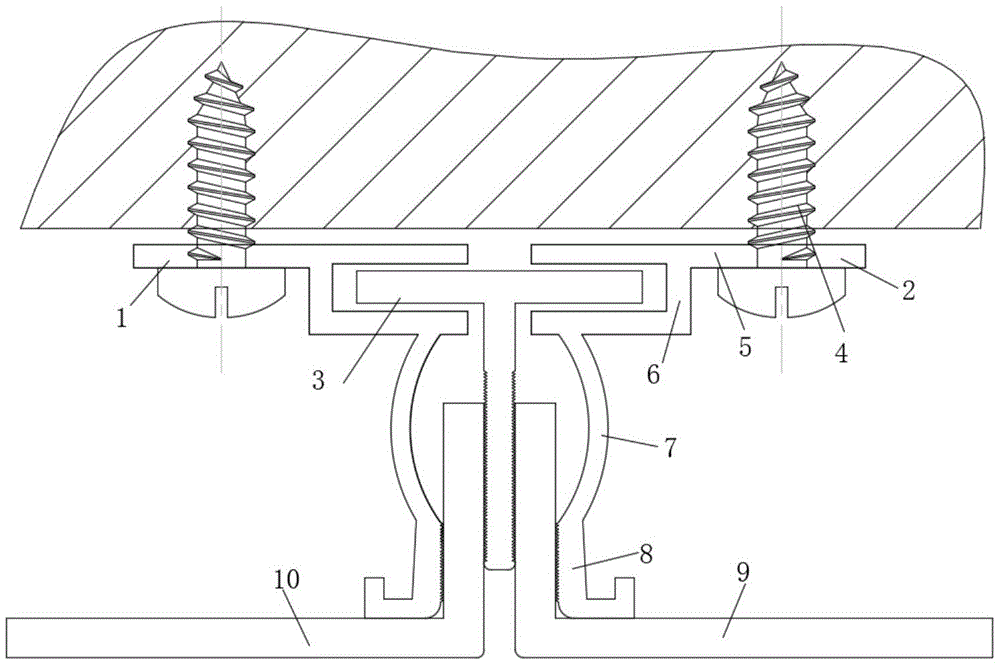

Fig. 1 is a schematic view of the connection mode of the 180 ° straight panel of the present invention;
FIG. 2 is a schematic view of the connection mode of the panels at the external corner of the present invention;
fig. 3 is a schematic view of the connection mode of the panels at the internal corners of the present invention.
The labels in the figures are: 1-a first connecting piece, 2-a second connecting piece, 3-a T-shaped plug-in, 4-a self-tapping screw, 5-a fixed part, 6-a concave buckling part, 7-an arc buckling part, 8-a connecting part, 9-a first panel, 10-a second panel and 11-an outer corner plug-in.
Detailed Description
The following description is made with reference to the accompanying drawings and examples, but not to be construed as limiting the invention.
Example (b): a connecting structure of a detachable assembled metal panel comprises a first connecting piece 1, a second connecting piece 2 and an insert, wherein the insert is arranged between the first connecting piece 1 and the second connecting piece 2; the first connecting piece 1 comprises a fixing part 5, the fixing part 5 is provided with a concave buckling part 6, an arc-shaped buckling part 7 is arranged on the lower side of the concave buckling part 6, a connecting part 8 positioned on the other side of the concave buckling part 6 is arranged on the arc-shaped buckling part 7, and the first connecting piece 1 and the second connecting piece 2 are consistent in structure; the plug-in components are arranged on the concave buckling parts 6, and a second panel 10 and a first panel 9 are arranged between the first connecting piece 1 and the plug-in components and between the second connecting piece 2 and the plug-in components respectively.
Example 1
The embodiment is a splicing case of a 180-degree straight panel of a residential house, and the specific implementation mode is as follows:
the first connecting piece 1 and the second connecting piece 2 are arranged oppositely along the concave buckling part 6, and the first connecting piece 1 and the second connecting piece 2 are symmetrical to each other.
The first connecting piece 1 and the second connecting piece 2 are fixed on a wall body through self-tapping screws 4.
The T-shaped plug-in 3 extends into and is in sliding fit with the concave buckling parts 6 of the first connecting piece 1 and the second connecting piece 2.
The first panel 9 and the second panel 10 are in sliding fit with the T-shaped insert 3.
All be equipped with the cockscomb structure line on connecting portion 8 and the T type plug-in components 3, the 8 inboard surfaces of connecting portion are equipped with the cockscomb structure line, and the vertical tip both sides surface of T type plug-in components 3 all is equipped with the cockscomb structure line, and the cockscomb structure line of connecting portion 8 and T type plug-in components 3 can restrict first panel 9 and second panel 10 and slide.
The fixing portion 5 and the connecting portion 8 can be adjusted according to the actual panel thickness.
The first connecting piece 1, the second connecting piece 2 and the T-shaped plug-in 3 are all aluminum members.
Example 2
The embodiment is a splicing case of a straight panel at an external corner of a residential house, and the specific implementation mode is as follows:
the first connecting piece 1 and the second connecting piece 2 are vertically arranged on two sides of the wall body.
The first connecting piece 1 and the second connecting piece 2 are fixed on a wall body through self-tapping screws 4.
The outer corner plug-in 11 extends into and is in sliding fit with the concave buckling parts 6 of the first connecting piece 1 and the second connecting piece 2.
The outer corner plug-in 11 comprises a square plug-in body, a pair of plug-in sheets arranged at a right angle are arranged at the right angle of the square plug-in body, and the plug-in sheets are matched with the concave buckling parts; sawtooth-shaped lines are arranged on two edges at the right angle; the zigzag lines of the connecting part 8 are matched with the zigzag lines of the outer corner insert 11 to limit the movement of the first panel 9 and the second panel 10.
The fixing portion 5 and the connecting portion 8 can be adjusted according to the actual panel thickness.
The first connecting piece 1, the second connecting piece 2 and the outer corner insert 11 are all aluminum members.
Example 3
The embodiment is a splicing case of straight panels at internal corners of a residential house, and the specific implementation mode is as follows:
the first connecting piece 1 and the second connecting piece 2 are arranged oppositely along the concave buckling part 6, the first connecting piece 1 and the second connecting piece 2 are symmetrical to each other, and the first connecting piece 1 and the second connecting piece 2 are arranged on the same side of the wall body.
The first connecting piece 1 and the second connecting piece 2 are fixed on a wall body through self-tapping screws 4.
The T-shaped plug-in 3 extends into and is in sliding fit with the concave buckling parts 6 of the first connecting piece 1 and the second connecting piece 2.
All be equipped with the sawtooth on connecting portion 8 and the T type plug-in components 3, the inside surface of connecting portion 8 has the cockscomb structure line, and the surface of T type plug-in components 3 both sides all is equipped with the cockscomb structure line, and connecting portion 8 and the 3 cockscomb structure lines of T type plug-in components can restrict first panel 9 and the slip of second panel 10.
The fixing portion 5 and the connecting portion 8 can be adjusted according to the actual panel thickness.
The first connecting piece 1, the second connecting piece 2 and the T-shaped plug-in 3 are all aluminum members.
Principle of operation
The utility model fixes the first connecting piece 1 on the wall body by the self-tapping screw 4, when the fixing point is a plane wall body or an internal corner, selecting a proper T-shaped plug-in 3, inserting the T-shaped plug-in 3 into the concave buckling part 6, then installing the second connecting piece 2 to ensure that the tooth-shaped T-shaped plug-in 3 is inserted into the second connecting piece 2, fixing the second connecting piece 2 on a wall body through a self-tapping screw 4, selecting a proper first panel 9 and a proper second panel 10, inserting the first panel 9 between the tooth-shaped T-shaped plug-in 3 and the first connecting piece 1, inserting the second panel 10 between the T-shaped plug-in 3 and the second connecting piece 2, wherein the sawteeth of the connecting part 8 in the first panel 9 and the first connecting piece 1 are in sliding fit with the sawteeth surface of the T-shaped plug-in 3, and the sawteeth of the connecting part 8 in the second panel 10 and the second connecting piece 2 are in sliding fit with the sawteeth surface of the tooth-shaped T-shaped plug-in 3;
when the fixing point is an external corner, a proper external corner plug-in 11 is selected, the external corner plug-in 11 is inserted into the concave buckling part 6, the second connecting piece 2 is installed, the external corner plug-in 11 is inserted into the second connecting piece 2, the second connecting piece 2 is fixed on a wall body through the self-tapping screw 4, a proper first panel 9 and a proper second panel 10 are selected, the first panel 9 is inserted between the external corner plug-in 11 and the first connecting piece 1, the second panel 10 is inserted between the external corner plug-in 11 and the second connecting piece 2, sawteeth of the connecting part 8 in the first connecting piece 1 and sawteeth of the external corner plug-in 11 are in sliding fit, and sawteeth of the connecting part 8 in the second connecting piece 2 and sawteeth of the external corner plug-in 11 are in sliding fit.
Claims (7)
1. The utility model provides a can dismantle connection structure of assembled metal decking which characterized in that: the connector comprises a first connecting piece (1), a second connecting piece (2) and a plug-in, wherein the plug-in is arranged between the first connecting piece (1) and the second connecting piece (2); the first connecting piece (1) comprises a fixing part (5), the fixing part (5) is provided with a concave buckling part (6), an arc-shaped buckling part (7) is arranged on the lower side of the concave buckling part (6), a connecting part (8) positioned on the other side of the concave buckling part (6) is arranged on the arc-shaped buckling part (7), and the first connecting piece (1) and the second connecting piece (2) are consistent in structure; the plug-in components are arranged in the concave buckling parts (6), and a second panel (10) and a first panel (9) are arranged between the first connecting piece (1) and the plug-in components and between the second connecting piece (2) and the plug-in components respectively.
2. The structure of connecting detachably mountable metal panels according to claim 1, wherein: the first panel (9) and the second panel (10) are slidably fitted with each other.
3. The structure of connecting detachably mountable metal panels according to claim 1, wherein: the insert is a T-shaped insert (3) or an outer corner insert (11).
4. The structure of connecting detachably mountable metal panels according to claim 3, wherein: the T-shaped plug-in (3) comprises a T-shaped plug-in body, and the vertical end part of the T-shaped plug-in body is provided with sawtooth-shaped grains.
5. The structure of connecting detachably mountable metal panels according to claim 3, wherein: the outer corner plug-in (11) comprises a square plug-in body, a pair of plug-in sheets arranged at a right angle are arranged at the right angle of the square plug-in body, and the plug-in sheets are matched with the concave buckling part (6); and sawtooth-shaped grains are arranged on two edges at the right angle.
6. The structure of connecting detachably mountable metal panels according to claim 3, wherein: the inner side surface of the connecting part (8) is provided with sawtooth-shaped lines.
7. The structure of connecting detachably mountable metal panels according to claim 3, wherein: the first connecting piece (1), the second connecting piece (2), the T-shaped plug-in piece (3) and the outer corner plug-in piece (11) are all aluminum components.
