CN215226498U

CN215226498U - Photo frame hanging device based on cultural art display

Info

Publication number: CN215226498U
Application number: CN202121484335.7U
Authority: CN
Inventors: 乔松; 包海默; 王程垟
Original assignee: Dalian Minzu University
Current assignee: Dalian Minzu University
Priority date: 2021-07-01
Filing date: 2021-07-01
Publication date: 2021-12-21
Anticipated expiration: 2031-07-01

Abstract

The utility model provides a photo holder frame linkage based on culture and art show relates to the photo holder frame and hangs technical field, include base, elevating system, transfer linkage, place board and photo holder frame, the top of base is provided with transfers linkage, one side of transferring linkage is provided with places the board, one side sliding connection who places the board has the photo holder frame, transfer linkage includes plectane, disc, spout, slider, straight-bar, bracing piece, recess and places the board, plectane fixed mounting is at elevating system's top. The slider can drive the straight-bar and slide with the bracing piece among the device to can adjust the distance between bracing piece and the straight-bar, thereby can hang the photo holder frame of width variation in size, and the in-process easy operation that hangs, its practicality is higher, and made things convenient for the operator to hang the photo holder frame, thereby improved operator's work efficiency.

Description

Photo frame hanging device based on cultural art display

Technical Field

The utility model relates to a culture art technical field especially relates to a photo holder frame linkage based on culture art show.

Background

The culture propaganda department holds the culture exhibition for propaganda culture meeting to provide some pictures and cooperate the narration shape picture of local culture development, and place in the photo holder frame, use corresponding linkage to hang the show to the photo holder frame, make things convenient for people to appreciate the culture propaganda picture that shows in the photo holder frame.

Traditional setting of hanging can only hang to a photo holder frame when using to when hanging some photo holder frames of width variation in size, traditional linkage can not fine show that hangs, its practicality is lower, and traditional linkage hangs the school at the photo holder frame when right and place, and the operator that is not convenient for hangs in the bolt fastening structure, thereby has reduced operator's work efficiency.

SUMMERY OF THE UTILITY MODEL

The utility model aims at solving the defects existing in the prior art and providing a photo frame hanging device based on cultural art display.

In order to achieve the above purpose, the utility model adopts the following technical scheme: the utility model provides a photo holder frame linkage based on culture art show, includes base, elevating system, transfers linkage, places board and photo holder frame, the top of base is provided with transfers and hangs the mechanism, one side of transferring and hanging the mechanism is provided with places the board, one side sliding connection who places the board has the photo holder frame.

For the convenience of moving the straight rod and the supporting rod, the adjusting suspension device comprises a circular plate, a circular disc, a sliding groove, a sliding block, a straight rod, a supporting rod, a groove and a placing plate, the circular plate is fixedly installed at the top of the lifting mechanism, the circular disc is fixedly installed with the circular disc through a vertical rod, the sliding groove is respectively formed in the circular disc and the circular plate, the sliding block is slidably connected with the sliding block and the sliding block, one is connected with the straight rod in a rotating mode on one side of the sliding block, the supporting rod is connected in a rotating mode on one side of the sliding block, the groove is formed in the bottom of the straight rod, the placing plate is fixedly installed on one side of the straight rod, a hanging groove is formed in the surface of the placing plate, and the adjusting suspension mechanism is fixedly installed at the top of the lifting mechanism.

In order to adjust the distance of the supporting rod conveniently, one end of the supporting rod is connected inside the groove in a sliding mode, the supporting rod is arranged on one side of the circular plate, and the straight rod is arranged on one side of the circular plate.

In order to conveniently hang the photo frame, hanging rings are fixedly mounted on two sides of the photo frame, the hanging rings are connected inside the hanging grooves in a sliding mode, and the number of the straight rods and the number of the supporting rods are twelve respectively.

For the convenience goes up and down to the plectane, elevating system includes motor, threaded rod, threaded sleeve and spacing section of thick bamboo, motor fixed mounting is in the inside of base, the output fixed mounting of motor has the threaded rod, the surface cover of threaded rod is equipped with the threaded sleeve, the top fixed mounting of base has spacing section of thick bamboo.

In order to limit the threaded sleeve conveniently, the external structure of the threaded sleeve is octagonal, and the limiting cylinder is provided with eight-side columns.

In order to facilitate the up-and-down movement of the threaded sleeve, the threaded sleeve is connected inside the limiting cylinder in a sliding mode, and the circular plate is fixedly installed at the top of the threaded sleeve.

Compared with the prior art, the utility model has the advantages and positive effects that,

1. the utility model discloses in, the slider can drive the straight-bar and slide with the bracing piece among the device to can adjust the distance between bracing piece and the straight-bar, thereby can hang the photo holder frame of width variation in size, and the in-process easy operation that hangs, its practicality is higher, and made things convenient for the operator to hang the photo holder frame, thereby improved operator's work efficiency.

2. The utility model discloses in, threaded rod and threaded sleeve among the device can go up and down to moving linkage, and threaded rod cooperation motor has realized automatic rising to made things convenient for the operator to hang the photo holder frame, and threaded sleeve and a spacing section of thick bamboo's design, more pleasing to the eye, can not influence the sight and appreciate.

Drawings

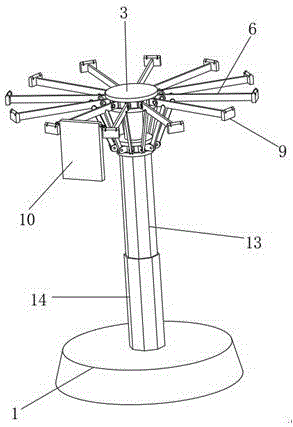

FIG. 1 is a schematic structural view of a photo frame suspension device based on cultural art display according to the present invention;

FIG. 2 is a schematic structural view of a circular plate and a circular disk in the photo frame suspension device based on the cultural art exhibition of the present invention;

FIG. 3 is a schematic structural view of a photo frame in a photo frame suspension device based on cultural art exhibition;

fig. 4 is a cross-sectional view of the photo frame hanging device based on the cultural art display.

Illustration of the drawings:

1. a base; 2. a circular plate; 3. a disc; 4. a chute; 5. a slider; 6. a straight rod; 7. a support bar; 8. a groove; 9. placing the plate; 10. a photo frame; 11. a motor; 12. a threaded rod; 13. a threaded sleeve; 14. a limiting cylinder.

Detailed Description

In order to make the objects, technical solutions and advantages of the present invention more clearly understood, the present invention is further described in detail below with reference to the accompanying drawings and embodiments. It should be understood that the specific embodiments described herein are merely illustrative of the invention and are not intended to limit the invention.

In the description of the present invention, it is to be understood that the terms "length", "width", "upper", "lower", "front", "rear", "left", "right", "vertical", "horizontal", "top", "bottom", "inner", "outer", and the like indicate orientations or positional relationships based on those shown in the drawings, and are merely for convenience of description and simplicity of description, and do not indicate or imply that the device or element being referred to must have a particular orientation, be constructed and operated in a particular orientation, and thus, should not be construed as limiting the present invention. In addition, in the description of the present invention, "a plurality" means two or more unless specifically limited otherwise.

Referring to fig. 1-4, the present invention provides a technical solution: a photo frame hanging device based on cultural and artistic exhibition comprises a base 1, a lifting mechanism, a transferring hanging device, a placing plate 9 and a photo frame 10, wherein the lifting mechanism is arranged at the top of the base 1, the transferring hanging mechanism is fixedly arranged at the top of the lifting mechanism, the transferring hanging device comprises a circular plate 2, a circular plate 3, a sliding groove 4, sliding blocks 5, straight rods 6, supporting rods 7, grooves 8 and the placing plate 9, the circular plate 2 is fixedly arranged at the top of the lifting mechanism, the circular plate 2 is fixedly arranged at the top of a threaded sleeve 13, the circular plate 3 is fixedly arranged at the top of the circular plate 2 through a vertical rod, the sliding grooves 4 are respectively arranged inside the circular plate 3 and the circular plate 2, sliding blocks 5 are connected inside the sliding grooves 4 in a sliding manner, one side of one sliding block 5 is rotatably connected with the straight rod 6, one side of the other sliding block 5 is rotatably connected with the supporting rod 7, and the bottom of the straight rod 6 is provided with the grooves 8, one end sliding connection of bracing piece 7 is in the inside of recess 8, set up recess 8, make things convenient for bracing piece 7 to support straight-bar 6, and straight-bar 6 can separate with bracing piece 7, it is folding with bracing piece 7 not to influence straight-bar 6, bracing piece 7 sets up the one side at plectane 2, straight-bar 6 sets up the one side at disc 3, the quantity of straight-bar 6 and bracing piece 7 is twelve respectively, it adjusts the distance between a plurality of straight-bars 6 and bracing piece 7 to set up spout 5 and slider 4 to be convenient for the operator, thereby the device supports the photo holder frame 10 that hangs the width difference, its practicality is higher, thereby made things convenient for the operator to hang the photo holder frame 10 of the different width of show, and have redundantly when straight-bar 6, under the condition of not using, straight-bar 6 can be folded with bracing piece 7, straight-bar 6 and bracing piece 7 perpendicular to ground, and can not influence photo holder frame 10 and hang.

One side fixed mounting of straight-bar 6 places board 9, places the surface of board 9 and has seted up the link, the equal fixed mounting in both sides of photo holder frame 10 has the link, link sliding connection is in the inside of link, one side of transferring the suspension mechanism is provided with places board 9, one side sliding connection who places board 9 has photo holder frame 10, set up link and link, the operator of being convenient for hangs photo holder frame 10, its operation is comparatively swift convenient to improve the speed that the operator is hanging a plurality of photo holder frames 10.

Elevating system includes motor 11, threaded rod 12, threaded sleeve 13 and spacing section of thick bamboo 14, motor 11 fixed mounting is in base 1's inside, motor 11's output fixed mounting has threaded rod 12, threaded rod 12's surface cover is equipped with threaded sleeve 13, motor 11 drives under threaded rod 12 and threaded sleeve 13's the cooperation, can realize automatic rising, thereby made things convenient for the operator to rise photo holder frame 10, and when photo holder frame 10 highly higher, the device also is convenient for the operator to hang higher photo holder frame 10.

The exterior structure of threaded sleeve 13 is the octagon, base 1's top fixed mounting has a spacing section of thick bamboo 14, the shape of a spacing section of thick bamboo 14 has the eight-sided post, threaded sleeve 13 sliding connection is in the inside of a spacing section of thick bamboo 14, when threaded sleeve 13 is under the drive of threaded rod 12, when needing to reciprocate, the spacing section of thick bamboo 14 of eight-sided post can be spacing for the threaded sleeve 13 of octagon to the exterior structure, and a spacing section of thick bamboo 14 not only can carry on spacingly to threaded sleeve 13, and can not influence pleasing to the eye, the sight of attending the art exhibition personnel of painting has been improved.

The working principle is as follows: when an operator hangs the photo frame 10, firstly, the distance between the straight bars 6 is adjusted according to the width of the photo frame 10, then one end of the supporting rod 7 is slid into the groove 8, at the moment, the straight bars 6 and the ground are kept in a horizontal state, then the hanging rings at two sides of the photo frame 10 are respectively slid into the hanging grooves at the tops of the two placing plates 9 by the operator, at the moment, the photo frame 10 is fixed between the two straight bars 6, when the operator hangs the photo frame 10 in sequence, redundant straight bars 6 and supporting rods 7 can appear, at the moment, the supporting rod 7 does not need to support the straight bars 6, so that the supporting rods 7 and the straight bars 6 are perpendicular to the ground, when the hung photo frame 10 needs to be adjusted in height, the operator starts the motor 11, the output end of the motor 11 drives the threaded rod 12 to rotate, so that the threaded sleeve 13 is driven by the limiting rod 12 and the threaded sleeve 14, and the threaded sleeve 13 moves up and down in the limiting cylinder 14, thereby realizing the lifting.

The above description is only a preferred embodiment of the present invention, and is not intended to limit the present invention in other forms, and any person skilled in the art may use the above-mentioned technical contents to change or modify the equivalent embodiment into equivalent changes and apply to other fields, but any simple modification, equivalent change and modification made to the above embodiments according to the technical matters of the present invention will still fall within the protection scope of the technical solution of the present invention.

Claims

1. The utility model provides a photo holder frame linkage based on culture art show, includes base (1), elevating system, transfers linkage, places board (9) and photo holder frame (10), its characterized in that: the top of the base (1) is provided with a movable suspension mechanism, one side of the movable suspension mechanism is provided with a placing plate (9), and one side of the placing plate (9) is connected with a photo frame (10) in a sliding mode.

2. The photo frame hanging device based on cultural artistic exhibition as claimed in claim 1, wherein: the transfer hanging device comprises a circular plate (2), a disc (3), a sliding groove (4), a sliding block (5), a straight rod (6), a supporting rod (7), a groove (8) and a placing plate (9), wherein the circular plate (2) is fixedly arranged at the top of the lifting mechanism, the disc (3) is fixedly arranged at the top of the circular plate (2) through a vertical rod, the sliding groove (4) is respectively formed in the disc (3) and the circular plate (2), the sliding block (5) is slidably connected in the sliding groove (4), one side of one sliding block (5) is rotatably connected with the straight rod (6), one side of the other sliding block (5) is rotatably connected with the supporting rod (7), the groove (8) is formed in the bottom of the straight rod (6), the placing plate (9) is fixedly arranged on one side of the straight rod (6), and a hanging groove is formed in the surface of the placing plate (9), the adjusting suspension mechanism is fixedly arranged at the top of the lifting mechanism.

3. The photo frame hanging device based on cultural artistic exhibition as claimed in claim 2, wherein: one end of the supporting rod (7) is connected to the inside of the groove (8) in a sliding mode, the supporting rod (7) is arranged on one side of the circular plate (2), and the straight rod (6) is arranged on one side of the circular plate (3).

4. The photo frame hanging device based on cultural artistic exhibition as claimed in claim 2, wherein: hanging rings are fixedly mounted on two sides of the photo frame (10), the hanging rings are connected inside the hanging grooves in a sliding mode, and the number of the straight rods (6) and the number of the supporting rods (7) are twelve respectively.

5. The photo frame hanging device based on cultural artistic exhibition as claimed in claim 2, wherein: elevating system includes motor (11), threaded rod (12), threaded sleeve (13) and spacing section of thick bamboo (14), motor (11) fixed mounting is in the inside of base (1), the output fixed mounting of motor (11) has threaded rod (12), the surface cover of threaded rod (12) is equipped with threaded sleeve (13), the top fixed mounting of base (1) has spacing section of thick bamboo (14).

6. The picture frame hanging device based on cultural artistic exhibition as claimed in claim 5, wherein: the external structure of the threaded sleeve (13) is octagonal, and the limiting cylinder (14) is provided with eight-side columns.

7. The picture frame hanging device based on cultural artistic exhibition as claimed in claim 5, wherein: the screw sleeve (13) is connected inside the limiting cylinder (14) in a sliding mode, and the circular plate (2) is fixedly installed at the top of the screw sleeve (13).
