Abstract
The utility model discloses a power equipment cabinet with good heat dissipation effect, which relates to the field of power equipment and comprises an equipment cabinet body, wherein two air inlet pipes are respectively arranged at the upper end and the lower end of the equipment cabinet body, the air inlet pipes are connected to a connecting groove, a dustproof filter screen is arranged inside the connecting groove, a first dustproof fan and a second dustproof fan are respectively and fixedly connected to one side of the connecting groove, a connecting grid is arranged above the inner wall at the left side of the equipment cabinet body, a heat dissipation plate is arranged below the connecting grid, a louver is arranged inside the heat dissipation plate, one side of the louver is provided with a connecting hole which extends to the inside of the equipment cabinet body, a fixing groove is connected to the connecting hole, a metal filter screen is arranged inside the fixing groove, a temperature detector detects the temperature in the equipment cabinet body, when the temperature is too high, the first dustproof fan and the second dustproof fan are simultaneously started, the two fans absorb external cold air and blow hot air out from the louver and the connecting grid to dissipate the heat, the metal filter screen and the dustproof filter screen prevent dust from entering the equipment cabinet body.
Description
Technical Field
The utility model relates to a power equipment technical field, concretely relates to power equipment cabinet that radiating effect is good.
Background
The electric power cabinet can be frequently used in electric power equipment, the electric power cabinet is mainly used for storing storage equipment of a voltmeter, an ammeter or other electric power equipment, and is mainly used for protecting the equipment from short circuit collision and other accidents, but the electric power cabinet in the current market generally comprises a metal shell and a cabinet door which can be closed, the inside is not breathable, the heat dissipation performance is poor, the electric power equipment inside the cabinet can easily generate heat, if the heat dissipation is not carried out in time, the instrument of the internal instrument can be easily damaged, and the safety potential hazard is serious.
SUMMERY OF THE UTILITY MODEL
In order to overcome prior art's above-mentioned defect, the utility model provides a power equipment cabinet that radiating effect is good, when using, heating panel and fixed heating panel can absorb the internal heat of cabinet earlier, it can be automatic for the internal heat dissipation of cabinet to connect grid and shutter simultaneously, this internal temperature of thermodetector check out test set cabinet, when the high temperature, start first dustproof fan and the dustproof fan of second simultaneously, two fans absorb outside cold air and blow off the hot-air by shutter and connection grid, be heating panel and fixed heating panel cooling simultaneously, in order to solve the problem that proposes in the above-mentioned background art.
In order to achieve the above object, the utility model provides a following technical scheme:
a power equipment cabinet with good heat dissipation effect comprises an equipment cabinet body, wherein a mounting plate is arranged at the bottom of the equipment cabinet body, a telescopic rod is fixedly connected between the mounting plate and the equipment cabinet body, a shockproof spring is arranged on the telescopic rod, two air inlet pipes are respectively arranged at the upper end and the lower end of the right side of the equipment cabinet body, the air inlet pipes are connected to a connecting groove in the inner wall of the equipment cabinet body, a dustproof filter screen is arranged in the connecting groove, a first dustproof fan and a second dustproof fan are respectively and fixedly connected to the connecting groove in the direction of the equipment cabinet body, a connecting grid is arranged above the inner wall of the left side of the equipment cabinet body, a heat dissipation plate is arranged below the connecting grid, a shutter is arranged in the heat dissipation plate, a connecting hole is formed in one side of the shutter and extends to the inside of the equipment cabinet body, a fixing groove is connected to the connecting hole, a metal filter screen is arranged in the fixing groove, a collecting groove is arranged in the equipment cabinet body and is arranged in the connecting hole, the inner wall is equipped with thermodetector, goes up and is equipped with fixed heating panel on the inner wall at the bottom of the equipment cabinet body.
In a preferred embodiment, four mounting holes are formed in the periphery of the bottom of the mounting plate, the anti-vibration springs are connected between the equipment cabinet body and the mounting plate, and the anti-vibration springs and the telescopic rods are provided with a plurality of groups which are distributed in a rectangular array.
In a preferred embodiment, the connection grid is connected with connection holes, fixing grooves and metal filter screens on one side as well as on one side of a louver, the louver and the connection grid are identical in size, and the collecting groove is arranged at the bottom of the louver.
In a preferred embodiment, the metal filter screen and the dustproof filter screen have the same filter diameter, the connecting groove and the fixing groove are both connected to the outside of the equipment cabinet body, and the first dustproof fan and the second dustproof fan are respectively consistent with the height of the louver and the height of the connecting grid.
In a preferred embodiment, the size of the connecting hole is the same as that of the shutter, the upper part of the equipment cabinet body is arranged with a high middle part and two low sides, and eaves are arranged on two sides of the equipment cabinet body.
The utility model discloses a technological effect and advantage:
when the device cabinet is used, the top of the device cabinet body and the eave are arranged, so that the device cabinet body is not easy to accumulate water and enter water when raining, the heat dissipation plate and the fixed heat dissipation plate can absorb heat in the device cabinet body firstly, meanwhile, the heat in the device cabinet body is dissipated from the connecting grids and the shutters, when the temperature of the fixed heat dissipation plate is overhigh, the second dustproof fan is started, the second dustproof fan absorbs external cold air through the air inlet pipe, hot air is blown out through the connecting grids, the device cabinet body and the fixed heat dissipation plate are cooled, the temperature detector detects the temperature in the device cabinet body, when the temperature is overhigh, the first dustproof fan and the second dustproof fan are automatically started, the first dustproof fan absorbs external cold air, hot air is blown out through the shutters, heat dissipation is simultaneously performed through the heat dissipation plate, the metal filter screen and the dustproof filter screen prevent dust from entering the device cabinet body, and the collecting tank collects dust blown by the two fans and entering the device cabinet body, the telescopic link uses with the cooperation of shockproof spring to make equipment cabinet body have shock attenuation buffering effect, compare with prior art, had the radiating efficiency higher and dustproof progress.
Drawings

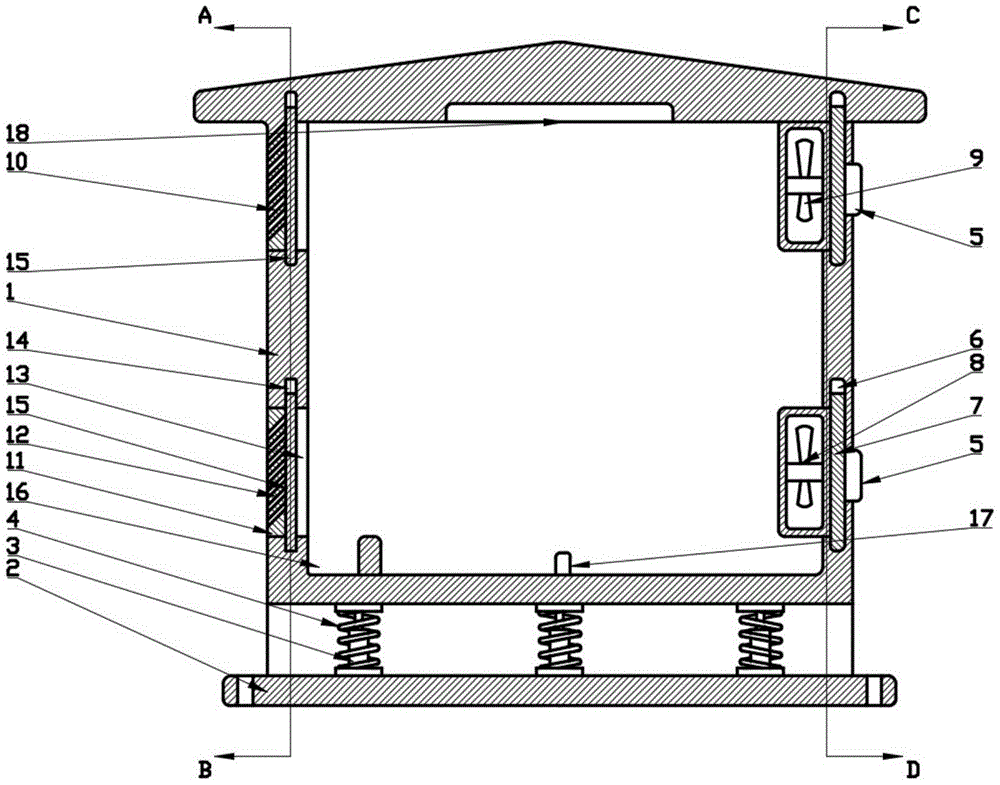

Fig. 1 is a main sectional view of the present invention;
FIG. 2 is a sectional view taken along the line A-B of the present invention;
FIG. 3 is a cross-sectional view taken along line C-D of the present invention;
fig. 4 is a left side view of the present invention.
The reference signs are: 1. the equipment cabinet comprises an equipment cabinet body, a mounting plate 2, an air inlet pipe 5, an air inlet pipe 6, a connecting groove 7, a dustproof filter screen 8, a first filter fan 9, a second filter fan 10, a connecting grid 10, a heat dissipation plate 11, a louver 12, a connecting hole 13, a fixing groove 14, a metal filter screen 15, a collecting groove 16, a temperature detector 17 and a heat dissipation plate 18.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
As shown in figures 1-4, the utility model provides a power equipment cabinet with good heat dissipation effect, which comprises an equipment cabinet body 1, wherein the bottom of the equipment cabinet body 1 is provided with a mounting plate 2, a telescopic rod 3 is fixedly connected between the mounting plate 2 and the equipment cabinet body 1, the telescopic rod 3 is provided with a shockproof spring 4, the upper end and the lower end of the right side of the equipment cabinet body 1 are respectively provided with two air inlet pipes 5, the air inlet pipes 5 are connected to a connecting groove 6 in the inner wall of the equipment cabinet body 1, a dustproof filter screen 7 is arranged in the connecting groove 6, the connecting groove 6 is respectively and fixedly connected with a first dustproof fan 8 and a second dustproof fan 9 towards the equipment cabinet body 1, a heat dissipation plate 11 is arranged above the inner wall of the left side of the equipment cabinet body 1 and below a connecting grid 10, a blind window 12 is arranged in the heat dissipation plate 11, a connecting hole 13 is arranged on one side of the blind window 12 and extends to the inside of the equipment cabinet body 1, be connected with fixed slot 14 on the connecting hole 13, fixed slot 14 inside is equipped with metal filter screen 15, the inboard equipment cabinet body 1 inside of connecting hole 13 is equipped with collecting vat 16, be equipped with thermodetector 17 on the inner wall at the bottom of equipment cabinet body 1, be equipped with fixed heating panel 18 on the upper inner wall.
Four mounting holes are arranged around the bottom of the mounting plate 2, the anti-vibration springs 4 are connected between the equipment cabinet body 1 and the mounting plate 2, the anti-vibration springs 4 and the telescopic rods 3 are provided with multiple groups which are distributed in a rectangular array, and the telescopic rods 3 and the anti-vibration springs 4 are matched for use, so that the equipment cabinet body 1 has a damping and buffering effect.
Connecting grid 10 one side all is connected with connecting hole 13, fixed slot 14 and metal filter screen 15 with shutter 12 one side the same, shutter 12 is unanimous with connecting grid 10 size, collecting vat 16 is in shutter 12 bottom, can collect the dust after metal filter screen 15 filters at bottom collecting vat 16, and shutter 12 and connecting grid 10 make the difficult equipment cabinet body 1 that gets into of outside dust.
The filter diameter of metal filter screen 15 and dustproof filter screen 7 is unanimous, outside spread groove 6 and fixed slot 14 all were connected to equipment cabinet body 1, first dustproof fan 8 and second dustproof fan 9 respectively with shutter 12 with be connected grid 10 highly uniform, make first dustproof fan 8 and second dustproof fan 9 can in time be for heating panel 11 and fixed heating panel 18 heat dissipation.
Connecting hole 13 is unanimous with shutter 12 size, 1 top of equipment cabinet body is the low setting of high both sides in the middle of, 1 both sides of equipment cabinet body are equipped with the eave, make equipment cabinet body 1 be difficult for ponding and intake when raining.
The implementation mode is specifically as follows:
when the device is used, the top of the device cabinet body 1 and the eave are arranged, so that the device cabinet body is not easy to accumulate water and enter water when raining, the heat dissipation plate 11 and the fixed heat dissipation plate 18 can firstly absorb the heat in the device cabinet body 1, meanwhile, the heat in the device cabinet body 1 is dissipated from the connecting grids 10 and the shutters 12, when the temperature of the fixed heat dissipation plate 18 is overhigh, the second dustproof fan 9 is started, the second dustproof fan 9 absorbs external cold air through the air inlet pipe 5 and blows out hot air through the connecting grids 10 to dissipate heat of the device cabinet body 1 and the fixed heat dissipation plate 18, the temperature detector 17 detects the temperature in the device cabinet body 1, when the temperature is overhigh, the first dustproof fan 8 and the second dustproof fan 9 are automatically started, the first dustproof fan 8 absorbs external cold air and blows out hot air through the shutters 12 and dissipates heat of the heat dissipation plate 11, the metal filter screen 15 and the dustproof filter screen 7 prevent dust from entering the device cabinet body 1, the collecting groove 16 collects dust blown by the two fans and entering the equipment cabinet body 1, and the telescopic rod 3 and the shockproof spring 4 are matched for use, so that the equipment cabinet body 1 has a damping and buffering effect.
The utility model discloses the theory of operation: referring to fig. 1-4, the temperature detector 17 detects the temperature in the equipment cabinet body 1, when the temperature is too high, the first dustproof fan 8 and the second dustproof 9 fan are started simultaneously, the two fans absorb the external cold air, the hot air is blown out by the shutter 12 and the connecting grid 10 to complete heat dissipation, and the metal filter screen 15 and the dustproof filter screen 7 prevent the dust from entering the equipment cabinet body 1.
The points to be finally explained are: first, in the description of the present application, it should be noted that, unless otherwise specified and limited, the terms "mounted," "connected," and "connected" should be understood broadly, and may be a mechanical connection or an electrical connection, or a communication between two elements, and may be a direct connection, and "upper," "lower," "left," and "right" are only used to indicate a relative positional relationship, and when the absolute position of the object to be described is changed, the relative positional relationship may be changed;
secondly, the method comprises the following steps: in the drawings of the disclosed embodiments of the present invention, only the structures related to the disclosed embodiments are referred to, and other structures can refer to the common design, and under the condition of no conflict, the same embodiment and different embodiments of the present invention can be combined with each other;
and finally: the above description is only for the preferred embodiment of the present invention and should not be taken as limiting the invention, and any modifications, equivalent replacements, improvements, etc. made within the spirit and principle of the present invention should be included in the protection scope of the present invention.
Claims (5)
1. The utility model provides a power equipment cabinet that radiating effect is good, includes equipment cabinet body (1), its characterized in that: the equipment cabinet is characterized in that a mounting plate (2) is arranged at the bottom of an equipment cabinet body (1), a telescopic rod (3) is fixedly connected between the mounting plate (2) and the equipment cabinet body (1), a shockproof spring (4) is arranged on the telescopic rod (3), two air inlet pipes (5) are respectively arranged at the upper end and the lower end of the right side of the equipment cabinet body (1), the air inlet pipes (5) are connected to a connecting groove (6) in the inner wall of the equipment cabinet body (1), a dustproof filter screen (7) is arranged in the connecting groove (6), a first dustproof fan (8) and a second dustproof fan (9) are respectively and fixedly connected to the connecting groove (6) in the direction of the equipment cabinet body (1), a heat dissipation plate (11) is arranged below a connecting grid (10) arranged above the inner wall of the left side of the equipment cabinet body (1), a blind window (12) is arranged in the heat dissipation plate (11), and a connecting hole (13) is formed in one side of the blind window (12) until the equipment cabinet body (1), be connected with fixed slot (14) on connecting hole (13), fixed slot (14) inside is equipped with metal filter screen (15), connecting hole (13) inboard equipment cabinet body (1) inside is equipped with collecting vat (16), be equipped with thermodetector (17) on the inner wall at the bottom of equipment cabinet body (1), be equipped with fixed heating panel (18) on the upper inner wall.
2. The power equipment cabinet with good heat dissipation effect as claimed in claim 1, wherein: four mounting holes are formed in the periphery of the bottom of the mounting plate (2), the shockproof springs (4) are connected between the equipment cabinet body (1) and the mounting plate (2), and the shockproof springs (4) and the telescopic rods (3) are provided with multiple groups which are distributed in a rectangular array mode.
3. The power equipment cabinet with good heat dissipation effect as claimed in claim 1, wherein: connecting grid (10) one side all is connected with connecting hole (13), fixed slot (14) and metal filter screen (15) with shutter (12) one side the same, shutter (12) are unanimous with connecting grid (10) size, collecting vat (16) are in shutter (12) bottom.
4. The power equipment cabinet with good heat dissipation effect as claimed in claim 1, wherein: the metal filter screen (15) are the same with dustproof filter screen (7) filter diameter, outside connecting groove (6) and fixed slot (14) all were connected to equipment cabinet body (1), first dustproof fan (8) and second dustproof fan (9) are respectively with shutter (12) and connection grid (10) highly uniform.
5. The power equipment cabinet with good heat dissipation effect as claimed in claim 1, wherein: the connecting hole (13) is consistent with the shutter (12), the upper part of the equipment cabinet body (1) is high in the middle and low in two sides, and eaves are arranged on two sides of the equipment cabinet body (1).
