CN215119663U - A shock attenuation heat dissipation electric power cabinet for electric power engineering - Google Patents
A shock attenuation heat dissipation electric power cabinet for electric power engineering Download PDFInfo
- Publication number
- CN215119663U CN215119663U CN202121659609.1U CN202121659609U CN215119663U CN 215119663 U CN215119663 U CN 215119663U CN 202121659609 U CN202121659609 U CN 202121659609U CN 215119663 U CN215119663 U CN 215119663U
- Authority
- CN
- China
- Prior art keywords
- electric power
- power cabinet
- heat dissipation
- shock
- cabinet
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
Images
Landscapes
- Cooling Or The Like Of Electrical Apparatus (AREA)
Abstract
本实用新型公开了一种用于电力工程的减震散热电力柜，涉及电力柜技术领域。本实用新型包括装置本体、第一减震装置、第二减震装置以及散热装置，第一减震装置设置在装置本体内部，第二减震装置设置在第一减震装置左右两侧，散热装置设置在装置本体表面。本实用新型通过装置本体对电力柜起到保护作用，同时第一减震装置有效缓解电力柜竖直方向的震动作用，配合第二减震装置有效减小电力柜水平方向的震动作用，大大提高了电力柜的减震效果，散热装置提高了电力柜使用过程中的散热性，防止电力柜内部产生热量较大，无法及时散出，造成设备内部元器件的损坏，确保电力柜的使用效果。
The utility model discloses a shock-absorbing and heat-dissipating power cabinet for power engineering, which relates to the technical field of power cabinets. The utility model comprises a device body, a first shock absorbing device, a second shock absorbing device and a heat dissipation device. The first shock absorbing device is arranged inside the device body, and the second shock absorbing device is arranged on the left and right sides of the first shock absorbing device to dissipate heat. The device is arranged on the surface of the device body. The utility model protects the power cabinet through the device body, at the same time, the first shock absorbing device effectively relieves the vertical vibration of the power cabinet, and cooperates with the second shock absorbing device to effectively reduce the horizontal vibration of the power cabinet. The shock absorption effect of the power cabinet is improved, and the heat dissipation device improves the heat dissipation during the use of the power cabinet, preventing the heat generated inside the power cabinet from being too large and unable to be dissipated in time, causing damage to the internal components of the equipment and ensuring the use effect of the power cabinet.
Description
Technical Field
The utility model belongs to the technical field of the electric power cabinet, especially, relate to a shock attenuation heat dissipation electric power cabinet for electric power engineering.
Background
The electric power cabinet is an important facility in an electric power system, is mainly used for storing a voltmeter, an ammeter or other electric power equipment, and is more and more widely applied along with the rapid development of the electric power system.
At present, current electric power cabinet gas permeability is relatively poor, produces the unable timely dissipation of a large amount of heats in the use, seriously influences the result of use of the inside components and parts of electric power cabinet, causes the damage of inside components and parts easily, and the shock attenuation effect of electric power cabinet is relatively poor simultaneously, seriously influences the stability of inside components and parts, leads to droing of inside components and parts easily. Therefore, the damping and heat dissipation electric power cabinet for the electric power engineering is provided.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to prior art's defect and not enough, provide a shock attenuation heat dissipation electric power cabinet for electric power engineering.
In order to solve the technical problem, the utility model discloses a realize through following technical scheme:
the utility model relates to a shock attenuation heat dissipation electric power cabinet for electric power engineering, including device body, first damping device, second damping device and heat abstractor, the first damping device sets up inside the device body, the second damping device sets up in the first damping device left and right sides, the heat abstractor sets up on the device body surface;
the device body comprises a protective shell, a base is arranged on the lower surface of the protective shell, an electric cabinet is arranged in the protective shell, the first damping device comprises a fixed block, the fixed block is arranged on the lower surface of the electric cabinet, a piston rod is fixed on the lower surface of the fixed block, a buffer slot is arranged on the upper surface of the base corresponding to the piston rod, the bottom of the buffer groove is provided with a first buffer spring, the second damping device comprises connecting plates which are oppositely hinged on the left side and the right side of the lower surface of the fixed block, the left side and the right side of the buffer groove are both provided with sliding grooves, the lower end of the connecting plate is hinged with a sliding block, second buffer springs are connected between the left surface and the right surface of the sliding block and the inner wall of the sliding grooves, the heat dissipation device comprises first heat dissipation fans, the two first heat dissipation fans are oppositely arranged on the left surface and the right surface of the electric power cabinet, and two second heat dissipation fans are arranged on the rear surface of the protective shell.
Through the protective housing has improved the protecting effect of electric power cabinet, and the piston rod has improved the shock attenuation effect of electric power cabinet with first buffer spring mutually supporting, and the shock attenuation effect of device has further been improved to the cooperation of connecting plate and slider simultaneously, combines second buffer spring, and first radiator fan and second radiator fan mutually support, have ensured the inside radiating effect of electric power cabinet and protective housing.
Preferably, surface mounting has the shielding plate on the protecting crust, a plurality of drainage grooves have been seted up to the shielding plate upper surface, through the dustproof rain-proof effect of device has been ensured to the shielding plate, and the drainage groove is convenient for the water conservancy diversion of rainwater simultaneously, prevents inside the rainwater gathering entering device.
Preferably, a limiting plate is arranged between the lower end of the piston rod and the first buffer spring, a limiting sleeve is arranged on the outer side of the buffer groove, the piston rod is in sliding fit with the limiting sleeve, the limiting plate is matched with the limiting sleeve to prevent the piston rod from falling off, and the stability of the first damping device is ensured.
Preferably, the sliding groove is internally provided with a sliding rod, the sliding rod penetrates through the second buffer spring and the sliding block, the sliding block is in sliding fit with the sliding rod, and the stability of the second damping device is ensured through the sliding rod.
Preferably, the shutter is installed corresponding to first radiator fan on the two surfaces about the protective housing, the shutter inboard and the second radiator fan outside are provided with dust screen and fan casing respectively, through the shutter has further improved the radiating effect of device, and dust screen and fan casing have effectively improved the dustproof effect of device.
The utility model discloses following beneficial effect has:
the utility model discloses a protecting crust has improved the protecting effect of electric power cabinet, and the piston rod is mutually supported with first buffer spring and has improved the shock attenuation effect of electric power cabinet, and the damping effect of device has further been improved to the cooperation of connecting plate and slider simultaneously, combines second buffer spring, and first radiator fan mutually supports with the second radiator fan, has ensured the inside radiating effect of electric power cabinet and protecting crust.
The utility model discloses a limiting plate and limit sleeve cooperate and prevent that the piston rod from droing, have ensured first damping device's stability.
The utility model discloses a shutter has further improved the radiating effect of device, and the dust screen has effectively improved the dustproof effect of device with the fan casing.
Of course, it is not necessary for any particular product to achieve all of the above-described advantages at the same time.
Drawings
In order to more clearly illustrate the technical solutions of the embodiments of the present invention, the drawings used in the description of the embodiments will be briefly introduced below, and it is obvious that the drawings in the following description are only some embodiments of the present invention, and it is obvious for those skilled in the art that other drawings can be obtained according to these drawings without creative efforts.

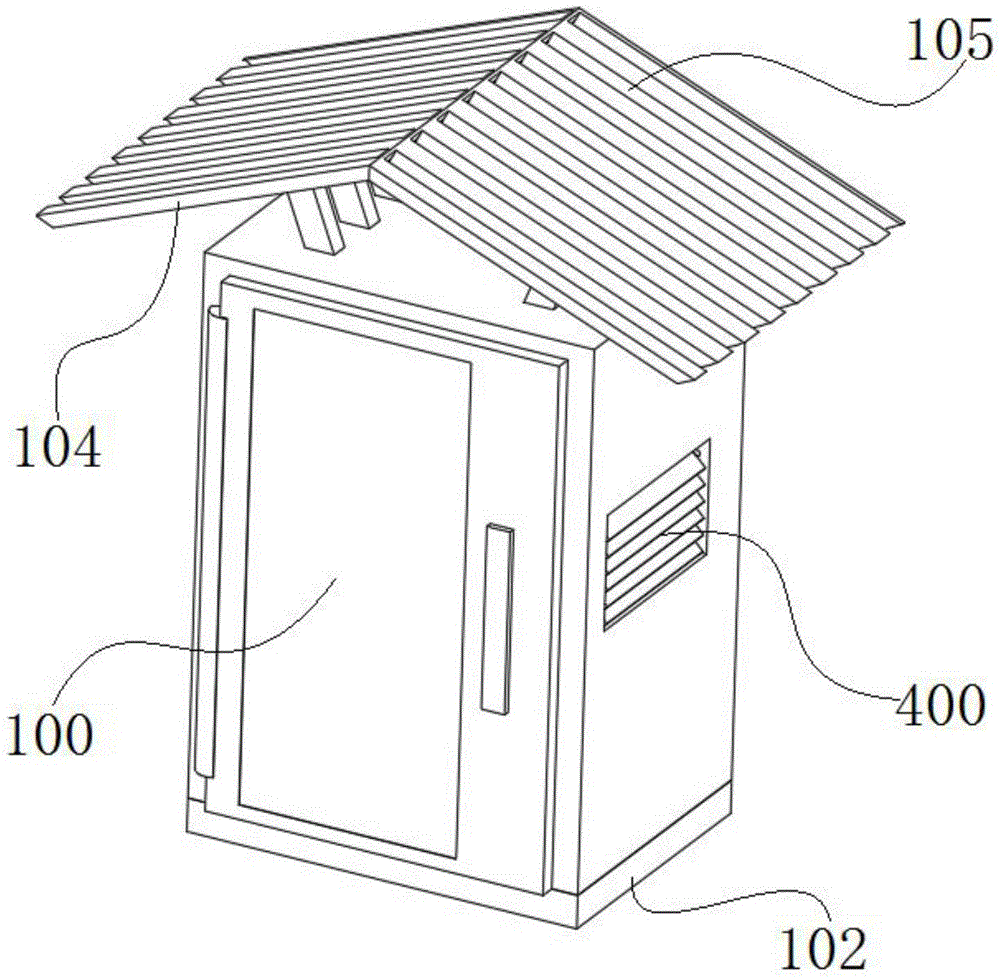

Fig. 1 is a schematic view of the overall structure of the present invention;
fig. 2 is a front view of the present invention;
fig. 3 is a top view of the present invention;
FIG. 4 is a schematic structural view of section A-A of FIG. 2;
FIG. 5 is a schematic structural view of section B-B of FIG. 3;
fig. 6 is an enlarged schematic view of the structure at C in fig. 5.
In the drawings, the components represented by the respective reference numerals are listed below:
100. a device body; 200. a first damping device; 300. a second damping device; 400. a heat sink; 101. a protective shell; 102. a base; 103. an electric power cabinet; 104. a shielding plate; 105. a drainage groove; 201. a fixed block; 202. a piston rod; 203. a buffer tank; 204. a first buffer spring; 205. a limiting plate; 206. a limiting sleeve; 301. a connecting plate; 302. a chute; 303. a slider; 304. a second buffer spring; 305. a slide bar; 401. a first heat dissipation fan; 402. a second heat dissipation fan; 403. a blind window; 404. a dust screen; 405. a fan cover.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments of the present invention, all other embodiments obtained by a person of ordinary skill in the art without creative efforts belong to the protection scope of the present invention.
In the description of the present invention, it is to be understood that the terms "upper", "middle", "outer", "inner", and the like, indicate positional or positional relationships, are merely for convenience in describing the present invention and simplifying the description, and do not indicate or imply that the referenced components or elements must have a particular orientation, be constructed and operated in a particular orientation, and therefore should not be construed as limiting the present invention.
In the description of the present invention, it is to be noted that, unless otherwise explicitly specified or limited, the terms "mounted," "disposed," "connected," and the like are to be construed broadly, and for example, "connected" may be either fixedly connected or detachably connected, or integrally connected; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meaning of the above terms in the present invention can be understood in specific cases to those skilled in the art.
Referring to fig. 1-6, the present invention relates to a damping and heat dissipating electric power cabinet for electric power engineering, which includes a device body 100, a first damping device 200, a second damping device 300 and a heat dissipating device 400, wherein the first damping device 200 is disposed inside the device body 100, the second damping device 300 is disposed on the left and right sides of the first damping device 200, and the heat dissipating device 400 is disposed on the surface of the device body 100;
the device body 100 comprises a protective shell 101, a base 102 is arranged on the lower surface of the protective shell 101, an electric power cabinet 103 is arranged in the protective shell 101, the first damping device 200 comprises a fixing block 201, the fixing block 201 is arranged on the lower surface of the electric power cabinet 103, and fixed block 201 lower surface is fixed with piston rod 202, the buffer slot 203 has been seted up to the corresponding piston rod 202 on base 102 upper surface, first buffer spring 204 is installed to buffer slot 203 bottom, second damping device 300 includes connecting plate 301, two connecting plates 301 articulate relatively in the fixed block 201 lower surface left and right sides, spout 302 has all been seted up to the buffer slot 203 left and right sides, connecting plate 301 lower extreme articulates there is slider 303, all be connected with second buffer spring 304 between slider 303 left and right sides surface and the spout 302 inner wall, heat abstractor 400 includes first radiator fan 401, two first radiator fan 401 set up relatively at electric power cabinet 103 left and right sides surface, surface mounting has two second radiator fan 402 behind protecting crust 101.
The protection effect of the electric power cabinet 103 is improved through the protective shell 101, the piston rod 202 and the first buffer spring 204 are matched with each other to improve the damping effect of the electric power cabinet 103, meanwhile, the connecting plate 301 and the sliding block 303 are matched with each other to further improve the damping effect of the device by combining the second buffer spring 304, the first cooling fan 401 and the second cooling fan 402 are matched with each other, and the heat dissipation effects of the electric power cabinet 103 and the protective shell 101 are ensured.
A slide bar 305 is installed inside the slide groove 302, the slide bar 305 penetrates through the second buffer spring 304 and the slide block 303, and the slide block 303 is in sliding fit with the slide bar 305, so that the stability of the second shock absorbing device 300 is ensured through the slide bar 305.
A limiting plate 205 is arranged between the lower end of the piston rod 202 and the first buffer spring 204, a limiting sleeve 206 is arranged outside the buffer groove 203, the piston rod 202 is in sliding fit with the limiting sleeve 206, the piston rod 202 is prevented from falling off by the mutual fit of the limiting plate 205 and the limiting sleeve 206, and the stability of the first damping device 200 is ensured.
The left and right surfaces of the protective shell 101 are provided with shutters 403 corresponding to the first cooling fan 401, the inner side of the shutters 403 and the outer side of the second cooling fan 402 are respectively provided with dust screens 404 and fan covers 405, the heat dissipation effect of the device is further improved through the shutters 403, and the dust screens 404 and the fan covers 405 effectively improve the dust prevention effect of the device.
The working principle is as follows: the utility model discloses when the device takes place vibrations in the use, slide from top to bottom in limiting sleeve 206 through piston rod 202 and limiting plate 205 mutually supporting, combine first buffer spring 204 to ensure the shock attenuation effect of device, slider 303 and spout 302 and slide bar 305's sliding fit simultaneously, combine the articulated effect at connecting plate 301 both ends, when driving slider 303 horizontal slip, second buffer spring 304 of extrusion and tensile both sides, the shock attenuation effect of device has further been ensured, second radiator fan 402 and shutter 403 mutually support and ensure the circulation of protecting crust 101 inside air, combine first radiator fan 401 to improve the radiating effect of device.
In the description herein, references to the description of "one embodiment," "an example," "a specific example," etc., mean that a particular feature, structure, material, or characteristic described in connection with the embodiment or example is included in at least one embodiment or example of the invention. Furthermore, the particular features, structures, materials, or characteristics described may be combined in any suitable manner in any one or more embodiments or examples.
The preferred embodiments of the present invention disclosed above are intended only to help illustrate the present invention. The preferred embodiments are not intended to be exhaustive or to limit the invention to the precise embodiments disclosed. Obviously, many modifications and variations are possible in light of the above teaching. The embodiments were chosen and described in order to best explain the principles of the invention and its practical applications, to thereby enable others skilled in the art to best understand the invention for and utilize the invention. The present invention is limited only by the claims and their full scope and equivalents.
Claims (7)
1. A shock absorption and heat dissipation electric power cabinet for electric power engineering comprises a device body (100), a first shock absorption device (200), a second shock absorption device (300) and a heat dissipation device (400), and is characterized in that the first shock absorption device (200) is arranged inside the device body (100), the second shock absorption device (300) is arranged on the left side and the right side of the first shock absorption device (200), and the heat dissipation device (400) is arranged on the surface of the device body (100);
the device body (100) comprises a protective shell (101), a base (102) is arranged on the lower surface of the protective shell (101), an electric power cabinet (103) is arranged inside the protective shell (101), the first damping device (200) comprises a fixing block (201), the fixing block (201) is arranged on the lower surface of the electric power cabinet (103), a piston rod (202) is fixed on the lower surface of the fixing block (201), a buffer groove (203) is formed in the upper surface of the base (102) corresponding to a piston rod (202), a first buffer spring (204) is arranged at the bottom of the buffer groove (203), the second damping device (300) comprises connecting plates (301), the two connecting plates (301) are hinged to the left side and the right side of the lower surface of the fixing block (201) relatively, sliding grooves (302) are formed in the left side and the right side of the buffer groove (203), and sliding blocks (303) are hinged to the lower ends of the connecting plates (301), all be connected with second buffer spring (304) between slider (303) left and right sides surface and spout (302) inner wall, heat abstractor (400) include first radiator fan (401), two first radiator fan (401) set up relatively and control two surfaces at electric power cabinet (103), surface mounting has two second radiator fan (402) behind protecting crust (101).
2. The shock-absorbing and heat-dissipating electric power cabinet for electric power engineering according to claim 1, characterized in that a shielding plate (104) is mounted on the upper surface of the protective housing (101).
3. The shock-absorbing and heat-dissipating electric power cabinet for electric power engineering as claimed in claim 2, wherein the shielding plate (104) has a plurality of flow-guiding grooves (105) formed in the upper surface thereof.
4. The shock-absorbing and heat-dissipating electric power cabinet for electric power engineering according to claim 1, wherein a limit plate (205) is disposed between the lower end of the piston rod (202) and the first buffer spring (204), a limit sleeve (206) is disposed outside the buffer groove (203), and the piston rod (202) is in sliding fit with the limit sleeve (206).
5. The shock-absorbing and heat-dissipating electric power cabinet for electric power engineering according to claim 1, wherein a sliding rod (305) is installed inside the sliding groove (302), the sliding rod (305) penetrates through the second buffer spring (304) and the sliding block (303), and the sliding block (303) is in sliding fit with the sliding rod (305).
6. The electric cabinet with shock absorption and heat dissipation for electric power engineering as claimed in claim 1, wherein the left and right surfaces of the protective shell (101) are provided with shutters (403) corresponding to the first heat dissipation fan (401).
7. The electric cabinet with shock absorption and heat dissipation for electric power engineering as claimed in claim 6, wherein a dust screen (404) and a fan cover (405) are respectively disposed inside the louver (403) and outside the second heat dissipation fan (402).
