CN215101177U

CN215101177U - Electromagnetic wire is with encircleing coiling mechanism

Info

Publication number: CN215101177U
Application number: CN202121205729.4U
Authority: CN
Inventors: 金玉宏; 孙成建; 朱标
Original assignee: Jiangsu Jinwo Servo Punch Co ltd
Current assignee: Jiangsu Jinwo Servo Punch Co ltd
Priority date: 2021-06-01
Filing date: 2021-06-01
Publication date: 2021-12-10
Anticipated expiration: 2031-06-01

Abstract

The utility model discloses an encircling winding device for an electromagnetic wire, which comprises a base, a fixing plate and a fixing frame. The fixing plate is arranged above the base, and the fixing frame is fixedly installed on the top of the fixing plate. The utility model relates to a fixing frame. Wire winding technology. By arranging a moving frame and a guide frame that match the winding of the bobbin, the rotation of the first rotating rod will drive the first bevel gear to rotate, the first bevel gear will drive the second bevel gear to rotate, and the second bevel gear will pass through the second rotating rod. Drive the half-gear to rotate, and the half-gear is in contact with the teeth on both sides of the moving frame at the same time, so that the moving frame moves up and down along the opening set on the fixed plate, thereby driving the electromagnetic wire in the guide fixture on the guide frame to move up and down. Move, make the magnet wire evenly wrap around the surface of the spool, make the magnet wire after the spool roll up to the standard of use, avoid the secondary winding of the magnet wire, save costs, improve the working efficiency and rewind of the spool roll quality.

Description

Electromagnetic wire is with encircleing coiling mechanism

Technical Field

The utility model relates to a wire rod rolling technical field specifically is an electromagnetic wire is with encircleing coiling mechanism.

Background

Electromagnetic wires are insulated electrical wires used to make coils or windings in electrical products. Also known as winding wire. Magnet wires must meet a variety of requirements for use and manufacturing processes. The former includes its shape, specification, ability to work at high temperature for a short time and a long time, and to withstand strong vibration and centrifugal force at high speed in some occasions, withstand corona and breakdown at high voltage, resist chemical corrosion under special atmosphere, etc.; the latter includes the requirement of stretching, bending and wearing when winding and inserting the wire, and the swelling, erosion action in the dipping and drying process, etc., in the production and processing of the electromagnetic wire, the winding operation needs to be carried out to the electromagnetic wire that is processed and formed, the electromagnetic wire that is processed and formed generally is wound on the corresponding material receiving roller piece through the rotation of the winding wheel, thereby completing the winding operation of the electromagnetic wire.

The winding guider of electromagnetic wire rolling is not set up on the present electromagnetic wire coiling mechanism, and the rolling wheel is when encircleing the rolling to the electromagnetic wire, and the electromagnetic wire can twine in the same region on winding section of thick bamboo surface, leads to winding section of thick bamboo surface winding electromagnetic wire not enough even, and the electromagnetic wire after the winding section of thick bamboo rolling is accomplished can't reach the standard of using.

SUMMERY OF THE UTILITY MODEL

Technical problem to be solved

Not enough to prior art, the utility model provides an electromagnetic wire is with encircleing coiling mechanism has solved the problem that proposes in the above-mentioned background.

(II) technical scheme

In order to achieve the above purpose, the utility model discloses a following technical scheme realizes: a surrounding and winding device for an electromagnetic wire comprises a base, a fixed plate and a fixed frame, wherein the fixed plate is arranged above the base, the fixed frame is fixedly arranged at the top of the fixed plate, a motor is fixedly arranged at the bottom of an inner cavity of the base, an output shaft of the motor is fixedly provided with a driving rod through a shaft coupling, one end of the driving rod sequentially penetrates through the base and the fixed plate and extends to the inside of a fixed frame, the top end of the driving rod is rotatably connected with the top of the inner cavity of the fixed frame through a bearing, a main gear is fixedly arranged on the surface of the driving rod and positioned in the fixed frame, two sides of the top of the inner cavity of the fixed frame are rotatably connected with first rotating rods through bearings, auxiliary gears matched with the main gear for use are fixedly arranged on the surfaces of the two first rotating rods, one end of each first rotating rod penetrates through the fixed plate and extends to the bottom of the fixed plate, the utility model discloses a fixed plate, including fixed plate, limiting plate, connecting block, swivel mount, second swivel, first bevel gear, the bottom fixed mounting of first swivel has a threaded rod, the surface cover of threaded rod is equipped with a winding section of thick bamboo, the one end threaded connection of threaded rod has the screw thread lid that cooperatees and uses with the winding section of thick bamboo, the both sides of fixed plate bottom all have the rotating turret through connecting block fixed mounting, the inside of rotating turret rotates through the bearing and is connected with the second swivel, the one end fixed mounting of second swivel has the second bevel gear that cooperatees and uses with first bevel gear, the both sides at fixed plate top all have the removal frame through seting up opening sliding connection, the bottom fixed mounting who removes the frame has the leading truck.

Preferably, two remove the relative one side of frame and all seted up logical groove, the other end of second bull stick runs through logical groove and extends to and remove inside the frame, the second bull stick extends to and removes the inside one end fixed mounting of frame and has the semi-gear, the equal fixed mounting in front side and the rear side of removing the frame inner chamber has the tooth that cooperatees and use with the semi-gear.

Preferably, one side of the guide frame is provided with a placing hole, and the front part and the back part of the guide frame are both provided with thread grooves.

Preferably, the inner thread of the thread groove is connected with an adjusting screw rod.

Preferably, one end of the adjusting screw is rotatably connected with a guide clamp through a bearing.

Preferably, the equal fixed mounting in both sides of fixed plate bottom has the bracing piece, two the bottom of bracing piece all with the top fixed connection of base, the equal fixed mounting in both sides of base bottom has the universal wheel.

(III) advantageous effects

The utility model provides an electromagnetic wire is with encircleing coiling mechanism. The method has the following beneficial effects:

(1) this electromagnetism line is with encircleing coiling mechanism, through removal frame and the leading truck that sets up the rolling of cooperation winding bobbin, first bull stick pivoted can drive first bevel gear simultaneously and rotate, first bevel gear drives second bevel gear and rotates, second bevel gear passes through second bull stick and drives half gear revolve, half gear revolve while with remove the both sides tooth contact in the frame, make the opening that removes the frame and set up on the fixed plate remove from top to bottom, thereby the electromagnetism line that drives on the leading truck in the guide jig also removes from top to bottom, make the even encircleing of electromagnetism line at winding bobbin surface, the electromagnetism line after making the winding bobbin rolling reaches the standard of using, avoid the electromagnetism line secondary to encircle the rolling, the cost is saved, the work efficiency and the rolling quality of winding bobbin are improved.

(2) This electromagnetism line is with encircleing coiling mechanism, through setting up adjustable screw thread lid, the convenience is fixed and is dismantled a winding section of thick bamboo, makes things convenient for the better operation of operating personnel, drives two winding section of thick bamboos through setting up a set of motor and encircles the rolling, makes electromagnetism line rolling efficiency obtain improving, can encircle and the rolling according to electromagnetism line thickness degree through setting up the direction anchor clamps that adjust, makes the coiling mechanism can encircle and the rolling to different thickness degree electromagnetism lines, more has the usability.

Drawings

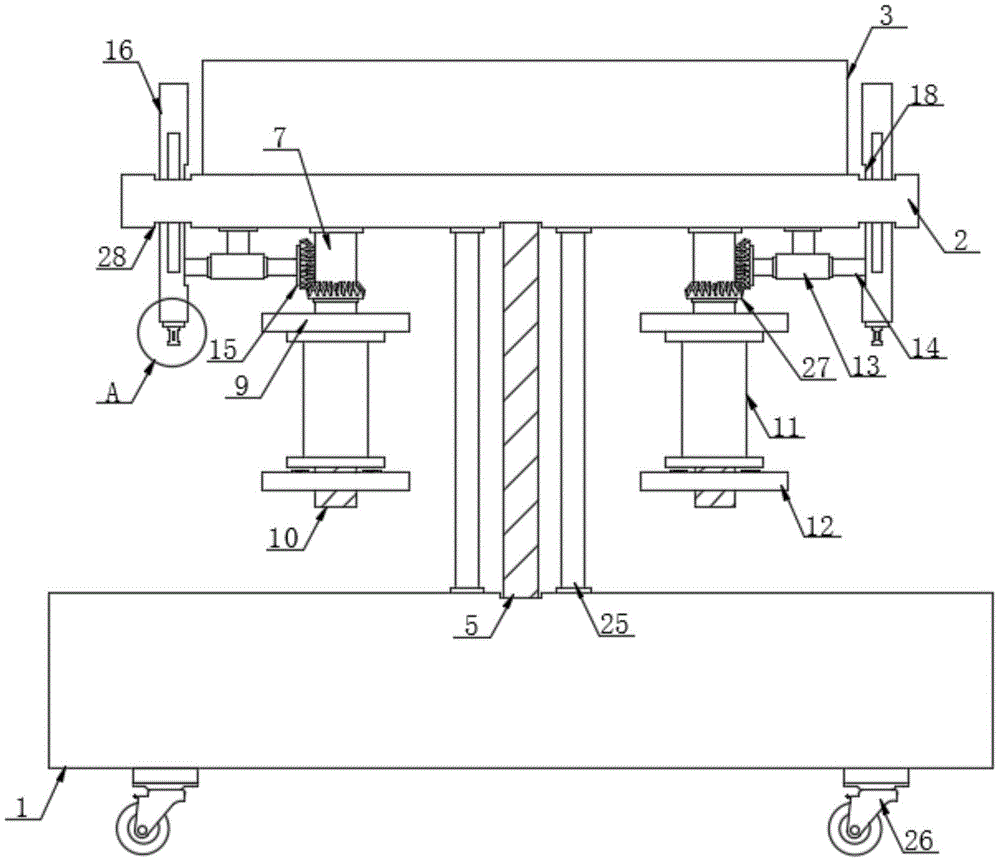

FIG. 1 is a schematic structural view of the present invention;

FIG. 2 is a cross-sectional view of the base structure of the present invention;

fig. 3 is a sectional view of the fixing frame structure of the present invention;

FIG. 4 is a schematic structural view of the threaded cap, the threaded rod and the winding drum of the present invention;

fig. 5 is a top view of the fixing plate, the fixing frame and the opening structure of the present invention;

fig. 6 is a sectional view of the movable frame structure of the present invention;

FIG. 7 is a partial enlarged view of the point B in FIG. 1 according to the present invention

Fig. 8 is a side view of the structure of the guide frame of the present invention.

In the figure, 1, a base; 2. a fixing plate; 3. a fixing frame; 4. a motor; 5. a drive rod; 6. a main gear; 7. a first rotating lever; 8. a pinion gear; 9. a limiting plate; 10. a threaded rod; 11. a winding drum; 12. a threaded cap; 13. a rotating frame; 14. a second rotating rod; 15. a second bevel gear; 16. moving the frame; 17. a guide frame; 18. a through groove; 19. a half gear; 20. teeth; 21. placing holes; 22. a thread groove; 23. adjusting the screw rod; 24. a guiding clamp; 25. a support bar; 26. a universal wheel; 27. a first bevel gear; 28. and (4) opening.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Referring to fig. 1 to 8, the present embodiment provides a technical solution: a surrounding and winding device for an electromagnetic wire comprises a base 1, a fixed plate 2 and a fixed frame 3, wherein the fixed plate 2 is arranged above the base 1, the fixed frame 3 is fixedly arranged at the top of the fixed plate 2, a motor 4 is fixedly arranged at the bottom of an inner cavity of the base 1, the motor 4 is a servo motor and is used for driving a driving rod 5 to rotate, an output shaft of the motor 4 is fixedly provided with the driving rod 5 through a coupler, one end of the driving rod 5 sequentially penetrates through the base 1 and the fixed plate 2 and extends into the fixed frame 3, the top end of the driving rod 5 is rotatably connected with the top of the inner cavity of the fixed frame 3 through a bearing, a main gear 6 is fixedly arranged on the surface of the driving rod 5 and positioned in the fixed frame 3, two sides of the top of the inner cavity of the fixed frame 3 are rotatably connected with first rotating rods 7 through bearings, and auxiliary gears 8 matched with the main gear 6 are fixedly arranged on the surfaces of the two first rotating rods 7, one end of the first rotating rod 7 penetrates through the fixing plate 2 and extends to the bottom of the fixing plate 2, a first bevel gear 27 is fixedly arranged on the surface of the first rotating rod 7 and is positioned below the fixing plate 2, a limiting plate 9 is fixedly arranged at the bottom end of the first rotating rod 7, the limiting plate 9 is made of rubber and can be well matched with a thread cover 12 for use, a threaded rod 10 is fixedly arranged at the bottom of the limiting plate 9, a winding cylinder 11 is sleeved on the surface of the threaded rod 10, a thread cover 12 matched with the winding cylinder 11 for use is in threaded connection with one end of the threaded rod 10, a rubber block is arranged at the top of the thread cover 12 and is used for fixing the winding cylinder 11, rotating frames 13 are fixedly arranged on two sides of the bottom of the fixing plate 2 through connecting blocks, movable through grooves are formed in the rotating frames 13, the second rotating rod 14 can well penetrate through the rotating frames and can be used in a rotating mode, a second rotating rod 14 is rotatably connected in the rotating frames 13 through bearings, one end fixed mounting of second bull stick 14 has the second bevel gear 15 that cooperatees and use with first bevel gear 27, and the both sides at fixed plate 2 top all have through seting up opening 28 sliding connection and move frame 16, and it is rectangular all to install the slip with the rear portion in the front portion of moving frame 16 for the spout in the cooperation opening 28 uses, makes and moves up and down that the frame 16 that moves can be fine, and the bottom fixed mounting who moves frame 16 has leading truck 17.

In this embodiment, two remove that frame 16 is relative one side and all seted up logical groove 18, the other end of second bull stick 14 runs through logical groove 18 and extends to inside removing frame 16, the one end fixed mounting that second bull stick 14 extended to removing frame 16 inside has half gear 19, the equal fixed mounting in front side and the rear side of removing the inner chamber of frame 16 has tooth 20 with half gear 19 matched with the use, tooth 20 is provided with the multiunit, fixed mounting is in the front side and the rear side that remove the inner chamber of frame 16.

In this embodiment, a placing hole 21 is formed at one side of the guide frame 17, and both the front and the back of the guide frame 17 are formed with thread grooves 22.

In this embodiment, an adjusting screw 23 is threadedly coupled to the inside of the thread groove 22.

In this embodiment, one end of the adjusting screw 23 is rotatably connected to a guide jig 24 through a bearing.

In this embodiment, the equal fixed mounting in both sides of fixed plate 2 bottom has bracing piece 25, the bottom of two bracing pieces 25 all with base 1's top fixed connection, the equal fixed mounting in both sides of base 1 bottom has universal wheel 26.

When the winding device is used, a worker firstly rotates the threaded cover 12 to separate the threaded cover 12 from the threaded rod 10, the worker penetrates the winding barrel 11 on the threaded rod 10, the limiting plate 9 is used for limiting the winding barrel 11, the operator rotates the threaded cover 12 again, the threaded cover 12 rotates on the threaded rod 10, the threaded cover 12 rotates upwards and moves and fixes the winding barrel 11 at the same time, the winding barrel 11 is more stable in the winding process, the adjustable threaded cover 12 is arranged to conveniently fix and disassemble the winding barrel 11, the operator can conveniently operate better, at the moment, the worker penetrates one end of an electromagnetic wire through the guide clamp 24 arranged in the placing hole 21 on the guide frame 17, the adjusting screw 23 is used for adjusting the aperture of the guide clamp 24 according to the thickness degree of the electromagnetic wire, the adjusting screw 23 is rotated to enable the adjusting screw 23 to rotate through the threaded groove 22, thereby driving the guiding clamp 24 to move, guiding the electromagnetic wire, facilitating the winding drum 11 to wind and wind the electromagnetic wire, starting the motor 4, the driving rod 5 driving the main gear 6 to rotate, the main gear 6 driving the auxiliary gear 8 to rotate, the auxiliary gear 8 driving the first rotating rod 7 to rotate, the winding drum 11 also rotating, the first rotating rod 7 driving the first bevel gear 27 to rotate while rotating, the first bevel gear 27 driving the second bevel gear 15 to rotate, the second bevel gear 15 driving the half gear 19 to rotate through the second rotating rod 14, the rotating frame 13 being used for connecting the second rotating rod 14, the half gear 19 rotating while contacting with the teeth 20 at two sides in the moving frame 16, making the moving frame 16 move up and down along the opening 28 arranged on the fixed plate 2, making the electromagnetic wire in the guiding clamp 24 also move up and down, making the electromagnetic wire surround the surface of the winding drum 11 uniformly, the two supporting rods 25 being used for supporting and fixing the fixed plate 2, the device can be stably operated, the universal wheels 26 are used for moving the device, the device is convenient to adjust and move when in use, and an operator can use the device more conveniently.

It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus. Without further limitation.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims

1. An encircling winding device for an electromagnetic wire, comprising a base (1), a fixing plate (2) and a fixing frame (3), wherein the fixing plate (2) is arranged above the base (1), and the fixing frame (3) It is fixedly installed on the top of the fixing plate (2), characterized in that a motor (4) is fixedly installed at the bottom of the inner cavity of the base (1), and the output shaft of the motor (4) is fixed by a coupling A driving rod (5) is installed, one end of the driving rod (5) penetrates the base (1) and the fixing plate (2) in turn and extends to the interior of the fixing frame (3), and the top end of the driving rod (5) passes through The bearing is rotatably connected to the top of the inner cavity of the fixed frame (3), the main gear (6) is fixedly installed on the surface of the driving rod (5) and located inside the fixed frame (3), and the inner cavity of the fixed frame (3) Both sides of the top are rotatably connected with first rotating rods (7) through bearings, and the surfaces of the two first rotating rods (7) are fixedly mounted with auxiliary gears (8) used in cooperation with the main gear (6). , one end of the first rotating rod (7) penetrates the fixing plate (2) and extends to the bottom of the fixing plate (2), and the surface of the first rotating rod (7) is located below the fixing plate (2) for fixed installation There is a first bevel gear (27), a limit plate (9) is fixedly installed at the bottom end of the first rotating rod (7), and a threaded rod (10) is fixedly installed at the bottom of the limit plate (9), so The surface of the threaded rod (10) is sleeved with a bobbin (11), and one end of the threaded rod (10) is threadedly connected with a threaded cover (12) used in cooperation with the bobbin (11). A turret (13) is fixedly installed on both sides of the bottom of the plate (2) through a connecting block, and a second rotating rod (14) is rotatably connected inside the rotating frame (13) through a bearing, and the second rotating rod ( One end of 14) is fixedly installed with a second bevel gear (15) used in cooperation with the first bevel gear (27), and both sides of the top of the fixed plate (2) are slidably connected to a moving frame through openings (28). (16), a guide frame (17) is fixedly installed at the bottom of the moving frame (16).

2. A coiling device for electromagnetic wire according to claim 1, characterized in that: through grooves (18) are provided on opposite sides of the two moving frames (16), and the second rotating frame (16) is The other end of the rod (14) penetrates through the through groove (18) and extends into the interior of the moving frame (16), and one end of the second rotating rod (14) extending into the interior of the moving frame (16) is fixedly mounted with a half gear (19) , the front side and the rear side of the inner cavity of the moving frame (16) are fixedly installed with teeth (20) used in cooperation with the half gear (19).

3 . The coiling device for magnet wire according to claim 1 , wherein a placement hole ( 21 ) is opened on one side of the guide frame ( 17 ), and the front of the guide frame ( 17 ) Both the top and the back are provided with threaded grooves (22).

4 . The coiling device for magnet wire according to claim 3 , wherein an adjusting screw ( 23 ) is threadedly connected to the inside of the thread groove ( 22 ). 5 .

5 . The coiling device for magnet wire according to claim 4 , wherein one end of the adjusting screw ( 23 ) is rotatably connected with a guide clamp ( 24 ) through a bearing. 6 .

6. A coiling device for magnet wire according to claim 1, characterized in that: support rods (25) are fixedly installed on both sides of the bottom of the fixing plate (2), and two support rods The bottom of (25) is fixedly connected with the top of the base (1), and universal wheels (26) are fixedly installed on both sides of the bottom of the base (1).
