The utility model provides a cover production of membrane with holding work or material rest, include: two mounting brackets are arranged oppositely; the fixed roller set comprises a plurality of first roller bodies and mounting rods, the mounting rods are vertically mounted on the mounting support, two ends of each first roller body are respectively and rotatably connected with one mounting rod, and the plurality of first roller bodies are arranged in a line along the mounting support; the movable roller set is positioned above or below the fixed roller set and comprises two sliding blocks and a plurality of second roller bodies, the sliding blocks are connected with the mounting bracket in a sliding mode, the second roller bodies are connected with the sliding blocks in a rotating mode, the sliding blocks on the two sides are respectively positioned on the outer sides of the mounting rods on the two sides, the sliding blocks are not interfered by the mounting rods in the sliding process, and the first roller bodies and the second roller bodies are arranged in a vertically staggered mode; and the lifting mechanism is fixed on the mounting bracket, is connected with the slide block and is used for driving the movable roller set to perform lifting motion. The utility model discloses a simple structure can effectively solve the technical problem that current hold work or material rest material loading is difficult.
Description
Technical Field
The utility model relates to a cover membrane production facility technical field, especially relate to a cover membrane production with holding work or material rest.
Background
The material belt always needs to be connected in the production process of the belt material. In order to avoid the influence of shutdown or speed reduction on the production efficiency when the material belt is plugged on the coating machine, the material storage frame is required to be used.
The material storage rack generally comprises a movable roller assembly and a fixed roller assembly, wherein the material belt is wound on the movable roller in the movable roller assembly and the fixed roller in the fixed roller assembly in a reciprocating manner, and when the movable roller assembly moves for one end stroke together, the material belt stored between each section of the movable roller and the fixed roller is stretched together, so that the material belt length which is several times of the stroke of the movable roller assembly can be stored at one time.
In the existing material storage rack, the movable roller assembly is arranged above or below the fixed roller assembly in an initial state, and the movable roller assembly can only be arranged above or below the fixed roller assembly in a working process (because the movable roller assembly and the fixed roller assembly have the same length, and the installation structures of the movable roller assembly and the fixed roller assembly vertically interfere with each other). The movement from the lower part to the upper part or the upper part to the lower part of the fixed roller assembly cannot be realized, which makes the feeding process complicated and requires manual winding of the strip between the fixed roller assembly and the movable roller assembly.
SUMMERY OF THE UTILITY MODEL
To exist not enough among the prior art, the utility model provides a cover membrane production with holding the work or material rest, it has solved the inconvenient problem of holding the work or material rest material loading that exists among the prior art.
According to the utility model discloses an embodiment, cover production of membrane with holding work or material rest, include:
two mounting brackets are arranged oppositely; the fixed roller set comprises a plurality of first roller bodies and mounting rods, the mounting rods are vertically mounted on the mounting support, two ends of each first roller body are respectively and rotatably connected with one mounting rod, and the plurality of first roller bodies are arranged in a line along the mounting support; the movable roller set is positioned above or below the fixed roller set and comprises two sliding blocks and a plurality of second roller bodies, the sliding blocks are connected with the mounting bracket in a sliding mode, the second roller bodies are connected with the sliding blocks in a rotating mode, the sliding blocks on two sides are respectively positioned on the outer sides of the mounting rods on two sides, so that the sliding blocks are not interfered by the mounting rods in the sliding process, and the first roller bodies and the second roller bodies are arranged in a vertically staggered mode; and the lifting mechanism is fixed on the mounting bracket, is connected with the slide block and is used for driving the movable roller set to perform lifting motion.
Compared with the prior art, the utility model discloses following beneficial effect has: through having adopted the installation pole to install first roll body alone, avoided it like prior art, integral erection is on the installing support, makes the slider be located the outside of installation pole in addition, and it has avoided the motion of activity roller set to receive fixed roller set to interfere, has solved the technical problem that the second roll body can only be in first roll body top or below motion, has produced the technological effect of the material loading of being convenient for.
Drawings

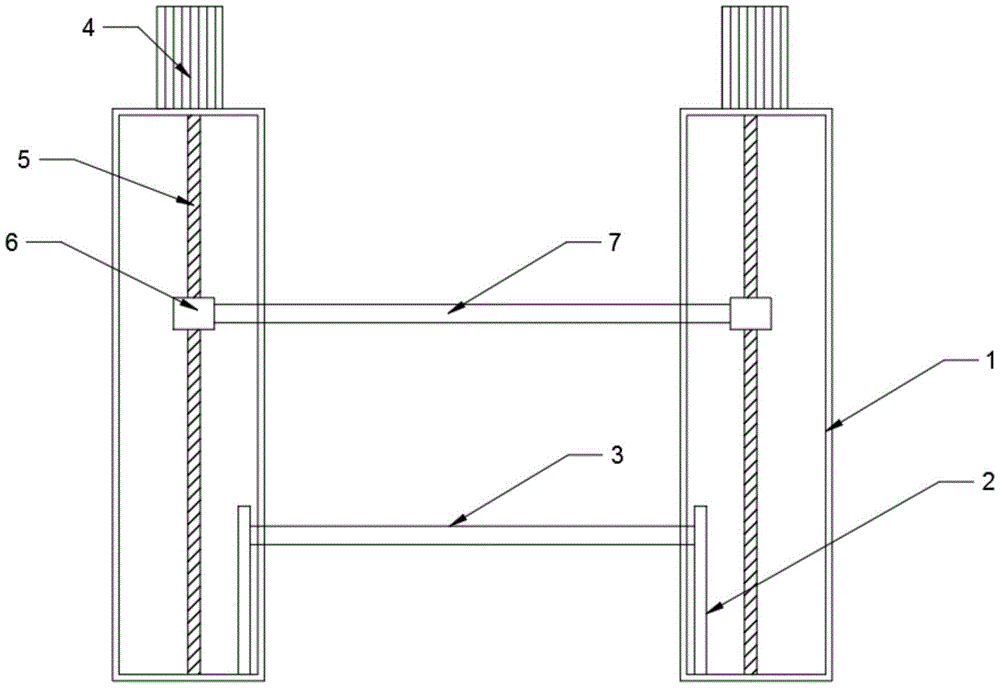

Fig. 1 is a schematic structural diagram of an embodiment of the present invention.
Fig. 2 is a schematic structural diagram of another angle according to an embodiment of the present invention.
In the above drawings: 1. mounting a bracket; 2. mounting a rod; 3. a first roller body; 4. a lifting motor; 5. a screw rod; 6. a slider; 7. and a second roller body.
Detailed Description
The technical solution of the present invention will be further explained with reference to the accompanying drawings and embodiments.
As shown in fig. 1, the embodiment of the utility model provides a cover production with holding work or material rest is proposed, include: the device comprises two mounting brackets 1, wherein the two mounting brackets 1 are arranged oppositely; the fixed roller set comprises a plurality of first roller bodies 3 and mounting rods 2, the mounting rods 2 are vertically mounted on the mounting support 1, two ends of each first roller body 3 are respectively and rotatably connected with one mounting rod 2, and the first roller bodies 3 are arranged in a line along the mounting support 1; the movable roller set is positioned above or below the fixed roller set and comprises two sliding blocks 6 and a plurality of second roller bodies 7, the sliding blocks 6 are connected with the mounting bracket 1 in a sliding mode, the second roller bodies 7 are connected with the sliding blocks 6 in a rotating mode, the sliding blocks 6 on two sides are respectively positioned on the outer sides of the mounting rods 2 on two sides, so that the sliding blocks 6 are not interfered by the mounting rods 2 in the sliding process, and as shown in fig. 2, the first roller bodies 3 and the second roller bodies 7 are arranged in a vertically staggered mode; the lifting mechanism is fixed on the mounting bracket 1, connected with the sliding block 6 and used for driving the movable roller set to perform lifting motion.
The technical principle of the utility model is that: in the initial state, the second roller body 7 may be above or below the first roller body 3, and the second roller body 7 is below the first roller body 3 as an example hereinafter. Under initial state, pull the strip between first roll body 3 and the second roll body 7, then elevating system drive second roll body 7 upwards, make second roll body 7 be higher than first roll body 3, begin normal coating or other processes, when need plug into, second roll body 7 continues upwards, realizes that it normally holds the material function.
The lifting mechanism comprises a lifting motor 4 and a screw rod 5 driven by the lifting motor 4 to rotate, the tail end of the screw rod 5 is rotatably connected with the mounting bracket 1, and the screw rod 5 is in threaded fit with the sliding block 6.
Slide rails (not shown in the figure) are arranged on two sides of the mounting bracket 1, and a sliding groove which is matched with the slide rails is arranged on the sliding block 6. The sliding rails and the sliding grooves are provided to prevent the sliding block 6 from rotating and only move in the vertical direction.
Still include controller and travel switch, travel switch install in on the installing support 1, travel switch, controller and elevator motor 4 electric connection. In this embodiment, the travel switch is used to limit the movement of the second roller body 7.
Finally, although the present invention has been described in detail with reference to the preferred embodiments, it should be understood by those skilled in the art that the present invention can be modified or replaced by other means without departing from the spirit and scope of the present invention, which should be construed as limited only by the appended claims.
Claims (4)
1. The utility model provides a cover membrane production with holding work or material rest, its characterized in that includes:
two mounting brackets are arranged oppositely;
the fixed roller set comprises a plurality of first roller bodies and mounting rods, the mounting rods are vertically mounted on the mounting support, two ends of each first roller body are respectively and rotatably connected with one mounting rod, and the plurality of first roller bodies are arranged in a line along the mounting support;
the movable roller set is positioned above or below the fixed roller set and comprises two sliding blocks and a plurality of second roller bodies, the sliding blocks are connected with the mounting bracket in a sliding mode, the second roller bodies are connected with the sliding blocks in a rotating mode, the sliding blocks on two sides are respectively positioned on the outer sides of the mounting rods on two sides, so that the sliding blocks are not interfered by the mounting rods in the sliding process, and the first roller bodies and the second roller bodies are arranged in a vertically staggered mode; and
and the lifting mechanism is fixed on the mounting bracket, is connected with the sliding block and is used for driving the movable roller set to perform lifting motion.
2. The material storage rack for producing the cover film according to claim 1, wherein: the lifting mechanism comprises a lifting motor and a screw rod driven by the lifting motor to rotate, the tail end of the screw rod is rotatably connected with the mounting bracket, and the screw rod is in threaded fit with the sliding block.
3. The material storage rack for producing the cover film according to claim 1, wherein: the two sides of the mounting bracket are provided with slide rails, and the slide block is provided with a slide groove which is matched with the slide rails for mounting.
4. The material storage rack for producing the cover film according to claim 2, wherein: the travel switch is mounted on the mounting bracket, and the travel switch, the controller and the lifting motor are electrically connected.
