Abstract
The utility model discloses a steel construction processing rust-resistant equipment of polishing, comprises an operation bench, the top fixedly connected with main frame of operation panel, the left side fixedly connected with second motor of main frame inner chamber, the output shaft fixedly connected with screw thread screw rod of second motor, the surface cover of screw thread screw rod is equipped with the spiral shell piece, the first telescopic cylinder of bottom fixedly connected with of spiral shell piece. The utility model discloses a set up the second motor, first telescopic cylinder, the spiral shell piece, screw thread screw rod and main frame, can adjust the horizontal position and the perpendicular position of the subassembly of polishing, effectively promoted the convenience that the device polished to the work piece, through setting up the fly leaf, first motor, the telescopic cylinder of second, centre gripping subassembly, bearing and transfer line, can press from both sides tight fixed to the work piece to drive the work piece and rotate, under the prerequisite of avoiding dismantling the work piece, just can overturn the work piece, effectively promoted the machining efficiency of device.
Description
Technical Field
The utility model relates to a steel construction processing technology field specifically is a rust-resistant equipment of steel construction processing polishing.
Background
One of the main building structure types of steel construction engineering, one of more ordinary structural style among the modern building engineering, china is the country of making bearing structure with iron at the earliest, steel construction engineering is with the structure that steel preparation is leading, the application of current steel construction has very big development, no matter in quantity or in quality all far exceed in the past, at present in the building, we can polish the section bar usually, panel, tubular product and metal product in order to accord with the construction needs, need dismantle the work piece when current steel construction processing grinding device comprehensively polished the work piece, it is fixed to carry out the centre gripping to the work piece again after manual upset, complex operation, machining efficiency is low, and do not possess the dust removal ability, certain influence has been caused to ambient environment and operating personnel's health.
Disclosure of Invention
An object of the utility model is to provide a rust-resistant equipment of steel construction processing polishing possesses the machining efficiency height, and environmental pollution is little, fixed effectual advantage, has solved current steel construction processing grinding device and need dismantle the work piece when polishing comprehensively to the work piece, carries out the centre gripping to the work piece again after the manual upset and fixes, complex operation, machining efficiency is low to do not possess the dust removal ability, the healthy problem that has caused certain influence to surrounding environment and operating personnel.
In order to achieve the above object, the utility model provides a following technical scheme: a steel structure processing, polishing and rust preventing device comprises an operating table, wherein the top of the operating table is fixedly connected with a main frame, the left side of an inner cavity of the main frame is fixedly connected with a second motor, an output shaft of the second motor is fixedly connected with a threaded screw rod, a threaded block is sleeved on the surface of the threaded screw rod, the bottom of the threaded block is fixedly connected with a first telescopic cylinder, the output end of the first telescopic cylinder is fixedly connected with a polishing assembly, the lower ends of two sides of the inner wall of the main frame are fixedly connected with a second telescopic cylinder, the output end of the second telescopic cylinder is fixedly connected with a movable plate, one side, opposite to the two movable plates, is respectively and fixedly connected with a first motor and a bearing, the inner cavity of the bearing is movably connected with a transmission rod, the left end of the transmission rod and the output end of the first motor are both fixedly connected with a clamping assembly, and the top of the movable plate is fixedly connected with a supporting plate, the top fixedly connected with air exhauster of backup pad, the extraction opening intercommunication of air exhauster has the exhaust column, the one end intercommunication that the exhaust column kept away from the air exhauster has the suction hood, the gas vent intercommunication of air exhauster has the collection dirt sack.
Preferably, the surface of the exhaust pipe is fixedly connected with a support frame, and the lower end of the support frame is fixedly connected with the joint of the support plate.
Preferably, the top of the screw block is fixedly connected with a sliding block, and the top of the inner cavity of the main frame is provided with a sliding groove matched with the sliding block for use.
Preferably, the right side of the main frame is fixedly connected with a control panel, and a work indicator lamp is arranged on the surface of the control panel.
Preferably, the connection part of the dust collecting cloth bag and the exhaust fan is provided with an annular buckle, and the surface of the annular buckle is provided with a fastening bolt.
Preferably, both sides of the bottom of the operating platform are fixedly connected with supporting legs, and the bottoms of the supporting legs are fixedly connected with non-slip mats.
Preferably, the inner wall of the clamping assembly is fixedly connected with a protective pad, and anti-skid lines are arranged on the surface of the protective pad.
Compared with the prior art, the beneficial effects of the utility model are as follows:
1. the utility model discloses a set up the second motor, first telescopic cylinder, the spiral shell piece, screw thread screw rod and main frame, can adjust the horizontal position and the perpendicular position of the subassembly of polishing, effectively promoted the convenience that the device polished to the work piece, through setting up the fly leaf, first motor, the telescopic cylinder of second, centre gripping subassembly, bearing and transfer line, can press from both sides tight fixed to the work piece to drive the work piece and rotate, under the prerequisite of avoiding dismantling the work piece, just can overturn the work piece, effectively promoted the machining efficiency of device.
2. The utility model can support and fix the exhaust pipe by arranging the support frame, effectively improves the stability of the dust hood in the operation process, the screw block can move more stably by arranging the sliding block and the sliding groove, the stability of the polishing component in the movement is effectively improved, by arranging the control panel and the work indicator light, the device can be operated more simply and quickly, the convenience of the use of the device is effectively improved, by arranging the annular buckle and the fastening bolt, the dust collecting cloth bag can be quickly disassembled and assembled, the convenience of disassembling and maintaining the dust collecting cloth bag is effectively improved, the device can be supported and fixed by arranging the supporting legs and the anti-skid pads, the stability of the device is effectively improved, and by arranging the protective pads and the anti-skid lines, on the premise of ensuring that the workpiece is clamped and fixed, the damage to the surface of the workpiece caused by overlarge pressure is avoided.
Drawings

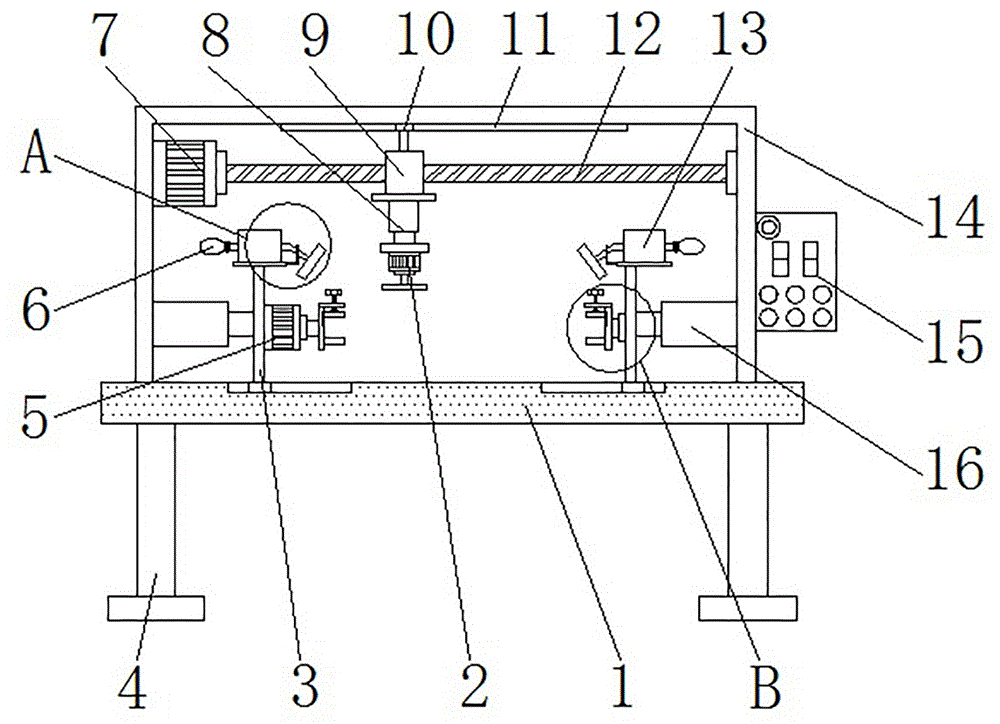

Fig. 1 is a schematic structural diagram of an embodiment of the present invention;
FIG. 2 is an enlarged view of a portion A of FIG. 1;
fig. 3 is a partially enlarged view of a portion B in fig. 2.
In the figure: 1. an operation table; 2. polishing the assembly; 3. a movable plate; 4. supporting legs; 5. a first motor; 6. a dust collecting cloth bag; 7. a second motor; 8. a first telescopic cylinder; 9. a screw block; 10. a slider; 11. a chute; 12. a threaded screw; 13. an exhaust fan; 14. a main frame; 15. a control panel; 16. a second telescopic cylinder; 17. a support plate; 18. a dust hood; 19. an exhaust pipe; 20. a support frame; 21. a clamping assembly; 22. a bearing; 23. and a transmission rod.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
In the description of the present invention, it should be noted that the terms "upper", "lower", "inner", "outer", "front end", "rear end", "both ends", "one end", "the other end", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplification of description, but do not indicate or imply that the device or element to be referred must have a specific orientation, be constructed in a specific orientation, and be operated, and thus, should not be construed as limiting the present invention. Furthermore, the terms "first" and "second" are used for descriptive purposes only and are not to be construed as indicating or implying relative importance.
In the description of the present invention, it is to be noted that, unless otherwise explicitly specified or limited, the terms "mounted", "provided", "connected", and the like are to be construed broadly, such as "connected", which may be fixedly connected, detachably connected, or integrally connected; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meaning of the above terms in the present invention can be understood in specific cases to those skilled in the art.
The utility model discloses an operation panel 1, the subassembly 2 of polishing, fly leaf 3, supporting leg 4, first motor 5, collection dirt sack 6, second motor 7, first telescopic cylinder 8, spiral shell piece 9, slider 10, spout 11, threaded screw 12, air exhauster 13, main frame 14, control panel 15, second telescopic cylinder 16, backup pad 17, suction hood 18, exhaust column 19, support frame 20, centre gripping subassembly 21, bearing 22 and transfer line 23 part are the parts that universal standard spare or technical personnel in the field know, its structure and principle all are this technical staff and all can learn through the technical manual or learn through conventional experimental method.
Referring to fig. 1-3, a steel structure processing, polishing and rust preventing device comprises an operation table 1, a main frame 14 is fixedly connected to the top of the operation table 1, a control panel 15 is fixedly connected to the right side of the main frame 14, a work indicator lamp is arranged on the surface of the control panel 15, the device can be operated more simply and rapidly by arranging the control panel 15 and the work indicator lamp, the convenience of the device is effectively improved, a second motor 7 is fixedly connected to the left side of the inner cavity of the main frame 14, a threaded screw 12 is fixedly connected to an output shaft of the second motor 7, a screw block 9 is sleeved on the surface of the threaded screw 12, a first telescopic cylinder 8 is fixedly connected to the bottom of the screw block 9, a polishing assembly 2 is fixedly connected to the output end of the first telescopic cylinder 8, a slide block 10 is fixedly connected to the top of the screw block 9, a slide groove 11 matched with the slide block 10 is arranged on the top of the inner cavity of the main frame 14, through the arrangement of the sliding block 10 and the sliding groove 11, the screw block 9 can move more stably, the stability of the polishing assembly 2 in movement is effectively improved, the lower ends of the two sides of the inner wall of the main frame 14 are fixedly connected with the second telescopic cylinder 16, the output end of the second telescopic cylinder 16 is fixedly connected with the movable plate 3, one side, opposite to the two movable plates 3, is respectively and fixedly connected with the first motor 5 and the bearing 22, the inner cavity of the bearing 22 is movably connected with the transmission rod 23, the left end of the transmission rod 23 and the output end of the first motor 5 are respectively and fixedly connected with the clamping assembly 21, the inner wall of the clamping assembly 21 is fixedly connected with the protective pad, the surface of the protective pad is provided with anti-skid grains, through the arrangement of the protective pad and the anti-skid grains, on the premise of clamping and fixing the workpiece, the damage to the surface of the workpiece caused by overlarge pressure is avoided, the top of the movable plate 3 is fixedly connected with the supporting plate 17, the top of the supporting plate 17 is fixedly connected with an exhaust fan 13, an exhaust opening of the exhaust fan 13 is communicated with an exhaust pipe 19, one end of the exhaust pipe 19, which is far away from the exhaust fan 13, is communicated with a dust hood 18, the surface of the exhaust pipe 19 is fixedly connected with a supporting frame 20, the lower end of the supporting frame 20 is fixedly connected with the joint of the supporting plate 17, the supporting frame 20 is arranged, the exhaust pipe 19 can be supported and fixed, the stability of the dust hood 18 in the operation process is effectively improved, an exhaust opening of the exhaust fan 13 is communicated with a dust collecting cloth bag 6, the joint of the dust collecting cloth bag 6 and the exhaust fan 13 is provided with an annular buckle, the surface of the annular buckle is provided with a fastening bolt, the dust collecting cloth bag 6 can be quickly disassembled and assembled through the annular buckle and the fastening bolt, the convenience of disassembling and maintaining the dust collecting cloth bag 6 is effectively improved, and supporting legs 4 are fixedly connected to two sides of the bottom of the operating platform 1, bottom fixedly connected with slipmat of supporting leg 4, through setting up supporting leg 4 and slipmat, can play the fixed effect of support to the device, the stability of device has effectively been promoted, through setting up second motor 7, first telescopic cylinder 8, spiral shell piece 9, threaded screw 12 and main frame 14, can adjust the horizontal position and the vertical position of polishing subassembly 2, the convenience of polishing the work piece of device has effectively been promoted, through setting up fly leaf 3, first motor 5, second telescopic cylinder 16, centre gripping subassembly 21, bearing 22 and transfer line 23, can press from both sides tightly fixedly to the work piece, and it rotates to drive the work piece, under the prerequisite of avoiding dismantling the work piece, just can overturn the work piece, the machining efficiency of device has effectively been promoted.
When the device is used, the two ends of a workpiece are clamped and fixed through the second telescopic air cylinder 16 and the clamping component 21, the second motor 7 is started, the output end of the second motor 7 rotates to drive the threaded screw 12, the threaded screw 12 drives the screw block 9, the screw block 9 drives the first telescopic air cylinder 8, the first telescopic air cylinder 8 drives the polishing component 2, the horizontal direction of the polishing component 2 can be adjusted, the first telescopic air cylinder 8 is started, the polishing component 2 is pushed to move upwards through the first telescopic air cylinder 8, the vertical height suitable for the operation of the polishing component 2 can be adjusted, the polishing component 2 is started, the upper surface of the workpiece can be polished, the first motor 5 is started, the output end of the first motor 5 rotates to drive the clamping component 21 to rotate, the workpiece is driven to turn through the clamping component 21, and the workpiece can be turned over on the premise of avoiding the workpiece to be disassembled, effectively promoted the machining efficiency of device, opened air exhauster 13, can unify the collection processing through in the dust suction collection sack 6 that the work piece produced that will polish through the operation of air exhauster 13, effectively alleviateed the raise dust phenomenon that the in-process of polishing produced, through the cooperation of above-mentioned structure, can make the device reach machining efficiency height, environmental pollution is little, fixed effectual advantage is fit for using widely.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (7)
1. The utility model provides a rust-resistant equipment of steel construction processing of polishing, includes operation panel (1), its characterized in that: the top of the operating table (1) is fixedly connected with a main frame (14), the left side of an inner cavity of the main frame (14) is fixedly connected with a second motor (7), an output shaft of the second motor (7) is fixedly connected with a threaded screw (12), a threaded block (9) is sleeved on the surface of the threaded screw (12), the bottom of the threaded block (9) is fixedly connected with a first telescopic cylinder (8), the output end of the first telescopic cylinder (8) is fixedly connected with a polishing assembly (2), the lower ends of two sides of the inner wall of the main frame (14) are both fixedly connected with a second telescopic cylinder (16), the output end of the second telescopic cylinder (16) is fixedly connected with a movable plate (3), one side, opposite to the two movable plates (3), of the first motor (5) and a bearing (22) are respectively fixedly connected with the inner cavity of the bearing (22) is movably connected with a transmission rod (23), the utility model discloses a dust collection device, including transfer line (23), the equal fixedly connected with centre gripping subassembly (21) of left end and the output of first motor (5) of transfer line (23), the top fixedly connected with backup pad (17) of fly leaf (3), the top fixedly connected with air exhauster (13) of backup pad (17), the extraction opening intercommunication of air exhauster (13) has exhaust column (19), the one end intercommunication that air exhauster (13) were kept away from in exhaust column (19) has suction hood (18), the gas vent intercommunication of air exhauster (13) has collection dirt sack (6).
2. The steel structure machining, grinding and rust preventing device as claimed in claim 1, wherein: the surface of the exhaust pipe (19) is fixedly connected with a support frame (20), and the lower end of the support frame (20) is fixedly connected with the joint of the support plate (17).
3. The steel structure machining, grinding and rust preventing device as claimed in claim 1, wherein: the top fixedly connected with slider (10) of spiral shell piece (9), the top of main frame (14) inner chamber is provided with spout (11) that cooperation slider (10) used.
4. The steel structure machining, grinding and rust preventing device as claimed in claim 1, wherein: the right side of the main frame (14) is fixedly connected with a control panel (15), and the surface of the control panel (15) is provided with a work indicator lamp.
5. The steel structure machining, grinding and rust preventing device as claimed in claim 1, wherein: the connection part of the dust collecting cloth bag (6) and the exhaust fan (13) is provided with an annular buckle, and the surface of the annular buckle is provided with a fastening bolt.
6. The steel structure machining, grinding and rust preventing device as claimed in claim 1, wherein: the equal fixedly connected with supporting leg (4) in both sides of operation panel (1) bottom, the bottom fixedly connected with slipmat of supporting leg (4).
7. The steel structure machining, grinding and rust preventing device as claimed in claim 1, wherein: the inner wall of the clamping assembly (21) is fixedly connected with a protective pad, and anti-skid lines are arranged on the surface of the protective pad.
