Abstract
An automatic material scattering machine for a biscuit production line comprises a rack, an auxiliary material storage box arranged at the top of the rack and a material conveying hopper arranged at the top of the auxiliary material storage box, wherein a uniform discharging assembly is arranged on the surface of one side of the rack, and a recovery assembly is arranged at the bottom in the rack; even ejection of compact subassembly includes multiunit discharging pipe and shielding plate, the multiunit discharging pipe sets up bottom in the auxiliary material storage tank, and run through the frame top, set up the multiunit drain hole on the shielding plate, shielding plate side surface sets up the push rod, push rod one end and cylinder body side fixed surface are connected, the cylinder body slides and sets up in the sliding sleeve, the sliding sleeve sets up in frame side surface, cylinder body opposite side surface sets up the connection otic placode, connect the articulated connecting rod in the otic placode, the connecting rod other end is articulated with the bent axle, bent axle one end is connected with the drive shaft of first motor. The utility model discloses can make the auxiliary material evenly shed, the ejection of compact is evenly good, can concentrate the collection to unnecessary auxiliary material simultaneously, and the later stage of being convenient for is recycled, reduction in production cost.
Description
Technical Field
The utility model relates to a biscuit production technical field especially relates to an automatic spreader for biscuit production line.
Background
The word source of the biscuit is the bread which is baked twice, the bread is baked by flour and water or milk without yeast, and the biscuit is used as a storage food for traveling, navigation and mountaineering, and is particularly convenient and applicable to standby food for military people in war. In the actual production process, snacks such as biscuits and the like are often required to be scattered with some objects such as sugar, salt, sesame, red dates and the like on some semi-finished products for improving the taste of the biscuits, and in the production process, auxiliary materials are required to be scattered by a scattering machine.
Traditional spreader can't even ejection of compact, is not convenient for evenly spill the auxiliary material, and the auxiliary material adds the effect and does not add, can't collect unnecessary auxiliary material simultaneously, very easily causes the auxiliary material extravagant.
SUMMERY OF THE UTILITY MODEL
Objects of the invention
For solving the technical problem who exists among the background art, the utility model provides an automatic spreader for biscuit production line can make the auxiliary material evenly shed, and the ejection of compact is evenly good, can concentrate the collection to unnecessary auxiliary material simultaneously, and the later stage of being convenient for is recycled, reduction in production cost.
(II) technical scheme
The utility model provides an automatic material spreading machine for biscuit production line, which comprises a frame, a base arranged at the lower part, an auxiliary material storage box arranged at the top of the frame, a material conveying hopper arranged at the top of the auxiliary material storage box and a conveyor belt arranged at the middle part in the frame, wherein a uniform material discharging assembly is arranged on the surface of one side of the frame, and a recovery assembly is arranged at the bottom in the frame;
even ejection of compact subassembly includes multiunit discharging pipe and shielding plate, the multiunit discharging pipe sets up bottom in the auxiliary material storage tank, and run through the frame top, the shielding plate sets up top in the frame, set up the multiunit drain hole on the shielding plate, shielding plate side surface sets up the push rod, push rod one end and cylinder body side fixed surface are connected, the cylinder body slides and sets up in the sliding sleeve, the sliding sleeve sets up in frame side surface, cylinder body opposite side surface sets up the connection otic placode, connect the articulated connecting rod in the otic placode, the connecting rod other end is articulated with the bent axle, the bent axle rotates and sets up in the box body, the box body sets up at frame side surface, bent axle one end is connected with the drive shaft of first motor.
Preferably, the first motor is connected with a control box through a connecting wire, and the control box is arranged on one side surface of the rack.
Preferably, one side of the upper surface of the shielding plate is provided with a limiting sliding block, one end of the limiting sliding block is arranged in a limiting sliding groove in a sliding manner, and the limiting sliding groove is formed in one side of the top in the rack.
Preferably, both ends of the connecting rod are hinged with the connecting lug plate and the crankshaft through hinge shafts.
Preferably, the recovery assembly comprises a material collecting cover and a material collecting box, the material collecting cover is arranged at the bottom in the rack, the material collecting box is arranged at the bottom in the base, and the material collecting cover is communicated with the material collecting box.
Preferably, the bottom in the base is provided with a guide block, one end of the guide block is clamped in a guide groove, and the guide groove is formed in the lower side surface of the material collecting box.
Preferably, the lower side surface in the base is provided with a groove, a ball screw is arranged in the groove in a rotating mode, a nut is arranged on the ball screw, a top plate is arranged on the upper side surface of the nut, one end of the ball screw is connected with a driving shaft of a second motor through a coupler, and the second motor is arranged on one side surface of the base.
Compared with the prior art, the above technical scheme of the utility model following profitable technological effect has:
1. the utility model discloses can drive shielding plate reciprocating motion through the transmission of bent axle and connecting rod, and then the auxiliary material is detained through leaking the material and is evenly shed to the biscuit on, has realized evenly throwing of auxiliary material and has spilt the function.
2. The utility model discloses can concentrate the collection to unnecessary auxiliary material, avoid the extravagant condition of auxiliary material to take place, be convenient for simultaneously handle the auxiliary material of collecting, the treatment effect is good, and the practicality is strong.
Drawings

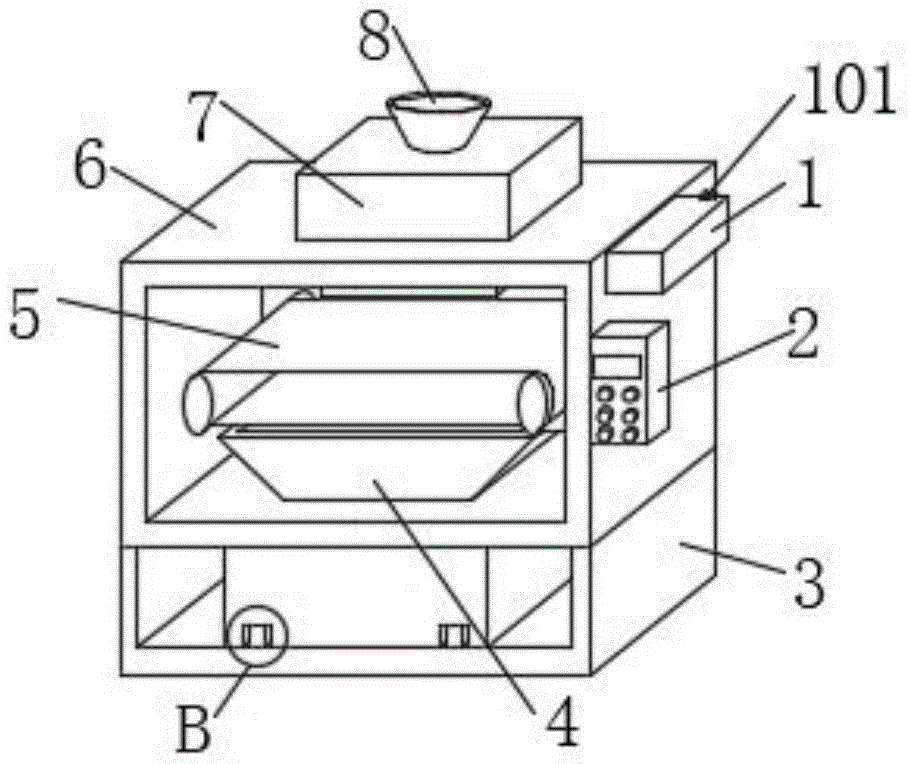

Fig. 1 is the structure schematic diagram of the automatic spreader for biscuit production line provided by the utility model.
Fig. 2 is the utility model provides an even ejection of compact subassembly main view section structure sketch map for biscuit production line's automatic spreader.
Fig. 3 is an enlarged schematic view of a portion a in fig. 2.
Fig. 4 is the utility model provides a retrieve subassembly right side section structure sketch map that is used for automatic spreader of biscuit production line.
Fig. 5 is an enlarged schematic view of a portion B in fig. 1.
Reference numerals: 1. a uniform discharging component; 2. a control box; 3. a base; 4. a recovery assembly; 5. a conveyor belt; 6. a frame; 7. an auxiliary material storage tank; 8. a material conveying hopper; 41. a material collecting cover; 42. a material collecting box; 43. a groove; 44. a ball screw; 45. a second motor; 46. a nut; 47. a top plate; 48. a guide block; 49. a guide groove; 101. a first motor; 102. a discharge pipe; 103. a limiting slide block; 104. a box body; 105. a push rod; 106. a limiting chute; 107. a material leakage port; 108. a shielding plate; 109. a connecting rod; 110. a crankshaft; 111. a cylinder body; 112. and (4) a sliding sleeve.
Detailed Description
In order to make the objects, technical solutions and advantages of the present invention more apparent, the present invention will be described in detail with reference to the accompanying drawings. It should be understood that the description is intended to be illustrative only and is not intended to limit the scope of the present invention. Moreover, in the following description, descriptions of well-known structures and techniques are omitted so as to not unnecessarily obscure the concepts of the present invention.
As shown in fig. 1-5, the utility model provides an automatic spreader for biscuit production line, which comprises a frame 6, a base 3 arranged at the lower part, an auxiliary material storage tank 7 arranged at the top of the frame 6, a material conveying hopper 8 arranged at the top of the auxiliary material storage tank 7 and a conveyor belt 5 arranged at the middle part in the frame 6, wherein a uniform discharging component 1 is arranged on the surface of one side of the frame 6, and a recovery component 4 is arranged at the bottom in the frame 6;
even ejection of compact subassembly 1 includes multiunit discharging pipe 102 and shielding plate 108, multiunit discharging pipe 102 sets up the bottom in auxiliary material storage tank 7, and run through frame 6 top, shielding plate 108 sets up top in frame 6, set up multiunit drain hole 107 on the shielding plate 108, shielding plate 108 side surface sets up push rod 105, push rod 105 one end and the 111 side fixed surface of cylinder body are connected, cylinder body 111 slides and sets up in sliding sleeve 112, sliding sleeve 112 sets up at frame 6 side surface, the 111 other side surface of cylinder body sets up the connection otic placode, connect articulated connecting rod 109 in the otic placode, the connecting rod 109 other end is articulated with bent axle 110, bent axle 110 rotates and sets up in box body 104, box body 104 sets up at frame 6 side surface, bent axle 110 one end links to each other with the drive shaft of first motor 101, first motor 101 is connected with control box 2 through the connecting wire, control box 2 sets up at frame 6 side surface.
The utility model discloses in, at first with the auxiliary material storage in auxiliary material storage tank 7, then operate first motor 101, first motor 101 drives bent axle 110 and rotates, bent axle 110 drives connecting rod 109 and rotates, connecting rod 109 drives cylinder body 111 reciprocating motion in sliding sleeve 112, cylinder body 111 drives push rod 105 reciprocating motion, push rod 105 drives shielding plate 108 reciprocating motion, after the small opening 107 corresponds with discharging pipe 102, the auxiliary material passes through small opening 107 and carries to the biscuit on the conveyer belt 5.
In an alternative embodiment, the limit sliding block 103 is disposed on one side of the upper surface of the shielding plate 108, one end of the limit sliding block 103 is slidably disposed in the limit sliding groove 106, and the limit sliding groove 106 is disposed on one side of the top portion in the rack 6.
It should be noted that the shielding plate 108 moves to drive the limiting slide block 103 to move in the limiting slide groove 106, so as to improve the guidance of the shielding plate 108 during movement.
In an alternative embodiment, both ends of the connecting rod 109 are hinged to the connecting lug plate and the crankshaft 110 by hinge shafts.
The stability of the link 109 when rotated is improved.
In an alternative embodiment, the recycling assembly 4 comprises a material collecting cover 41 and a material collecting box 42, wherein the material collecting cover 41 is arranged at the inner bottom of the frame 6, the material collecting box 42 is arranged at the inner bottom of the base 3, and the material collecting cover 41 is communicated with the material collecting box 42.
It should be noted that, when the conveying belt 5 rotates, the redundant auxiliary materials drop into the collecting cover 41, the collecting cover 41 conveys the auxiliary materials into the collecting box 42, and the collecting box 42 collects the auxiliary materials.
In an alternative embodiment, a guide block 48 is disposed at the bottom of the base 3, one end of the guide block 48 is engaged with a guide groove 49, and the guide groove 49 is opened on the lower side of the material collecting box 42.
It should be noted that the magazine 42 can be easily removed, and the magazine 42 can be positioned for installation.
In an alternative embodiment, a groove 43 is formed in the lower inner side surface of the base 3, a ball screw 44 is rotatably disposed in the groove 43, a nut 46 is disposed on the ball screw 44, a top plate 47 is disposed on the upper side surface of the nut 46, one end of the ball screw 44 is connected to a driving shaft of a second motor 45 through a coupling, the second motor 45 is disposed on a side surface of the base 3, and the second motor 45 is electrically connected to the control box 2 through a connecting wire.
It should be noted that, when the auxiliary material in the material collecting box 42 needs to be cleaned, the second motor 45 is operated, the second motor 45 drives the ball screw 44 to rotate, the screw 46 drives the top plate 47 to move, the top plate 47 moves to push the material collecting box 42 to move, and then the material collecting box 42 moves out of the base 3, so that the auxiliary material in the material collecting box 42 can be cleaned conveniently.
The control box 2 is used for controlling the first motor 101, the second motor 45 and the conveyor belt 5.
It is to be understood that the above-described embodiments of the present invention are merely illustrative of or explaining the principles of the invention and are not to be construed as limiting the invention. Therefore, any modification, equivalent replacement, improvement and the like made without departing from the spirit and scope of the present invention should be included in the protection scope of the present invention. Further, it is intended that the appended claims cover all such variations and modifications as fall within the scope and boundaries of the appended claims or the equivalents of such scope and boundaries.
Claims (7)
1. An automatic spreading machine for a biscuit production line is characterized by comprising a rack (6), a base (3) arranged at the lower part, an auxiliary material storage box (7) arranged at the top of the rack (6), a conveying hopper (8) arranged at the top of the auxiliary material storage box (7) and a conveying belt (5) arranged at the middle part in the rack (6), wherein a uniform discharging component (1) is arranged on the surface of one side of the rack (6), and a recovery component (4) is arranged at the bottom in the rack (6);
the uniform discharging component (1) comprises a plurality of groups of discharging pipes (102) and a baffle plate (108), the plurality of groups of discharging pipes (102) are arranged at the bottom in the auxiliary material storage tank (7), and run through frame (6) top, shielding plate (108) set up top in frame (6), set up multiunit drain hole (107) on shielding plate (108), shielding plate (108) side surface sets up push rod (105), push rod (105) one end and cylinder body (111) one side fixed surface are connected, cylinder body (111) slide and set up in sliding sleeve (112), sliding sleeve (112) set up in frame (6) one side surface, cylinder body (111) another side surface sets up the connection otic placode, connect articulated connecting rod (109) in the otic placode, the connecting rod (109) other end is articulated with bent axle (110), bent axle (110) rotate and set up in box body (104), box body (104) set up in frame (6) one side surface, bent axle (110) one end is connected with the drive shaft of first motor (101).
2. The automatic spreader for biscuit production line according to claim 1, characterized in that the first motor (101) is connected with the control box (2) through a connecting wire, the control box (2) is arranged on one side surface of the frame (6).
3. The automatic spreading machine for the biscuit production line according to claim 1, characterized in that one side of the upper surface of the shielding plate (108) is provided with a limiting slide block (103), one end of the limiting slide block (103) is slidably arranged in a limiting slide groove (106), and the limiting slide groove (106) is arranged on one side of the top in the rack (6).
4. An automatic spreader for biscuit production lines according to claim 1 characterized in that both ends of the connecting rod (109) are hinged with the connecting lug plate and the crankshaft (110) by means of hinge shafts.
5. The automatic spreading machine for the biscuit production line according to claim 1, characterized in that the recovery assembly (4) comprises a material collecting cover (41) and a material collecting box (42), the material collecting cover (41) is arranged at the bottom in the frame (6), the material collecting box (42) is arranged at the bottom in the base (3), and the material collecting cover (41) is communicated with the material collecting box (42).
6. An automatic spreading machine for biscuit production line according to claim 5, characterized in that the bottom in the base (3) is provided with a guide block (48), one end of the guide block (48) is clamped in a guide groove (49), and the guide groove (49) is arranged on the lower side of the material collecting box (42).
7. The automatic spreading machine for the biscuit production line according to claim 5, characterized in that a groove (43) is formed in the inner lower side surface of the base (3), a ball screw (44) is rotatably arranged in the groove (43), a nut (46) is arranged on the ball screw (44), a top plate (47) is arranged on the upper side surface of the nut (46), one end of the ball screw (44) is connected with a driving shaft of a second motor (45) through a coupler, and the second motor (45) is arranged on one side surface of the base (3).
