Abstract
The utility model discloses a palm fixing device is used in paediatrics infusion nursing, the fixed plate of mounting hole is seted up including the upper surface, the inner wall threaded connection of mounting hole has the fixed section of thick bamboo that is used for children to grip, the bleeder vent that is used for the radiating is offered on the surface of fixed section of thick bamboo, the cotton cover of bubble that is used for avoiding scalding has been cup jointed to the side of fixed section of thick bamboo, the side fixedly connected with of fixed plate is used for the connecting plate of connecting, it has the fixing bolt who is used for fixing to peg graft the bottom of connecting plate. This palm fixing device is used in paediatrics infusion nursing sets up through the combination of mounting hole, fixed plate, fixed cylinder, bleeder vent and bubble cotton cover, can heat to children's palm through the heating tube on the one hand, avoids children's palm to become cold to produce uncomfortable sense, and on the other hand can avoid children to hold the palm tightly and reduce children's palm amplitude of activity, avoids the transfusion needle to shift or impale children's blood vessel, increases medical personnel's work load.
Description
Technical Field
The utility model relates to a fixing device technical field specifically is a palm fixing device is used in paediatrics infusion nursing.
Background
Intravenous infusion is a common medical procedure in pediatric medical procedures. Because children are lively and vivid and have poor automatic control capability, the children often cry and scream during transfusion, the situations of displacement, falling off and the like of a transfusion needle often occur, repeated puncture is needed, the pain of the children is increased, and the workload of nurses is increased.
Chinese patent public notice No. CN209713887U discloses a palm fixing device for pediatric infusion nursing, which relates to the technical field of pediatric medical auxiliary equipment, in particular to the palm fixing device for pediatric infusion nursing, which comprises a hand supporting plate, wherein one side of the hand supporting plate is provided with a connecting shaft placing groove, one side of the hand supporting plate, which is far away from the connecting shaft placing groove, is provided with a connecting block placing groove, the inside of the hand supporting plate is provided with a groove, the palm fixing device for pediatric infusion nursing is convenient for medical staff to fix the hands of children when the children are infused by arranging a protective heat-insulating pad, a hand limiting belt, a protective pad connecting block and a limiting belt connecting block, avoids the children from being uncoordinated and consuming a large amount of time of the medical staff, and can reduce the constraint feeling on the hands of the children in the infusion process, the fastness is better, and the protection effect can also be played, the condition that the transfusion needle runs is avoided.
However, the utility model discloses an in-service use, children can grip the palm, and the range of motion that leads to children palm in the infusion is great, can cause the syringe needle skew to a certain extent or pierce through children's blood vessel, and in addition, this fixing device can fix children's palm, nevertheless be not convenient for when restricting children palm activity, can make children's finger free activity or hold between the fingers the article.
SUMMERY OF THE UTILITY MODEL
Technical problem to be solved
Not enough to prior art, the utility model provides a palm fixing device is used in paediatrics infusion nursing has solved the problem that proposes in the above-mentioned background art.
(II) technical scheme
In order to achieve the above purpose, the utility model discloses a following technical scheme realizes: the utility model provides a palm fixing device is used in paediatrics infusion nursing, includes that the fixed plate of mounting hole is seted up to the upper surface, the inner wall threaded connection of mounting hole has the solid fixed cylinder that is used for children to grip, gu the surface of fixed cylinder is offered and is used for radiating bleeder vent, gu the cotton cover of bubble that is used for avoiding scalding has been cup jointed to the side of fixed cylinder, the side fixedly connected with of fixed plate is used for the connecting plate of connecting, peg graft in the bottom of connecting plate and have the fixing bolt who is used for fixing.
Optionally, the inner bottom wall of the mounting hole is in threaded connection with a heating tube for heating, and the top end of the heating tube is inserted into the fixed cylinder.
Optionally, a supporting plate for connecting the fixing plate is sleeved at one end of the connecting plate, and one end of the fixing bolt penetrating through the connecting plate is in threaded connection with the bottom of the supporting plate.
Optionally, a placing groove for placing a palm is formed in the upper surface of the supporting plate, and a foam pad for preventing pressure sores is fixedly connected to the inner bottom wall of the placing groove.
Optionally, one side of the supporting plate is fixedly connected with a fixing ring for connection, the other side of the supporting plate is fixedly connected with a restraining belt for restraining a palm, and the side of the restraining belt is fixedly connected with a magic tape for adjusting tightness.
Optionally, two clamping grooves for connection are formed in one end of the upper surface of the supporting plate, a U-shaped plate for pressing and holding a palm is inserted into the inner wall of each clamping groove, and the top of each U-shaped plate is fixedly connected with a pipe clamp for clamping an infusion pipe.
(III) advantageous effects
The utility model provides a palm fixing device is used in paediatrics infusion nursing possesses following beneficial effect:
1. this palm fixing device is used in paediatrics infusion nursing sets up through the combination of mounting hole, fixed plate, fixed cylinder, bleeder vent and bubble cotton-padded sleeve, can heat to children's palm through the heating tube on the one hand, avoids children's palm to become cold and produces uncomfortable sense, and on the other hand can avoid children to hold the palm tightly and reduce children's palm range of activity, avoids the transfusion needle to shift or impale children's blood vessel and increase medical personnel's work load to effectual improvement the device's practicality.
2. This palm fixing device is used in paediatrics infusion nursing sets up through the combination of connecting plate and fixing bolt, can dismantle the fixed plate from the one end of layer board to in children write or do other less things of finger activity range with the finger, can provide favorable condition for the smooth infusion of children, avoid children to resist and continue the infusion because the palm can not move about for a long time, further effectual practicality that improves the device.
Drawings

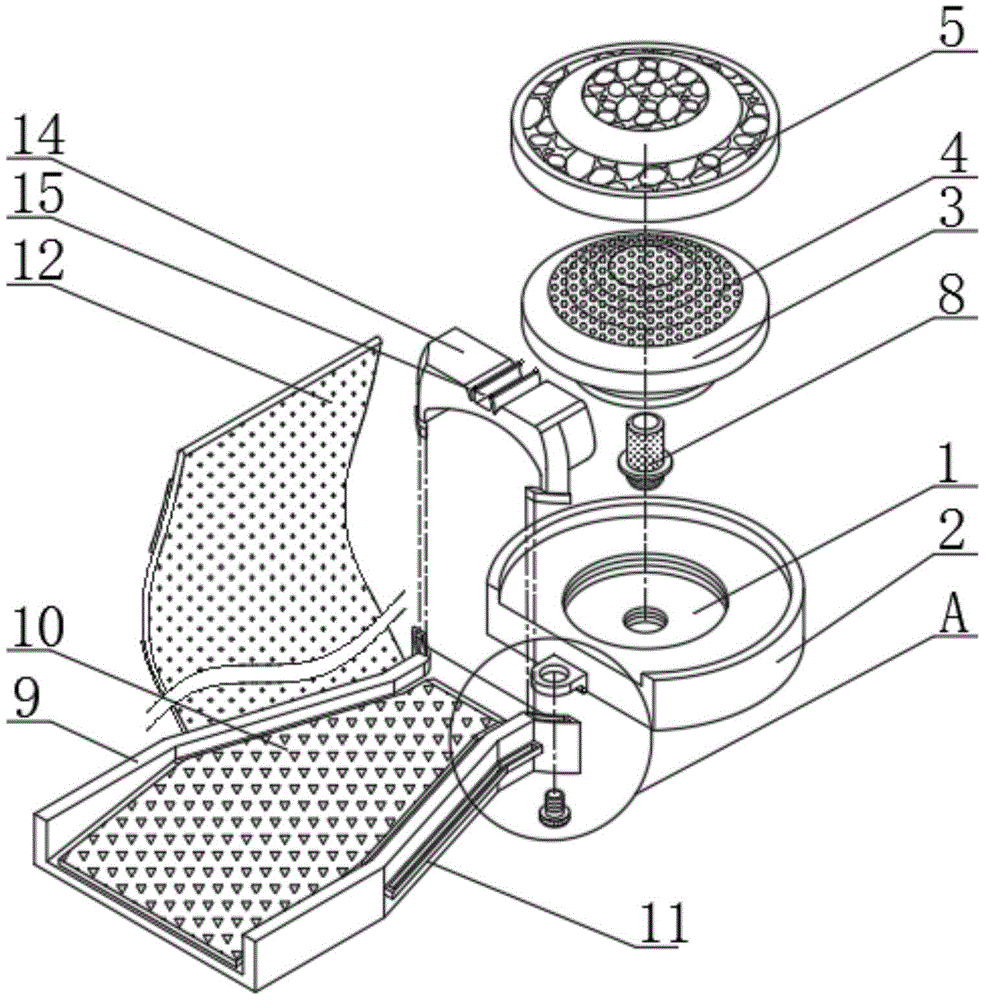

Fig. 1 is an exploded schematic view of the present invention;
FIG. 2 is a schematic structural view of the present invention;
FIG. 3 is an enlarged schematic view of the present invention at A in FIG. 1;
fig. 4 is an explosion diagram of the fixing cylinder of the present invention.
In the figure: 1. mounting holes; 2. a fixing plate; 3. a fixed cylinder; 4. air holes are formed; 5. soaking a cotton sleeve; 6. a connecting plate; 7. fixing the bolt; 8. a heat generating tube; 9. a support plate; 10. soaking a cotton pad; 11. a fixing ring; 12. a binding belt; 13. a clamping groove; 14. a U-shaped plate; 15. a pipe clamp.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments.
Referring to fig. 1 to 4, the present invention provides a technical solution: a palm fixing device for pediatric infusion nursing comprises a fixing plate 2, wherein the upper surface of the fixing plate is provided with a mounting hole 1, in order to heat the palm of a child through a heating tube 8, the palm of the child is prevented from being cooled to generate discomfort, meanwhile, the palm of the child is prevented from being tightly held and the activity range of the palm of the child is reduced, the infusion needle is prevented from shifting or puncturing the blood vessel of the child, the inner bottom wall of the mounting hole 1 is in threaded connection with the heating tube 8 for heating, the top end of the heating tube 8 is inserted into a fixing barrel 3, the inner wall of the mounting hole 1 is in threaded connection with the fixing barrel 3 for holding the child, the surface of the fixing barrel 3 is provided with a vent hole 4 for heat dissipation, the side surface of the fixing barrel 3 is sleeved with a foam sleeve 5 for avoiding scalding, the heating tube 8 is connected with an external power supply through a lead, so as to heat the palm of the child, the palm of the child is prevented from being cooled, medical staff can reduce the sterilization times of the fixing barrel 3 by replacing the foam sleeve 5, so as to reduce the workload of medical staff;
the fixing plate 2 can be detached from one end of the supporting plate 9, so that children can write with fingers or do other things with small finger movement amplitude, the side face of the fixing plate 2 is fixedly connected with a connecting plate 6 for connection, a fixing bolt 7 for fixing is inserted into the bottom of the connecting plate 6, one end of the connecting plate 6 is sleeved with the supporting plate 9 for connecting the fixing plate 2, the fixing bolt 7 penetrates through one end of the connecting plate 6 and is in threaded connection with the bottom of the supporting plate 9, a placing groove for placing a palm is formed in the upper surface of the supporting plate 9, and an inner bottom wall of the placing groove is fixedly connected with a foam pad 10 for preventing pressure sores;
one side fixedly connected with of layer board 9 is used for the solid fixed ring 11 of connecting, the opposite side fixedly connected with of layer board 9 is used for the constraint area 12 of constraint palm, the side fixedly connected with of constraint area 12 is used for adjusting the magic subsides of elasticity, two joint grooves 13 that are used for connecting are seted up to the one end of layer board 9 upper surface, the inner wall of two joint grooves 13 is pegged graft and is had the U-shaped plate 14 that is used for pressing the palm, the top fixedly connected with of U-shaped plate 14 is used for the pipe clamp 15 of centre gripping transfer line, medical personnel can run through the inner wall winding of joint groove 13 with the one end of constraint area 12 on children's palm, avoid children's palm to break away from the inner wall of layer board 9, the centre gripping transfer line can be convenient for pipe clamp 15, avoid children to pull the transfer line and tear the infusion head from intravascular tear.
The electrical components presented in the document are all electrically connected with an external master controller and 220V mains, and the master controller can be a conventional known device controlled by a computer or the like.
The utility model discloses in, the device's working procedure as follows:
1. when the child bubble cotton pad is used, the bubble cotton sleeve 5 is sleeved on the side surface of the fixed cylinder 3, then the child holds the bubble cotton sleeve 5 with the palm of the child, and the arm is placed on the upper surface of the bubble cotton pad 10;
2. then, one end of the constraint belt 12 penetrates through the clamping groove 13, the arms of the children are constrained on the inner wall of the supporting plate 9, and the U-shaped plate 14 is inserted into the inner wall of the clamping groove 13;
3. then the infusion tube is clamped on the inner wall of the tube clamp 15, when a child needs to write, the fixing bolt 7 is taken out from the inner wall of the connecting plate 6, and then the fixing plate 2 is detached from one end of the supporting plate 9.
The above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.
Claims (6)
1. The utility model provides a palm fixing device is used in paediatrics infusion nursing, includes that fixed plate (2) of mounting hole (1), its characterized in that are seted up to the upper surface: the utility model discloses a children's disposable safety helmet, including mounting hole (1), the inner wall threaded connection of mounting hole (1) has a solid fixed cylinder (3) that is used for children to grip, solid fixed cylinder's (3) surface is offered and is used for radiating bleeder vent (4), the side of solid fixed cylinder (3) has cup jointed the cotton cover of bubble (5) that are used for avoiding the scald, the side fixedly connected with of fixed plate (2) is used for connecting plate (6), the bottom of connecting plate (6) is pegged graft and is had fixing bolt (7) that are used for fixing.
2. The palm fixing device for pediatric infusion care according to claim 1, wherein: the inner bottom wall of the mounting hole (1) is in threaded connection with a heating tube (8) used for heating, and the top end of the heating tube (8) is inserted into the fixed barrel (3).
3. The palm fixing device for pediatric infusion care according to claim 1, wherein: and one end of the connecting plate (6) is sleeved with a supporting plate (9) used for connecting the fixing plate (2), and the fixing bolt (7) penetrates through one end of the connecting plate (6) and is in threaded connection with the bottom of the supporting plate (9).
4. The palm fixing device for pediatric infusion care according to claim 3, wherein: the upper surface of layer board (9) is seted up and is used for placing the standing groove of palm, the interior diapire fixedly connected with of standing groove is used for preventing pressing the cotton pad (10) of bubble of sore.
5. The palm fixing device for pediatric infusion care according to claim 3, wherein: one side of the supporting plate (9) is fixedly connected with a fixing ring (11) for connection, the other side of the supporting plate (9) is fixedly connected with a restraining belt (12) for restraining a palm, and the side face of the restraining belt (12) is fixedly connected with a magic tape for adjusting tightness.
6. The palm fixing device for pediatric infusion care according to claim 3, wherein: two clamping grooves (13) used for connection are formed in one end of the upper surface of the supporting plate (9), a U-shaped plate (14) used for pressing and holding a palm is inserted into the inner wall of each clamping groove (13), and a pipe clamp (15) used for clamping an infusion pipe is fixedly connected to the top of each U-shaped plate (14).
