Abstract
本实用新型属于医疗器械技术领域，尤其为一种患者手术室用防输液管压疮装置，包括装置本体，所述装置本体是由固定带一、连接带、固定带二与延长端构成，且装置本体的正端为外层，而装置本体的后端则为内层，所述固定带一上固定安设有魔术贴与固定贴一，所述固定带二上安设有转动块，所述转动块与伸缩杆一端为固定连接，所述伸缩杆上固定安设有卡环一与卡环二，通过卡环一与卡环二的设立，可便于卡环一与卡环二能够在输液管卡合在其内部后，对输液管进行位置固定，通过伸缩杆的设立，可便于当伸缩杆携带卡环二向外延长时，能够将输液管活动端带离患者肢体上端，令输液管在远离患者肢体后，不易与患者肢体发生接触。
The utility model belongs to the technical field of medical devices, in particular to an anti-infusion tube pressure ulcer device for a patient operating room, comprising a device body, wherein the device body is composed of a first fixing belt, a connecting belt, a second fixing belt and an extension end, and The positive end of the device body is the outer layer, and the rear end of the device body is the inner layer. The first fixed belt is fixed with a Velcro and a fixed sticker, and the second fixed belt is installed with a rotating block. One end of the rotating block and the telescopic rod is fixedly connected, and a snap ring 1 and a snap ring two are fixedly installed on the telescopic rod. After the infusion tube is clamped inside it, the position of the infusion tube is fixed. Through the establishment of the telescopic rod, it is convenient to take the movable end of the infusion tube away from the upper end of the patient's limb when the telescopic rod carries the retaining ring 2 and extends outwards, so that the infusion After the tube is far away from the patient's limb, it is not easy to come into contact with the patient's limb.
Description
Technical Field
The utility model belongs to the technical field of medical instrument, concretely relates to patient's operating room is with preventing transfer line pressure sore device.
Background
In the operation anesthesia process, the infusion is the need of human physiological function, the infusion not only can supplement the lost physiological quantity during the diet prohibition period, supplement the physiological metabolic quantity and maintain the lost liquid quantity in the operation process, the pipeline through the venous infusion can also be convenient for the anesthetist to infuse the anesthetic at any time to maintain the certain depth of the operation anesthesia, be favorable to the operation, in addition, the input of the liquid in the operation process can effectively guarantee the cardiovascular circulation blood volume, maintain the normal of blood pressure and guarantee the safety of perioperative period.
SUMMERY OF THE UTILITY MODEL
At present, when a patient receives infusion treatment in an operation, the infusion tube is directly fixed on the surface of the limb of the patient, so that the skin of the patient is easily pressed and rubbed, the skin of the patient is pressed to form a pressure sore phenomenon, and discomfort is caused to the patient. The utility model provides a patient's operating room is with preventing transfer line pressure sore device, through the utility model discloses can carry out rigidity to the transfer line, can be convenient for carry out the position to the home range of transfer line and prescribe a limit to, it is a plurality of through having seted up the bleeder vent on the inlayer, because of its texture is soft and have elasticity again, can be convenient for inlayer and patient skin laminating back, not only can add the gas permeability of patient skin, simultaneously, can also add the comfort level of patient skin, make it can not oppress patient skin, make patient skin easily form the characteristics of pressing the sore phenomenon from this.
The utility model provides a following technical scheme: the utility model provides a patient's operating room is with preventing transfer line pressure sore device, includes the device body, the device body comprises fixed band one, connecting band, fixed band two and extension end, and just the positive end of device body is outer, and the rear end of device body then is the inlayer, fixed band one is gone up and is fixed to have installed the magic subsides and fix and paste one, fixed two of subsides have been installed on the connecting band, the turning block has been installed on the fixed band two, the turning block is fixed connection with telescopic link one end, fixed snap ring one and snap ring two of having installed on the telescopic link.
The right sides of the rear ends of the first fixing band and the second fixing band and the rear ends of the first fixing tape and the second fixing tape are fixedly provided with magic tapes, the outer layer of the device body is a felt surface, and the magic tapes are in adhesive connection with the outer layer of the device body; through the establishment of magic subsides, and the magic subsides are adhesive connection with the skin, can be convenient for only need with the magic subsides that fixed the installing of two rear ends right sides of fixed band one and fixed band adhere on its positive left skin, can make fixed band one and two formation closed loop of fixed band encircle fixedly to patient's limbs outer end, put the transfer line in fixed band one earlier with the connecting band upper end after, will fix again and paste one with fixed subsides two and fix in proper order and fix on the skin of fixed band positive end and connecting band positive end, can enough carry out the rigidity to the transfer line.
The bottom end of the connecting belt is fixedly connected with the middle part of the upper end of the first fixing belt, the upper end of the connecting belt is fixedly connected with the middle part of the bottom end of the second fixing belt, and the connecting belt is I-shaped after being fixedly connected with the first fixing belt and the second fixing belt; the first fixing belt and the second fixing belt are fixedly connected with one end of the connecting belt, so that the first fixing belt can be conveniently connected with the second fixing belt through the connecting belt.
The upper end of the extension end is fixedly connected with the middle part of the bottom end of the first fixing belt; through the arrangement of the extension end, the extension end can be conveniently arranged at the lower end of the infusion tube close to the tail end of the puncture needle to support the infusion tube.
Wherein, the inner layer of the device body is provided with a plurality of air holes, and the inner layer is soft and elastic; it is a plurality of through having seted up the bleeder vent on the inlayer, can be convenient for strengthen its and patient skin laminating back patient's skin's gas permeability, be the soft and elastic latex material that has of texture through the inlayer, can be convenient for can enough add the comfort level with patient skin laminating back patient's skin, can not oppress patient's skin again, make the patient form and press the sore phenomenon.
The upper end of the second fixing belt is fixedly provided with a round fixing block, and the fixing block is rotatably connected with the inner part of the lower end of the rotating block; the round fixing block fixedly arranged at the upper ends of the rotating block and the second fixing band is in rotating connection, so that the telescopic rod can rotate horizontally at the upper end of the second fixing band through the rotating block.
The first clamping ring is fixedly arranged in the middle of the outer end of the fixed end of the telescopic rod, the second clamping ring is fixedly connected with the telescopic end of the telescopic rod, and the first clamping ring and the second clamping ring are semi-annular; through the establishment of snap ring one and snap ring two, can be convenient for snap ring one and snap ring two can carry out the rigidity to the transfer line in its inside back, through the establishment of telescopic link, can be convenient for carry snap ring two to epitaxial long term when the telescopic link, can take away patient's limbs upper end with transfer line activity end, make the transfer line after keeping away from patient's limbs, be difficult for taking place the contact with patient's limbs.
The utility model has the advantages that: through the utility model discloses can carry out the rigidity to the transfer line, can be convenient for prescribe a limit to the home range of transfer line, make the transfer line be difficult for direct contact, oppression and friction patient skin, make the patient form from this and press the sore phenomenon, cause the discomfort for the patient, it is a plurality of through having seted up the bleeder vent on the inlayer, can be convenient for strengthen its and patient skin's after-fitting gas permeability, be soft and have elastic latex material for the texture through the inlayer, can be convenient for can enough add the comfort level with patient skin after-fitting patient skin, can not oppress patient skin again, make the patient form and press the sore phenomenon, through the establishment of telescopic link, and telescopic link and turning block are fixed connection, medical staff can be convenient for can be according to actual conditions, adjust the service length and the position of use of telescopic link, thereby ensure the security of transfer line fixed in-process.
The parts of the device not involved are the same as or can be implemented using prior art.
Drawings

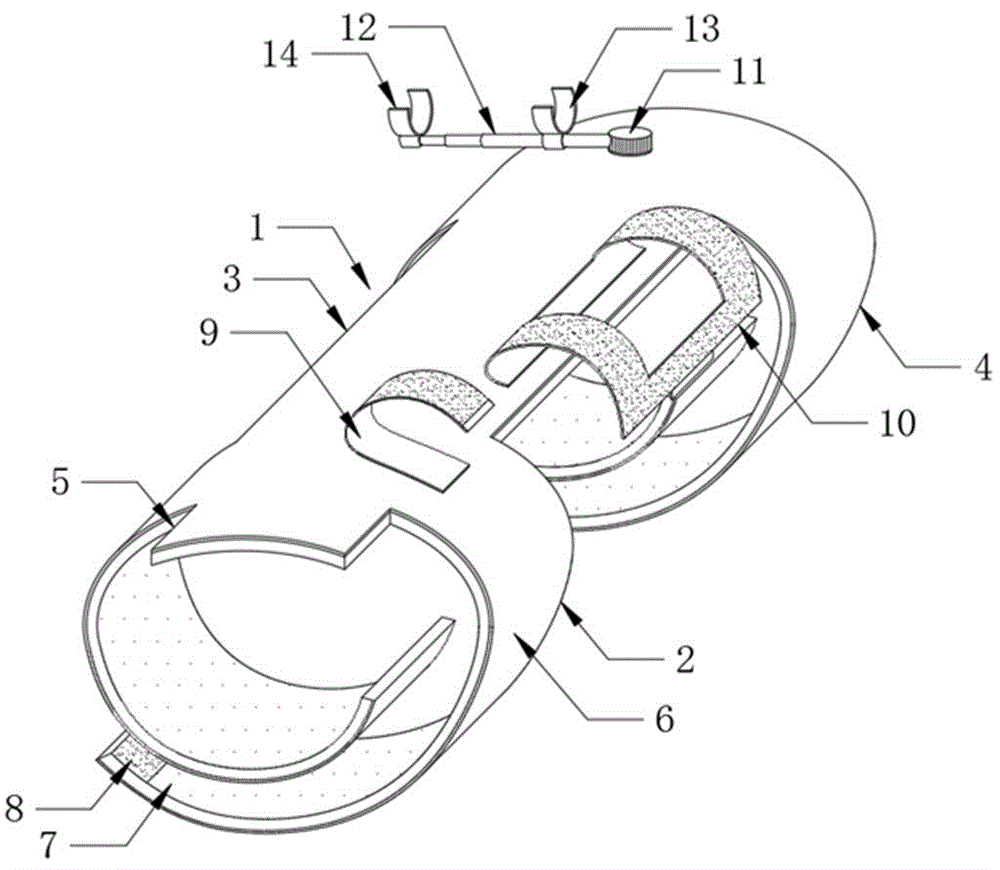

FIG. 1 is a front view of the present invention;
fig. 2 is a front view of the present invention;
fig. 3 is a schematic view of the structure of the first fixing sticker, the second fixing sticker, and the telescopic rod of the present invention;
fig. 4 is a rear view of the present invention;
in the figure: 1. a device body; 2. fixing a first belt; 3. a connecting belt; 4. fixing a second belt; 5. an extension end; 6. an outer layer; 7. an inner layer; 8. magic tape; 9. fixing and pasting a first layer; 10. fixing a second paster; 11. rotating the block; 12. a telescopic rod; 13. a first snap ring; 14. and a second snap ring.
Detailed Description
Referring to fig. 1-4, the present invention provides the following technical solutions: the utility model provides a patient's operating room is with preventing transfer line pressure sore device, includes device body 1, device body 1 comprises fixed band one 2, connecting band 3, two 4 of fixed band and extension end 5, and just the positive end of device body 1 is outer 6, and the rear end of device body 1 then is inlayer 7, fixed band one 2 is gone up and is fixed to have installed magic subsides 8 and fixed one 9 of pasting, fixed two 10 of pasting of having installed on the connecting band 3, installed turning block 11 on two 4 of fixed band, turning block 11 is fixed connection with 12 one end of telescopic link, fixed snap ring one 13 and snap ring two 14 of having installed on the telescopic link 12.
The right sides of the rear ends of the first fixing belt 2 and the second fixing belt 4 and the rear ends of the first fixing tape 9 and the second fixing tape 10 are fixedly provided with magic tapes 8, the outer layer 6 of the device body 1 is a felt surface, and the magic tapes 8 are in adhesive connection with the outer layer 6 of the device body 1; through the establishment of magic subsides 8, and magic subsides 8 and outer 6 are adhesive connection, can be convenient for only need paste 8 with the fixed magic of installing in two 4 rear ends right sides of fixed band with fixed band and adhere on its positive left outer 6, can make fixed band 2 and two 4 formation closed loop of fixed band encircle fixedly to patient's limbs outer end, put into fixed band 2 and connecting band 3 upper end after with the transfer line earlier, paste fixed subsides 9 and fixed two 10 of pasting in proper order again and fix on the skin 6 of fixed band 2 positive end and connecting band 3 positive end, can enough carry out the rigidity to the transfer line.
The bottom end of the connecting belt 3 is fixedly connected with the middle part of the upper end of the first fixing belt 2, the upper end of the connecting belt 3 is fixedly connected with the middle part of the bottom end of the second fixing belt 4, and the connecting belt 3, the first fixing belt 2 and the second fixing belt 4 are fixedly connected and then are I-shaped; through the establishment of the first fixing belt 2 and the second fixing belt 4, and the first fixing belt 2 and the second fixing belt 4 are both fixedly connected with one end of the connecting belt 3, the first fixing belt 2 can be conveniently connected with the second fixing belt 4 through the connecting belt 3.
The upper end of the extension end 5 is fixedly connected with the middle part of the bottom end of the fixing belt I2; by arranging the extension end 5, the extension end 5 can be conveniently arranged at the lower end of the infusion tube close to the tail end of the puncture needle to support the infusion tube.
A plurality of air holes are formed in the inner layer 7 of the device body 1, and the inner layer 7 is soft and elastic; it is a plurality of through having seted up the bleeder vent on inlayer 7, can be convenient for strengthen its and patient skin laminating back patient's skin's gas permeability, be soft for the texture and have elastic latex material through inlayer 7, can be convenient for can enough add the comfort level with patient skin laminating back patient's skin, can not oppress patient's skin again, make the patient form and press the sore phenomenon.
A round fixing block is fixedly arranged at the upper end of the fixing belt II 4, and the fixing block is rotatably connected with the inner part of the lower end of the rotating block 11; the round fixing block fixedly arranged at the upper end of the second fixing belt 4 is rotatably connected through the rotating block 11, so that the telescopic rod 12 can horizontally rotate at the upper end of the second fixing belt 4 through the rotating block 11.
The first clamping ring 13 is fixedly arranged in the middle of the outer end of the fixed end of the telescopic rod 12, the second clamping ring 14 is fixedly connected with the telescopic end of the telescopic rod 12, and the first clamping ring 13 and the second clamping ring 14 are semi-annular; through the establishment of snap ring 13 and snap ring two 14, can be convenient for snap ring 13 and snap ring two 14 can carry out the rigidity to the transfer line in its inside back at the transfer line block, through the establishment of telescopic link 12, can be convenient for carry snap ring two 14 when outwards extending when telescopic link 12, can take away patient's limbs upper end with the transfer line activity end, make the transfer line after keeping away from patient's limbs, be difficult for taking place the contact with patient's limbs.
The utility model discloses a theory of operation and use flow: the position fixing operation of the device body 1 can be completed by firstly placing the fixing strap I2 at the upper end of the limb close to the puncture position of a patient, making the extension end 5 pad the lower end of the infusion tube close to the tail end of the puncture needle, then surrounding the limb of the patient by the fixing strap I2 and the fixing strap II 4, holding the magic tape 8 fixedly arranged at the right sides of the rear ends of the fixing strap I2 and the fixing strap II 4 to adhere the magic tape on the outer layer 6 at the left side of the positive end, and after the position of the device body 1 is fixed, only needing to put the infusion tube on the upper ends of the fixing strap I2 and the connecting strap 3, making the fixing tape I9 and the fixing tape II 10 adhere and fix the infusion tube on the positive end of the fixing strap I2 and the outer layer 6 at the positive end of the connecting strap 3 in sequence to fix the initial position of the infusion tube, then adjusting the telescopic rod 12 to a proper length and position, and then clamping the clamping ring 13I and the clamping ring II 14 to clamp the infusion tube from this, and taking the infusion tube away from the surface of the limb of the patient, so that it does not come into direct contact with the surface of the patient's limb.
Claims (7)
