Abstract

The utility model belongs to the technical field of the plastic bottle processing, a breaker is used in plastic bottle processing is related to, wherein, including broken storehouse, two symmetrical backup pads of bottom surface fixedly connected with in broken storehouse, the inside in broken storehouse is provided with two symmetrical axis of rotation, every the right-hand member of axis of rotation all runs through the inner wall in broken storehouse and extends to the right side in broken storehouse, and the axis of rotation is connected, every with the inner wall rotation in broken storehouse the equal fixedly connected with crushing sword in surface of axis of rotation. Its beneficial effect is, blow through the fan and blow in inside the entering of conveyer pipe with plastic granules and change bucket, the second makes the inside plastic granules of commentaries on classics bucket turn from the rotation of driving wheel, the tiny particle is discharged through the screening from the filtration pore, will change the inside large granule of bucket and remove from its left end discharge left under the effect of auger piece, make the granule aggravation roll under the effect of fan wind power, tiny particle plastics are discharged from the filtration pore through the screening, the realization is to plastic granules's screening, and the filter effect is improved.

Description

Breaker is used in plastic bottle processing

Technical Field

The utility model belongs to the technical field of the plastic bottle processing, concretely relates to breaker is used in plastic bottle processing.

Background

When plastic bottle production and processing or plastic bottle recycle, can produce the defective work during production, and the waste product plastics of recovery need carry out the secondary operation, the mode that generally adopts broken reproduction is handled, and present breaker only carries out simple breakage to the plastic bottle, do not have the function of screening to the plastics after the breakage, it is broken to need follow-up not complete kibbling screening alone, increase manufacturing procedure, and the screening plant filter screen needs artifical clearance hard production cost that increases consuming time, work efficiency is low, and the manufacturing cost has also been improved.

SUMMERY OF THE UTILITY MODEL

To solve the problems set forth in the background art described above. The utility model provides a breaker is used in plastic bottle processing, it has solved the technical problem that current breaker can't sieve the process that needs secondary operation and increase.

In order to achieve the above object, the utility model provides a following technical scheme: a crushing device for processing plastic bottles comprises a crushing bin, wherein two symmetrical supporting plates are fixedly connected to the bottom surface of the crushing bin, two symmetrical rotating shafts are arranged inside the crushing bin, the right end of each rotating shaft penetrates through the inner wall of the crushing bin and extends to the right side of the crushing bin, the rotating shafts are rotatably connected with the inner wall of the crushing bin, a crushing knife is fixedly connected to the outer surface of each rotating shaft, a first driven wheel is fixedly connected to the right end of each rotating shaft, a rotating barrel is arranged between the two supporting plates, two ends of each rotating barrel respectively penetrate through the two supporting plates and extend to the side, far away from each other, of the two supporting plates, the rotating barrel is rotatably connected with the supporting plates, filter holes are formed in the outer surface of the rotating barrel, a second driven wheel is fixedly connected to the right end of the rotating barrel, a motor is arranged below the rotating barrel, and the left end of the motor is fixedly connected with the supporting plates, the output end of the motor is fixedly connected with a driving wheel, a driving belt is arranged on the right side of the crushing bin, the first driven wheel, the second driven wheel and the driving wheel are all meshed with the driving belt, a fan is fixedly arranged on the front side of the crushing bin, the output end of the fan penetrates through the inner wall of the crushing bin and extends into the crushing bin, a conveying pipe is fixedly communicated with the back side of the crushing bin, one end, away from the crushing bin, of the conveying pipe is communicated with the right end of the rotary barrel, the conveying pipe is rotatably connected with the rotary barrel, a brush assembly is arranged between the two supporting plates, and an auger piece is fixedly arranged in the rotary barrel;

the rotary drum is characterized in that a collecting tank is arranged below the left end of the rotary drum, a material sucking pump is arranged on the left side of the crushing bin and fixedly connected with the outer surface of the supporting plate, a slag sucking pipe is fixedly communicated with the input end of the material sucking pump, one end of the slag sucking pipe is communicated with the collecting tank, and a material discharging hose is fixedly connected to the output end of the material sucking pump.

As a further aspect of the present invention: the left side face of the crushing bin is fixedly connected with a hook, and the discharging hose is located inside the hook.

As a further aspect of the present invention: and a valve is fixedly arranged on the outer surface of one end, far away from the crushing bin, of the conveying pipe.

As a further aspect of the present invention: the front fixed mounting in broken storehouse has the access door, and the material of access door is toughened glass.

As a further aspect of the present invention: the top of changeing the bucket is provided with the brush, two the equal fixedly connected with mounting panel in a side that the backup pad is close to each other, every the equal fixedly connected with spring in bottom surface of mounting panel, and the bottom of spring and the last fixed surface of brush are connected.

As a further aspect of the present invention: and a hopper is arranged between the two supporting plates and is positioned under the rotary barrel.

Compared with the prior art, the beneficial effects of the utility model are that:

1. this breaker is used in plastic bottle processing, blow through the fan and blow in inside the entering of conveyer pipe with plastic granules and change bucket, the second makes the inside plastic granules of commentaries on classics bucket turn from the rotation of driving wheel, the tiny particle is discharged through the screening from the filtration pore, will change the inside large granule of bucket and remove from its left end discharge left under the effect of auger piece, make the granule aggravation roll under the effect of fan wind power, tiny particle plastics are discharged from the filtration pore through the screening, the realization is to plastic granules's screening, and the filter effect is improved.

2. This breaker is used in plastic bottle processing inhales from taking out the sediment pipe through inhaling the material pump with granule in the collecting vat and spouts from row material hose, holds row material hose and evenly spouts two broken swoves with large granule plastics and smashes, reduces the process that the tradition increased screening alone, has improved work efficiency, has reduced manufacturing cost.

Drawings

The accompanying drawings are included to provide a further understanding of the invention, and are incorporated in and constitute a part of this specification, illustrate embodiments of the invention, and together with the description serve to explain the invention and not to limit the invention. In the drawings:

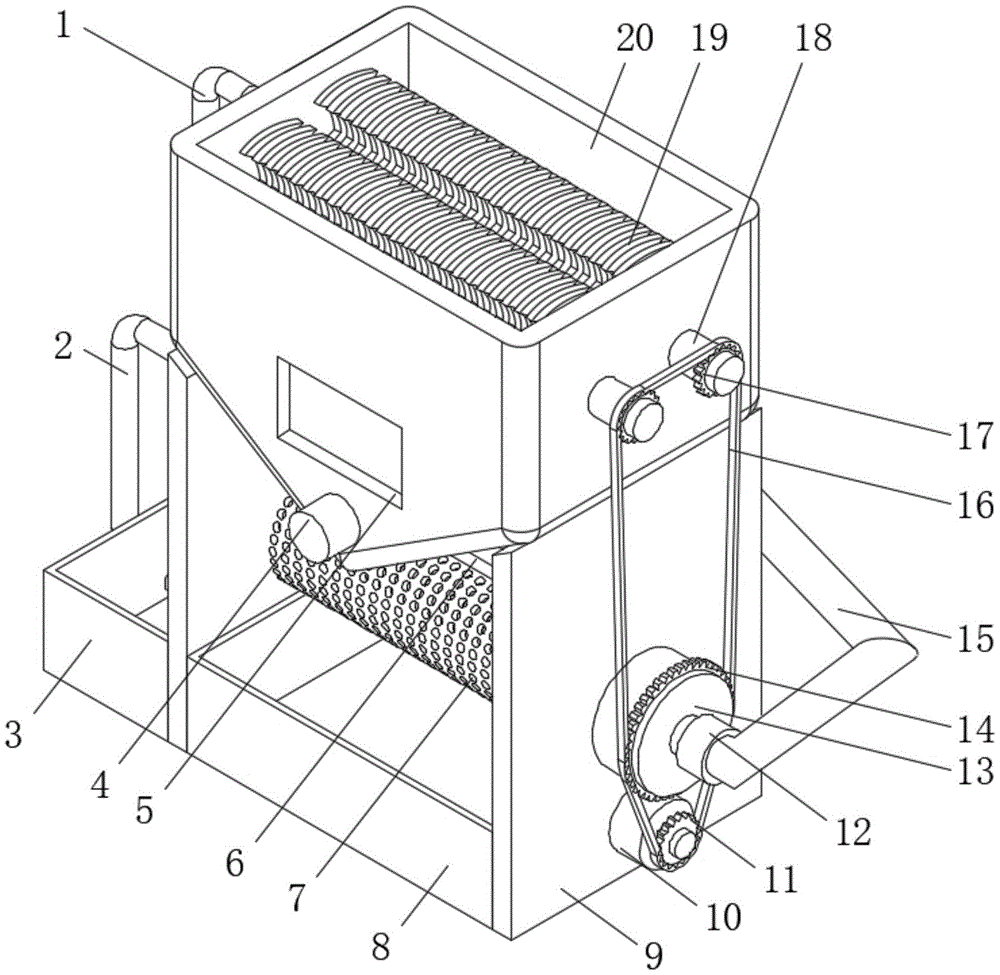

fig. 1 is a schematic structural view of a front view of the present invention;

FIG. 2 is a schematic structural view of the present invention from the side;

FIG. 3 is a schematic three-dimensional structure of a brush assembly according to the present invention;

in the figure: 1. a discharge hose; 2. a slag pumping pipe; 3. collecting tank; 4. a fan; 5. an access door; 6. a brush assembly; 601. mounting a plate; 602. a brush; 603. a spring; 7. a filtration pore; 8. a hopper; 9. a support plate; 10. a motor; 11. a driving wheel; 12. a valve; 13. rotating the barrel; 14. a second driven wheel; 15. a delivery pipe; 16. a transmission belt; 17. a first driven wheel; 18. a rotating shaft; 19. a crushing knife; 20. a crushing bin; 21. packing auger piece; 22. a suction pump; 23. and (4) hanging hooks.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Examples

Referring to fig. 1-3, the present invention provides the following technical solutions: a crushing device for processing plastic bottles comprises a crushing bin 20, two symmetrical support plates 9 are fixedly connected to the bottom surface of the crushing bin 20, two symmetrical rotating shafts 18 are arranged inside the crushing bin 20, the right end of each rotating shaft 18 penetrates through the inner wall of the crushing bin 20 and extends to the right side of the crushing bin 20, the rotating shafts 18 are rotatably connected with the inner wall of the crushing bin 20, a crushing knife 19 is fixedly connected to the outer surface of each rotating shaft 18, a first driven wheel 17 is fixedly connected to the right end of each rotating shaft 18, a rotary barrel 13 is arranged between the two support plates 9, two ends of the rotary barrel 13 penetrate through the two support plates 9 respectively and extend to one side, far away from each other, of the two support plates 9, the rotary barrel 13 is rotatably connected with the support plates 9, a filter hole 7 is formed in the outer surface of the rotary barrel 13, a second driven wheel 14 is fixedly connected to the right end of the rotary barrel 13, and a motor 10 is arranged below the rotary barrel 13, the left end of the motor 10 is fixedly connected with the supporting plates 9, the output end of the motor 10 is fixedly connected with the driving wheel 11, the right side of the crushing bin 20 is provided with the driving belt 16, the first driven wheel 17, the second driven wheel 14 and the driving wheel 11 are all meshed with the driving belt 16, the front side of the crushing bin 20 is fixedly provided with the fan 4, the output end of the fan 4 penetrates through the inner wall of the crushing bin 20 and extends into the crushing bin 20, the crushed plastic particles can be blown by the fan 4 so as to be convenient for discharging the plastic particles, the back side of the crushing bin 20 is fixedly communicated with the conveying pipe 15, one end of the conveying pipe 15, far away from the crushing bin 20, is communicated with the right end of the rotary barrel 13, the conveying pipe 15 is rotatably connected with the rotary barrel 13, the brush assembly 6 is arranged between the two supporting plates 9, the inner part of the rotary barrel 13 is fixedly provided with the auger piece 21, and large-particle plastics in the rotary barrel 13 can be discharged by moving in the inner part of the rotary barrel 21, the rotary barrel 13 is convenient to sieve and filter;

the below of changeing bucket 13 left end is provided with collecting vat 3, the left side in broken storehouse 20 is provided with material suction pump 22, and material suction pump 22 is connected with the fixed surface of backup pad 9, the fixed intercommunication of the input of material suction pump 22 has slag pipe 2, and the one end of slag pipe 2 is linked together with collecting vat 3, material suction pump 22's output fixedly connected with arranges material hose 1, through being provided with row material hose 1, can adjust its ejection of compact direction and position, be convenient for with plastic granules homodisperse between two broken sword 19, make it be convenient for smash.

Specifically, the left side surface of the crushing bin 20 is fixedly connected with a hook 23, and the discharge hose 1 is located inside the hook 23.

Specifically, the outer fixed surface that duct 15 kept away from broken storehouse 20 one end installs valve 12, is convenient for control plastic granules's flow, avoids the great influence of plastic granules flow to filter.

Specifically, the front fixed mounting in broken storehouse 20 has access door 5, and access door 5's material is toughened glass, is convenient for observe that plastic granules piles up quantity in broken storehouse 20, avoids inside too much influence normal use of piling up in broken storehouse 20.

Specifically, the top of changeing bucket 13 is provided with brush 602, and the equal fixedly connected with mounting panel 601 in a side that two backup pads 9 are close to each other, the equal fixedly connected with spring 603 in bottom surface of every mounting panel 601, and the bottom of spring 603 is connected with the last fixed surface of brush 602, extrudees brush 602 and changeing bucket 13 in close contact with under the effect of spring 603 elasticity, brushes the big granule of card in filtering hole 7 down, avoids filtering hole 7 to block up and influences filtration efficiency.

Specifically, a hopper 8 is arranged between the two supporting plates 9, and the hopper 8 is positioned right below the rotary barrel 13.

The utility model discloses a theory of operation does:

the fan 4, the motor 10 and the material suction pump 22 are communicated with a power supply, when the device works, waste plastics are firstly placed in a crushing bin 20, the motor 10 is electrified to start up and drive a driving wheel 11 to rotate, under the action of a driving belt 16, a second driven wheel 14 and a first driven wheel 17 respectively drive a rotary barrel 13 and a rotary shaft 18 to rotate, the rotary shaft 18 rotates to drive a crushing cutter 19 to rotate to crush the waste plastics into granules and fall down, the fan 4 is electrified to start air blowing, the falling granules are blown into a conveying pipe 15 and guided into the rotary barrel 13, the second driven wheel 14 rotates to drive the rotary barrel 13 and an auger sheet 21 therein to rotate, so that the plastic granules in the rotary barrel 13 are turned over, small granules are screened and discharged from a filtering hole 7, under the action of the auger sheet 21, large granules in the rotary barrel 13 move leftwards and are discharged from the left end of the rotary barrel and fall into the inner part of a collecting tank 3, and the granules are accelerated to roll under the action of wind force, small particle plastics are discharged from filtration pore 7 through the screening, the realization is to plastic granules's screening, the filter effect has been improved, when the large granule is more in collecting vat 3, inhale material pump 22 circular telegram and start to produce suction and collect vat 3 interior granule from taking out slag pipe 2 and inhale from row material hose 1 blowout, it evenly spouts two broken sword 19 with large particle plastics to arrange material hose 1 and smashes to hold, reduce the tradition and increase the process of screening alone, the work efficiency is improved, the production cost is reduced.

In the description of the present invention, it is to be understood that the terms "first", "second" and "first" are used for descriptive purposes only and are not to be construed as indicating or implying relative importance or implying any number of technical features indicated. Thus, a feature defined as "first" or "second" may explicitly or implicitly include one or more of that feature. In the description of the present invention, "a plurality" means two or more unless specifically limited otherwise.

In the present invention, unless otherwise expressly stated or limited, the terms "mounted," "connected," and "fixed" are to be construed broadly and may, for example, be fixedly connected, detachably connected, or integrally formed; can be mechanically or electrically connected; can be directly connected or indirectly connected through an intermediate medium; either as communication within the two elements or as an interactive relationship of the two elements. The specific meaning of the above terms in the present invention can be understood according to specific situations by those skilled in the art.

In the present application, unless otherwise expressly stated or limited, a first feature may be "on" or "under" a second feature, and the first and second features may be in direct contact, or the first and second features may be in indirect contact via an intermediate. Also, a first feature "on," "above," and "over" a second feature may be directly or obliquely above the second feature, or simply mean that the first feature is at a higher level than the second feature. A first feature being "under," "below," and "beneath" a second feature may be directly under or obliquely under the second feature, or may simply mean that the first feature is at a lower level than the second feature.

In the description herein, the description of the terms "one embodiment," "some embodiments," "an embodiment," "an example," "a specific example" or "some examples" or the like, means that a particular feature, structure, material, or characteristic described in connection with the embodiment or example is included in at least one embodiment or example of the invention. In this specification, the schematic representations of the terms used above are not necessarily intended to refer to the same embodiment or example. Furthermore, the particular features, structures, materials, or characteristics described may be combined in any suitable manner in any one or more embodiments or examples. Furthermore, various embodiments or examples and features of different embodiments or examples described in this specification can be combined and combined by one skilled in the art without contradiction.

While embodiments of the present invention have been shown and described, it is to be understood that the above embodiments are exemplary and should not be construed as limiting the present invention, and that modifications, alterations, substitutions and variations may be made to the above embodiments by those of ordinary skill in the art without departing from the scope of the present invention.

Claims

1. The utility model provides a breaker is used in plastic bottle processing, includes broken storehouse (20), its characterized in that: the bottom surface of the crushing bin (20) is fixedly connected with two symmetrical supporting plates (9), two symmetrical rotating shafts (18) are arranged in the crushing bin (20), the right end of each rotating shaft (18) penetrates through the inner wall of the crushing bin (20) and extends to the right side of the crushing bin (20), the rotating shafts (18) are rotatably connected with the inner wall of the crushing bin (20), the outer surface of each rotating shaft (18) is fixedly connected with a crushing knife (19), the right end of each rotating shaft (18) is fixedly connected with a first driven wheel (17), a rotating barrel (13) is arranged between the two supporting plates (9), two ends of the rotating barrel (13) penetrate through the two supporting plates (9) respectively and extend to one side, far away from each other, of the two supporting plates (9), the rotating barrel (13) is rotatably connected with the supporting plates (9), and filter holes (7) are formed in the outer surface of the rotating barrel (13), the right end of the rotary barrel (13) is fixedly connected with a second driven wheel (14), a motor (10) is arranged below the rotary barrel (13), the left end of the motor (10) is fixedly connected with a supporting plate (9), the output end of the motor (10) is fixedly connected with a driving wheel (11), a driving belt (16) is arranged on the right side of the crushing bin (20), the first driven wheel (17), the second driven wheel (14) and the driving wheel (11) are all meshed with the driving belt (16), a fan (4) is fixedly installed on the front surface of the crushing bin (20), the output end of the fan (4) penetrates through the inner wall of the crushing bin (20) and extends into the crushing bin (20), a conveying pipe (15) is fixedly communicated with the back surface of the crushing bin (20), one end, far away from the crushing bin (20), of the conveying pipe (15) is communicated with the right end of the rotary barrel (13), the conveying pipe (15) is rotatably connected with the rotary barrel (13), a brush component (6) is arranged between the two supporting plates (9), and a packing auger piece (21) is fixedly arranged inside the rotary barrel (13);

the utility model discloses a slag extractor, including rotary barrel (13), collecting vat (3), broken storehouse (20), the left side of changing the bucket (13) left end is provided with material pump (22), and the outer fixed surface of material pump (22) and backup pad (9) is connected, the fixed intercommunication of input of material pump (22) has the slag pipe (2), and the one end of slag pipe (2) is linked together with collecting vat (3), the material hose (1) is arranged to the output fixedly connected with of material pump (22).

2. The crushing device for plastic bottle processing according to claim 1, wherein: the left side face of the crushing bin (20) is fixedly connected with a hook (23), and the discharging hose (1) is located inside the hook (23).

3. The crushing device for plastic bottle processing according to claim 1, wherein: and a valve (12) is fixedly arranged on the outer surface of one end, far away from the crushing bin (20), of the conveying pipe (15).

4. The crushing device for plastic bottle processing according to claim 1, wherein: the front of broken storehouse (20) is fixed mounting has access door (5), and the material of access door (5) is toughened glass.

5. The crushing device for plastic bottle processing according to claim 1, wherein: the top of changeing bucket (13) is provided with brush (602), two the equal fixedly connected with mounting panel (601) in a side that backup pad (9) are close to each other, every the equal fixedly connected with spring (603) in bottom surface of mounting panel (601), and the upper surface fixed connection of the bottom of spring (603) and brush (602).

6. The crushing device for plastic bottle processing according to claim 1, wherein: two be provided with hopper (8) between backup pad (9), and hopper (8) are located and change under bucket (13).
