Abstract
本实用新型公开了一种具有快速烘干功能的喷漆装置，包括壳体、电感导轨和风机，所述壳体底端固定连接有滚轮和第一电机，且第一电机设置在滚轮的内侧，所述第一电机的输出端固定连接有第一转轴，且第一转轴的上端贯穿转动连接在壳体内侧壁上，所述第一转轴上贯穿连接有第一圆板和第二圆板，且第二圆板设置在第一圆板的下方。该具有快速烘干功能的喷漆装置，在壳体中设置有连接管和电热丝，在壳体内用连接管喷漆这样人员就不需要手持连接管对物体进行喷漆，人员就不需要接触到油漆，很大程度上降低了喷漆对人体的伤害，在壳体内设置有电热丝就不需要将物体单独放入烘干房烘干，当喷漆工作结束以后就可以对物体表面的喷漆进行烘干处理。
The utility model discloses a paint spraying device with fast drying function, which comprises a casing, an inductive guide rail and a fan. A roller and a first motor are fixedly connected to the bottom end of the casing, and the first motor is arranged on the inner side of the roller. The output end of the first motor is fixedly connected with a first rotating shaft, and the upper end of the first rotating shaft is rotatably connected to the inner side wall of the housing, and the first rotating shaft is penetratingly connected with a first circular plate and a second circular plate, And the second circular plate is arranged below the first circular plate. The paint spraying device with fast drying function is provided with a connecting pipe and an electric heating wire in the casing, and the connecting pipe is used to spray paint in the casing, so that personnel do not need to hold the connecting pipe to paint objects, and personnel do not need to touch the paint, To a large extent, the damage caused by spray painting to the human body is greatly reduced. There is no need to put the object into the drying room for drying if the electric heating wire is arranged in the shell.
Description
Technical Field
The utility model relates to a relevant technical field sprays paint specifically is a paint spraying apparatus with fast drying function.
Background
The paint spraying is one kind of artificial paint, which is made of nitrocellulose, resin, pigment, solvent and the like, the paint is sprayed into mist by compressed air and is coated on the surface of an object, and through search, the typical publication of the paint spraying device with the rapid drying function in the prior art is CN201920856421.2, the paint spraying equipment comprises a frame, a spraying device, a carrier, a longitudinal movement driver, a positioning mechanism and a mechanical arm, wherein the spraying device comprises a base, an atomizing cover, an oil rod, a rotating rod, a magnet ring, a graphite shaft sleeve, an atomizing cover sealing sleeve and an atomizing cup head, the atomizing cover is provided with a plurality of atomizing inclined holes, the atomizing cup head comprises a conveying part and a paint outlet part, the paint outlet part is provided with a hollow cavity, a plurality of rectangular oil outlet holes are communicated with the hollow cavity, the number of the atomizing inclined holes is 6575, the aperture of each atomizing inclined hole is 0.6mm, the paint outlet part is provided with a plurality of buffer holes, the paint outlet part is sleeved with a guide sleeve, a liquid drainage gap is arranged between the guide sleeve and the paint outlet part, and the plurality of buffer holes are communicated with the liquid drainage gap; the utility model provides the high atomization effect to paint reduces the bad condition of spraying, reduces the probability of jam, and paint can spray on the product softly, can not appear the phenomenon of paint bounce-back, has saved the quantity of paint.
To sum up, the harm of spraying paint to the human body not only can take place through lung's suction, can also absorb through skin, and the improper phenomenon that easily causes the inhomogeneous or object landing of spray paint face of the fixed mode of object when spraying paint, object put into the stoving room after spraying paint again and dry and can waste time, reduced work efficiency, need a paint spraying apparatus who has the fast drying function now and solve above-mentioned problem.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a paint spraying apparatus with fast drying function to the spraying paint that proposes in solving above-mentioned background art not only can take place through lung's suction, can also absorb through skin, and the improper phenomenon that easily causes the inhomogeneous or object landing of spraying paint of the fixed mode of object when spraying paint, the object is put into stoving room stoving again after spraying paint and can waste time, has reduced work efficiency's problem.
In order to achieve the above object, the utility model provides a following technical scheme: a paint spraying device with a quick drying function, which comprises a shell, an inductance guide rail and a fan,
the device comprises a shell, wherein the bottom end of the shell is fixedly connected with a roller and a first motor, the first motor is arranged on the inner side of the roller, the output end of the first motor is fixedly connected with a first rotating shaft, the upper end of the first rotating shaft is connected to the inner side wall of the shell in a penetrating and rotating mode, a first circular plate and a second circular plate are connected to the first rotating shaft in a penetrating and rotating mode, the second circular plate is arranged below the first circular plate, the top end of the first circular plate is fixedly connected with a second motor, the output end of the second motor is fixedly connected with a second rotating shaft, the lower end of the second rotating shaft penetrates through the first circular plate and is fixedly connected with a clamping device, the top end of the second circular plate is fixedly connected with a telescopic rod, and the top end of the telescopic rod is rotatably connected with a rotary disc;
inductance guide rail, inductance guide rail fixed connection is in shells inner wall's the left and right sides, and is provided with the slider on the inductance guide rail, and the one end fixedly connected with support frame of inductance guide rail is kept away from to the slider simultaneously, support frame inside wall fixedly connected with paint spraying pipe, and paint spraying pipe and connecting pipe are connected, and paint spraying pipe one end is kept away from to the connecting pipe simultaneously and is run through the casing lateral wall and the booster pump is connected, the booster pump sets up in the paint kettle outside, and the paint kettle sets up in the casing upper end, vent department on the casing right side wall is provided with the active carbon sponge filter screen.
The fan, fan fixed connection is in the rear side of casing, and shells inner wall's rear side fixedly connected with heating wire and dust screen, the dust screen sets up in the place ahead of heating wire, and dust screen and heating wire setting are in the place ahead of fan.
Preferably, the rollers are provided in four numbers, and the four rollers are symmetrically arranged about a center line of the housing.
Preferably, the second motor, the second rotating shaft and the clamping device form a rotating mechanism.
Preferably, clamping device includes fixed block, spout, first clamp splice, first rubber pad, second clamp splice, second rubber pad and dwang, and fixed block fixed connection is in the second pivot, the first clamp splice of front end fixedly connected with of fixed block, and the first rubber pad of the inboard fixedly connected with of first clamp splice, the spout has been seted up to the front end of fixed block, and the spout setting is in the left side of first clamp splice, spout sliding connection has the second clamp splice, and the inboard fixedly connected with second rubber pad of second clamp splice, the dwang screw thread runs through the second clamp splice and is connected with first clamp splice rotation.
Preferably, the telescopic rod and the turntable form a telescopic mechanism.
Preferably, the fans and the heating wires are both provided with two groups, and the two groups of fans correspond to the two groups of heating wires respectively.
Compared with the prior art, the beneficial effects of the utility model are that: the paint spraying device with the quick drying function,
(1) the connecting pipe and the heating wire are arranged in the shell, so that a person does not need to hold the connecting pipe to spray paint on an object in the shell by using the connecting pipe to touch the paint, the person does not need to contact the paint, the damage of the paint on a human body is reduced to a great extent, the object does not need to be independently placed into a drying room to be dried by using the heating wire arranged in the shell, and the paint on the surface of the object can be dried after the paint spraying operation is finished, so that the time of the paint spraying and drying process can be shortened, and the working efficiency is improved;
(2) be provided with the second motor on first plectane, second pivot and clamping device, clamping device plays the effect of centre gripping object, can slide the second clamp splice on the spout through rotatory dwang, make first clamp splice and second clamp splice carry out the centre gripping to the object, be provided with the telescopic link on the second plectane, the adjusting knob on the rotation telescopic link can rise or reduce the telescopic link, the telescopic link can drive the carousel and adjust from top to bottom according to the height of object, the carousel plays the effect of holding up the object, the carousel can prevent that the object bottom from receiving the condition that the wearing and tearing influence was used simultaneously.
Drawings

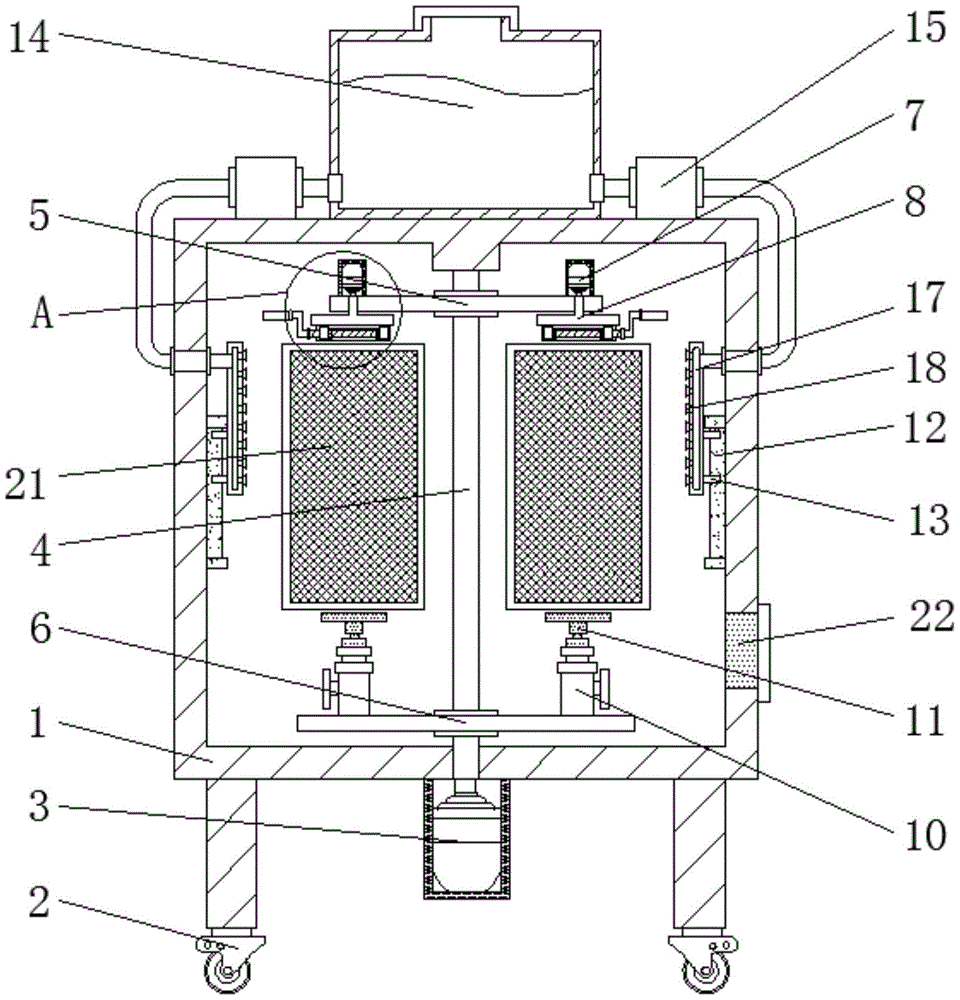

Fig. 1 is a schematic view of the front cross-sectional structure of the present invention;
FIG. 2 is a schematic left-side sectional view of the present invention;
FIG. 3 is a schematic view of the top-view cross-sectional structure of the present invention
FIG. 4 is an enlarged schematic view of the structure at A of FIG. 1 according to the present invention;
FIG. 5 is a schematic view of the connection structure of the clamping device of the present invention;
FIG. 6 is a schematic view of the connection structure between the slide block and the support frame of the present invention;
fig. 7 is a schematic view of the connection structure between the telescopic rod and the turntable of the present invention.
In the figure: 1. the device comprises a shell, 2, a roller, 3, a first motor, 4, a first rotating shaft, 5, a first circular plate, 6, a second circular plate, 7, a second motor, 8, a second rotating shaft, 9, a clamping device, 901, a fixing block, 902, a sliding chute, 903, a first clamping block, 904, a first rubber pad, 905, a second clamping block, 906, a second rubber pad, 907, a rotating rod, 10, a telescopic rod, 11, a rotating disc, 12, an inductance guide rail, 13, a sliding block, 14, a paint bucket, 15, a booster pump, 16, a support frame, 17, a paint spraying pipe, 18, a connecting pipe, 19, a fan, 20, an electric heating wire, 21, a dustproof net, 22 and an active carbon sponge filter screen.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-7, the present invention provides a technical solution: the utility model provides a paint spraying apparatus with fast drying function, as figure 1, figure 2 and figure 3 show, 1 bottom fixedly connected with gyro wheel 2 of casing and first motor 3, gyro wheel 2 is provided with four, and four gyro wheels 2 set up about the central line symmetry of casing 1, can be with the paint spraying apparatus shift position of fast drying function through gyro wheel 2, the paint spraying apparatus of convenient with the fast drying function places in suitable place, and first motor 3 sets up the inboard at gyro wheel 2, first motor 3's output end fixedly connected with first pivot 4, and the upper end through rotation of first pivot 4 is connected on the casing 1 inside wall, through connection has first plectane 5 and second plectane 6 on first pivot 4, and second plectane 6 sets up the below at first plectane 5.
As shown in fig. 1, 2, 3, 6 and 7, the top end of the first circular plate 5 is fixedly connected with a second motor 7, the output end of the second motor 7 is fixedly connected with a second rotating shaft 8, the lower end of the second rotating shaft 8 penetrates through the first circular plate 5 and is fixedly connected with a clamping device 9, the second motor 7, the second rotating shaft 8 and the clamping device 9 form a rotating mechanism, the rotation of the second motor 7 can drive the second rotating shaft 8 to rotate, the second rotating shaft 8 can drive the clamping device 9 to rotate, so that the clamping device 9 can rotate an object, two sets of fans 19 and two sets of heating wires 20 are arranged on the clamping device 9, the two sets of fans 19 respectively correspond to the two sets of heating wires 20, the heating wires 20 emit heat after being electrified and heated, the heat is diffused by wind blown by the fans 19, the diffused heat is beneficial to uniformly heating and drying the object in the casing 1, and the clamping device 9 comprises a fixing block 901, A chute 902, a first clamping block 903, a first rubber pad 904, a second clamping block 905, a second rubber pad 906 and a rotating rod 907, wherein the fixed block 901 is fixedly connected to the second rotating shaft 8, the front end of the fixed block 901 is fixedly connected with the first clamping block 903, the inner side of the first clamping block 903 is fixedly connected with the first rubber pad 904, the front end of the fixed block 901 is provided with the chute 902, the chute 902 is arranged at the left side of the first clamping block 903, the chute 902 is slidably connected with the second clamping block 905, the inner side of the second clamping block 905 is fixedly connected with the second rubber pad 906, the rotating rod 907 is in threaded connection with the first clamping block 903 in a rotating way through the second clamping block 905, the clamping device 9 plays a role in clamping objects in the paint spraying device with the quick drying function, the clamping device 9 can adjust the clamping size according to the width of the objects, the rotating rod 907 can slide the second clamping block 905 on the chute 902 by rotating the 907, the first clamping block 903 and the second clamping block 905 clamp the object, and the first rubber pad 904 and the second rubber pad 906 are arranged to increase the area of the object to be clamped.
As shown in fig. 1, 3, 4, 5 and 7, a telescopic rod 10 is fixedly connected to the top end of the second circular plate 6, a rotary table 11 is rotatably connected to the top end of the telescopic rod 10, the telescopic rod 10 and the rotary table 11 form a telescopic mechanism, the telescopic rod 10 can be raised or lowered by rotating an adjusting button on the telescopic rod 10, the telescopic rod 10 can drive the rotary table 11 to be adjusted up and down according to the height of an object, the rotary table 11 can support the object, the rotary table 11 can prevent the bottom of the object from being affected by abrasion, the inductive guide rails 12 are fixedly connected to the left and right sides of the inner wall of the housing 1, the inductive guide rails 12 are provided with sliders 13, one ends of the sliders 13 far away from the inductive guide rails 12 are fixedly connected with a support frame 16, the inner side wall of the support frame 16 is fixedly connected with paint spraying pipes 17, the paint spraying pipes 17 are connected with connecting pipes 18, and one ends of the connecting pipes 18 far away from the paint spraying pipes 17 penetrate through the side wall of the housing 1 and are connected with a booster pump 15, the booster pump 15 sets up in the paint kettle 14 outside, and paint kettle 14 sets up in casing 1 upper end, and vent department on the casing 1 right side wall is provided with activated carbon sponge filter screen 22, and fan 19 fixed connection is in the rear side of casing 1, and the rear side fixedly connected with heating wire 20 and dust screen 21 of casing 1 inner wall, and dust screen 21 sets up in the place ahead of heating wire 20, and dust screen 21 and heating wire 20 set up in the place ahead of fan 19.
The working principle is as follows: when the paint spraying device with the quick drying function is used, an object is fixed on the clamping device 9 in the shell 1, the rotating rod 907 is rotated to slide the second clamping block 905 on the sliding groove 902, the top of the object is placed in the first clamping block 903 and the second clamping block 905, then the rotating rod 907 is rotated to enable the rotating rod 907 to move towards the right side on the sliding groove 902, the first clamping block 903 and the second clamping block 905 can clamp the object, the adjusting button on the telescopic rod 10 is rotated to enable the telescopic rod 10 to ascend or descend, the telescopic rod 10 can drive the rotary disc 11 to adjust up and down according to the height of the object, when the rotary disc 11 is contacted with the object, the adjusting button on the telescopic rod 10 is stopped rotating, then the power supply is switched on and the first motor 3 is started, when the first motor 3 drives the first rotating shaft 4 to rotate, the first rotating shaft 4 drives the first circular disc 5 and the second circular disc 6 to rotate simultaneously, and the clamping device 9 and the rotary disc 11 are ensured to be at the same rotating speed, the second motor 7 is started, the second rotating shaft 8 drives the clamping device 9 to rotate, meanwhile, the booster pump 15 starts to work, the booster pump 15 sprays paint in the paint bucket 14 from the connecting pipe 18 through the paint spraying pipe 17, the surface of an object can be uniformly sprayed with the paint under the rotation of the second rotating shaft 8, when the object is too high, the range of the paint spraying can be enlarged by the up-and-down movement of the support frame 16 on the inductance guide rail 12 through the slide block 13, when the drying is needed after the paint spraying is finished, the booster pump 15 is stopped to convey the paint to the paint spraying pipe 17, the fan 19 is started after the electric heating wire 20 is electrified, the range of heat emitted by the electric heating wire 20 can be enlarged by the fan 19, the object in the shell 1 can be uniformly heated and dried, meanwhile, harmful gas generated during the paint spraying process is filtered by the fan 19 through the activated carbon sponge filter screen 22 and then discharged, the activated carbon sponge filter screen 22 can be used for air purification and removal of volatile organic compounds and harmful substances polluted in the air, those not described in detail in this specification are within the skill of the art.
The terms "central," "longitudinal," "lateral," "front," "rear," "left," "right," "vertical," "horizontal," "top," "bottom," "inner," "outer," and the like are used in the orientation or positional relationship indicated in the drawings for ease of description, but are not intended to indicate or imply that the device or element so referred to must have a particular orientation, be constructed and operated in a particular orientation, and are not to be considered limiting of the scope of the invention.
Although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that modifications may be made to the embodiments or portions thereof without departing from the spirit and scope of the invention.
Claims (6)
