Abstract
The utility model discloses a enteroscopy treatment bed, including the bed body, articulated side by side have two mutually independent tailstock boards about the tail end of the bed body, and the bottom of two tailstock boards is equipped with respectively and is used for the branch of propping up two tailstock board levels, and the afterbody of every tailstock board is equipped with the baffle. The utility model supports the two bed tail plates horizontally to form an integrated structure with the bed body bed plate, when the patient lies down during the enteroscopy and treatment operation, the buttocks can be close to the tail part of the bed body, the legs and feet are corresponding to the bed tail plates, and then the patient bends knees on one side, wherein, the bed tail plate on one side keeps the supporting state to support the two feet, and the corresponding baffle plate keeps standing to prevent the legs from straightening backwards; and the bed tail board that is close to buttock one side then puts down, forms the operating space who supplies enteroscopy and operation, reduces the position of patient around the inspection and moves, saves the time of pendulum position, improves patient's comfort level, has more made things convenient for the enteroscopy operator, labour saving and time saving is simple and convenient.
Description
[ technical field ] A method for producing a semiconductor device
The utility model relates to a treatment bed for enteroscopy.
[ background of the invention ]
Normally, enteroscopy and surgery in endoscopic treatment are performed on a common operating bed. The conventional operation is as follows: the patient lies on the examination table and is prepared by a nurse before painless enteroscopy. When the examination body position is placed, the patient needs to slowly move from the bed head to the bed tail until the hip is 20-30 cm away from the bed tail, and the patient keeps lying on the side, bends the hip and bends the knee so as to carry out enteroscopy and operative treatment. In order to prevent the patient from falling off the bed, after the patient finishes painless enteroscopy, a nurse needs to carry the patient to the bed head from the bed tail, or move the patient to the bed head from the bed tail after the patient wakes up. This procedure is time consuming, labor intensive, difficult to operate, and aggravates patient discomfort.
In addition, when a common examining bed is used for enteroscopy treatment, if the hip of a patient is 20-30 cm away from the tail of the bed, the head of the patient can leave the bed head of the liftable bed of the examining bed; in this case, the upper half of the patient's body cannot be raised, and the regurgitation of gastric juice cannot be prevented, which is likely to cause coughing and suffocation in severe cases.
The utility model discloses just design for solving above-mentioned technical problem.
[ Utility model ] content
The utility model aims at providing a treatment bed for enteroscopy with simple structure, which can reduce the vertical movement of the patient when changing the body position before and after the examination, so as to save the time for placing the body position; to the patient after the anesthesia, also need not wait for it to wake up the back and move to the head of a bed from the tailstock again to simplify the inspection process, shorten and connect the preparation time between the platform inspection, improve patient's comfort level simultaneously, make things convenient for medical personnel to operate labour saving and time saving.
The utility model discloses a realize through following technical scheme:
the utility model provides a enteroscopy treatment bed, includes the bed body, articulated side by side have two mutually independent tailstock boards about the tail end of the bed body, two the bottom of tailstock board is equipped with respectively and is used for the branch of propping up two tailstock boards levels, every the afterbody of tailstock board is equipped with the baffle that can stand and stop that patient's foot straightens backward.
According to the enteroscopy treatment bed, the bed plate of the bed body is fixedly provided with the soft cushion through the magic tape, and each bed tail plate is fixedly provided with the soft foot pad through the magic tape.
In the above enteroscopy treatment couch, each of the couch tailboards is provided with a leg restraint strap capable of crossing both the left and right sides thereof at a central position in the front-rear direction.
According to the enteroscopy treatment bed, the waist restraint belts capable of stretching across the left side and the right side of the bed body are arranged in the middle of the bed body.
According to the enteroscopy treatment bed, the left side and the right side of the bed body are provided with the guardrails which can be erected and placed below the side edges of the bed body, and the distance between the tail ends of the guardrails and the tail end of the bed body is 20 cm-25 cm.
The enteroscopy treatment bed is characterized in that the bed body is provided with a hook.
According to the enteroscopy treatment bed, the baffle is hinged to the tail of the bed tail plate, the lock hole is formed in the baffle, the elastic button matched with the lock hole is arranged on the bed tail plate, and when the baffle is erected relative to the bed tail plate, the elastic button bounces and is clamped into the lock hole to fix the baffle.
The enteroscopy treatment bed comprises a bed frame and a bed board arranged on the bed frame, universal wheels are arranged at the bottom of the bed frame, the bed board comprises a main bed board and a head bed board, the main bed board is fixed on the bed frame, and the head bed board is hinged with the main bed board and can be lifted upwards.
According to the enteroscopy treatment bed, the lifting mechanism for controlling the rotation of the head bed board is arranged between the bed frame and the head bed board.
Compared with the prior art, the utility model discloses there is following advantage:
1. simple structure, convenient use, low manufacturing cost and contribution to popularization and application.
2. The enteroscopy treatment bed is divided into a head bed plate, a bed body and bed tail plates by the equipment, wherein the two bed tail plates can be horizontally supported to form an integrated structure with the bed plate of the bed body. When the enteroscopy and the treatment operation are carried out, after a patient lies down, the hip can be close to the tail part of the bed body, the legs and the feet are correspondingly arranged on the bed tail plate, and then the knee is bent on the side. Wherein, the bed tail plate at one side keeps a supporting state to support the two feet, and the corresponding baffle plate keeps standing to prevent the legs from straightening backwards; and the bed tail board close to one side of the hip is put down. Thus, an operation space for enteroscopy and surgery is formed. In the checking process, the bed board at the head can be lifted by the lifting mechanism to obtain the required stable height, so that the gastric juice is effectively prevented from flowing backwards; after the examination and treatment are finished, the laid bed tail plate is turned up again and is restored to a complete bed. The space design of flexibility like this has directly reduced the position of patient around the inspection and has moved, has effectively saved the time of pendulum position, has improved patient's comfort level, has also shortened the preparation time who connects between the platform inspection, has more facilitated the enteroscopy operator, labour saving and time saving is simple and convenient.
[ description of the drawings ]
The following detailed description of embodiments of the present invention is provided with reference to the accompanying drawings, in which:

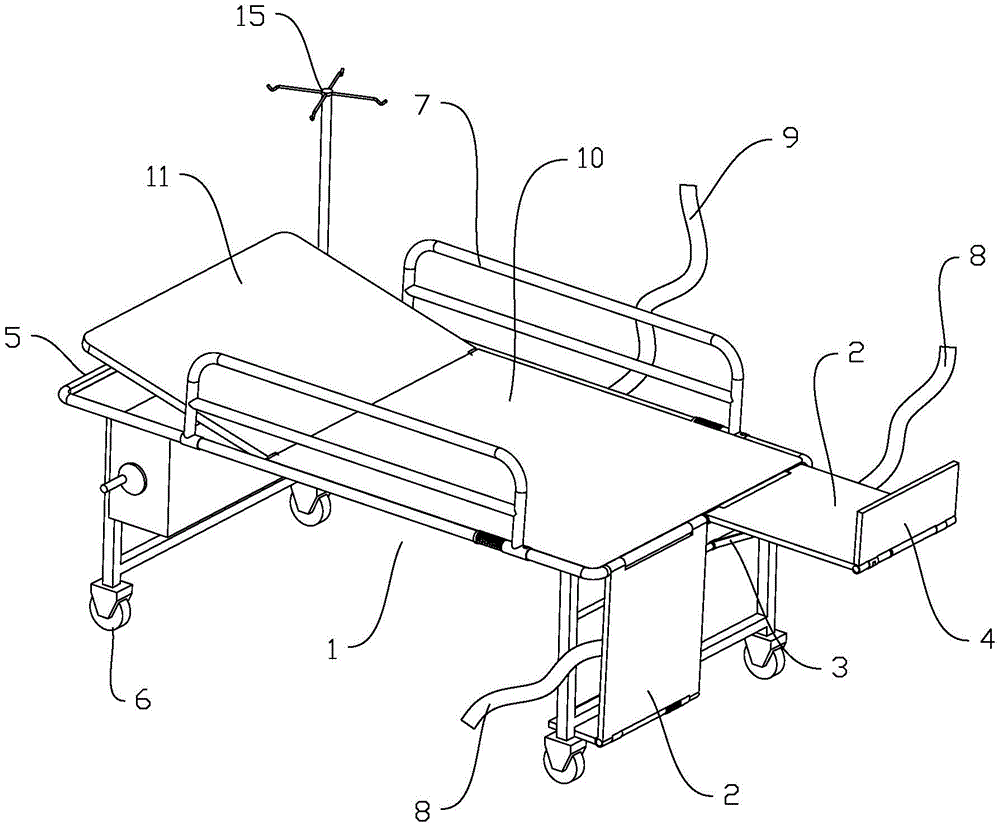

FIG. 1 is a schematic structural view of the enteroscopy treatment couch without a cushion and a foot pad;
fig. 2 is a schematic structural view of the enteroscopy treatment couch of the present invention.
[ detailed description ] embodiments
The invention will be further described with reference to the accompanying drawings:
the enteroscopy treatment bed shown in fig. 1 to 2 comprises a bed body 1, wherein two independent bed tail plates 2 are hinged to the left and right sides of the tail end of the bed body 1 side by side, supporting rods 3 for horizontally supporting the two bed tail plates 2 are respectively arranged at the bottoms of the two bed tail plates 2, and a baffle 4 capable of standing up and preventing the feet of a patient from straightening backwards is arranged at the tail part of each bed tail plate 2. When the operation of enteroscopy treatment, prop up two pieces of tailstock board 2 level and form an organic whole with the bed body 1, the afterbody that the patient's buttock is close to the bed body 1, the leg and foot correspond tailstock board 2 and lie, then the side is bent the knee, the tailstock board 2 of one side keeps propping up and is used for supporting both feet, and stand baffle 4 that will correspond and block the shank and straighten backward, the tailstock board 2 that will be close to buttock one side is put down, form the operating space that supplies enteroscopy and operation, the buttock directly is close to this operating space, the patient only needs simple whole body position can carry out the inspection treatment, avoid the patient to move repeatedly and be close to the tailstock, and the tailstock board of putting down of turning up after inspection treatment finishes, form a complete bed again.
Paste through the magic on the bed board of bed body 1 and paste and be fixed with cushion 13, every it is fixed with mild callus on the sole 14 to paste through the magic on the bed tailboard 2, makes the patient comfortable.
In order to restrain the legs of the patient and prevent the patient from moving around during examination and operation, a leg restraint strap 8 capable of stretching across the left side and the right side of each footboard 2 is arranged at the middle position of the front and back direction of each footboard 2, and the legs placed on the footboard 2 are tied up through the leg restraint straps 8.
In order to increase protection, guardrails 7 capable of standing and being placed below the side edges of the bed body 1 are arranged on the left side and the right side of the bed body 1. The distance between the tail end of the guardrail 7 and the tail end of the bed body 1 is 20 cm-25 cm. Guarantee like this that the distance of operation doctor and patient buttock is too big and increase the risk of enteroscopy doctor's lumbar muscle strain, laborsaving moreover, can fill up the floorcloth of inhaling liquid dung again, prevent that liquid dung from polluting the inspection bed.
The guardrail 7 is hinged on the edge of the bed body 1, the baffle 4 is hinged on the tail part of the bed tail plate 2, and locking structures for locking when the guardrail 7 or the baffle 4 stands up are respectively arranged between the guardrail 7 and the bed body 1 and between the baffle 4 and the bed tail plate 2. The locking structure may be a keyhole and a resilient button structure. If the baffle 4 is provided with a lock hole, the bed tail plate 2 is provided with an elastic button matched with the lock hole, and when the baffle 4 is erected relative to the bed tail plate 2, the elastic button bounces and is clamped into the lock hole to fix the baffle 4.
In order to restrain the body of the patient, a waist restraint belt 9 capable of crossing the left and right sides of the bed body 1 is arranged at the middle position of the bed body.
Bed body 1 includes bedstead 5 and locates the bed board on the bedstead 5, 5 bottoms of bedstead are equipped with universal wheel 6, the bed board includes main bed board 10 and head bed board 11, main bed board 10 is fixed on bedstead 5, head bed board 11 is articulated with main bed board 10 and can upwards be raised, and when head bed board 11 rotated main bed board 10 relatively and raised, can raise patient's head and shoulder, made the whole upper half body of patient raise to some extent, can effectively prevent that the gastric juice from palirrhea.
For the convenience of operation, a lifting mechanism for controlling the rotation of the head bed plate 11 is arranged between the bed frame 5 and the head bed plate 11.
In order to facilitate transfusion, a hook 15 is arranged on the bed body 1. Certainly, further, in order to be fit for the doctor operation of different heights to and the patient that is fit for different heights can conveniently lie on the bed, can set up bed body 1 and have the function of lift.
Claims (9)
1. An enteroscopy treatment couch, which is characterized in that: including the bed body (1), articulated side by side have two mutually independent bed tailboards (2) about the tail end of the bed body (1), two the bottom of bed tailboard (2) is equipped with branch (3) that are used for having two bed tailboards (2) levels erect respectively, every the afterbody of bed tailboard (2) is equipped with baffle (4) that can stand and stop that patient's foot straightens backward.
2. The enteroscopy treatment couch of claim 1, further comprising: the bed is characterized in that a soft cushion (13) is fixed on the bed board of the bed body (1) through magic tape sticking, and each piece of the bed is fixed with a soft foot pad (14) on the bed tail board (2) through magic tape sticking.
3. The enteroscopy treatment couch of claim 1, further comprising: leg restraint belts (8) capable of crossing the left side and the right side of each bed tail plate (2) are arranged in the middle of the bed tail plate (2) in the front-back direction.
4. The enteroscopy treatment couch of claim 1, further comprising: waist restraint belts (9) capable of crossing the left side and the right side of the bed body (1) are arranged in the middle of the bed body.
5. The enteroscopy treatment couch of claim 1, further comprising: the bed is characterized in that guardrails (7) capable of being erected and placed below the side edges of the bed body (1) are arranged on the left side and the right side of the bed body (1), and the distance between the tail ends of the guardrails (7) and the tail end of the bed body (1) is 20 cm-25 cm.
6. The enteroscopy treatment couch of claim 1, further comprising: the bed body (1) is provided with a hook (15).
7. The enteroscopy treatment couch of claim 1, further comprising: baffle (4) are articulated with the afterbody of bed tailboard (2), be equipped with the lockhole on baffle (4), be equipped with on bed tailboard (2) with lockhole matched with elastic button, when baffle (4) stand up relative bed tailboard (2), elastic button bounces and blocks into in the lockhole and fix baffle (4).
8. An enteroscopy treatment couch according to any one of claims 1 to 7, wherein: the bed body (1) comprises a bed frame (5) and a bed board arranged on the bed frame (5), universal wheels (6) are arranged at the bottom of the bed frame (5), the bed board comprises a main bed board (10) and a head bed board (11), the main bed board (10) is fixed on the bed frame (5), and the head bed board (11) is hinged to the main bed board (10) and can be lifted upwards.
9. The enteroscopy treatment couch of claim 8, wherein: a lifting mechanism for controlling the rotation of the head bed board (11) is arranged between the bed frame (5) and the head bed board (11).
