CN214909608U - Device is raised to upper limbs after coronary angiography - Google Patents
Device is raised to upper limbs after coronary angiography Download PDFInfo
- Publication number
- CN214909608U CN214909608U CN202021641176.2U CN202021641176U CN214909608U CN 214909608 U CN214909608 U CN 214909608U CN 202021641176 U CN202021641176 U CN 202021641176U CN 214909608 U CN214909608 U CN 214909608U
- Authority
- CN
- China
- Prior art keywords
- base
- placing groove
- coronary angiography
- upper limbs
- rotating column
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
- 210000001364 upper extremity Anatomy 0.000 title claims abstract description 28
- 238000002586 coronary angiography Methods 0.000 title claims abstract description 19
- 239000002184 metal Substances 0.000 claims description 3
- XBWAZCLHZCFCGK-UHFFFAOYSA-N 7-chloro-1-methyl-5-phenyl-3,4-dihydro-2h-1,4-benzodiazepin-1-ium;chloride Chemical compound [Cl-].C12=CC(Cl)=CC=C2[NH+](C)CCN=C1C1=CC=CC=C1 XBWAZCLHZCFCGK-UHFFFAOYSA-N 0.000 abstract description 12
- TVEXGJYMHHTVKP-UHFFFAOYSA-N 6-oxabicyclo[3.2.1]oct-3-en-7-one Chemical compound C1C2C(=O)OC1C=CC2 TVEXGJYMHHTVKP-UHFFFAOYSA-N 0.000 description 3
- 210000004351 coronary vessel Anatomy 0.000 description 2
- 238000010586 diagram Methods 0.000 description 2
- 210000003414 extremity Anatomy 0.000 description 2
- 230000002980 postoperative effect Effects 0.000 description 2
- 238000002583 angiography Methods 0.000 description 1
- 239000008280 blood Substances 0.000 description 1
- 210000004369 blood Anatomy 0.000 description 1
- 210000002302 brachial artery Anatomy 0.000 description 1
- 239000002872 contrast media Substances 0.000 description 1
- 208000029078 coronary artery disease Diseases 0.000 description 1
- 230000002349 favourable effect Effects 0.000 description 1
- 230000003902 lesion Effects 0.000 description 1
- 239000000463 material Substances 0.000 description 1
- 238000000034 method Methods 0.000 description 1
- 238000012986 modification Methods 0.000 description 1
- 230000004048 modification Effects 0.000 description 1
Images
Landscapes
- Orthopedics, Nursing, And Contraception (AREA)
Abstract
The utility model relates to a medical instrument especially relates to a device is raised to upper limbs after coronary angiography. The utility model provides a device is raised to upper limbs after coronary angiography includes the base, and first die-pin is articulated to be set up at the base upper surface, and first adjusting button sets up at the base lateral wall, the column spinner, and the bottom is articulated to be set up at first die-pin upper surface to can be rotatory around its axis, the second adjusting button sets up first die-pin lateral wall, second die-pin lower surface and the perpendicular fixed connection in column spinner top put the hand groove and be U type structure, and the symmetry is provided with a pair of fixed band on it. The utility model provides a device is raised to upper limbs after coronary angiography can adjust supporting height, adjusts the angle between column spinner and the first die-pin upper surface through the second adjusting button, makes hand-placing groove opening vertical upwards all the time, conveniently places the upper limbs, and the column spinner can be rotatory around its axis, and the horizontal direction adjusting device of being convenient for puts the angle of hand-placing groove to satisfy different demands.
Description
Technical Field
The utility model relates to a medical instrument especially relates to a device is raised to upper limbs after coronary angiography.
Background
Clinically, coronary artery angiography is a common and effective method for diagnosing coronary heart disease, and coronary arteries are visualized by injecting contrast medium, so that the conditions of lesion positions, ranges, degrees and the like are determined. The upper limbs of postoperative need with patient's postoperative are raised to observe the patient limbs puncture position condition, be favorable to blood to flow back simultaneously, promote recovered, a lot of hospitals do not have the instrument that is used for raising patient's limbs specially at present, and it is raised to the upper limbs to come with the pillow often clinically, but the pillow height can't be adjusted, can't satisfy different high needs.
Chinese utility model patent 201920554709.4 discloses a fixed support of raising of upper limbs after brachial artery puncture, include the upper limbs fixed plate and raise the board, can adjust the fixed length and the inclination that can raise the support of upper limbs, satisfy different user demands. However, the support height of the support can be adjusted only in the vertical direction, if the horizontal angle of the support cannot be adjusted, the arm of a patient can be always placed in a fixed place, the patient can feel uncomfortable after a long time, and in addition, when the body rotates, the arm cannot horizontally deflect, and always abuts against the side wall of the support, so that discomfort is brought to the patient.
SUMMERY OF THE UTILITY MODEL
The utility model aims at solving the problems existing in the prior art and providing a device for lifting the upper limbs after coronary angiography.
In order to achieve the above purpose, the utility model adopts the following technical scheme:
a post-coronary angiography upper extremity elevation device comprising:
a base;
the first support rod is hinged to the upper surface of the base, and an included angle between the first support rod and the base is adjustable;
the first adjusting button is arranged on the side wall of the base, is connected with the first supporting rod and is used for adjusting an included angle between the first supporting rod and the base;
the rotating column is of a cylindrical structure, the bottom of the rotating column is hinged to the upper surface of the first supporting rod, and the rotating column can rotate around the axis of the first supporting rod;
the second adjusting button is arranged on the side wall of the first support rod, is connected with the rotating column and is used for adjusting the angle between the rotating column and the upper surface of the first support rod;
the lower surface of the second support rod is vertically and fixedly connected with the top of the rotating column;
the hand placing groove is of a U-shaped structure, the concave surface of the hand placing groove faces upwards, one side of the hand placing groove is fixedly connected with the upper surface of the second supporting rod, and the other side of the hand placing groove is symmetrically provided with a pair of fixing belts.
Preferably, the base is of a rectangular configuration.
Preferably, the concave surface of the hand placing groove is made of rubber.
Preferably, the base is made of metal.
Preferably, one end of the fixing strap is fixedly connected with the other side of the hand holding groove, and the other end of the fixing strap is connected with one side of the hand holding groove through a buckle.
Preferably, the clip comprises:
the button holes are axially arranged at the other end of the fixing band in parallel;
and the button is arranged on one side of the hand placing groove and matched with the button hole.
Preferably, the number of the grommets is two.
Preferably, the fixing band is an elastic rope.
The utility model provides a device is raised to upper limbs after coronary angiography can adjust contained angle between first die-pin and base through first adjusting knob, and then adjusts the support height, adjusts the angle between column spinner and first die-pin upper surface through the second adjusting knob, makes to put the hand groove opening vertical upwards all the time, conveniently places the upper limbs, and the column spinner can be rotatory around its axis, and the horizontal direction adjusting device of being convenient for puts the angle of hand groove to satisfy different demands.
Drawings

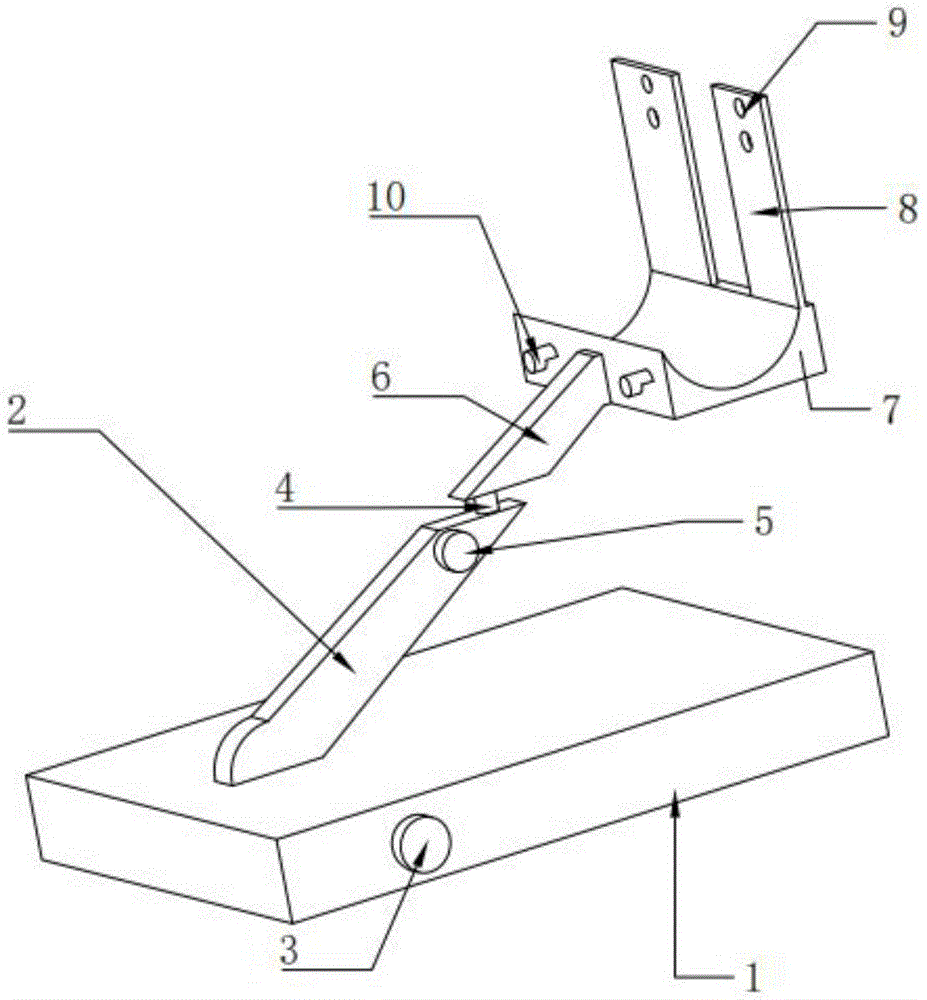

Fig. 1 is the structure schematic diagram of the device is raised to upper limbs after coronary angiography.
Fig. 2 is a front view of the device for raising the upper limbs after coronary angiography of the present invention.
Fig. 3 is a schematic structural view of the spin column of the present invention.
Fig. 4 is a structural diagram of the hand placing groove of the present invention.
Description of the reference numerals
1. A base; 2. a first support rod; 3. a first adjusting knob; 4. a spin column; 5. a second adjusting knob; 6. a second support rod; 7. a hand placing groove; 8. fixing belts; 9. a buttonhole; 10. a clasp.
Detailed Description
The following describes the embodiments of the present invention in further detail with reference to the accompanying drawings.
The present invention may be embodied in many different forms and should not be construed as limited to the embodiments set forth herein, but rather as being provided for the purpose of providing a thorough and complete disclosure. In the drawings, the size and relative sizes of structures and regions may be exaggerated for clarity.
As shown in fig. 1-4, the utility model provides a device is raised to upper limbs after coronary angiography, including base 1, first die-pin 2, first adjusting button 3, column spinner 4, second adjusting button 5, second die-pin 6, hand placing groove 7, fixed band 8, button hole 9 and button 10. In the embodiment, the base 1 is of a rectangular structure and made of metal, has larger self weight and is easier to fix on a sickbed; the first support rod 2 is hinged on the upper surface of the base 1, the included angle between the first support rod and the base 1 is adjustable, and the height of the first support rod 2 is changed by adjusting the size of the included angle; the first adjusting button 3 is arranged on the side wall of the base 1, connected with the first supporting rod 2 and used for adjusting an included angle between the first supporting rod 2 and the base 1.
The rotating column 4 is of a cylindrical structure, the bottom of the rotating column is hinged to the upper surface of the first support rod 2, and the rotating column can rotate around the axis of the first support rod; the second adjusting button 5 is arranged on the side wall of the first support rod 2, is connected with the rotating column 4 and is used for adjusting the angle between the rotating column 4 and the upper surface of the first support rod 2; the lower surface of the second support rod 6 is vertically and fixedly connected with the top of the rotating column 4; put hand groove 7 and be U type structure, and the concave surface upwards, it is the rubber material to put 7 concave surfaces of hand groove, it is more comfortable to enable patient's upper limbs, it is connected with second die-pin 6 upper surface fixed to put 7 one sides of hand groove, the opposite side symmetry is provided with a pair of fixed band 8, fixed band 8 one end and 7 opposite side fixed connection of hand groove, the other end passes through the buckle with 7 one side of putting hand groove and is connected, the buckle includes that the axial sets up a plurality of button holes 9 at the 8 other ends of fixed band side by side and sets up and putting 7 one sides of hand groove and with button hole 9 matched with button 10. In another embodiment, the fixing band 8 is an elastic rope, and the number of the button holes 9 is two, so that the length of the fixing band 8 can be suitable for more patients.
The utility model provides a device is raised to upper limbs after coronary angiography can adjust contained angle between first die-pin and base through first adjusting knob, and then adjusts the support height, adjusts the angle between column spinner and first die-pin upper surface through the second adjusting knob, makes to put the hand groove opening vertical upwards all the time, conveniently places the upper limbs, and the column spinner can be rotatory around its axis, and the horizontal direction adjusting device of being convenient for puts the angle of hand groove to satisfy different demands.
While the embodiments of the invention have been described above, it is not intended to be limited to the details shown, or described, but rather to cover all modifications, which would come within the scope of the appended claims, and all changes which come within the meaning and range of equivalency of the art are therefore intended to be embraced therein.
Claims (8)
1. A device is raised to upper limbs after coronary angiography, which characterized in that includes:
a base;
the first support rod is hinged to the upper surface of the base, and an included angle between the first support rod and the base is adjustable;
the first adjusting button is arranged on the side wall of the base, is connected with the first supporting rod and is used for adjusting an included angle between the first supporting rod and the base;
the rotating column is of a cylindrical structure, the bottom of the rotating column is hinged to the upper surface of the first supporting rod, and the rotating column can rotate around the axis of the first supporting rod;
the second adjusting button is arranged on the side wall of the first support rod, is connected with the rotating column and is used for adjusting the angle between the rotating column and the upper surface of the first support rod;
the lower surface of the second support rod is vertically and fixedly connected with the top of the rotating column;
the hand placing groove is of a U-shaped structure, the concave surface of the hand placing groove faces upwards, one side of the hand placing groove is fixedly connected with the upper surface of the second supporting rod, and the other side of the hand placing groove is symmetrically provided with a pair of fixing belts.
2. The post-coronary elevation device of claim 1 wherein the base is of rectangular configuration.
3. The post-coronary angiography upper limb lifting device according to claim 1, wherein the concave surface of the hand placing groove is made of rubber.
4. The post-coronary angiography upper limb lifting device according to claim 1 or 2, wherein the base is made of metal.
5. The device for lifting upper limbs after coronary angiography of claim 1, wherein one end of the fixing strap is fixedly connected with the other side of the hand placing groove, and the other end of the fixing strap is connected with one side of the hand placing groove through a buckle.
6. The post-coronary angiography upper limb lifting device according to claim 5, wherein the buckle comprises:
the button holes are axially arranged at the other end of the fixing band in parallel;
and the button is arranged on one side of the hand placing groove and matched with the button hole.
7. The post-coronary elevation device of claim 6 wherein there are two of the plurality of grommets.
8. The post-coronary angiography upper limb lifting device according to claim 1 or 5, wherein the securing strap is an elastic cord.
