Side limb anticreep supporting mechanism convenient to connect

Technical Field

The utility model relates to a lateral limb protects technical field, particularly, relates to a lateral limb anticreep supporting mechanism convenient to connect.

Background

The side limb mainly includes human upper limbs etc, be human necessary body structure, can assist human daily activity, play critical effect, it may receive certain damage to exempt the side limb in the life, when impaired at the side limb, medical institution can use certain fixed knot structure to carry out supplementary fixed treatment to the side limb occasionally, play certain treatment to patient's treatment, most equipment is when fixing patient's side limb at present, because of can not adapt to different circumstances such as support dead lever, can not adjust when fixed, it is not flexible enough, lead to fixed equipment to produce certainly to drop easily, the side limb position base wad is more hard airtight to present equipment majority place simultaneously, still can cause the patient to appear pressing the condition of sore easily, bring certain inconvenience when next step nursing is observed.

SUMMERY OF THE UTILITY MODEL

The utility model discloses a main aim at provides a side limb anticreep supporting mechanism convenient to connect can effectively solve the problem in the background art.

In order to achieve the above purpose, the utility model adopts the following technical scheme:

the utility model provides a side limb anticreep supporting mechanism convenient to connect, includes the U-shaped board, U-shaped board lower extreme rotates and is connected with the mount, the mount lower extreme becomes open design, mount lower part open end is connected with the connecting block, sliding connection has fixed subassembly, two in the connecting block central symmetry distributes, it is connected with the connecting axle to pass in U-shaped board and the mount, install the 45D sponge through the connecting seat in the U-shaped board.

Preferably, the fixing assembly comprises a connecting frame and a sliding rod, and the two connecting frames are centrosymmetric.

Preferably, the inner side of the connecting frame is connected with the sliding rod, and the inner side of the connecting frame is movably connected with the fixed frame and the outer side of the connecting block in a contact manner.

Preferably, the sliding rod is slidably mounted in the connecting block, and a sliding groove is formed at the lower end of the sliding rod.

Preferably, two sides of one end of the sliding rod are connected with two check heads, and the two check heads are distributed in a central symmetry manner and are movably connected with the connecting block in a contact manner.

Preferably, the inner sides of the two connecting frames are respectively connected with a soft cushion, and the two connecting frames are connected in a sliding mode through bolts.

Preferably, a fixing nut is fixedly connected to the front end of one of the connecting frames, a connecting bolt rotates in the fixing nut, a rotating handle is rotatably connected to the rear end of the bolt, and the rotating handle is rotatably connected with one of the connecting frames.

Compared with the prior art, the utility model discloses following beneficial effect has:

before fixing the side limbs of a patient, the two connecting frames are sleeved on a wheelchair, the chair, the handrail, the supporting rod, a bed side rod and the like in daily life, then bolts can be installed in the two connecting frames, then the rotating handle is screwed, when the rotating handle is screwed, the connecting frames can move inwards, the chair, the handrail, the supporting rod, the bed side rod and the like in daily life are pushed and abutted tightly, when the connecting frames move inwards, the sliding rod can slide in the connecting block, the connecting frames are better stabilized, most fixed supporting objects can be achieved, therefore, the device can be adjusted according to the width of different supporting objects, the flexibility and the fixity are stronger, and the probability of falling of the device is reduced;

place patient's side limb in 45D sponge this moment, 45D sponge has certain ventilative compliance, when guaranteeing patient side limb comfort level, it adopts the better surrounding patient side limb of form of deep groove, it is fixed to carry out certain protection, also can prevent that the permanent patient of time from appearing pressing the condition of sore, at last when nursing the observation, patient or medical personnel accessible rotate the U-shaped board, realize the adjustment of certain angle, better observe the nursing for patient side limb.

Drawings

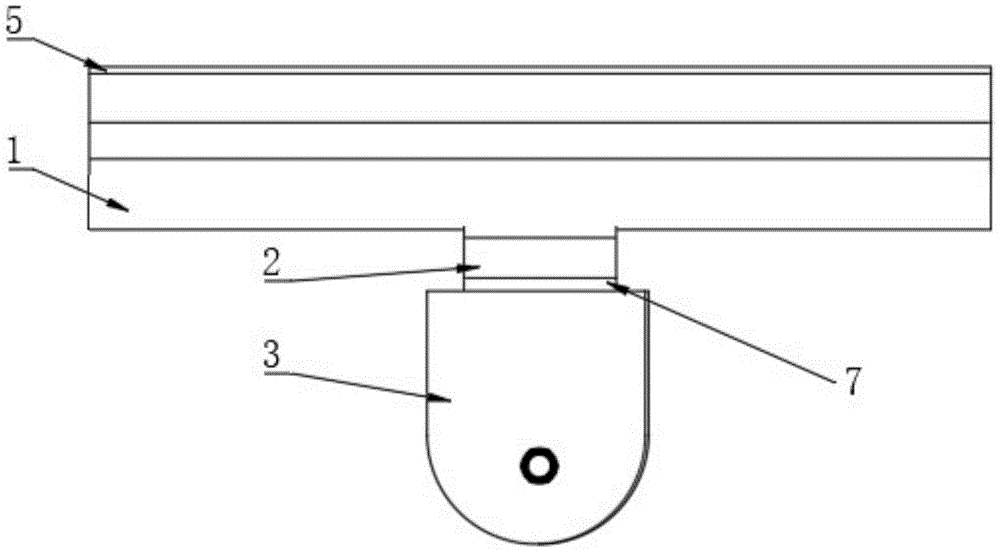

Fig. 1 is a schematic view of a front view of a lateral limb anti-drop support mechanism convenient for connection according to the present invention;

FIG. 2 is a schematic view of a fixing assembly of a lateral limb anti-drop support mechanism convenient for connection according to the present invention;

fig. 3 is a schematic rear view of the lateral limb anti-drop support mechanism of the present invention for easy connection;

FIG. 4 is a schematic sectional view of the side limb anti-drop support mechanism with easy connection according to the present invention;

fig. 5 is a schematic view of the side limb anti-drop supporting mechanism of the present invention, which is easy to connect;

fig. 6 is an enlarged schematic view of a position a of the anti-drop lateral limb supporting mechanism convenient for connection.

In the figure: 1. a U-shaped plate; 2. a fixed mount; 3. a fixing assembly; 301. a connecting frame; 302. a slide bar; 303. a restraining head; 304. a chute; 305. a soft cushion; 306. a bolt; 307. fixing a nut; 308. rotating the handle; 4. a connecting seat; 5. 45D sponge; 6. a connecting shaft; 7. and (4) connecting the blocks.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely below with reference to the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Examples

As shown in fig. 1-6, a lateral limb anti-drop supporting mechanism convenient to connect, including U-shaped plate 1, the lower extreme of U-shaped plate 1 rotates and is connected with mount 2, 2 lower extremes of mount become the open design, 2 lower part open ends of mount are connected with connecting block 7, sliding connection has fixed subassembly 3 in connecting block 7, two connecting block 7 central symmetry distribute, pass in U-shaped plate 1 and the mount 2 and be connected with connecting axle 6, install 45D sponge 5 through connecting seat 4 in the U-shaped plate 1.

In this embodiment, before the side limbs of the patient are fixed, the two connecting frames 301 are sleeved on the chair, the armrest, the supporting rod, the bed side rod and the like in daily life, then the bolts 306 can be installed in the two connecting frames 301, then the rotating handle 308 is screwed, when the rotating handle 308 is screwed, the connecting frames 301 can move inwards to push and support the chair, the armrest, the supporting rod, the bed side rod and the like in daily life, when the connecting frames 301 move inwards, the sliding rods 302 can slide in the connecting blocks 7 to better stabilize the connecting frames 301, so as to achieve the purpose of adapting to a plurality of fixed supports, therefore, the width of different supports can be adjusted, the flexibility is stronger, at the moment, the side limbs of the patient are placed in the 45D sponge 5, the 45D sponge 5 has certain ventilation flexibility, and while the comfort level of the side limbs of the patient is ensured, the side limbs of the patient can be better surrounded by adopting the deep groove form, carry out certain protection fixed, also can prevent that the long-term patient of time from appearing pressing the condition of sore, at last when nursing the observation, patient or medical personnel accessible rotate the U-shaped board, realize the adjustment of certain angle, the better nursing of observing for patient's side limb.

In the present application, the fixing assembly 3 comprises a connecting frame 301 and a sliding rod 302, wherein the two connecting frames 301 are centrosymmetric, and can move at the same horizontal position through the centrosymmetry of the connecting frames 301.

In this application, the inboard slide bar 302 that connects of link 301, link 301 inboard with mount 2 and the connecting block 7 outside movable contact be connected, through when link 301 moves inwards, slide bar 302 can slide in connecting block 7, better stable link 301.

In this application, slide bar 302 slidable mounting has seted up spout 304 in connecting block 7 in the slide bar 302 lower extreme, has certain space in can guaranteeing connecting block 7 through spout 304 of slide bar 302 lower extreme, and is more smooth and easy when sliding.

In this application, slide bar 302 one end both sides are connected with the festival head 303, and two festival head 303 central symmetry distribute and with connecting block 7 swing joint, through when slide bar 302 slides, two festival head 303 can guarantee to prevent slide bar 302 whole roll-outs.

In this application, two link 301 inboards respectively are connected with cushion 305, through bolt 306 sliding connection in two link 301, when removing through two link 301, drive cushion 305 and carry out contact fixed bolster, better support tight object.

In this application, a fixed nut 307 is fixedly connected to the front end of one of the connection frames 301, a connection bolt 306 is rotatably connected to the fixed nut 307, a rotation handle 308 is rotatably connected to the rear end of the bolt 306, and the rotation handle 308 is rotatably connected to one of the connection frames 301, so that when the rotation handle 308 is rotated, the bolt 306 is rotated to move the connection frame 301 inward.

The utility model provides a side limb anticreep supporting mechanism's theory of operation convenient to connect:

when the wheelchair is used, before the side limbs of a patient are fixed, the two connecting frames 301 are sleeved on the wheelchair, a chair, a handrail, a supporting rod, a bed side rod and the like in daily life, then bolts 306 can be installed in the two connecting frames 301, then the rotating handle 308 is screwed, when the rotating handle 308 is screwed, the connecting frames 301 can move inwards to push and abut against the chair, the handrail, the supporting rod, the bed side rod and the like in daily life, when the connecting frames 301 move inwards, the sliding rods 302 can slide in the connecting blocks 7 to better stabilize the connecting frames 301, so that a plurality of fixed supports can be met, the wheelchair can be adjusted according to the widths of different supports, the flexibility is stronger, at the moment, the side limbs of the patient are placed in the 45D sponge 5, the 45D sponge 5 has certain ventilation flexibility, the comfort degree of the side limbs of the patient is ensured, and the wheelchair can better surround the side limbs of the patient in the form of a deep groove, carry out certain protection fixed, also can prevent that the long-term patient of time from appearing pressing the condition of sore, at last when nursing the observation, patient or medical personnel accessible rotate the U-shaped board, realize the adjustment of certain angle, the better nursing of observing for patient's side limb.

The basic principles and the main features of the invention and the advantages of the invention have been shown and described above. It will be understood by those skilled in the art that the present invention is not limited to the above embodiments, and that the foregoing embodiments and descriptions are provided only to illustrate the principles of the present invention without departing from the spirit and scope of the present invention. The scope of the invention is defined by the appended claims and equivalents thereof.

Claims (7)

1. The utility model provides a side limb anticreep supporting mechanism convenient to connect, includes U-shaped board (1), its characterized in that: u-shaped plate (1) lower extreme rotates and is connected with mount (2), mount (2) lower extreme becomes the open design, mount (2) lower part open end is connected with connecting block (7), sliding connection has fixed subassembly (3), two in connecting block (7) central symmetry distributes, it is connected with connecting axle (6) to pass in U-shaped plate (1) and mount (2), install 45D sponge (5) through connecting seat (4) in U-shaped plate (1).

2. The easy-to-connect lateral limb anti-drop support mechanism according to claim 1, wherein: the fixing component (3) comprises connecting frames (301) and sliding rods (302), and the two connecting frames (301) are centrosymmetric.

3. The easy-to-connect lateral limb anti-drop support mechanism according to claim 2, wherein: the inner side of the connecting frame (301) is connected with a sliding rod (302), and the inner side of the connecting frame (301) is movably connected with the outer sides of the fixed frame (2) and the connecting block (7) in a contact manner.

4. The easy-to-connect lateral limb anti-drop support mechanism according to claim 3, wherein: the sliding rod (302) is slidably mounted in the connecting block (7), and the lower end of the sliding rod (302) is provided with a sliding groove (304).

5. The easy-to-connect lateral limb anti-drop support mechanism according to claim 4, wherein: two sides of one end of the sliding rod (302) are connected with two check heads (303), and the check heads (303) are distributed in a central symmetry manner and are movably connected with the connecting block (7) in a contact manner.

6. The easy-to-connect lateral limb anti-drop support mechanism according to claim 3, wherein: the inner sides of the two connecting frames (301) are respectively connected with a soft cushion (305), and the two connecting frames (301) are connected in a sliding mode through bolts (306).

7. The easy-to-connect lateral limb anti-drop support mechanism according to claim 6, wherein: one of the connecting frames (301) is fixedly connected with a fixing nut (307) at the front end, the fixing nut (307) rotates a connecting bolt (306), the rear end of the bolt (306) rotates and is connected with a rotating handle (308), and the rotating handle (308) is rotatably connected with one of the connecting frames (301).
