CN214852991U

CN214852991U - Landscape greening column

Info

Publication number: CN214852991U
Application number: CN202022869744.0U
Authority: CN
Inventors: 左定兰
Original assignee: Chongqing Wenxing Garden Engineering Co ltd
Current assignee: Chongqing Wenxing Garden Engineering Co ltd
Priority date: 2020-12-02
Filing date: 2020-12-02
Publication date: 2021-11-26
Anticipated expiration: 2030-12-02

Abstract

The utility model discloses a landscape greening column, which comprises a conical column, wherein the upper end of the conical column is connected with a lower decorative ring, the upper end of the lower decorative ring is connected with an upper decorative ring, the surface of the upper decorative ring is connected with an adsorption plate, the upper end of the upper decorative ring is connected with an end cover, the upper end of the end cover is connected with a sprinkling device, the surface of the sprinkling device is connected with a spray head, the inner part of the lower decorative ring is connected with a fixed block, the inner part of the fixed block is provided with a threaded hole, the inner part of the threaded hole is connected with a bolt, the inner part of the lower decorative ring is connected with a soil layer, the inner part of the soil layer is connected with a concrete layer, and the inner part of the concrete layer is provided with a pipeline through hole; the utility model discloses in, adopt the concatenation to the cylinder, reduced the volume of cylinder, be convenient for transport, secondly just adopt real plant to plant on the surface of afforestation post to be provided with the device that sprays, come to water the plant, make the incomplete of the impetus of its experience time, still have vitality, and can not influence the ornamental effect of afforestation post.

Description

Landscape greening column

Technical Field

The utility model relates to an afforestation building field especially relates to a view afforestation post.

Background

The method is characterized in that engineering technology and artistic means are applied in a certain region, through land form transformation, beautiful natural environments and rest regions which are created by planting trees, flowers and plants, building buildings, arranging garden roads and other ways are called as gardens, modern life modes and living environments have urgent functional and artistic requirements on the gardens, and the method plays an increasingly important role in modern life and future people development directions, wherein the greening columns become landscape lines in the gardens, and the greening columns are large in size, inconvenient to transport, lose original landscapes and greatly reduce the ornamental effect.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide a view greening post aims at solving the inconvenient technical problem who transports and viewing and admiring the effect among the prior art.

For realizing the above-mentioned purpose, the utility model discloses a pair of view afforestation post, including the awl post, the upper end of awl post is connected with down the ornamental ring, the upper end of ornamental ring is connected with the ornamental ring down, the surface connection who goes up the ornamental ring has the adsorption plate, the upper end of going up the ornamental ring is connected with the end cover, the upper end of end cover is connected with watering device, watering device's surface connection has the shower nozzle, the internal connection of ornamental ring has the fixed block down, the inside of fixed block is provided with the screw hole, the internal connection of screw hole has the bolt, the internal connection of ornamental ring has the soil horizon down, the internal connection on soil horizon has concrete layer, concrete layer's inside is provided with the pipeline through-hole.

The inner part of the lower decoration ring is fixedly connected to one end of the fixing block, threaded holes are formed in the fixing block in a penetrating mode, and the fixing block and the threaded holes are in a plurality of groups.

The inner threads of the threaded holes are connected to one ends of bolts, the number of the bolts is a plurality of groups, and the bolts are annularly distributed around the circle center of the lower decorative ring.

The surface of the upper decorative ring is fixedly connected to one end of the adsorption plate, the adsorption plates are arranged in a plurality of groups, and the upper end of the upper decorative ring is detachably connected to the bottom end of the end cover.

The upper end of the end cover is fixedly connected to the bottom end of the sprinkler, the end cover is conical, the surface of the sprinkler is fixedly connected to one end of the spray head, the spray heads are arranged in a plurality of groups, and the spray heads are distributed in an annular shape relative to the circle center of the sprinkler

The soil layer is packaged in the lower decoration ring, the soil layer is annular, and the soil layer is symmetrically distributed around the circle center of the lower decoration ring.

The inner part of the soil layer is fixedly connected with a concrete layer, the concrete layer is annular, and the concrete layer and the pipeline through hole are symmetrically distributed about the circle center of the lower decoration ring.

The utility model has the advantages that: on original basis, produce the concatenation effect through threaded connection to the cylinder, make it can assemble, reduced the volume of cylinder, be convenient for transport, secondly adopt true plant species to plant on the surface of afforestation post to be provided with the device that sprays, come to water the plant, make the incomplete of the disappointing of its experience time, still have vitality, and can not influence the ornamental effect of afforestation post.

Drawings

In order to more clearly illustrate the embodiments of the present invention or the technical solutions in the prior art, the drawings needed to be used in the description of the embodiments or the prior art will be briefly described below, it is obvious that the drawings in the following description are only some embodiments of the present invention, and for those skilled in the art, other drawings can be obtained according to these drawings without creative efforts.

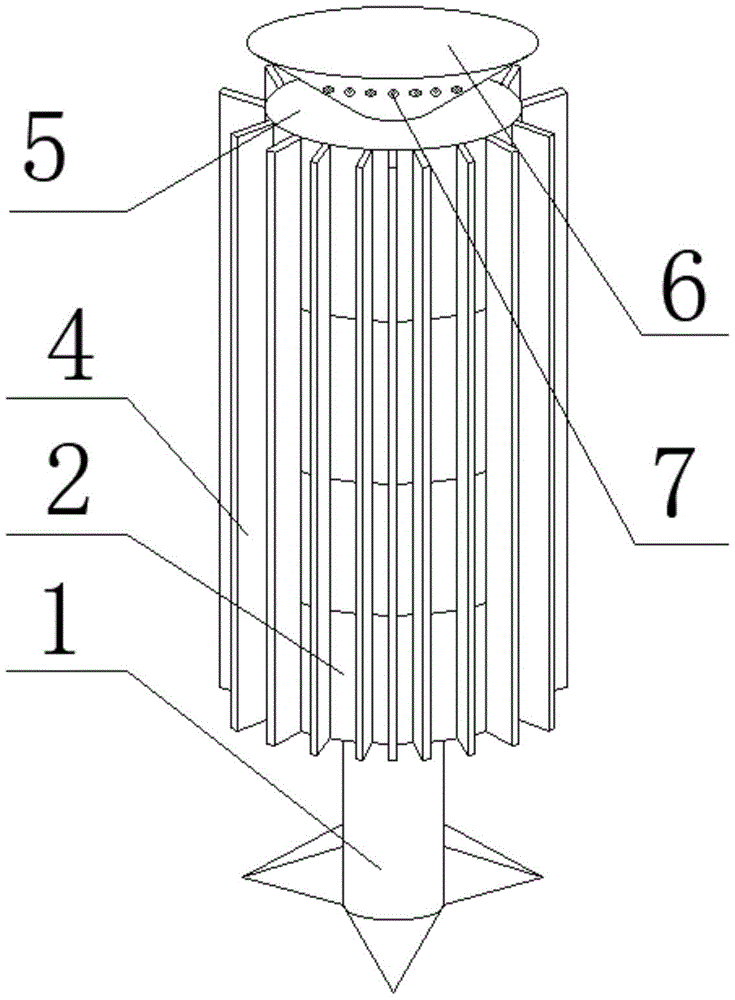

FIG. 1 is an overall effect diagram of the landscape greening column of the present invention;

FIG. 2 is a connection effect diagram of the landscape greening column of the present invention;

fig. 3 is an effect diagram of the internal structure of the landscape greening column of the utility model.

1. A conical column; 2. a lower decorative ring; 3. an upper decorative ring; 4. an adsorption plate; 5. an end cap; 6. a watering device; 7. a spray head; 8. a fixed block; 9. a threaded hole; 10. a bolt; 11. a soil layer; 12. a concrete layer; 13. And (4) a pipeline through hole.

Detailed Description

Reference will now be made in detail to embodiments of the present invention, examples of which are illustrated in the accompanying drawings, wherein like reference numerals refer to the same or similar elements or elements having the same or similar function throughout. The embodiments described below with reference to the drawings are exemplary and intended to be used for explaining the present invention, and should not be construed as limiting the present invention.

In the description of the present invention, it is to be understood that the terms "length", "width", "upper", "lower", "front", "rear", "left", "right", "vertical", "horizontal", "top", "bottom", "inner", "outer", and the like indicate orientations or positional relationships based on those shown in the drawings, and are merely for convenience of description and simplicity of description, and do not indicate or imply that the device or element being referred to must have a particular orientation, be constructed and operated in a particular orientation, and thus, should not be construed as limiting the present invention. In addition, in the description of the present invention, "a plurality" means two or more unless specifically limited otherwise.

Please refer to fig. 1-3, the utility model provides a view afforestation post, including awl post 1, the upper end of awl post 1 is connected with down collar 2, the upper end of lower collar 2 is connected with collar 3, the surface connection of going up collar 3 has adsorption plate 4, the upper end of going up collar 3 is connected with end cover 5, the upper end of end cover 5 is connected with watering device 6, the surface connection of watering device 6 has shower nozzle 7, the internal connection of collar 2 has fixed block 8 down, the inside of fixed block 8 is provided with screw hole 9, the internal connection of screw hole 9 has bolt 10, the internal connection of collar 2 has soil layer 11 down, the internal connection of soil layer 11 has concrete layer 12, the inside of concrete layer 12 is provided with pipeline through-hole 13.

In this embodiment, produce the concatenation effect through threaded connection to lower ornamental ring 2 and last ornamental ring 3, make it can assemble, made things convenient for the transportation, secondly just adopt real plant to plant on the surface of afforestation post to be provided with watering device 6, shower nozzle 7, come to water the plant, make its incomplete of the ruining of experience time, still have vitality, and can not influence the ornamental effect of afforestation post.

Further, the inside fixed connection of lower ornamental ring 2 is in the one end of fixed block 8, and the inside of fixed block 8 is run through and is provided with screw hole 9, and fixed block 8 all has a plurality of groups with the quantity of screw hole 9.

In the present embodiment, the fixing block 8 and the screw hole 9 provide an effect of fixing.

Further, the inner threads of the threaded holes 9 are connected to one ends of bolts 10, the number of the bolts 10 is several, and the bolts 10 are distributed annularly about the center of the lower decorative ring 2.

In the present embodiment, the bolts 10 have a coupling effect with the screw holes 9, and are used to fix the lower decorative ring 2 and the upper decorative ring 3.

Furthermore, the surface of the upper decorative ring 3 is fixedly connected to one end of the adsorption plate 4, the number of the adsorption plates 4 is several groups, and the upper end of the upper decorative ring 3 is detachably connected to the bottom end of the end cover 5.

In this embodiment, the adsorption plate 4 has an adsorption and supporting effect on plants, and the end cap 5 has a sealing effect, so that water is prevented from entering the greening column and soaking the plants.

Further, the upper end fixed connection of end cover 5 is in watering device 6's bottom, and end cover 5's shape is the toper, and watering device 6's fixed surface connects in the one end of shower nozzle 7, and there are a plurality of groups shower nozzle 7's quantity, and shower nozzle 7 is the annular distribution about watering device 6's centre of a circle.

In this embodiment, the sprinkler 6 has an effect of supporting the head 7, and the head 7 has an effect of spraying, thereby irrigating the plant.

Further, a soil layer 11 is packaged inside the lower decorative ring 2, the soil layer 11 is annular, and the soil layer 11 is symmetrically distributed around the center of the lower decorative ring 2.

In the present embodiment, the soil layer 11 serves to provide nutrients to the plants.

Further, the inside fixedly connected with concrete layer 12 of soil layer 11, concrete layer 12 is the shape of annular, and concrete layer 12 and pipeline through-hole 13 all are the symmetric distribution about the centre of a circle of lower decorative ring 2.

In the present embodiment, the concrete layer 12 has a fixing effect on the soil layer 11, and the pipe through hole 13 has a function of placing a connecting pipe for spraying and other auxiliary equipment.

The working principle is as follows: fix bottom lower decorative ring 2 on the ground surface through awl post 1, through the inside of bolt 10 threaded connection in screw hole 9, accomplish fixed effect to lower decorative ring 2 and last decorative ring 3, splice the afforestation post in proper order, pack concrete layer 12 to the inside of its afforestation post, take the shaping back, pack soil horizon 11, install watering device 6 at last, watering device 6's top can be placed some false potted plants or decorate and come to set off the afforestation post, its pipeline is walked the line and is set up the inside at pipeline through-hole 13, plant good plant on the surface of its cylinder, regularly come to irrigate for the plant on the afforestation post through shower nozzle 7, and can be in ground lighting device, come to set off the afforestation post, make it more have ornamental effect.

While the invention has been described with reference to a preferred embodiment, it will be understood by those skilled in the art that various changes in form and details may be made therein without departing from the spirit and scope of the invention.

Claims

1. The utility model provides a view afforestation post which characterized in that: comprises a conical column (1), the upper end of the conical column (1) is connected with a lower decorative ring (2), the upper end of the lower decorative ring (2) is connected with an upper decorative ring (3), the surface of the upper decorative ring (3) is connected with an adsorption plate (4), the upper end of the upper decorative ring (3) is connected with an end cover (5), the upper end of the end cover (5) is connected with a watering device (6), the surface of the sprinkling device (6) is connected with a spray head (7), the interior of the lower decorative ring (2) is connected with a fixed block (8), a threaded hole (9) is formed in the fixed block (8), a bolt (10) is connected in the threaded hole (9), the interior of lower decorative ring (2) is connected with soil horizon (11), the interior of soil horizon (11) is connected with concrete layer (12), the inside of concrete layer (12) is provided with pipeline through-hole (13).

2. The landscape greening column of claim 1, wherein: the inside fixed connection of lower decorative ring (2) is in the one end of fixed block (8), the inside of fixed block (8) is run through and is provided with screw hole (9), the quantity of fixed block (8) and screw hole (9) all has a plurality of groups.

3. The landscape greening column of claim 1, wherein: the inner threads of the threaded holes (9) are connected to one ends of bolts (10), the number of the bolts (10) is provided with a plurality of groups, and the bolts (10) are annularly distributed around the circle center of the lower decorative ring (2).

4. The landscape greening column of claim 1, wherein: the surface fixing of going up decorative ring (3) is connected in the one end of adsorption plate (4), the quantity of adsorption plate (4) has a plurality of groups, the bottom of connection in end cover (5) can be dismantled to the upper end of going up decorative ring (3).

5. The landscape greening column of claim 1, wherein: the upper end of the end cover (5) is fixedly connected to the bottom end of the sprinkler (6), the end cover (5) is conical, the surface of the sprinkler (6) is fixedly connected to one end of the spray head (7), the spray heads (7) are arranged in a plurality of groups, and the spray heads (7) are annularly distributed about the circle center of the sprinkler (6).

6. The landscape greening column of claim 1, wherein: the soil layer (11) is packaged in the lower decoration ring (2), the soil layer (11) is annular, and the soil layer (11) is symmetrically distributed around the circle center of the lower decoration ring (2).

7. The landscape greening column of claim 1, wherein: the inside fixedly connected with concrete layer (12) of soil layer (11), the shape of concrete layer (12) is the annular, concrete layer (12) all are the symmetric distribution with pipeline through-hole (13) about the centre of a circle of lower decorative ring (2).
