Abstract
The utility model discloses a protective sleeve for an indwelling needle after transfusion, which comprises a body, wherein a first belt is arranged at the lower end of the left side of the body, a second belt is arranged at the lower end of the right side of the body, a first rough surface paste is arranged on one side of the first belt, a baffle is arranged between the first belt and the first rough surface paste, a first barbed surface paste is arranged on one side of the second belt, a displacement sensor is arranged between the second belt and the first barbed surface paste, the first rough surface paste and the first barbed surface paste can be bonded with each other, the baffle is matched with the displacement sensor, an alarm device is arranged at the lower right side of the body, and a power supply switch are also arranged at the middle part of the right side of the body; the utility model discloses when patient pulls open the first hair side subsides after the bonding and when first thorn face subsides, displacement sensor and baffle separate each other, and displacement sensor sends signal to the controller, and controller control alarm sends the chimes of doom to avoid patient's emergence of symptoms such as hemorrhage.
Description
Technical Field
The utility model relates to the technical field of medical auxiliary equipment, especially, relate to a keep somewhere needle protective sheath after infusion.
Background
The indwelling needle is not taken out for a certain time after being pricked into the body, is convenient for next transfusion, and has the advantages of easy operation, effective reduction of puncture times, small damage to blood vessels, reduction of workload of nursing staff and the like, so the indwelling needle is widely applied to clinic and is also recognized by patients and medical care staff.
However, in the actual practice, after the indwelling needle infusion is performed on children and alzheimer patients, the children and the alzheimer patients feel uncomfortable due to slight pain of the indwelling needle in the body, sometimes the indwelling needle is pulled out from the family, and if the family or nearby people cannot find the indwelling needle in time, symptoms such as bleeding and the like are caused, which seriously threatens life.
The problem to be solved in the field is to find an indwelling needle protective sleeve which can avoid the occurrence of the condition and can remind family members and nearby people in time.
SUMMERY OF THE UTILITY MODEL
The utility model aims to provide a protective sleeve for indwelling needles after transfusion, which can remind family members and nearby people in time.
The utility model provides a following technical scheme:
the utility model provides a keep somewhere needle protective sheath after infusion, includes the body, the left side lower extreme of body is equipped with first band, the right side lower extreme of body is equipped with the second band, one side of first band is equipped with first matte and pastes, be equipped with the baffle between first band and the first matte, one side of second band is equipped with first matte and pastes, be equipped with displacement sensor between second band and the first matte, first matte pastes and can bond each other with first matte, the baffle is mutually supported with displacement sensor, body right side below is equipped with alarm device, the right side middle part of body still is equipped with power and switch.
Preferably, the alarm device comprises an alarm and a controller, the controller is connected with the displacement sensor and the alarm, and the displacement sensor, the alarm and the controller are all connected with the power supply through leads; and a power switch is arranged on the lead.
Preferably, the baffle is "L" shape, inside one end of baffle is between first band and first matte surface subsides, the other end of baffle is located the upper end of first band, and is perpendicular with first matte surface subsides, and is higher than first matte surface subsides.
Preferably, the body of the displacement sensor is located inside the space between the second strap and the first stabbing surface paste, and the head of the displacement sensor is located at the upper end of the second strap.
Preferably, the middle part of the body is provided with an observation window, the observation window is cuboid, and the observation window is a transparent and waterproof window.
Preferably, the body is further provided with one or more vent holes, and the inner side of the body is provided with a pressure injury prevention pad.
Preferably, the upper end left side of body is equipped with one or more third band, third band one side is equipped with the second matte and pastes, the upper end right side of body is equipped with one or more fourth band, fourth band one side is equipped with the second thorn face and pastes, the second matte is pasted the same with second thorn face subsides quantity, and can bond each other.
Preferably, the displacement sensor is connected with the controller in a wired or wireless manner.
Compared with the prior art, the utility model discloses following beneficial effect has:
(1) the utility model relates to a keep somewhere needle protective sheath after infusion, through set up the baffle between first band and the first matte subsides be equipped with displacement sensor between second band and the first matte subsides, first matte subsides can adhere to each other with first matte subsides, the baffle is mutually supported with displacement sensor, when patient pulls open the first matte subsides after the bonding and first matte subsides, displacement sensor and baffle separate from each other, and displacement sensor sends signal to the controller, and controller control alarm sends the warning and reminds the sound to avoid the emergence of symptoms such as patient's hemorrhage.
(2) The utility model relates to a keep somewhere needle protective sheath after infusion, through the upper end left side of body is equipped with one or more third band, third band one side is equipped with the second matte and pastes, the upper end right side of body is equipped with one or more fourth band, fourth band one side is equipped with second acanthosis subsides, second matte is pasted and second acanthosis subsides quantity the same, and can bond each other, and the alarm sends the alarm and reminds the family members when patient pulls open the first matte of bonding after with first acanthosis subsides, sets up a plurality of second matte and pastes and can prolong patient's time of pulling open the protective sheath with second acanthosis subsides to prolong patient and extract the time of keeping somewhere the needle, thereby give family members or doctor sufficient reaction time.
(3) The utility model relates to a keep somewhere needle protective sheath after infusion, the body is rectangle, the body is made by the elastic fiber material to can be applicable to the different needle positions of keeping somewhere of patient, for example upper arm, low limbs, head isoposition of hand, forearm, armpit, have very good suitability.
Drawings
In order to more clearly illustrate the technical solutions of the embodiments of the present invention, the drawings that are required to be used in the embodiments are briefly described below, it should be understood that the following drawings only illustrate some embodiments of the present invention, and therefore should not be considered as limiting the scope, and for those skilled in the art, other related drawings can be obtained according to the drawings without inventive efforts.

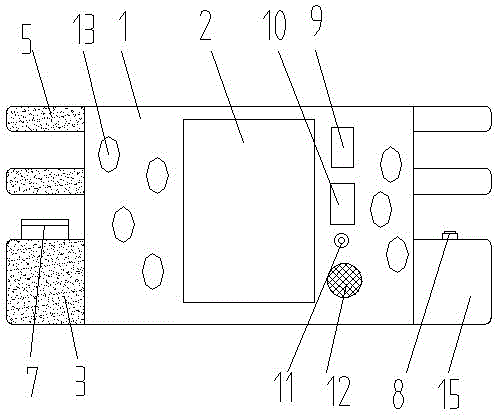

Fig. 1 is a schematic view of the front view of the structure of the present invention.
Fig. 2 is a left side view of the structure of the present invention.
Fig. 3 is a schematic structural section view of the second strap, the first barbed surface patch, and the displacement sensor of the present invention.
Fig. 4 is a schematic sectional view of the first strap, the first rough surface patch, and the baffle structure of the present invention.
Fig. 5 is a perspective view of the present invention.
Fig. 6 is a partially enlarged view of a portion a of fig. 5 according to the present invention.
In the figure: 1. a body; 2. an observation window; 3. a first matte patch; 4. a first barbed surface patch; 5. a second rough surface paste; 6. a second barbed surface patch; 7. a baffle plate; 8. a displacement sensor; 9. a controller; 10. a power source; 11. a power switch; 12. an alarm; 13. a vent hole; 14. a first strap; 15. a second strap.
Detailed Description
To make the objects, technical solutions and advantages of the embodiments of the present invention clearer, the technical solutions of the embodiments of the present invention will be clearly and completely described below with reference to the accompanying drawings of the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work all belong to the protection scope of the present invention.
Thus, the following detailed description of the embodiments of the present invention, presented in the accompanying drawings, is not intended to limit the scope of the invention, as claimed, but is merely representative of selected embodiments of the invention. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work all belong to the protection scope of the present invention.
Referring to fig. 1-6, a protective sleeve for an indwelling needle after infusion comprises a body 1, wherein the body 1 is rectangular, the body 1 is made of elastic fiber material and can be applied to different indwelling needle positions of a patient, such as the hand, forearm, upper arm of the armpit, ankle, head, etc., with reference to fig. 1, a first belt 14 is arranged at the lower end of the left side of the body 1, a second belt 15 is arranged at the lower end of the right side of the body 1, a first suede patch 3 is arranged at one side of the first belt 14, a baffle 7 is arranged between the first belt 14 and the first suede patch 3, a first barbed surface patch 4 is arranged at one side of the second belt 15, a displacement sensor 8 is arranged between the second belt 15 and the first barbed surface patch 4, the first suede patch 3 and the first barbed surface patch 4 can be adhered to each other, the baffle 7 and the displacement sensor 8 are matched with each other, the cooperation is through the distance between 8 monitoring baffles 7 of displacement sensor and the displacement sensor 8 promptly, and when 8 contact response of displacement sensor can not reach the baffle, displacement sensor 8 sends signal to controller 9, and controller 9 sends the order to alarm 12 sends the chimes of doom and reminds family members, 1 right side below of body is equipped with alarm device, the right side middle part of body 1 still is equipped with power 10 and switch 11.
The alarm device comprises an alarm 12 and a controller 9, the controller 9 is connected with the displacement sensor 8 and the alarm 12, and the displacement sensor 8, the alarm 12 and the controller 9 are all connected with the power supply 10 through leads; the wire is provided with a power switch 11.
Baffle 7 is "L" shape, inside fixed connection between first band 14 and first matte material 3 is held to one end of baffle 7, the other end of baffle 7 is located the upper end of first band 14, the other end of baffle 7 is in the outside of first band 14, and is perpendicular with first matte material 3, and is higher than first matte material 3.
The body of the displacement sensor 8 is positioned inside the space between the second belt 15 and the first thorn face sticker 4, the contact of the displacement sensor 8 is positioned at the upper end of the second belt 15, the displacement sensor 8 is 90 degrees vertical to the baffle 7, and the contact is opposite to the baffle 7.
The middle part of body 1 is equipped with observation window 2, observation window 2 is the cuboid form, observation window 2 is transparent, waterproof window, observation window 2 has protected on the one hand that the needle is kept somewhere and has avoided outside collision and prevent that the patient from pulling out, and on the other hand conveniently observes the condition of inside needle of keeping somewhere.
The protective sleeve is characterized in that one or more vent holes 13 are further formed in the body 1, a pressure injury prevention pad is arranged on the inner side of the body 1, and discomfort of a patient wearing the protective sleeve is relieved by the pressure injury prevention pad.
The upper end left side of body 1 is equipped with one or more third band, third band one side is equipped with the second matte and pastes, the upper end right side of body 1 is equipped with one or more fourth band, fourth band one side is equipped with the second thorn face subsides, second matte and the same of second thorn face subsides quantity, and can bond each other, set up a plurality of second matte and paste 5 and the time that the patient pulled open the protective sheath with second thorn face subsides 6 can be prolonged to the time that the needle was left in extension patient extracted, thereby the sufficient reaction time of family members and doctor is given.
The displacement sensor 8 is connected with the controller 9 in a wired or wireless manner.
The working principle is as follows: the utility model is a protective sleeve for an indwelling needle after transfusion, which ensures sufficient electric quantity when in use, and after the transfusion of a patient is finished, a power switch 11 is turned on to install the protective sleeve at the position of the indwelling needle of the patient, the fixing purpose is achieved by the adhesion of the first rough surface paste 3 and the first thorn surface paste 4 and the adhesion of the second rough surface paste 5 and the second thorn surface paste 6, the baffle 7 is matched with the displacement sensor 8, when the bonded first hair side sticker 3 and the bonded first thorn side sticker 4 are pulled apart by a patient, the displacement sensor 8 and the baffle 7 are separated from each other, the displacement sensor 8 sends a signal to the controller 9, the controller 9 controls the alarm 12 to give an alarm to remind family members and nearby people so as to avoid the occurrence of symptoms such as bleeding of the patient, when the patient needs to transfuse or take down the infusion bag, the power switch 11 is turned off, and the bonded first rough surface patch 3 and the bonded first thorn surface patch 4 and the bonded second rough surface patch 5 and the bonded second thorn surface patch 6 are pulled apart to take down the infusion bag.
The above description is only for the preferred embodiment of the present invention, but the scope of the present invention is not limited thereto, and any person skilled in the art should be within the technical scope of the present invention, and the technical solution and the inventive concept of the present invention are equivalent to or changed according to the present invention, and all those are included in the scope of the present invention.
Claims (7)
1. The utility model provides a keep somewhere needle protective sheath after infusion, includes body (1), its characterized in that: the left side lower extreme of body (1) is equipped with first band (14), the right side lower extreme of body (1) is equipped with second band (15), one side of first band (14) is equipped with first matte subsides (3), be equipped with baffle (7) between first band (14) and first matte subsides (3), one side of second band (15) is equipped with first matte subsides (4), be equipped with displacement sensor (8) between second band (15) and first matte subsides (4), first matte subsides (3) can bond each other with first matte subsides (4), baffle (7) and displacement sensor (8) mutually support, body (1) right side below is equipped with alarm device, the right side middle part of body (1) still is equipped with power (10) and switch (11).
2. The post-infusion indwelling needle protective sheath of claim 1, wherein: the alarm device comprises an alarm (12) and a controller (9), the controller (9) is connected with the displacement sensor (8) and the alarm (12), and the displacement sensor (8), the alarm (12) and the controller (9) are connected with the power supply (10) through leads; and a power switch (11) is arranged on the lead.
3. The post-infusion indwelling needle protective sheath of claim 1, wherein: baffle (7) are "L" shape, the one end of baffle (7) is inside between first band (14) and first matte material (3), the other end of baffle (7) is located the upper end of first band (14), and is perpendicular with first matte material (3), and is higher than first matte material (3).
4. The post-infusion indwelling needle protective sheath of claim 1, wherein: the body of the displacement sensor (8) is positioned between the second belt (15) and the first thorn face sticker (4), and the head of the displacement sensor (8) is positioned at the upper end of the second belt (15).
5. The post-infusion indwelling needle protective sheath of claim 1, wherein: the middle part of body (1) is equipped with observation window (2), observation window (2) are the cuboid form, observation window (2) are transparent, waterproof window.
6. The post-infusion indwelling needle protective sheath of claim 1, wherein: the body (1) is further provided with one or more vent holes (13), and the inner side of the body (1) is provided with a pressure injury prevention pad.
7. The post-infusion indwelling needle protective sheath of claim 1, wherein: the upper end left side of body (1) is equipped with one or more third band, third band one side is equipped with the second matte and pastes, the upper end right side of body (1) is equipped with one or more fourth band, fourth band one side is equipped with the second thorn face and pastes, the second matte is pasted the same with second thorn face subsides quantity, and can bond each other.
