Fixed cover of patient's arm for clinical operation

Technical Field

The utility model belongs to the technical field of medical auxiliary appliances, concretely relates to fixed cover of patient's arm is used in bed operation.

Background

When clinical operation, can have certain requirement to patient's position, need patient to keep both hands in health both sides, the inboard laminating health of arm, because the width size of operation table is less, the both hands of the fatter patient of size can not be fine settle to its back of the hand, arm and radial artery position department of the serious patient of the state of an illness all can leave a lot of syringe needles and pipelines. In order to prevent the pressure injury related to instruments of a patient, the arm of the patient is supported by a hand support at present, and the arm of the patient can be unfolded carelessly when the patient performs a long-time operation, so that the standing position of a doctor is affected, the comfort of the patient is affected, and the axillary nerve is seriously injured.

SUMMERY OF THE UTILITY MODEL

To the above problem, the utility model discloses a fixed cover of patient's arm for clinical operation has solved long-time operation, and the problem of the involuntary abduction of patient's arm is avoided the patient to oppress the pipeline for a long time and lead to appearing the instrument relevance pressure nature damage.

The specific technical scheme is as follows:

a patient arm fixing sleeve for clinical operation comprises a glove body, wherein the glove body comprises a front arm part and a palm part, the upper surface of the front arm part is horizontally provided with an opening, one end of the opening extends to the edge of the front arm part, the front arm parts on two sides of the opening are overlapped and bonded through a magic tape, positioning buckle sleeves are sewn on two sides, located at the opening, of the upper surface of the rear end of the front arm part, positioning belts are sewn on the lower surface of the rear end of the front arm part, two ends of each positioning belt penetrate through the two positioning buckle sleeves respectively, and a plurality of air holes are formed in the front arm part; be equipped with a plurality of dactylotheca in the palm portion, wherein the front end of the dactylotheca of forefinger and the dactylotheca of well finger is the opening setting for the forefinger of wearing person and well finger front end part expose completely, the opening has all been seted up to the bottom position department of the back of palm portion, the wrist of forearm portion and forearm portion, the matte magic subsides have all been made up around the opening, all cover the boundary belt on the opening, the one end at the opening is made up to boundary belt one end, and the other end of boundary belt is equipped with pulls the portion, the middle part of boundary belt be equipped with the corresponding transparent window in opening position, boundary belt bottom lie in transparent window be equipped with around with the acanthosphere magic subsides with the adaptation of matte magic subsides, thereby make the boundary belt pass through the matte magic subsides and acanthosphere magic paste to be connected with the acanthosphere magic and be fixed with the gloves body.

Furthermore, a sponge pad is arranged on the inner wall of the glove body, and a plurality of protruding blocks are arranged on the sponge pad.

Furthermore, the air holes are formed between two adjacent convex blocks on the spongy cushion.

Further, the transparent window is a transparent plastic sheet.

Furthermore, one end of the positioning belt is provided with a positioning buckle, and the other end of the positioning belt is provided with a clamping hole matched with the positioning buckle.

Further, the through opening is of a rectangular structure.

The invention has the beneficial effects that:

(1) the patient is when the operation, adopts the fixed cover of arm to carry out the cladding to the forearm to fix at the operation bedside through the fixed band, can be fine fix a position patient's arm, avoid patient's arm when abducting oppression to the pipeline, and lead to patient to appear the relevant pressure nature damage of apparatus, also guaranteed the accuracy of monitoring index simultaneously.

(2) The opening is arranged at the needle tube reserving position of the arm fixing sleeve on the arm of the patient, the protective belt is sewn at one end of the opening, the transparent window on the protective belt can be conveniently observed by medical workers in real time, the medical workers can tear the protective belt to directly observe, and normal blood conveying of the patient is guaranteed.

(3) The fixed cover of arm can avoid patient's arm and operation table metal edge to take place the contact, and cause the danger of patient's skin electric burn to can operate for a long time and when infusing, can play cold-proof effect, the practicality is high.

Drawings

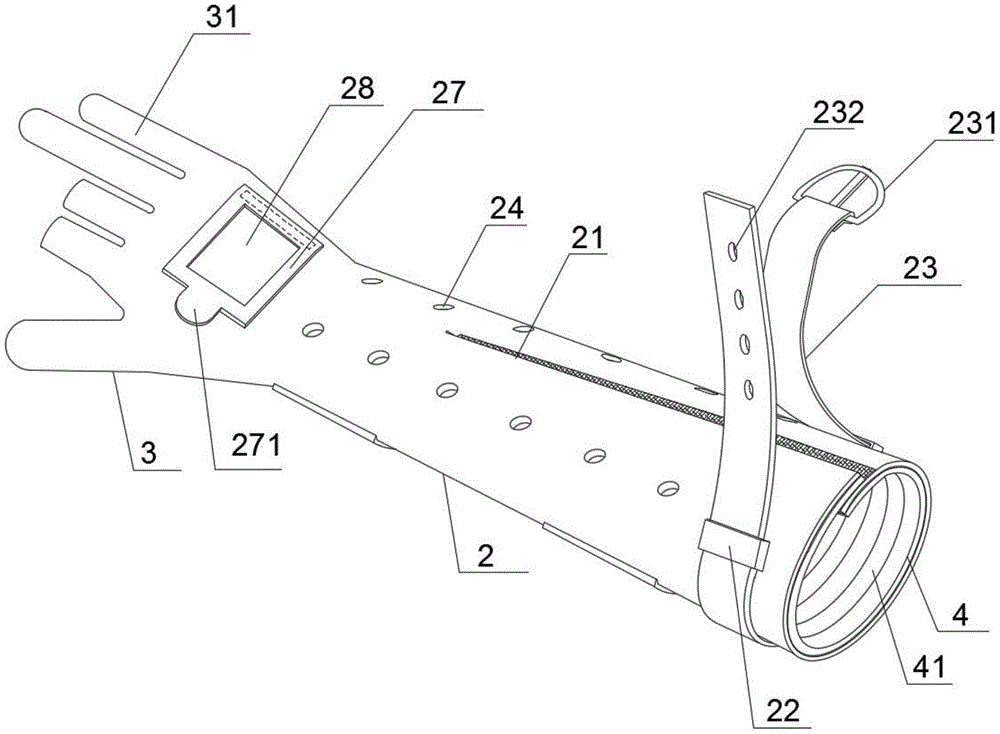

Fig. 1 is a schematic structural diagram of the present invention.

Fig. 2 is a schematic view of the bottom structure of the middle glove body of the present invention.

Fig. 3 is a cross-sectional view of the middle glove body of the present invention.

Description of the reference numerals

The glove comprises a glove body 1, a front arm part 2, an opening 21, a positioning buckle sleeve 22, a positioning belt 23, a positioning buckle 231, a clamping hole 232, an air hole 24, an opening 25, a hair side magic tape 26, a protective belt 27, a pulling part 271, a transparent window 28, a thorn side magic tape 29, a palm part 3, a finger stall 31, a sponge cushion 4 and a convex block 41.

Detailed Description

For making the technical scheme of the utility model clear more clearly and definitely, it is right to combine the drawing below the utility model discloses further describe, any is right the utility model discloses technical scheme's technical characteristic carries out the scheme that equivalent replacement and conventional reasoning reachs and all falls into the utility model discloses protection scope. The utility model discloses in the fixed connection who mentions, fixed setting is the general connected mode among the mechanical field, and welding, bolt and nut are connected and the screw connection is all can.

In the description of the present invention, it should be understood that the terms "upper", "lower", "front", "rear", "left", "right", "vertical", "horizontal", "top", "bottom", "inner", "outer", etc. indicate the orientation or positional relationship based on the orientation or positional relationship shown in the drawings, and are only for convenience of description of the present invention and for simplicity of description, and do not indicate or imply that the device or element referred to must have a particular orientation, be constructed and operated in a particular orientation, and therefore should not be construed as limiting the present invention.

As shown in fig. 1-3, a patient arm fixing sleeve for clinical operation comprises a glove body 1, the glove body 1 comprises a front arm part 2 and a palm part 3, an opening 21 is horizontally arranged on the upper surface of the front arm part 2, one end of the opening 21 extends to the edge of the front arm part 2, the front arm parts 2 at two sides of the opening 21 are overlapped and adhered through magic tape, by pulling the opening 21 open, the patient can directly extend into the palm 3 from the front end of the forearm 2 and can be fixed by the magic tape, thereby reducing the influence of the glove body 1 on the indwelling needle on the hand of the patient, positioning buckle sleeves 22 are sewed on the upper surface of the rear end of the front arm 2 at the two sides of the opening 21, a positioning belt 23 is sewn on the lower surface of the rear end of the front arm part 2, two ends of the positioning belt 23 respectively penetrate through the two positioning buckle sleeves 22, and a plurality of air holes 24 are formed in the front arm part 2; the palm part 3 is provided with a plurality of finger sleeves 31, wherein the front ends of the finger sleeve 31 of the index finger and the finger sleeve 31 of the middle finger are both provided with openings, so that the front end parts of the index finger and the middle finger of a wearer are completely exposed, the back of the palm part 3, the wrist of the forearm part 2 and the bottom of the forearm part 2 are all provided with through holes 25, the peripheries of the through holes 25 are all sewed with rough surface magic tapes 26, the through holes are all covered with protective belts 27, one end of the protective belt 27 is sewed at one end of the through hole 25, the other end of the protective belt 27 is provided with a pulling part 271, the middle part of the protective belt 27 is provided with a transparent window 28 corresponding to the position of the through hole 25, the bottom part of the protective belt 27 is provided with a stabbing surface magic tape 29 matched with the hair surface magic tape 26 at the periphery of the transparent window 28, so that the protection belt 27 is adhered to the stabbing surface magic tape 29 through the hair surface magic tape 26 to be fixed with the glove body 1.

Further, be equipped with foam-rubber cushion 4 on the inner wall of gloves body 1, arrange on the foam-rubber cushion 4 and be equipped with a plurality of protruding pieces 41, can prevent that the patient from operating for a long time and leading to appearing pressing the sore phenomenon.

Further, the air holes 24 are formed between two adjacent convex blocks 41 on the sponge pad 4.

Further, the transparent window 28 is a transparent plastic sheet.

Furthermore, one end of the positioning belt 23 is provided with a positioning buckle 231, and the other end of the positioning belt 23 is provided with a clamping hole 232 matched with the positioning buckle 231.

Further, opening 25 is the rectangle structure, and opening size is great to medical personnel observe.

The using method comprises the following steps:

when using, open the opening that is located the forearm portion with the gloves body, patient directly stretches into the palm portion with the hand from the front end of forearm portion afterwards to expose patient's forefinger and middle finger, then with magic subsides adhesion fixed, fix the both sides at the operation table with the location area of gloves body at last. When the medical staff inspects the condition of the indwelling needle of the patient, the medical staff can observe through the transparent window or directly observe by pulling the protective belt.

The above description is only for the preferred embodiment of the present invention, but the scope of the present invention is not limited thereto, and any changes or substitutions that can be easily conceived by those skilled in the art within the technical scope of the present invention should be covered by the present invention. Therefore, the protection scope of the present invention shall be subject to the protection scope of the claims.

Claims

1. The utility model provides a fixed cover of patient's arm for clinical operation, includes gloves body (1), gloves body (1) includes forearm portion (2) and palm portion (3), opening (21) have been seted up to forearm portion (2) upper surface, the edge of opening (21) one end extension to forearm portion (2), and forearm portion (2) of opening (21) both sides carry out the coincide through the magic subsides and bond, characterized in that, positioning buckle cover (22) have all been sewed up to forearm portion (2) rear end upper surface both sides that are located opening (21), and positioning belt (23) have been sewed up to the lower surface of forearm portion (2) rear end, two positioning buckle covers (22) are run through respectively at the both ends of positioning belt (23), a plurality of bleeder vents (24) have been seted up on forearm portion (2); be equipped with a plurality of dactylotheca (31) on palm portion (3), wherein, the front end of dactylotheca (31) of forefinger and dactylotheca (31) of middle finger all is the opening setting, the back of palm portion (3), the wrist of forearm portion (2) and the bottom position department of forearm portion (2) have all seted up opening (25), all made matte magic subsides (26) around opening (25), all cover on the opening and have boundary belt (27), the one end of boundary belt (27) one end is made up at opening (25), and the other end of boundary belt (27) is equipped with pulls portion (271), the middle part of boundary belt (27) be equipped with transparent window (28) that opening (25) position is corresponding, boundary belt (27) bottom is located transparent window (28) around be equipped with puncture surface magic subsides (29) with matte magic subsides (26) looks adaptation for boundary belt (27) bond thereby with glove body with puncture surface magic subsides (29) through matte magic subsides (26) and puncture surface magic subsides (29) through matte magic subsides (26) 1) And (4) fixing.

2. The patient arm fixing sleeve for clinical operation as claimed in claim 1, wherein a sponge pad (4) is provided on the inner wall of said glove body (1), and a plurality of protrusions (41) are arranged on said sponge pad (4).

3. A clinical surgery patient arm fixing sleeve as claimed in claim 2, wherein said ventilation holes (24) are formed between two adjacent protrusions (41) of the sponge pad (4).

4. A clinical procedure patient arm harness as claimed in claim 1, wherein said transparent window (28) is a transparent plastic sheet.

5. The patient arm fixing sleeve for clinical operation as claimed in claim 1, wherein one end of the positioning band (23) is provided with a positioning buckle (231), and the other end of the positioning band (23) is provided with a locking hole (232) matched with the positioning buckle (231).

6. A clinical procedure patient arm harness as claimed in claim 1, wherein said through opening (25) is of rectangular configuration.
