CN214754322U - Special control signal connector with quick disassembly structure

Info

Publication number: CN214754322U
Application number: CN202120182838.2U
Authority: CN
Inventors: 李建伟
Original assignee: Beijing Bafang Laihui Electronic Technology Co ltd
Current assignee: Beijing Bafang Laihui Electronic Technology Co ltd
Priority date: 2021-01-22
Filing date: 2021-01-22
Publication date: 2021-11-16
Anticipated expiration: 2031-01-22

Abstract

The utility model discloses a special control signal connector with a quick disassembly structure, which comprises a main plug, an elastic block, a connecting cable and a second connecting plug. One side of the main plug is fixedly connected with the elastic block, and one side of the elastic block is Two sets of connection cables are connected on the side, a first connection plug is fixedly connected to one side of the connection cable, a second connection plug is fixedly connected to one side of the connection cable, and the second connection plug is connected to the first connection plug. A protective structure is fixedly connected to the outer side wall of the plug, and the protective structure includes a connecting block, a butting groove, a protective cap, a connecting block and a connecting belt. The special control signal connector with quick disassembly structure realizes the isolation protection of the plug by installing the protective structure on the outer side walls of the first connection plug and the second connection plug, and avoids the damage of the plug during transportation, thereby The service life of the plug is improved, and the use and use protection effect is better.

Description

Special control signal connector with quick disassembly structure

Technical Field

The utility model relates to a signal connection technical field specifically is for having the special signal connector of control of quick dismantlement structure.

Background

Along with the continuous development of society, each industry all needs to carry out electronic science and technology and signal transmission connects, and the signal butt joint of being convenient for and data transmission start, and current control special signal connector docks it when using and the dismouting is inconvenient, and uses the protecting effect not good, and the protecting effect is good when needing a kind of use now. The special control signal connector is convenient to assemble and disassemble and good in anti-interference effect.

However, the existing signal connector special for control still has certain problems, and the specific problems include the following points:

1. the traditional control special signal connector has poor protection effect on the plug when in use, and the plug is easy to be damaged, thereby influencing the butt joint sensitivity.

2. When the traditional control special signal connector is used, the plug and the plug are inconvenient to butt and lock, and the plug is easy to touch and drop after butt joint, and is inconvenient to disassemble and assemble.

3. The traditional signal connector special for control has poor anti-interference effect when in use and unstable signal transmission when in use.

SUMMERY OF THE UTILITY MODEL

Technical problem to be solved

The utility model provides a not enough to prior art, the utility model provides a special signal connector of control with dismantle structure fast possesses advantages such as protecting effect is good, the locking of pegging graft is convenient and anti-interference effect is good to solve the problem that proposes in the above-mentioned background art.

(II) technical scheme

In order to achieve the above object, the utility model provides a following technical scheme: the special control signal connector with a quick disassembly structure comprises a main plug, an elastic block, a connecting cable and a second connecting plug, wherein one side of the main plug is fixedly connected with the elastic block, and one side of the elastic block is connected with two groups of connecting cables, one side of each connecting cable is fixedly connected with a first connecting plug, one side of each connecting cable is fixedly connected with a second connecting plug, and the outer side walls of the second connecting plug and the first connecting plug are fixedly connected with protective structures which comprise connecting blocks, butt-joint grooves, protective caps, butt-joint blocks and connecting belts, the connecting block is fixedly connected with the bottom ends of the first connecting plug and the second connecting plug, the butt-joint block is fixedly connected with the bottom end of the connecting block, the connecting band fixed connection is in one side of connecting block, helmet fixed connection is in the bottom of connecting band, the butt joint groove sets up the inside at the helmet.

Preferably, the outer side walls of the main plug, the first connecting plug and the second connecting plug are all provided with corrosion-resistant coatings, and the corrosion-resistant coatings are uniformly distributed and coated on the outer side walls of the main plug, the first connecting plug and the second connecting plug.

Preferably, a power interface is installed inside the main plug, a network interface is installed inside the main plug, and an annular clamping groove is formed inside the main plug.

Preferably, be provided with insulating rubber shielding layer on the lateral wall of connecting cable, and insulating rubber shielding layer is even parcel on the lateral wall of connecting cable.

Preferably, the inner diameter of the butt joint groove is larger than the outer diameter of the butt joint block, and the butt joint block can be clamped with the butt joint groove.

Preferably, the helmet can be turned over and adjusted through the connecting band, and the helmet can be detached from the butt joint block.

(III) advantageous effects

Compared with the prior art, the utility model provides a control special signal connector with dismantle structure fast possesses following beneficial effect:

1. according to the control special signal connector with the quick disassembly structure, the protection structures are arranged on the outer side walls of the first connecting plug and the second connecting plug, so that the plugs are isolated and protected, the plugs are prevented from being damaged in the transportation process, the service life of the plugs is prolonged, and the using and protecting effects are better;

2. according to the special control signal connector with the quick disassembly structure, the annular clamping groove is formed in the main plug, and when the main plug is in butt joint, the annular clamping block arranged in the butt joint groove can be in butt joint locking with the annular clamping groove, so that the splicing reinforcement is realized, the butt joint firmness is improved, the assembly and disassembly are more convenient during use, and the use is more labor-saving;

3. this special signal connector of control with quick dismantlement structure has insulating rubber shielding layer through the parcel on the lateral wall of connecting cable, has realized the anti-interference protection to connecting cable internal signal, and internal signal transmission is more stable when making it use to the efficiency that the connector used has been improved.

Drawings

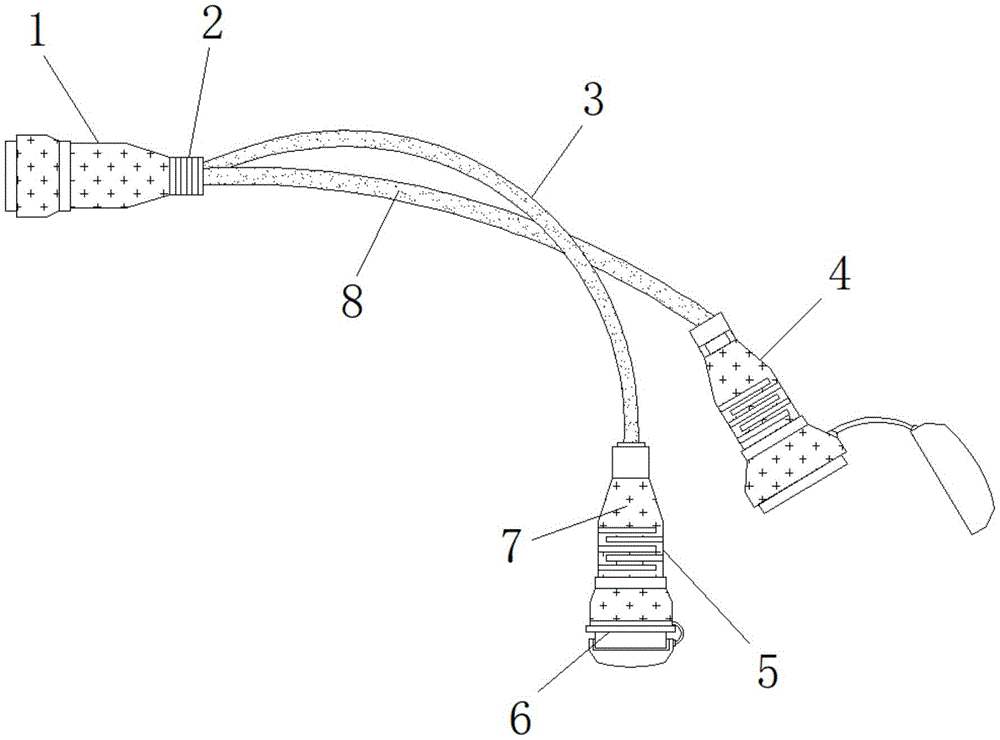

FIG. 1 is a schematic front view of the present invention;

FIG. 2 is a schematic side view of the present invention;

fig. 3 is a front view structure diagram of the protection structure of the present invention.

In the figure: 1. a main plug; 2. an elastic block; 3. connecting a cable; 4. a first connection plug; 5. a second connection plug; 6. a protective structure; 601. connecting blocks; 602. a butt joint groove; 603. a protective cap; 604. a butt joint block; 605. a connecting belt; 7. a corrosion-resistant coating; 8. an insulating rubber shielding layer; 9. a power interface; 10. a network interface; 11. and an annular clamping groove.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Referring to fig. 1-3, the present invention provides a technical solution: control special signal connector with quick dismantlement structure, including main plug 1, elastic block 2, connecting cable 3 and second connecting plug 5, its characterized in that: one side fixed connection of main plug 1 has elastic block 2, and one side of elastic block 2 is connected with two sets of connection cables 3, the first connecting plug 4 of one side fixedly connected with of connection cable 3, one side fixedly connected with second connecting plug 5 of connection cable 3, and equal fixedly connected with protective structure 6 on the lateral wall of second connecting plug 5 and first connecting plug 4, and protective structure 6 includes connecting block 601, butt joint groove 602, helmet 603, butt joint piece 604 and connecting band 605, connecting block 601 fixed connection is in the bottom of first connecting plug 4 and second connecting plug 5, butt joint piece 604 fixed connection is in the bottom of connecting block 601, connecting band 605 fixed connection is in one side of connecting block 601, helmet 603 fixed connection is in the bottom of connecting band 605, butt joint groove 602 sets up the inside at helmet 603.

As shown in fig. 1, the outer side walls of the main plug 1, the first connection plug 4 and the second connection plug 5 are all provided with the corrosion-resistant coatings 7, the corrosion-resistant coatings 7 are uniformly distributed and coated on the outer side walls of the main plug 1, the first connection plug 4 and the second connection plug 5, and the corrosion-resistant coatings 7 are arranged on the outer side walls of the main plug 1, the first connection plug 4 and the second connection plug 5, so that the main plug is not easy to damage from overlooking in long-term use, and the service life is prolonged.

As shown in fig. 2, the internally mounted of the main plug 1 has a power source interface 9, the internally mounted of the main plug 1 has a network interface 10, the inside of the main plug 1 is provided with an annular clamping groove 11, the annular clamping groove 11 is arranged in the main plug 1, the annular clamping block arranged in the connecting groove can be in butt joint locking with the annular clamping groove 11 when the annular clamping groove 11 is arranged to be in butt joint, the splicing reinforcement is realized, the butt joint firmness is improved, the assembly and disassembly are more convenient when the main plug is used, and the use is more labor-saving.

As shown in fig. 1, an insulating rubber shielding layer 8 is arranged on the outer side wall of the connecting cable 3, the insulating rubber shielding layer 8 is uniformly wrapped on the outer side wall of the connecting cable 3, and the insulating rubber shielding layer 8 is wrapped on the outer side wall of the connecting cable 3, so that the anti-interference protection of internal signals of the connecting cable 3 is realized, the internal signal transmission is more stable when the connecting cable is used, and the use efficiency of the connector is improved.

As shown in fig. 1 and 3, the inner diameter of the docking slot 602 is larger than the outer diameter of the docking block 604, and the docking block 604 can be clamped with the docking slot 602, so that the docking is more secure.

As shown in fig. 1 and 3, the protective cap 603 can be turned over and adjusted through the connecting band 605, the protective cap 603 can be detached from the docking block 604, and the protective structure 6 is installed on the outer side walls of the first connecting plug 4 and the second connecting plug 5, so that the plug is protected from being damaged in the transportation process, the service life of the plug is prolonged, and the protective effect in use is better.

The electrical components presented in the document are all electrically connected with an external master controller and 220V mains, and the master controller can be a conventional known device controlled by a computer or the like.

The working principle is as follows: when in use, firstly, the main plug 1, the first connecting plug 4 and the second connecting plug 5 are respectively connected and fixed with corresponding slots to complete the power supply communication process, the corrosion-resistant coating 7 is arranged on the outer side walls of the main plug 1, the first connecting plug 4 and the second connecting plug 5, the device is not easy to overlook and damage and prolongs the service life when in long-term use, the outer side wall of the connecting cable 3 is wrapped with the insulating rubber shielding layer 8, the anti-interference effect is better, secondly, the device is convenient to butt joint when in use by arranging the annular clamping groove 11 in the main plug 1, the device can carry out annular self-locking when in use, can carry out quick disassembly and more convenient splicing when in use, and finally, the plugs can be protected during the connector transportation process when in use by installing the protective structures 6 on the outer side walls of the first connecting plug 4 and the second connecting plug 5, the protective cap 603 can be bent by a connecting band 605, and the internal butt-joint groove 602 can be clamped with the butt-joint block 604, so that the plug can be protected.

To sum up, this special signal connector of control with dismantle structure fast not only can carry out the protection to the plug, and corrosion-resistant effect is good during the use, uses anti-interference effect good, and uses the self-locking butt joint of being convenient for.

It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims

1. A control-specific signal connector with a quick disassembly structure, comprising a main plug (1), an elastic block (2), a connecting cable (3) and a second connecting plug (5), characterized in that: the main plug ( One side of 1) is fixedly connected with an elastic block (2), and one side of the elastic block (2) is connected with two sets of connecting cables (3), and one side of the connecting cables (3) is fixedly connected with a first A connection plug (4), a second connection plug (5) is fixedly connected to one side of the connection cable (3), and both the second connection plug (5) and the outer side wall of the first connection plug (4) are fixed A protective structure (6) is connected, and the protective structure (6) includes a connecting block (601), a butt joint groove (602), a protective cap (603), a butt joint block (604) and a connecting strip (605), and the connecting block ( 601) is fixedly connected to the bottom ends of the first connection plug (4) and the second connection plug (5), the docking block (604) is fixedly connected to the bottom end of the connection block (601), and the connection strip (605) It is fixedly connected to one side of the connecting block (601), the protective cap (603) is fixedly connected to the bottom end of the connecting strip (605), and the butting groove (602) is arranged inside the protective cap (603).

2. The control-specific signal connector with a quick disassembly structure according to claim 1, characterized in that: the outer walls of the main plug (1), the first connection plug (4) and the second connection plug (5) Corrosion-resistant coatings (7) are provided on all of them, and the corrosion-resistant coatings (7) are evenly distributed and applied on the outer walls of the main plug (1), the first connection plug (4) and the second connection plug (5). .

3. The control-specific signal connector with a quick disassembly structure according to claim 1, characterized in that: a power interface (9) is installed inside the main plug (1), and the main plug (1) is internally A network interface (10) is installed, and an annular card slot (11) is arranged inside the main plug (1).

4. The control-specific signal connector with a quick disassembly structure according to claim 1, characterized in that: an insulating rubber shielding layer (8) is provided on the outer side wall of the connecting cable (3), and the insulating rubber shielding The layer (8) is evenly wrapped on the outer side wall of the connecting cable (3).

5. The control-specific signal connector with a quick disassembly structure according to claim 1, wherein the inner diameter of the butt groove (602) is larger than the outer diameter of the butt block (604), and the butt block (604) Can be snapped with the docking slot (602).

6. The control-specific signal connector with a quick-disconnect structure according to claim 1, wherein the protective cap (603) can be turned over and adjusted through the connecting strap (605), and the protective cap (603) can be adjusted Split with docking block (604).
