CN214748035U - Mounting structure for data acquisition of reading instrument - Google Patents
Mounting structure for data acquisition of reading instrument Download PDFInfo
- Publication number
- CN214748035U CN214748035U CN202023316265.2U CN202023316265U CN214748035U CN 214748035 U CN214748035 U CN 214748035U CN 202023316265 U CN202023316265 U CN 202023316265U CN 214748035 U CN214748035 U CN 214748035U
- Authority
- CN
- China
- Prior art keywords
- reading instrument
- reading
- connecting rod
- guide plate
- installation mechanism
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Active
Links
Images
Landscapes
- Casings For Electric Apparatus (AREA)
Abstract
The utility model discloses a mounting structure for data acquisition of a reading instrument, which comprises the reading instrument, the reading instrument is horizontally arranged, an installation mechanism is horizontally arranged below the reading instrument, the reading instrument is positioned in the installation mechanism and is connected with the installation mechanism in an insertion way, two connecting components are horizontally arranged on the side edge of the reading instrument inside the upper horizontal side surface of the mounting mechanism and are arranged along the length direction of the mounting mechanism, the two connecting components are symmetrically arranged, the connecting components comprise clamping guide plates which are vertically arranged, the side edge of the clamping guide plate is horizontally provided with a connecting rod which is in threaded connection with the clamping guide plate, the connecting rod passes installation mechanism and swing joint, the utility model provides a reading appearance that deposits can't be fixed between different circuits when being connected with other equipment, takes place the problem that different circuit contact leads to the instrument to damage easily when receiving external force.
Description
Technical Field
The utility model relates to a reading appearance technical field specifically is a mounting structure is used in reading appearance data acquisition.
Background
The reading appearance is an important data display device, is adapted to the data acquisition of various vibration wire formula sensors, and then is arranged in the demonstration of data in each link such as reconnaissance, design, construction, supervision, detection of construction engineering, because of unable fixed between different circuits when current reading appearance is connected with other equipment, takes place different circuit contact easily when receiving external force and leads to the instrument to damage, in order to solve this problem, the utility model discloses the inventor has designed this product.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a mounting structure is used in reading appearance data acquisition, because of unable fixed between different circuits when aiming at improving the reading appearance of depositing and other equipment connection, take place the problem that different circuit contact leads to the instrument to damage easily when receiving external force.
The utility model discloses a realize like this:
the utility model provides a mounting structure for data acquisition of reading instrument, including the reading instrument, the reading instrument is placed horizontally, the below level of reading instrument is provided with installation mechanism, the reading instrument is located the inside of installation mechanism and plug-in connection, the inside side level of the last level side of installation mechanism is provided with two coupling assembling at the side level of reading instrument, two coupling assembling are placed along the length direction of installation mechanism, and two coupling assembling symmetry installations, coupling assembling includes presss from both sides the baffle, presss from both sides the baffle and vertically places, the side level of pressing from both sides the baffle is provided with the connecting rod, the connecting rod is connected with clamp baffle screw thread, the connecting rod passes installation mechanism and swing joint, the utility model discloses an arrangement is convenient for provide a data acquisition's installation device for the reading instrument, change the mode that the reading instrument needs to be connected with other equipment through the data line in the past, improve reading instrument and other equipment connection efficiency and installation nature simultaneously, the data line connection is prevented from causing two line ends to contact with each other and damaging the instrument due to shaking, the reading instrument is arranged to be connected with other equipment to directly read out certain physical data, the installation mechanism is arranged to replace the original data line connection, the efficiency and the safety of the connection between the equipment are improved, the equipment is prevented from being damaged due to the line end contact caused by the shaking of the data line, the two connecting components are arranged to provide a necessary clamping device for the independent fixed connection of the data line of the other equipment, the data line of the other equipment is prevented from being separated due to the shaking, simultaneously electric signal conduction is carried out, further detection data is obtained, the equipment is prevented from being damaged due to the data line contact of the other equipment, the clamping guide plate is arranged to be matched with the guide plate to clamp the data line of the other equipment, further, the reading instrument is well connected with the other equipment, and the connecting rod is arranged to control the movement of the clamping guide plate for workers, when the data line of other equipment is connected to needs, hold the connecting rod and drive and press from both sides the baffle and remove to with the data line installation centre gripping between pressing from both sides baffle and baffle, and then realize the quick assembly disassembly of reading appearance and other equipment.
Further, the length direction fixedly connected with card post of reading appearance is followed to the one end that the double-phase relative vertical side of reading appearance is close to installation mechanism, the double-phase relative vertical side of reading appearance is at the spacing post of the vertical fixedly connected with of one end of card post keeping away from installation mechanism, spacing post has rubber materials to make, the setting of card post is convenient for install the reading appearance buckle in installation mechanism with the draw-in groove cooperation, prevent that it from taking off from the upper surface of installation mechanism, the setting of spacing post is convenient for and spacing groove cooperation restriction reading appearance's removal, prevent that the reading appearance from breaking away from the side of installation mechanism.
Furthermore, the upper horizontal side face of the installation mechanism is cut into a slot opposite to the position of the reading instrument, the upper horizontal side face of the installation mechanism is cut into a connecting groove opposite to the vertical side faces of the two connecting assemblies at the side edge of the slot, the slot is convenient to arrange for providing space for the buckle installation of the reading instrument, the connecting groove is convenient to arrange for providing space for the installation of the clamping guide plate and the guide plate, the reading instrument is convenient to be connected with other devices quickly, and necessary space is convenient to be provided for the movement of the clamping guide plate.
Furthermore, the horizontal cutting of the position, just opposite to the clamping column, of the two opposite vertical sides in the slot is provided with a clamping groove, the vertical cutting of the position, just opposite to the limiting column, of the two opposite vertical sides in the slot is provided with a limiting groove, the vertical side inserting groove is perpendicular to the side faces in the slot, the clamping groove is convenient to provide necessary space for installation and movement of the clamping column, the buckling installation of the reading instrument is achieved, the limiting groove is convenient to be matched with the limiting column to limit the positions of the reading instrument and the installation mechanism, the reading instrument is prevented from being separated, the inserting groove is convenient to provide necessary inserting connection space for a data plug of the reading instrument, the reading instrument is inserted into the installation mechanism, and the reading instrument is connected with other devices in a matched mode through a clamping guide plate and a guide plate.
Further, the spread groove is the key type structure, is close to the vertical fixedly connected with baffle of one end of slot in the spread groove, and the perpendicular tangent line cutting of other end arc side has the counter bore in the spread groove, and the setting of baffle is convenient for with the data line that presss from both sides other equipment of baffle cooperation centre gripping, realizes the connection of other equipment and reading appearance, and the setting of counter bore is convenient for the installation of passing and the spring of connecting rod and provides the space, and is convenient for the connecting rod removal.
Further, it has the thread groove to press from both sides the side that the baffle was kept away from to the side of baffle and cut to the position department of connecting rod, the arc side of connecting rod is close to the one end fixedly connected with screw thread that presss from both sides the baffle, the spring has been put to the cover on the arc side of connecting rod, the one end of spring supports with pressing from both sides the baffle fixed connection other end and presses in the counter bore, the thread groove set up be convenient for with the screw-thread fit of connecting rod with connecting rod install the connecting rod screw thread at pressing from both sides the baffle, the setting of spring is convenient for utilize the elasticity of self to support and press from both sides the baffle, make and press from both sides other equipment data lines of baffle and baffle cooperation centre gripping, and be convenient for press from both sides the baffle and do the removal of keeping away from the baffle under the effect of connecting rod.
Before using, at first with installing the side of pressing from both sides the baffle of spring to will press from both sides the baffle and install in the spread groove, spring mounting is in the counter bore simultaneously, again with the connecting rod pass the counter bore and with press from both sides baffle threaded connection, during the use, at first install the grafting of reading appearance in installation mechanism, and make the data bayonet joint grafting installation inserting groove of reading appearance in, install the data line of other equipment respectively again in different spread grooves, concrete step is: the connecting rod is pulled out, other equipment data wires are placed between the clamping guide plate and the guide plate, and the clamping guide plate and the guide plate are tightly clamped with the data wires under the action of the spring after the connecting rod is loosened.
Compared with the prior art, the beneficial effects of the utility model are that: the utility model provides a setting device which is convenient for providing a data acquisition for a reading instrument, changes the mode that the reading instrument needs to be connected with other equipment through a data line in the past, simultaneously improves the connection efficiency and the installation performance of the reading instrument and other equipment, avoids the problem that two line ends are contacted with each other and damage the instrument due to shaking of the data line connection, the setting of the installation mechanism is convenient for replacing the original data line connection, improves the connection efficiency and the safety of equipment, prevents the equipment from being damaged due to line end contact caused by shaking of the data line, the setting of the connection component is convenient for providing a necessary clamping device for independent quick connection of other equipment data lines, prevents the other equipment data lines from being separated due to shaking, and avoids the equipment from being damaged due to data line contact of other equipment, the setting of the spring is convenient for utilizing the elasticity of the spring to press the clamping guide plate, so that the clamping guide plate and the guide plate are matched with the clamping other equipment data lines, and the guide plate can be conveniently clamped to move away from the guide plate under the action of the connecting rod.
Drawings
In order to more clearly illustrate the technical solutions of the embodiments of the present invention, the drawings that are required to be used in the embodiments will be briefly described below, it should be understood that the following drawings only illustrate some embodiments of the present invention, and therefore should not be considered as limiting the scope, and for those skilled in the art, other related drawings can be obtained according to the drawings without inventive efforts.

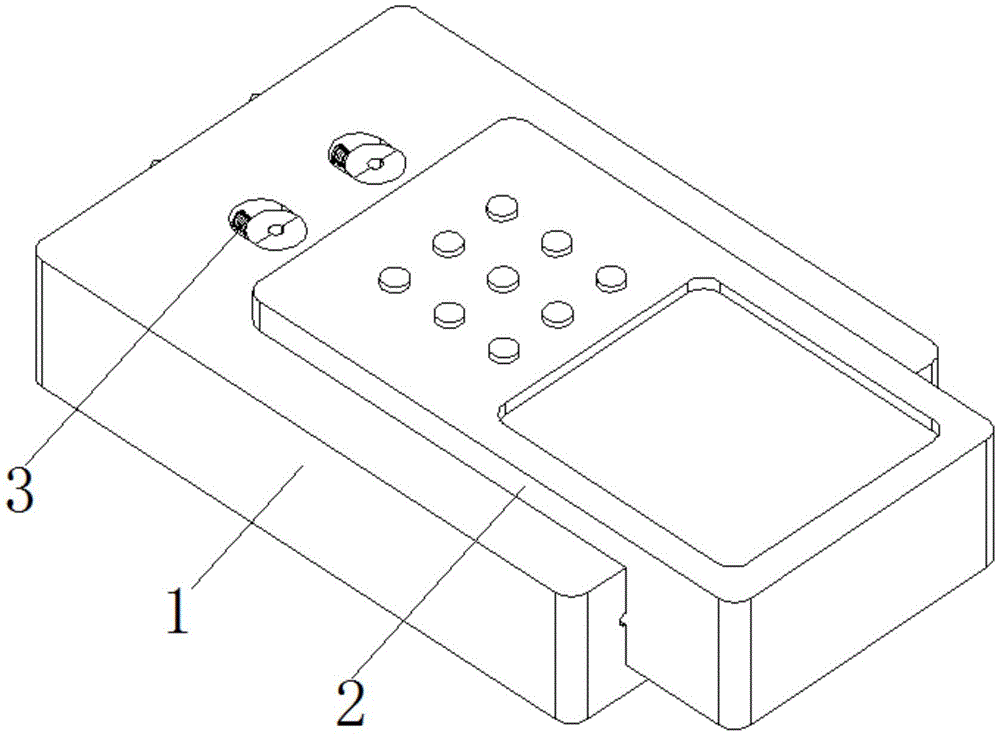

Fig. 1 is a schematic view of the overall structure of the present invention;
FIG. 2 is a schematic view of the structure of the reading device of the present invention;
FIG. 3 is a schematic view of the structure of the installation mechanism of the present invention;
fig. 4 is a schematic structural view of the connection assembly of the present invention;
in the figure: 1. an installation mechanism; 11. a slot; 12. a card slot; 13. a limiting groove; 14. Inserting grooves; 15. connecting grooves; 151. a guide plate; 152. a counter bore; 2. a reading instrument; 21. clamping the column; 22. a limiting column; 3. a connecting assembly; 31. clamping a guide plate; 311. A thread groove; 32. a connecting rod; 33. a spring.
Detailed Description
To make the objects, technical solutions and advantages of the embodiments of the present invention clearer, the drawings of the embodiments of the present invention are combined to clearly and completely describe the technical solutions of the embodiments of the present invention, and obviously, the described embodiments are some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention. Thus, the following detailed description of the embodiments of the present invention, presented in the accompanying drawings, is not intended to limit the scope of the invention, as claimed, but is merely representative of selected embodiments of the invention.
Example (b): referring to fig. 1 and 4: a mounting structure for data acquisition of a reading instrument comprises a reading instrument 2, wherein the reading instrument 2 is horizontally arranged, a mounting mechanism 1 is horizontally arranged below the reading instrument 2, the reading instrument 2 is positioned in the mounting mechanism 1 and is in plug connection, two connecting assemblies 3 are horizontally arranged on the side edge of the reading instrument 2 in the upper horizontal side surface of the mounting mechanism 1, the two connecting assemblies 3 are symmetrically mounted along the length direction of the mounting mechanism 1, the two connecting assemblies 3 comprise clamping guide plates 31, the clamping guide plates 31 are vertically arranged, connecting rods 32 are horizontally arranged on the side edge of the clamping guide plates 31, the connecting rods 32 are in threaded connection with the clamping guide plates 31, and the connecting rods 32 penetrate through the mounting mechanism 1 and are movably connected with the clamping guide plates 31, meanwhile, the connection efficiency and the installation performance of the reading instrument 2 and other equipment are improved, the phenomenon that two wire ends are contacted with each other and the instrument is damaged due to shaking of data line connection is avoided, the reading instrument 2 is convenient to be connected with other equipment to directly read certain physical data, the installation mechanism 1 is convenient to replace the original data line connection, the connection efficiency and the safety between the equipment are improved, the phenomenon that the equipment is damaged due to the contact of the wire ends due to the shaking of the data lines is prevented, the two connecting components 3 are convenient to provide a necessary clamping device for the independent fixed connection of the data lines of the other equipment, the phenomenon that the data lines of the other equipment are separated due to the shaking is prevented, electric signal conduction is carried out simultaneously, detected data are obtained, the equipment is prevented from being damaged due to the contact of the data lines of the other equipment, the clamping guide plate 31 is convenient to be matched with the guide plate 151 to clamp the data lines of the other equipment, and the good connection of the reading instrument 2 and the other equipment is realized, the setting of connecting rod 32 is convenient for press from both sides the removal of baffle 31 for staff's control, when the data line that needs will other equipment is connected, holds connecting rod 32 and drives and press from both sides baffle 31 and remove to with the centre gripping of data line installation between pressing from both sides baffle 31 and baffle 151, and then realize the quick assembly disassembly of reading appearance 2 and other equipment.
Referring to FIG. 2: the length direction fixedly connected with card post 21 of reading appearance 2 is followed to the one end that the double-phase relative vertical side of reading appearance 2 is close to installation mechanism 1, the double-phase relative vertical side of reading appearance 2 keeps away from the spacing post 22 of the vertical fixedly connected with of one end of installation mechanism 1 at card post 21, spacing post 22 has rubber materials to make, the setting of card post 21 is convenient for install reading appearance 2 buckle with the cooperation of draw-in groove 12 in installation mechanism 1, prevent that it breaks away from the upper surface of installation mechanism 1, spacing post 22 set up be convenient for with spacing groove 13 cooperation restriction reading appearance 2's removal, prevent that reading appearance 2 from breaking away from the side of installation mechanism 1.
Referring to FIG. 3: the slot 11 is cut at the position, facing the reading instrument 2, of the upper horizontal side face of the installation mechanism 1, the connecting slot 15 is cut at the side edge of the slot 11, facing the vertical side face of the two connecting assemblies 3, the slot 11 is convenient to provide a space for the buckle installation of the reading instrument 2, the connecting slot 15 is convenient to provide a space for the installation of the clamping guide plate 31 and the guide plate 151, the reading instrument 2 is convenient to be connected with other devices quickly, and a necessary space is convenient to provide for the movement of the clamping guide plate 31.
Referring to FIG. 3: the horizontal cutting of the position, just facing the card post 21, of the two opposite vertical sides in the slot 11 is provided with a clamping groove 12, the vertical cutting of the position, just facing the limiting post 22, of the two opposite vertical sides in the slot 11 is provided with a limiting groove 13, the vertical side inserting groove 14 in the slot 11 is provided with a vertical side inserting groove 12, the necessary space is conveniently provided for the installation and the movement of the card post 21, the buckling installation of the reading instrument 2 is further realized, the limiting groove 13 is conveniently matched with the limiting post 22 to limit the positions of the reading instrument 2 and the installation mechanism 1, the separation of the reading instrument 2 is prevented, the inserting groove 14 is conveniently provided with a necessary inserting connection space for a data plug of the reading instrument 2, the reading instrument 2 is further inserted into the installation mechanism 1, and is matched with the clamping guide plate 31 and the guide plate 151 to be connected with other equipment.
Referring to FIG. 3: connecting groove 15 is the key type structure, the vertical fixedly connected with baffle 151 of one end that is close to slot 11 in the connecting groove 15, the perpendicular tangent line cutting of other end arc side has counter bore 152 in the connecting groove 15, the setting of baffle 151 be convenient for with press from both sides the data line of other equipment of baffle 31 cooperation centre gripping, realize other equipment and the connection of reading appearance 2, the setting of counter bore 152 is convenient for connecting rod 32 pass and spring 33's installation provides the space, and be convenient for connecting rod 32 to remove.
Referring to FIG. 4: the position department that the side of pressing from both sides the baffle 31 and keeping away from baffle 15 just to connecting rod 32 cuts threaded groove 311, the arc side of connecting rod 32 is close to the one end fixedly connected with screw thread that presss from both sides baffle 31, spring 33 has been put to the cover on the arc side of connecting rod 32, the one end of spring 33 and the fixed connection other end of pressing from both sides baffle 31 support and press in counter bore 152, the setting of threaded groove 311 is convenient for install connecting rod 32 screw thread at pressing from both sides baffle 31 with the screw-thread fit of connecting rod 32, the setting of spring 33 is convenient for utilize self elasticity to support and press from both sides baffle 31, make press from both sides baffle 31 and the cooperation of baffle 151 centre gripping other equipment data lines, and be convenient for press from both sides baffle 31 and do the removal of keeping away from baffle 151 under the effect of connecting rod 32.
Before using, at first with the side of installing at clamp guide 31 of spring 33 to install clamp guide 31 in spread groove 15, spring 33 installs in counter bore 152 simultaneously, pass counter bore 152 and with clamp guide 31 threaded connection with connecting rod 32 again, during the use, at first install the grafting of reading appearance 2 in installation mechanism 1, and make the data bayonet joint grafting installation inserting groove 14 of reading appearance 2 in, install the data line of other equipment respectively in different spread grooves 15 again, concrete step is: the connecting rod 32 is pulled out firstly, other equipment data wires are placed between the clamping guide plate 31 and the guide plate 151, and the clamping guide plate 31 and the guide plate 151 are tightly clamped with the data wires under the action of the spring 33 when the connecting rod 32 is released.
The above description is only a preferred embodiment of the present invention and is not intended to limit the present invention, and various modifications and changes may be made by those skilled in the art. Any modification, equivalent replacement, or improvement made within the spirit and principle of the present invention should be included in the protection scope of the present invention.
Claims (6)
1. The utility model provides a mounting structure is used in reading appearance data acquisition, includes reading appearance (2), its characterized in that: reading instrument (2) level is placed, the below level of reading instrument (2) is provided with installation mechanism (1), reading instrument (2) are located the inside and the plug-in connection of installation mechanism (1), the inside side level at reading instrument (2) of the last level side of installation mechanism (1) is provided with two coupling assembling (3), two coupling assembling (3) are placed along the length direction of installation mechanism (1), just two coupling assembling (3) symmetry installation, coupling assembling (3) are including pressing from both sides baffle (31), press from both sides baffle (31) vertical the placing, the side level that presss from both sides baffle (31) is provided with connecting rod (32), connecting rod (32) and clamp baffle (31) threaded connection, connecting rod (32) pass installation mechanism (1) and swing joint.
2. The mounting structure for data collection of the reading instrument according to claim 1, wherein one end of the two opposite vertical side surfaces of the reading instrument (2) close to the mounting mechanism (1) is fixedly connected with a clamping column (21) along the length direction of the reading instrument (2), one end of the two opposite vertical side surfaces of the reading instrument (2) far away from the mounting mechanism (1) is fixedly connected with a limiting column (22) vertically, and the limiting column (22) is made of rubber materials.
3. The mounting structure for data collection of a reading instrument according to claim 2, wherein the slot (11) is cut at a position where the upper horizontal side of the mounting mechanism (1) faces the reading instrument (2), and the connecting slot (15) is cut at a position where the upper horizontal side of the mounting mechanism (1) faces the vertical side of the two connecting members (3) at the side of the slot (11).
4. The mounting structure for data acquisition of the reading instrument according to claim 3, wherein a clamping groove (12) is horizontally cut at a position where the two opposite vertical side surfaces in the slot (11) are opposite to the clamping column (21), a limiting groove (13) is vertically cut at a position where the two opposite vertical side surfaces in the slot (11) are opposite to the limiting column (22), and a vertical side surface in the slot (11) is vertically inserted into the groove (14).
5. The mounting structure for data acquisition of the reading instrument according to claim 4, wherein the connecting groove (15) is a key structure, a guide plate (151) is fixedly connected to one end of the connecting groove (15) close to the slot (11) vertically, and a counter bore (152) is cut into the other end of the connecting groove (15) along a vertical tangent line of an arc-shaped side surface.
6. The mounting structure for data acquisition of the reading instrument according to claim 5, wherein a thread groove (311) is cut at a position where the side surface of the clamping guide plate (31) far away from the guide plate 15 is opposite to the connecting rod (32), a thread is fixedly connected to one end of the arc-shaped side surface of the connecting rod (32) close to the clamping guide plate (31), a spring (33) is sleeved on the arc-shaped side surface of the connecting rod (32), and one end of the spring (33) is fixedly connected with the clamping guide plate (31) and the other end is pressed in the counter bore (152).
