Abstract

The utility model discloses a stub bar finishing device in round-link chain production process, including a 匚-shaped bracket. Two 匚-shaped supports are arranged parallel to each other, an automatic combing mechanism is arranged above the 匚-shaped supports, and a material rod moving mechanism is arranged above the automatic combing mechanism. The utility model has the advantages that the material rods which are placed in a mixed and disorderly way can be automatically combed and tidied through the function of the automatic combing mechanism, thereby achieving the purpose of reducing the labor intensity; the effect through charge bar moving mechanism can remove the charge bar after the arrangement to holding in the case, saves the operation of artifical transport, promotes production efficiency by a wide margin.

Description

Material stick finishing device in round-link chain production process
Technical Field
The utility model relates to a round-link chain production technical field, more specifically say, relate to a charge bar finishing device in round-link chain production process.
Background
The production process of the round-link chain comprises the steps of straightening, cutting, forming and the like, wherein a section of material rods are required to be arranged and conveyed to a forming machine after cutting, the randomly arranged material rods are required to be combed manually on site, and then the material rods are placed in a designated containing box; the manual operation is not only large in labor amount, but also is relatively complex in operation and low in efficiency, and the production cost of the round-link chain is increased.
SUMMERY OF THE UTILITY MODEL
To above defect, the utility model provides a charge bar finishing device in round-link chain production process solves above-mentioned problem.
In order to achieve the above purpose, the utility model adopts the following technical scheme:
a material bar arranging device in the production process of a round-link chain comprises a v-shaped bracket, a v-shaped bracket and a v-shaped bracket, wherein the v-shaped bracket is provided with two brackets which are parallel to each other, an automatic carding mechanism is arranged above the v-shaped bracket, and a material bar moving mechanism is arranged above the automatic carding mechanism;
the automatic carding mechanism comprises a first bearing at two ends of a v-shaped support, a rotating roller is arranged on the inner ring of the first bearing, a transmission belt is arranged on the side surface of the rotating roller, a first one-way wheel i, 21274is arranged at one end of the rotating roller, an L-shaped support is arranged on one side of the v-shaped support, a diversion trench is arranged at the upper end of the L-shaped support, the first electromagnets are arranged at two sides of the v-shaped support, and the first electromagnets are parallel to each other; the lower end of the v-shaped bracket is provided with a double-shaft motor, the rotating end of the double-shaft motor is provided with a first gear, and the first gear is meshed with the first one-way wheel;
the material bar moving mechanism comprises a guide rail bracket at the upper end of a v-21274, a rectangular slide rail is mounted at the upper end of the guide rail bracket, a sliding block is mounted at the lower end of the rectangular slide rail, a threaded hole is formed in the center of the sliding block, two ends of the rectangular slide rail are provided with a second bearing, the inner ring of the second bearing is provided with a reciprocating lead screw meshed with the threaded hole, one end of the reciprocating lead screw is provided with a second one-way wheel, the other end of the double-shaft motor is provided with a belt pulley, and a transmission belt is mounted between the belt pulley and the second one-way wheel; the lower surface of the sliding block is provided with an electric telescopic rod, and the telescopic end of the electric telescopic rod is provided with a second electromagnet.
Furthermore, a rectangular groove is formed in the side surface of the transmission belt.
Furthermore, the lower end of the diversion trench is provided with a rectangular opening, one side of the rectangular opening is provided with a connecting rod, and one side of the electromagnet is provided with a baffle.
Furthermore, a travel switch is installed on one side of the electromagnet.
Furthermore, one side of the bracket is provided with a holding box.
The utility model has the advantages that: the material rods which are randomly placed can be automatically combed orderly under the action of the automatic combing mechanism, so that the aim of reducing labor intensity is fulfilled; the effect through charge bar moving mechanism can remove the charge bar after the arrangement to holding in the case, saves the operation of artifical transport, promotes production efficiency by a wide margin.
Drawings
Fig. 1 is a schematic structural diagram of a charge bar finishing device in the production process of a round-link chain of the utility model;
FIG. 2 is an enlarged schematic view of a rectangular slide rail;
FIG. 3 is a schematic top view of the electromagnet I;
FIG. 4 is a schematic top view of a rectangular port;

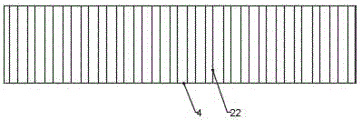

FIG. 5 is a schematic top view of the drive belt;
FIG. 6 is an enlarged schematic view of a dual-shaft motor;
in the figure, 1, 21274; a bracket; 2. a first bearing; 3. a rotating roller; 4. a drive belt; 5. a first unidirectional wheel; 6. an L-shaped bracket; 7. a diversion trench; 8. an electromagnet I; 9. a double-shaft motor; 10. a first gear; 11. a rail bracket; 12. a rectangular slide rail; 13. a slider; 14. a threaded hole; 15. a second bearing; 16. a reciprocating screw; 17. a second one-way wheel; 18. a belt pulley; 19. a transmission belt; 20. an electric telescopic rod; 21. an electromagnet II; 22. a rectangular groove; 23. a rectangular opening; 24. a connecting rod; 25. a travel switch; 26. a containing box; 27. and a baffle plate.
Detailed Description
The utility model is described in detail with the accompanying drawings, as shown in fig. 1-6, a material bar arrangement device in the production process of a round-link chain comprises a v-shaped support 1, a v-shaped support 1 and a v-shaped support 21274, wherein the v-shaped support 1 is provided with two parallel v-shaped supports 21274, an automatic carding mechanism is arranged above the v-shaped support 1, and a material bar moving mechanism is arranged above the automatic carding mechanism;
the automatic carding mechanism comprises a first bearing 2 at two ends of a v-shaped support 1, wherein a rotating roller 3 is arranged on the inner ring of the first bearing 2, a transmission belt 4 is arranged on the side surface of the rotating roller 3, a first one-way wheel 5, i-21274, is arranged at one end of the rotating roller 3, an L-shaped support 6 is arranged at one side of the v-shaped support 1, a diversion trench 7 and i-21274are arranged at the upper end of the L-shaped support 6, first electromagnets 8 are arranged at two sides of the v-shaped support 1, and the first electromagnets 8 are parallel to each other; the lower end of the bracket 1 is provided with a double-shaft motor 9, the rotating end of the double-shaft motor 9 is provided with a first gear 10, and the first gear 10 is meshed with a first one-way wheel 5;
the material bar moving mechanism comprises a guide rail bracket 11 at the upper end of a v-21274, a rectangular slide rail 12 is mounted at the upper end of the guide rail bracket 11, a sliding block 13 is mounted at the lower end of the rectangular slide rail 12, a threaded hole 14 is formed in the center of the sliding block 13, two ends of the rectangular slide rail 12 are provided with a second bearing 15, a reciprocating lead screw 16 meshed with the threaded hole 14 is mounted on the inner ring of the second bearing 15, one end of the reciprocating lead screw 16 is provided with a second one-way wheel 17, the other end of a double-shaft motor 9 is provided with a belt pulley 18, and a transmission belt 19 is mounted between the belt pulley 18 and the second one-way wheel 17; an electric telescopic rod 20 is installed on the lower surface of the sliding block 13, and a second electromagnet 21 is installed at the telescopic end of the electric telescopic rod 20.
The side surface of the transmission belt 4 is provided with a rectangular groove 22.
The lower end of the diversion trench 7 is provided with a rectangular opening 23, one side of the rectangular opening 23 is provided with a connecting rod 24, and one side of the electromagnet 8 is provided with a baffle 27.
One side of the second electromagnet 21 is provided with a travel switch 25.
21274the one side of the bracket 1 is provided with a holding box 26.
In the embodiment, the electric equipment of the equipment is controlled by an external controller, cut material rods roll on the upper surface of the transmission belt 4 through the diversion trench 7, and when the shorter material rods 7 pass through the diversion trench 7, the material rods fall out through gaps between the connecting rods 24 to realize the screening effect, the controller controls the double-shaft motor 9 to rotate forwards, at the moment, the first gear 10 drives the first one-way wheel 5 to rotate, and the second one-way wheel 17 does not transmit; the one-way wheel I5 drives the rotating roller 3 to rotate, the rotating roller 3 drives the material rods on the transmission belt 4 to gradually move towards one side of the baffle 27, when the material rods are fully paved on the upper surface of the transmission belt 4, the controller controls the double-shaft motor 9 to stop rotating, then the electromagnet I8 is controlled to be powered on, a magnetic field generated by the power-on of the electromagnet I8 can enable a plurality of material rods to be perpendicular to the electromagnet I8 along the direction of a magnetic induction line, the sorting effect is achieved, then the electromagnet I8 is powered off, and the material rods can fall into the rectangular groove 22;
then the controller controls the electric telescopic rod 20 to extend, the electric telescopic rod 20 drives the second electromagnet 21 to contact with the material rod, the extending distance of the electric telescopic rod 20 is controlled through the action of the travel switch 25, the second electromagnet 21 is electrified to suck the material rod, then the electric telescopic rod 20 is shortened, the controller controls the double-shaft motor 9 to rotate reversely, the double-shaft motor 9 drives the belt pulley 18 to rotate reversely, the belt pulley 18 drives the second one-way wheel 17 to rotate and drives the reciprocating lead screw 16 to rotate through the transmission of the transmission belt 19, at the moment, the first one-way wheel 5 does not rotate, the sliding block 13 and the electric telescopic rod 20 are driven by the rotation of the reciprocating lead screw 16 to move right above the containing box 26, then the electric telescopic rod 20 extends, a plurality of material rods are stably placed in the containing box 26, the distance of each extending of the electric telescopic rod 20 can be different through the action of the travel switch 25, and the actual working condition is met; then the electric telescopic rod 20 is shortened and reset, the double-shaft motor 9 rotates reversely again to drive the sliding block 13 to reset, and the purposes of automatically arranging and moving the material rods are achieved.
Above-mentioned technical scheme has only embodied the utility model discloses technical scheme's preferred technical scheme, some changes that this technical field's technical personnel probably made to some parts wherein have all embodied the utility model discloses a principle belongs to within the protection scope of the utility model.

Claims (5)

1. A material bar arranging device in the production process of a round-link chain comprises two v-shaped supports (1) and v-shaped supports (1) which are parallel to each other, and is characterized in that an automatic carding mechanism is arranged above the v-shaped supports (1) and a material bar moving mechanism is arranged above the automatic carding mechanism;
the automatic carding mechanism comprises a first bearing (2) at two ends of a first bearing (1), a rotating roller (3) is mounted on the inner ring of the first bearing (2), a transmission belt (4) is mounted on the side surface of the rotating roller (3), a first one-way wheel (5) and a first electromagnet (8) are mounted at one end of the rotating roller (3), an L-shaped support (6) is mounted at one side of the first bearing (1), a diversion trench (7) is mounted at the upper end of the L-shaped support (6), the 21274is arranged, first electromagnets (8) are mounted at two sides of the first bearing (1), and the first electromagnets (8) are parallel to each other; the lower end of the v-shaped bracket (1) is provided with a double-shaft motor (9), the rotating end of the double-shaft motor (9) is provided with a first gear (10), and the first gear (10) is meshed with a first one-way wheel (5);
the material bar moving mechanism comprises a guide rail support (11) at the upper end of a shaped support (1), a rectangular sliding rail (12) is mounted at the upper end of the guide rail support (11), a sliding block (13) is mounted at the lower end of the rectangular sliding rail (12), a threaded hole (14) is formed in the center of the sliding block (13), two ends of the rectangular sliding rail (12) are provided with a second bearing (15), a reciprocating lead screw (16) meshed with the threaded hole (14) is mounted on the inner ring of the second bearing (15), a second one-way wheel (17) is mounted at one end of the reciprocating lead screw (16), a belt pulley (18) is mounted at the other end of the double-shaft motor (9), and a transmission belt (19) is mounted between the belt pulley (18) and the second one-way wheel (17); sliding block (13) lower surface mounting has electric telescopic handle (20), and electric telescopic handle (20) flexible end installs electro-magnet two (21).
2. A material stick finishing device in the production process of a round-link chain according to claim 1, characterized in that the side surface of the transmission belt (4) is provided with a rectangular groove (22).
3. The material bar arranging device in the production process of the round-link chain according to claim 1, wherein the lower end of the diversion trench (7) is provided with a rectangular opening (23), one side of the rectangular opening (23) is provided with a connecting rod (24), and one side of the electromagnet (8) is provided with a baffle plate (27).
4. The material bar arranging device in the production process of the round-link chain according to claim 1, characterized in that a travel switch (25) is installed on one side of the second electromagnet (21).
5. The material rod arranging device in the production process of the round-link chain is characterized in that a containing box (26) is arranged on one side of the 21274H-shaped bracket (1).
