CN214684823U - Processing material conveying device of cutting machine

Info

Publication number: CN214684823U
Application number: CN202120468343.6U
Authority: CN
Inventors: 汪丽霞
Original assignee: Foshan Bart Machinery Technology Co ltd
Current assignee: Foshan Bart Machinery Technology Co ltd
Priority date: 2021-03-04
Filing date: 2021-03-04
Publication date: 2021-11-12
Anticipated expiration: 2031-03-04

Abstract

The utility model discloses a processing material conveyer of cutting machine, including the box, the box looks between the both sides inner wall and rotates through the bearing and be connected with two pivots, and pivot side outer wall is close to the equal key-type connection of both ends department and has the sprocket, and the transmission is connected with the chain between two adjacent sprockets, and installs the installation piece that is equidistant structural distribution through the bolt on the outer wall of chain one side, and the draw-in groove has been seted up to installation piece top outer wall one side, and draw-in groove bottom inner wall one side integrated into one piece has the boss, and the support piece of joint inside the draw-in groove has been cup jointed to the boss outside. The utility model discloses under the drive of sprocket and chain, can be so that support piece is at the inside motion of box, carry panel to the conveyer belt is the same to be convenient for install the laser cutting equipment on the base block and carry out continuous cutting to panel, thereby improve the machining efficiency to panel, the clamp plate pushes down the panel of placing on support piece, thereby avoids panel to take place to remove when the cutting, influences the machining efficiency of panel.

Description

Processing material conveying device of cutting machine

Technical Field

The utility model relates to a laser cutting machine technical field especially relates to a processing material conveyer of cutting machine.

Background

The laser cutting principle is that laser emitted from a laser passes through an optical path system and is focused into a high-power laser beam, the laser beam irradiates the surface of a workpiece, so that the workpiece reaches a boiling point, melted or gasified metal is blown away by adopting high-pressure gas, and a cutting gap is formed along with the movement of the relative position of the beam and the workpiece, so that the purpose of cutting is achieved, and the conveying device of the conventional cutting machine has the defects of large volume, unstable workpiece conveying, easiness in laser breakdown of the conveying device and the like.

At present, current laser cutting machine is when the cutting, can't cut panel in succession for the efficiency of panel cutting is relatively poor, and current laser cutting machine is when the cutting simultaneously, can't fix panel, makes panel very easily take place to rock when the cutting, influences laser cutting machine's cutting accuracy, consequently, need to design a processing material conveyer of cutting machine to solve above-mentioned problem urgently.

SUMMERY OF THE UTILITY MODEL

The utility model aims at solving the problem that the existing laser cutting machine in the prior art can not continuously cut and cut the plate and can not fix the plate, and providing a processing material conveying device of the cutting machine.

In order to achieve the above purpose, the utility model adopts the following technical scheme:

the utility model provides a processing material conveyer of cutting machine, includes the box, the box looks between the both sides inner wall to rotate through the bearing and is connected with two pivots, and pivot side outer wall is close to the equal key-type connection in both ends department and has the sprocket, adjacent two the transmission is connected with the chain between the sprocket, and installs the installation piece that is equidistance structural distribution through the bolt on the outer wall of one side of the chain, the draw-in groove has been seted up to installation piece top outer wall one side, and draw-in groove bottom inner wall one side integrated into one piece has the boss, the joint has cup jointed the support piece inside the draw-in groove outside the boss, set up the thread groove on the boss top outer wall, and the inside threaded connection of thread groove has the stop screw with support piece mutual contact.

Furthermore, a motor is installed on the outer wall of one side of the box body through a bolt, and one end of one rotating shaft is fixedly connected with an output shaft of the motor through a coupler.

Further, base blocks are installed on two sides of the outer wall of the top of the box body through bolts, and a base plate is installed on the outer wall of one side of each base block close to the top through bolts.

Furthermore, an electric push rod is installed on one side of the outer wall of the top of the base plate through a bolt, and a pressing plate is installed at the output end of the electric push rod through a bolt.

Furthermore, slide bars are installed on two sides of the outer wall of the bottom of the base plate through bolts and are in sliding connection with the pressing plate.

Furthermore, a groove is formed in the outer wall of one side of the box body, and sliding blocks which are fixedly connected with the box body are installed on the inner walls of the two sides of the groove through bolts.

Furthermore, the groove is internally inserted with a material collecting box which is connected with the sliding block in a sliding manner, and the outer wall of one side of the material collecting box is provided with a handle through a bolt.

The utility model has the advantages that:

1. through the chain and the chain wheel that set up, when using this conveying equipment to carry panel, under the drive of chain wheel and chain, can be so that support piece moves in the box inside, carry panel to the conveyer belt is the same to be convenient for install the laser cutting equipment on the base block and carry out continuous cutting to panel, thereby improve the machining efficiency to panel.

2. Through the clamp plate that sets up, when installing the cutting equipment cutting on this conveying equipment, the staff can start electric putter for the clamp plate moves about on the slide bar, thereby makes the clamp plate push down the panel of placing on support piece, thereby avoids panel to take place to remove when the cutting, influences the machining efficiency of panel.

3. Through the material collecting box who sets up, when using this equipment to cut panel, the waste residue that the cutting produced can fall into the material collecting box through the gap between the support piece to be convenient for follow-up staff collects the waste residue, so that reduce the waste to the resource.

Drawings

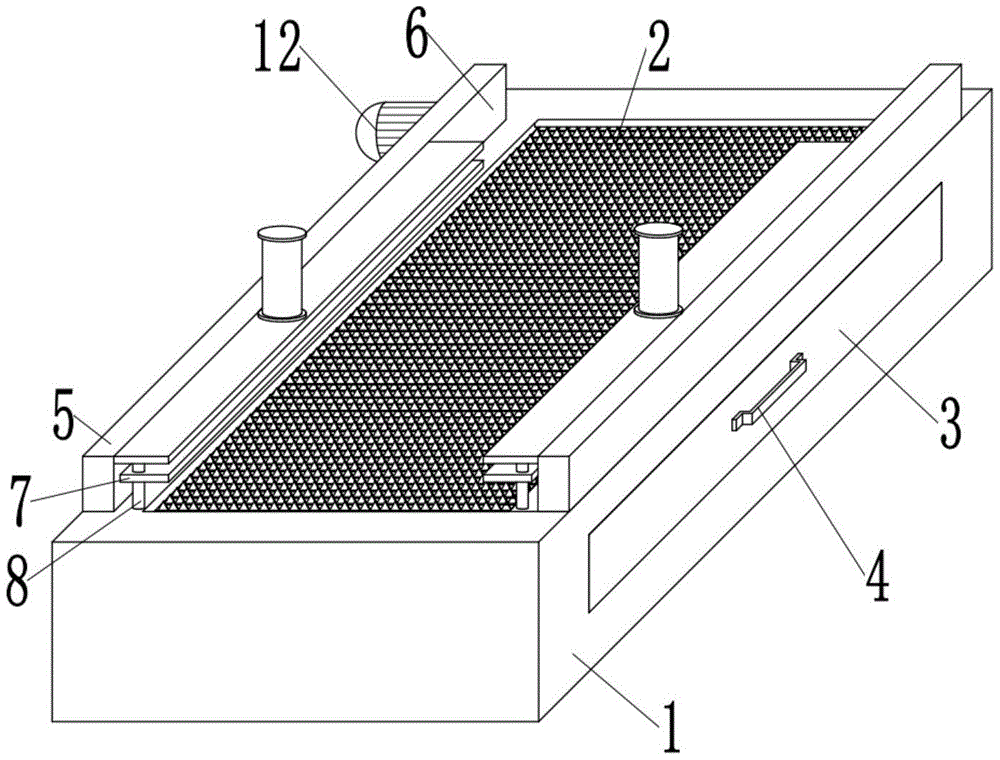

Fig. 1 is a schematic front view of a processing material conveying device of a cutting machine according to the present invention;

fig. 2 is a schematic structural view of a box body of a processing material conveying device of the cutting machine according to the present invention;

fig. 3 is a sectional view of a box structure of a processing material conveying device of a cutting machine according to the present invention;

fig. 4 is a schematic structural diagram of a of the processing material conveying device of the cutting machine according to the present invention.

In the figure: the device comprises a box body 1, a support piece 2, a material collecting box 3, a handle 4, a base block 5, a base plate 6, a sliding rod 7, a pressing plate 8, an electric push rod 9, a groove 10, a sliding block 11, a motor 12, a chain wheel 13, a rotating shaft 14, a chain 15, a mounting block 16, a clamping groove 17, a thread groove 18, a limiting screw 19 and a boss 20.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

It will be understood that when an element is referred to as being "secured to" another element, it can be directly on the other element or intervening elements may also be present. When a component is referred to as being "connected" to another component, it can be directly connected to the other component or intervening components may also be present. When a component is referred to as being "disposed on" another component, it can be directly on the other component or intervening components may also be present. The terms "vertical," "horizontal," "left," "right," and the like as used herein are for illustrative purposes only.

Unless defined otherwise, all technical and scientific terms used herein have the same meaning as commonly understood by one of ordinary skill in the art to which this invention belongs. The terminology used in the description of the invention herein is for the purpose of describing particular embodiments only and is not intended to be limiting of the invention. As used herein, the term "and/or" includes any and all combinations of one or more of the associated listed items.

Referring to fig. 1 to 4, a machining material conveying device of a cutting machine includes a box body 1, two rotating shafts 14 are rotatably connected between inner walls of two opposite sides of the box body 1 through bearings, the rotating shafts 14 are convenient for mounting chain wheels 13, the outer wall of the side surface of each rotating shaft 14 is connected with the chain wheels 13 near two ends in a key connection manner, the chain wheels 13 are convenient for mounting chains 15, the chains 15 are in transmission connection with the two adjacent chain wheels 13, the chains 15 are convenient for mounting supporting members 2, so that plates can move on the box body 1, mounting blocks 16 distributed in an equidistant structure are mounted on the outer wall of one side of each chain 15 through bolts, a clamping groove 17 is formed in one side of the outer wall of the top of each mounting block 16, a boss 20 is integrally formed on one side of the inner wall of the bottom of the clamping groove 17, the boss 20 is convenient for positioning the supporting members 2 when the supporting members 2 are placed inside the clamping grooves 17, the supporting members 2 clamped inside the clamping grooves 17 are sleeved outside the boss 20, and the supporting members 2 are convenient for placing plates on the device, thread groove 18 is formed in the outer wall of the top end of boss 20, limiting screw 19 is convenient to mount through thread groove 18, limiting screw 19 in mutual contact with supporting piece 2 is connected to the inner portion of thread groove 18 in a threaded mode, and limiting screw 19 is convenient to limit supporting piece 2 mounted inside clamping groove 17.

Further, a motor 12 is installed on the outer wall of one side of the box body 1 through a bolt, the type of the motor 12 is preferably 57CM23 and is used for providing power for the rotation of the chain 15, and one end of one rotating shaft 14 is fixedly connected with an output shaft of the motor 12 through a coupler.

Further, base block 5 is all installed through the bolt in 1 top outer wall both sides of box, and 5 slide rail formulas on the base block can install laser cutting equipment, and base block 5 one side outer wall is close to top department and installs base plate 6 through the bolt, and base plate 6 is convenient for install electric putter 9 and clamp plate 8.

Further, an electric push rod 9 is installed on one side of the outer wall of the top of the base plate 6 through a bolt, the type of the electric push rod 9 is preferably TOMUU-U7, the electric push rod 8 is used for pressing the plate on the supporting piece 2, the pressing plate 8 is installed at the output end of the electric push rod 9 through a bolt, and the pressing plate 8 presses the plate under the action of the electric push rod 9, so that the plate is limited.

Further, slide bars 7 are installed on two sides of the outer wall of the bottom of the base plate 6 through bolts, the slide bars 7 are convenient to guide when the pressing plate 8 moves, and the slide bars 7 are in sliding connection with the pressing plate 8.

Further, the outer wall of one side of the box body 1 is provided with a groove 10, the groove 10 is convenient for mounting the material collecting box 3 on the box body 1, the inner walls of two sides of the groove 10 are respectively provided with a sliding block 11 which is fixedly connected with the box body 1 through bolts, and the sliding block 11 is convenient for mounting the material collecting box 3.

Further, the material collecting box 3 which is connected to the sliding block 11 in a sliding mode is inserted into the groove 10, waste residues generated when the cutting equipment cuts the plates are convenient to collect by the material collecting box 3, the handle 4 is installed on the outer wall of one side of the material collecting box 3 through the bolt, and the working personnel can pull out the material collecting box 3 by the handle 4 to process the waste residues collected inside the material collecting box 3.

The working principle is as follows: when the laser cutting device is used, a worker can install the laser cutting device on the two base blocks 5, then the worker places a plurality of plates on the support piece 2, the plates are placed on the support piece 2 at intervals, then the worker can start the motor 12, the rotating shaft 14 drives the chain wheel 13 to rotate, the chain 13 moves, the chain 13 drives the support piece 2 to move, so that the plates can move to the laser cutting device, then when the plates move to the cutting device, the worker can start the electric push rod 9 to enable the pressing plate 8 to slide on the sliding rod 7, so that the pressing plate 8 presses the plates, the phenomenon that when the cutting device cuts the plates, the plates are shaken to enable the plates to be cut to be staggered is avoided, then after one plate is cut, the electric push rod 9 can be lifted, the motor 12 can be started again, so that the support piece 2 moves the unprocessed plates to the position of the cutting device to be processed, meanwhile, the processed plate can be taken down by workers, and meanwhile, when the plate is processed by cutting equipment, the waste residues falling off when the plate is cut can be collected by the material collecting box 3, so that the waste residues can be conveniently treated by the following workers.

The above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.

Claims

1. A processing material conveying device of a cutting machine comprises a box body (1) and is characterized in that, two rotating shafts (14) are rotatably connected between the inner walls of two opposite sides of the box body (1) through bearings, the outer wall of the side surface of the rotating shaft (14) is connected with chain wheels (13) by keys at two ends, a chain (15) is connected between two adjacent chain wheels (13) in a transmission way, and the outer wall of one side of the chain (15) is provided with mounting blocks (16) which are distributed in an equidistant structure through bolts, one side of the outer wall of the top of each mounting block (16) is provided with a clamping groove (17), a boss (20) is integrally formed on one side of the inner wall of the bottom of the clamping groove (17), a supporting piece (2) clamped in the clamping groove (17) is sleeved outside the boss (20), a thread groove (18) is formed in the outer wall of the top end of the boss (20), and a limit screw (19) which is mutually contacted with the supporting piece (2) is connected in the thread groove (18) by screw thread.

2. The machining material conveying device of the cutting machine as claimed in claim 1, wherein the motor (12) is mounted on the outer wall of one side of the box body (1) through a bolt, and one end of one rotating shaft (14) is fixedly connected with an output shaft of the motor (12) through a coupler.

3. The machining material conveying device of the cutting machine is characterized in that base blocks (5) are installed on two sides of the outer wall of the top of the box body (1) through bolts, and a base plate (6) is installed on the outer wall of one side of each base block (5) close to the top through bolts.

4. The machining material conveying device of the cutting machine as claimed in claim 3, wherein an electric push rod (9) is mounted on one side of the outer wall of the top of the base plate (6) through a bolt, and a pressing plate (8) is mounted at the output end of the electric push rod (9) through a bolt.

5. The machining material conveying device of the cutting machine as claimed in claim 3, wherein sliding rods (7) are mounted on two sides of the outer wall of the bottom of the base plate (6) through bolts, and the sliding rods (7) are connected with the pressing plate (8) in a sliding mode.

6. The machining material conveying device of the cutting machine as claimed in claim 1, wherein a groove (10) is formed in the outer wall of one side of the box body (1), and sliding blocks (11) fixedly connected with the box body (1) are mounted on the inner walls of two sides of the groove (10) through bolts.

7. The machining material conveying device of the cutting machine as claimed in claim 6, wherein the groove (10) is internally inserted with a material collecting box (3) which is slidably connected to the sliding block (11), and a handle (4) is mounted on the outer wall of one side of the material collecting box (3) through a bolt.
