Abstract
The utility model discloses a belt cleaning device suitable for color-coated sheet production belongs to color-coated sheet production technical field, and it includes the casing, the left surface fixedly connected with decoiler of casing, decoiler's surface is provided with color-coated sheet body, the right-hand member of color-coated sheet body pass the casing respectively with the opposite face overlap joint of two extrusion wheels, two pulley settings in the through-hole of seting up at the casing left surface, shells inner wall's lower surface and the bottom fixed connection of bracing piece, the top of bracing piece and the positive swing joint of the extrusion wheel that is located the below. This belt cleaning device suitable for color-coated sheet production through setting up transport mechanism, electric putter and pulley for this belt cleaning device can wash the color-coated sheet body when uncoiling the color-coated sheet body, has ensured this belt cleaning device's suitability, and has improved the associativity between the equipment when handling the color-coated sheet body, has effectively improved the efficiency when handling the color-coated sheet body.
Description
Technical Field
The utility model belongs to the technical field of the production of color-coated sheet, specifically be a belt cleaning device suitable for the production of color-coated sheet.
Background
The color-coated sheet is a coated product obtained by coating an organic material on a thin steel sheet, has light weight, attractive appearance and good corrosion resistance, can be directly processed, provides a novel raw material for the building industry, the furniture industry, the electrical industry and the like, has the advantages of replacing wood with steel, high-efficiency construction and good effects of preventing pollution and the like, and at present, the color-coated sheet is often required to be cleaned, dried, coated and the like when being processed, so that a worker needs to transport the color-coated sheet among a plurality of devices to carry the color-coated sheet.
SUMMERY OF THE UTILITY MODEL
Technical problem to be solved
In order to overcome prior art's above-mentioned defect, the utility model provides a belt cleaning device suitable for production of color-coated sheet, solved because add man-hour to the color-coated sheet, often need wash the color-coated sheet, complicated supplies and demands such as stoving and coating, make the staff need transport the color-coated sheet and carry the color-coated sheet between a plurality of equipment, and current color-coated sheet belt cleaning device function is comparatively single, lead to the staff when using, often need open a book the color-coated sheet in advance, lead to the associativity greatly reduced between the equipment, be difficult to effectively quick wash the problem of processing to the color-coated sheet.
(II) technical scheme
In order to achieve the above object, the utility model provides a following technical scheme: a cleaning device suitable for color-coated sheet production comprises a shell, wherein the left side surface of the shell is fixedly connected with an uncoiling device, the outer surface of the uncoiling device is provided with a color-coated sheet body, the right end of the color-coated sheet body passes through the shell and is respectively lapped with the opposite surfaces of the two extrusion wheels, the two pulleys are arranged in a through hole arranged on the left side surface of the shell, the lower surface of the inner wall of the shell is fixedly connected with the bottom end of the supporting rod, the top end of the supporting rod is movably connected with the front surface of the extrusion wheel positioned below, the lower surface of the inner wall of the shell is fixedly connected with an electric push rod, the bottom end of the electric push rod is movably connected with the front surface of the extrusion wheel positioned above, the front surface of the extrusion wheel positioned below is in transmission connection with a transmission mechanism through a transmission gear and a transmission belt, the front surface of the conveying mechanism is fixedly connected with a transmission gear, and the outer surface of the transmission gear is in transmission connection with the inner wall of the conveying belt.
As a further aspect of the present invention: the front surface of the transmission gear is movably connected with the back surface of the inner wall of the support frame, the lower surface of the support frame is fixedly connected with the upper surface of the treatment box, and the lower surface of the treatment box is fixedly connected with the lower surface of the inner wall of the shell.
As a further aspect of the present invention: the lower surface of the inner wall of the treatment box is fixedly connected with a water pump, a water outlet of the water pump is communicated with the left end of a water discharge pipe, and the other end of the water discharge pipe is communicated with the top ends of two sprinkling pipes respectively.
As a further aspect of the present invention: the water inlet of drain pipe is linked together with the right-hand member of drinking-water pipe, the other end of drinking-water pipe is linked together with the storage water tank and handles the case respectively, the front of storage water tank and the back fixed connection of casing.
As a further aspect of the present invention: the upper surface fixed connection of casing has drive device, drive device passes through the rotary mechanism of joint at the casing upper surface and the top fixed connection of cleaning brush.
As a further aspect of the present invention: the inner wall of the treatment box is fixedly connected with the outer surface of the filter plate.
(III) advantageous effects
Compared with the prior art, the beneficial effects of the utility model reside in that:
1. the cleaning device suitable for color-coated sheet production is provided with the conveying mechanism, the extruding wheel, the conveying belt, the transmission gear, the electric push rod and the pulley, when the conveying mechanism is started, the transmission gear can be driven by the conveying mechanism to slowly rotate, the extruding wheel can synchronously rotate under the rotation of the transmission gear, when a worker uses the cleaning device, the color-coated sheet body is only required to be installed in the uncoiling device, then the conveying mechanism, the driving device and the water pump are started, the color-coated sheet body can run along the conveying mechanism, the driving device and the water pump can spray water in the water storage tank and the treatment tank onto the surface of the color-coated sheet body while cleaning the color-coated sheet body through the cleaning brush, so that the cleaning device can clean the color-coated sheet body while uncoiling the color-coated sheet body, the applicability of the cleaning device is ensured, and the relevance between devices when the color-coated sheet body is treated is improved, the efficiency of when handling color-coated sheet body has effectively been improved.
2. The cleaning device suitable for color-coated sheet production is provided with the electric push rod and the extrusion wheels, when an operator needs to use the cleaning device, the operator only needs to install the color-coated sheet body in the uncoiling device and then slowly pull out one end of the color-coated sheet body, at the moment, one end of the color-coated sheet body can pass through the space between the two pulleys on the left side of the shell, then one end of the color-coated sheet body is clamped between the two extrusion wheels, at the moment, the operator can start the electric push rod to enable the extrusion wheels above the electric push rod to be in contact with the upper surface of the color-coated sheet body and extrude the color-coated sheet body, when the operator starts the conveying mechanism, the extrusion wheels slowly rotate, at the moment, the color-coated sheet body moves towards the right side, and in the moving process, the color-coated sheet body is always in contact with the extrusion wheels, so as to uncoil the color-coated sheet body, and clean the color-coated sheet body synchronously, the applicability of the cleaning device is improved.
3. This belt cleaning device suitable for color-coated sheet production, through setting up the filter, when the staff uses this belt cleaning device to clear up the color-coated sheet body, the water stain on color-coated sheet body surface will be at the high-speed pivoted effect of cleaning brush under the drip and handle the incasement, this moment because the gravity of liquid, make water pass the filter and drop and handle the incasement, and dust and impurity during the clearance will be remain in the filter top, make that the staff can be convenient filter the water after the washing, thereby this belt cleaning device's environmental protection effect has been improved, and when using this belt cleaning device, the waste of water resource has been reduced.
Drawings

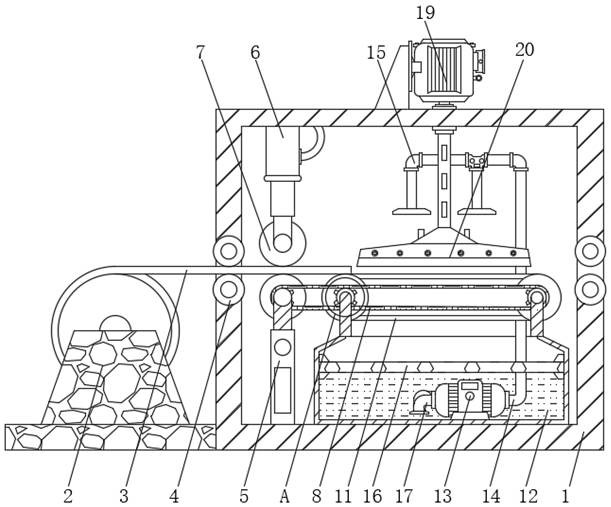

Fig. 1 is a schematic front view of a cross-sectional structure of the present invention;
fig. 2 is a schematic structural view of the casing of the present invention from above;
fig. 3 is an enlarged schematic structural view at a position a of the present invention;
in the figure: the cleaning brush comprises a shell 1, an uncoiling device 2, a color coating plate body 3, a pulley 4, a support rod 5, an electric push rod 6, an extrusion wheel 7, a conveyor belt 8, a transmission gear 9, a support frame 10, a conveying mechanism 11, a treatment box 12, a water pump 13, a water discharge pipe 14, a water spray pipe 15, a filter plate 16, a water suction pipe 17, a water storage tank 18, a driving device 19 and a cleaning brush 20.
Detailed Description
The technical solution of the present patent will be described in further detail with reference to the following embodiments.
As shown in fig. 1-3, the utility model provides a technical solution: a cleaning device suitable for color-coated sheet production comprises a shell 1, wherein the left side surface of the shell 1 is fixedly connected with an uncoiling device 2, the outer surface of the uncoiling device 2 is provided with a color-coated sheet body 3, the right end of the color-coated sheet body 3 passes through the shell 1 and is respectively lapped with the opposite surfaces of two extrusion wheels 7, two pulleys 4 are arranged in a through hole formed in the left side surface of the shell 1, the lower surface of the inner wall of the shell 1 is fixedly connected with the bottom end of a supporting rod 5, the top end of the supporting rod 5 is movably connected with the front surface of the extrusion wheel 7 positioned below, the lower surface of the inner wall of the shell 1 is fixedly connected with an electric push rod 6, the bottom end of the electric push rod 6 is movably connected with the front surface of the extrusion wheel 7 positioned above, the front surface of the extrusion wheel 7 positioned below is in transmission connection with a transmission mechanism 11 through a transmission gear 9 and a transmission belt 8, the front surface of the transmission mechanism 11 is fixedly connected with a transmission gear 9, the surface of drive gear 9 is connected with the inner wall transmission of conveyer belt 8, through setting up transport mechanism 11, electric putter 6 and pulley 4 for this belt cleaning device can wash color-coated sheet body 3 when opening a book color-coated sheet body 3, has ensured this belt cleaning device's suitability, and has improved the associativity between the equipment when handling color-coated sheet body 3, has effectively improved the efficiency when handling color-coated sheet body 3.
Specifically, as shown in fig. 1, the front surface of the transmission gear 9 is movably connected with the back surface of the inner wall of the support frame 10, the lower surface of the support frame 10 is fixedly connected with the upper surface of the treatment box 12, the lower surface of the treatment box 12 is fixedly connected with the lower surface of the inner wall of the casing 1, the lower surface of the inner wall of the treatment box 12 is fixedly connected with the water pump 13, because the water pump 13 is arranged, when the operator uncoils the color-coated sheet body 3, the water pump 13 can spray water on the surface of the color-coated sheet body 3, so as to clean the color-coated sheet body 3, the applicability of the cleaning device is improved, the water outlet of the water pump 13 is communicated with the left end of the drain pipe 14, the other end of the drain pipe 14 is respectively communicated with the top ends of the two sprinkling pipes 15, because the cleaning brush 20 is arranged, and when the cleaning brush 20 is operated, the cleaning device can effectively treat impurities adhered to the surface of the color-coated sheet body 3, improved this belt cleaning device and to the abluent efficiency of color-coated sheet body 3, the last fixed surface of casing 1 is connected with drive arrangement 19, because of being provided with electric putter 6 and extrusion wheel 7, when the staff starts transport mechanism 11, extrusion wheel 7 will slowly rotate, color-coated sheet body 3 will remove to the right side this moment, and at the in-process that removes, have all the time with extrusion wheel 7 with the contact of color-coated sheet body 3, thereby open a book in step color-coated sheet body 3 and wash, this belt cleaning device's suitability has been improved, drive arrangement 19 passes through the rotary mechanism of joint at casing 1 upper surface and the top fixed connection of cleaning brush 20.
Specifically, as shown in fig. 1 and 2, the water inlet of the water discharge pipe 14 is communicated with the right end of the water discharge pipe 17, the other end of the water discharge pipe 17 is communicated with the water storage tank 18 and the treatment tank 12 respectively, and the filter plate 16 is arranged, so that the water after cleaning can be conveniently filtered by workers, the environmental protection effect of the cleaning device is improved, and when the cleaning device is used, the waste of water resources is reduced, the front surface of the water storage tank 18 is fixedly connected with the back surface of the shell 1, and the inner wall of the treatment tank 12 is fixedly connected with the outer surface of the filter plate 16.
The utility model discloses a theory of operation does:
s1, when the color-coated sheet winding device is used, a worker only needs to install the color-coated sheet body 3 in the unwinding equipment 2 and then slowly pull out one end of the color-coated sheet body 3, at the moment, one end of the color-coated sheet body 3 can pass through the space between the two pulleys 4 on the left side of the shell 1, at the moment, one end of the color-coated sheet body 3 is clamped between the two extrusion wheels 7, and at the moment, the worker can start the electric push rod 6;
s2, when the worker fixes the color-coated sheet body 3 through the extrusion wheel 7, the worker can start the transmission mechanism 11, when the transmission mechanism 11 is started, the transmission gear 9 is driven by the transmission mechanism 11 to rotate slowly, and the extrusion wheel 7 is driven by the transmission gear 9 to rotate synchronously, so that when the worker uses the cleaning device, the worker only needs to install the color-coated sheet body 3 in the uncoiling device 2, then the transmission mechanism 11, the driving device 19 and the water pump 13 are started, the color-coated sheet body 3 runs along the transmission mechanism 11, and the water pump 13 sprays water in the water storage tank 18 and the treatment tank 12 on the surface of the color-coated sheet body 3 while the driving device 19 cleans the color-coated sheet body 3 through the cleaning brush 20;
s3, when the cleaning device is started by a worker, the cleaning device sprays water in the treatment tank 12 in the water storage tank 18 onto the surface of the color-coated plate body 3, and the color-coated plate body 3 is cleaned by the cleaning brush 20, water stains on the surface of the color-coated plate body 3 can drip in the treatment tank 12 under the action of high-speed rotation of the cleaning brush 20, at the moment, due to the gravity of liquid, the water passes through the filter plate 16 and falls in the treatment tank 12, dust and impurities in the cleaning process can be reserved above the filter plate 16, the worker can conveniently filter the cleaned water, the environment-friendly effect of the cleaning device is improved, and when the cleaning device is used, the possibility of water resource waste is reduced.
In the description of the present invention, it is to be noted that, unless otherwise explicitly specified or limited, the terms "mounted," "connected," and "connected" are to be construed broadly, and may be, for example, fixedly connected, detachably connected, or integrally connected; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meaning of the above terms in the present invention can be understood by those of ordinary skill in the art through specific situations.
Although the preferred embodiments of the present patent have been described in detail, the present patent is not limited to the above embodiments, and various changes can be made without departing from the spirit of the present patent within the knowledge of those skilled in the art.
Claims (6)
1. The utility model provides a belt cleaning device suitable for color-coated sheet production, includes casing (1), its characterized in that: the left side surface of the shell (1) is fixedly connected with an uncoiling device (2), the outer surface of the uncoiling device (2) is provided with a color-coated plate body (3), the right end of the color-coated plate body (3) penetrates through the shell (1) to be respectively lapped with the opposite surfaces of two extrusion wheels (7), two pulleys (4) are arranged in a through hole formed in the left side surface of the shell (1), the lower surface of the inner wall of the shell (1) is fixedly connected with the bottom end of a supporting rod (5), the top end of the supporting rod (5) is movably connected with the front surface of the extrusion wheel (7) positioned below, the lower surface of the inner wall of the shell (1) is fixedly connected with an electric push rod (6), the bottom end of the electric push rod (6) is movably connected with the front surface of the extrusion wheel (7) positioned above, and the front surface of the extrusion wheel (7) positioned below is in transmission connection with a conveying mechanism (11) through a transmission gear (9) and a conveyor belt (8), the front surface of the conveying mechanism (11) is fixedly connected with a transmission gear (9), and the outer surface of the transmission gear (9) is in transmission connection with the inner wall of the conveying belt (8).
2. The cleaning device for color-coated sheet production according to claim 1, wherein: the front surface of the transmission gear (9) is movably connected with the back surface of the inner wall of the support frame (10), the lower surface of the support frame (10) is fixedly connected with the upper surface of the treatment box (12), and the lower surface of the treatment box (12) is fixedly connected with the lower surface of the inner wall of the shell (1).
3. A cleaning device suitable for color-coated sheet production according to claim 2, characterized in that: the lower surface of the inner wall of the treatment box (12) is fixedly connected with a water pump (13), a water outlet of the water pump (13) is communicated with the left end of a water drainage pipe (14), and the other end of the water drainage pipe (14) is respectively communicated with the top ends of two sprinkling pipes (15).
4. A cleaning device suitable for color-coated sheet production according to claim 3, wherein: the water inlet of drain pipe (14) is linked together with the right-hand member of drinking-water pipe (17), the other end of drinking-water pipe (17) is linked together with storage water tank (18) and treatment case (12) respectively, the front of storage water tank (18) and the back fixed connection of casing (1).
5. The cleaning device for color-coated sheet production according to claim 1, wherein: the upper surface of casing (1) fixed connection has drive device (19), drive device (19) are through the rotary mechanism of joint at casing (1) upper surface and the top fixed connection of cleaning brush (20).
6. A cleaning device suitable for color-coated sheet production according to claim 3, wherein: the inner wall of the treatment box (12) is fixedly connected with the outer surface of the filter plate (16).
